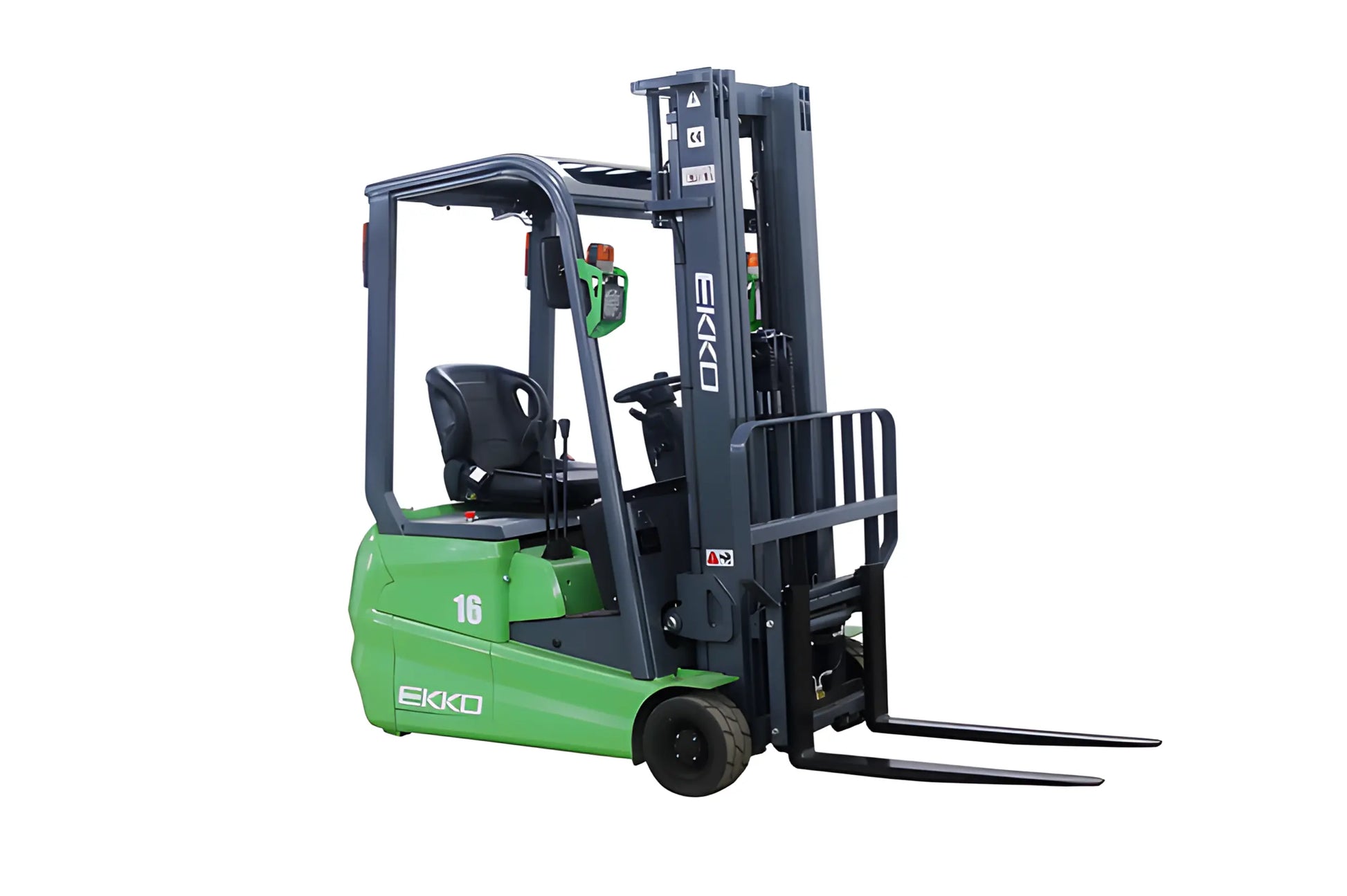

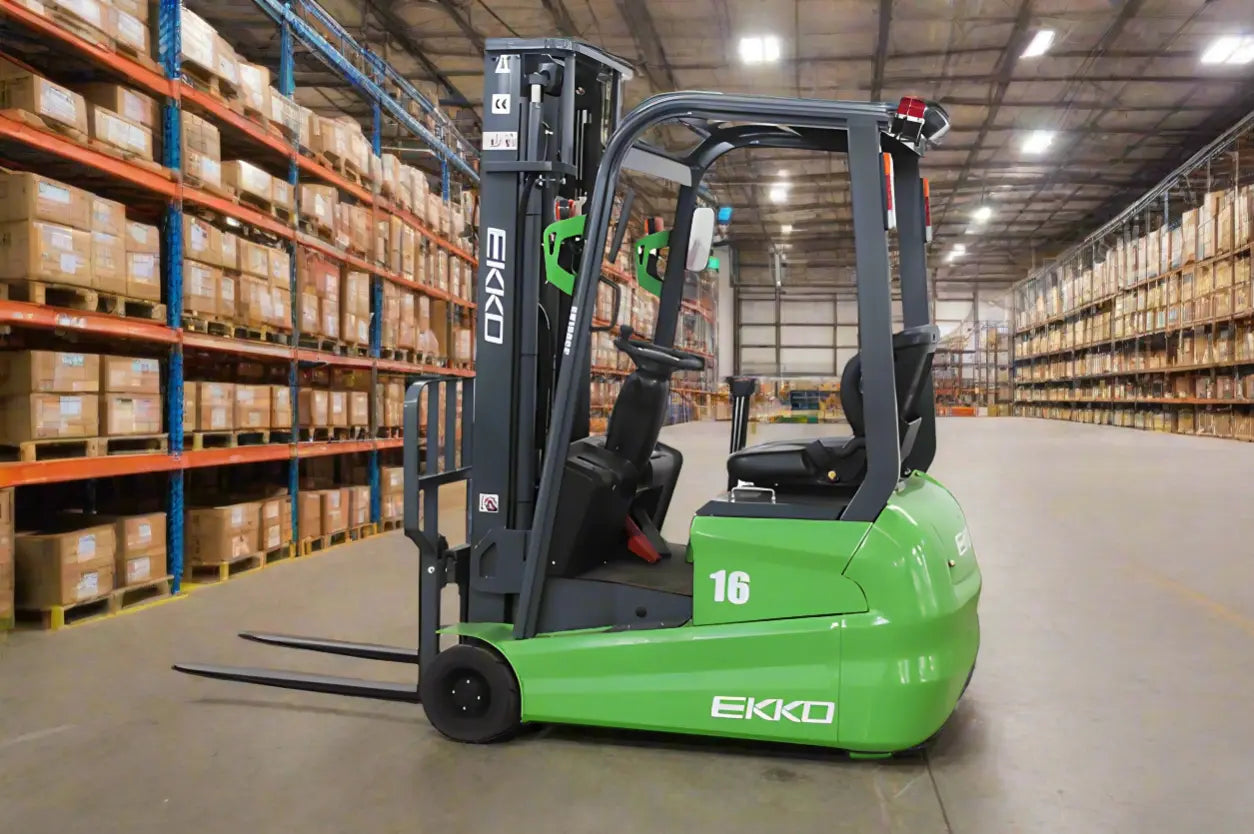

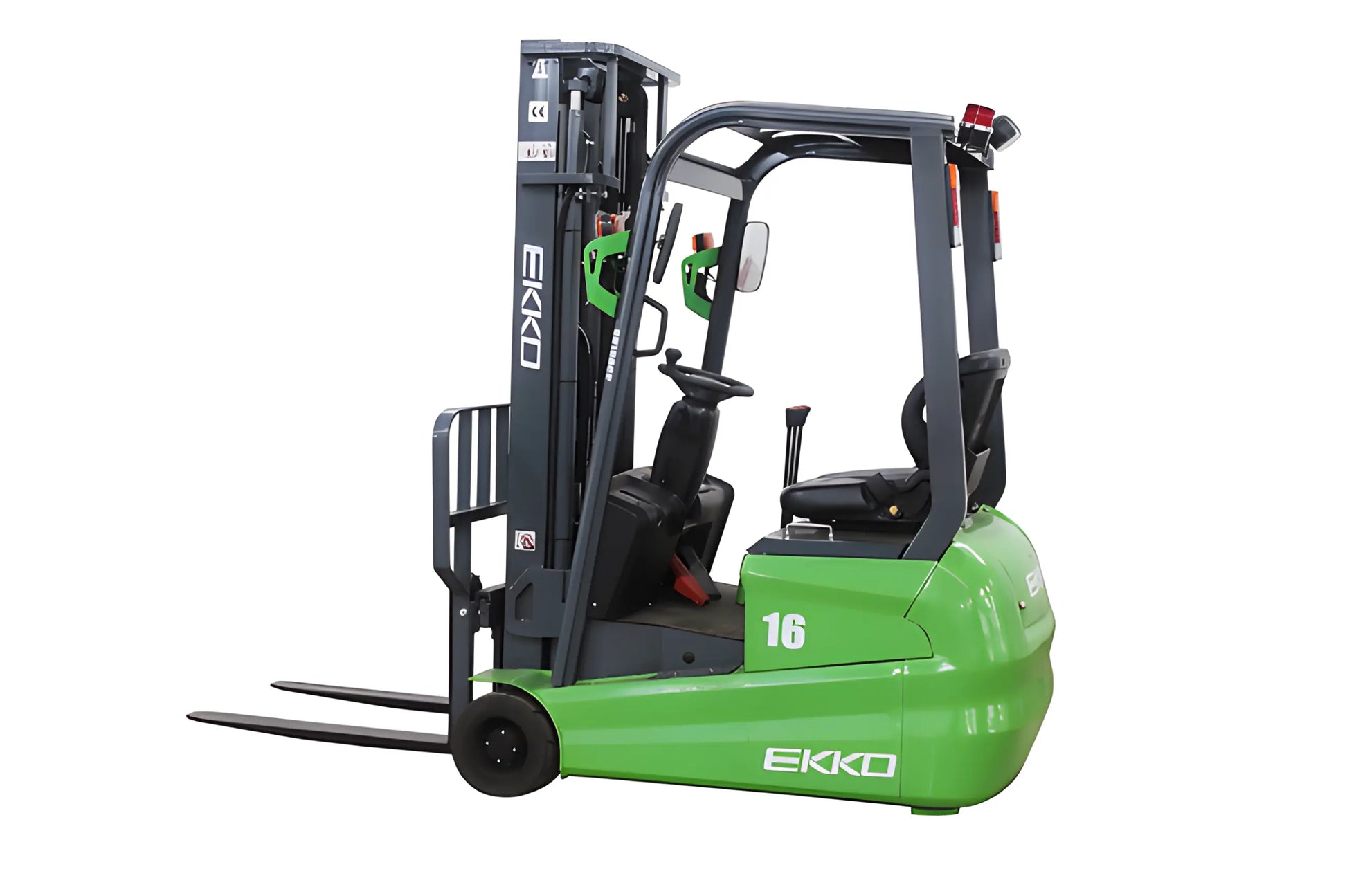

EKKO EK16A-189Li | Electric Forklift | 3500 lbs 189" Lift

See more by EKKO

$1,349.95 Off Limited time deal

$26,999.00

$26,999.00 - $26,999.00

$26,999.00

$25,649.05

$25,649.05 - $25,649.05

$25,649.05

In stock

SKU EK16A-189Li

Quantity

Product Overview

In short

The EKKO EK16A-189Li is a 3,500 lb capacity electric forklift built for narrow aisles and tight warehouse spaces, with a maximum lift height of 189 inches. It runs on a 24V AC drive motor paired with a 24V/200Ah lithium battery for reliable indoor material handling performance.

The EKKO EK16A-189Li 3-wheel Lithium Battery Electric Forklift is a powerful and space-saving material handling solution that can be used in warehouses, manufacturing floors, loading docks, stock rooms, etc. It has a 3500lb load capacity and the ability to lift up to 189 inches of product which makes it perfect for stacking pallets in narrow aisle ways or in high racking environments. The EK16A-189Li was built using a heavy duty steel frame with robotic welds so that you get a very durable and smooth operating forklift. The 24v AC drive motor, 3.3kW lift motor and Zapi controller will give you all the responsiveness you need when controlling your forklift and the most efficient operation possible. Cushion tires and Hydraulic Power Steering are both standard features to help you maneuver around your warehouse easily. The Lithium-Ion battery pack and charger that come with this unit are already charged and ready to go as soon as you take delivery, and they also come with a 3 year limited warranty for your protection.

The key features of the EKKO EK16A-189Li are:

3500lb Load Capacity - Ideal for lifting and stacking in a medium-duty application.
189inches Max Lift Height - Perfect for reaching those hard to reach pallets.
Long Run Times - The lithium-ion battery system provides 24V/200Ah of run time.
Smooth Handling - The Hydraulic Power Steering (HPS) and Zapi controller provide a very smooth and controlled ride.
Versatile Load Sizes - The adjustable forks (7.9-26inches) allow you to use this forklift with a variety of different load sizes.

Specification Table

EK16A-189Li · Electric ForkliftSKU EK16A-189Li
Drive Type	Lithium Forklift
Type of Operation	Rider
Load Capacity	3,500 lbs
Load Center Distance	24 in
Service Weight	5,300 lbs
Wheel Base	49.2 in
Lifting Height	189 in
Free Lifting Height	31.5 in
Lowered Mast Height	84.75 in
Side Shifting Forks	Yes
Overall Length	65 in
Overall Width	42.1 in
Fork Size (Thick/Width/Length)	1.4 / 4 / 42.1 in
Fork Adjust Width	7.9 - 26 in
Turning Radius	58.9 in
Gradient Performance (Laden/Unladen)	6 / 10 %
Lift Speed (Laden/Unladen)	4.71 / 10.2 in/s
Lowering Speed (Laden/Unladen)	11.8 / 15.7 in/s
Charger	24V / 50A
Driving Motor	AC
Lifting Motor	3.3 kW
Tilt (Forward/Backward)	3° / 6°
Battery	24V / 200Ah Lithium
Lift Type	Electric
Maximum Lift Height	189 in
Free Lift Height	31.5 in
Fork Size (Thick/W/L)	1.4 / 4 / 42.1 in
Fork Adjustable Width	7.9–26 in
Max Gradient Performance (Laden/Unladen)	6% / 10%
Tires	Cushion

FAQ about this model

What is the maximum load capacity and lift height of the EK16A-189Li?

This forklift is rated for 3,500 lbs at a 24 in load center, with a maximum lift height of 189 in. Free lift height is 31.5 in, and lowered mast height is 84.75 in. Check your rack beam heights and aisle clearance against these figures before ordering.

What kind of battery and charger does this forklift use?

It runs on a 24V / 200Ah lithium battery with a 24V / 50A charger. The lifting motor is 3.3 kW and the drive motor is AC. No details on charge time or cycle life are listed in the specs, so plan charging around your shift schedule accordingly.

Will this forklift fit through our warehouse aisles and doorways?

Overall length is 65 in, overall width is 42.1 in, and the turning radius is 58.9 in. Wheel base is 49.2 in. Compare these against your narrowest aisle and doorway widths, since turning radius affects how much clearance you need to maneuver and stack.

Does it come with side shift and adjustable forks?

Yes, side shifting forks are included. Forks measure 1.4 in thick, 4 in wide, and 42.1 in long, with an adjustable width range of 7.9 to 26 in, so you can match fork spacing to different pallet or load types.

How fast does the mast lift and lower, and what grades can it handle?

Lift speed is 4.71 in/s laden and 10.2 in/s unladen; lowering speed is 11.8 in/s laden and 15.7 in/s unladen. Gradient performance is 6% laden and 10% unladen. Tilt range is 3° forward and 6° backward.

What is the service weight and tire type, and does that matter for our floors?

Service weight is 5,300 lbs, and it runs on cushion tires. Cushion tires are suited to smooth indoor surfaces like finished concrete; if your site has rough or outdoor terrain, factor that in since the specs don't list an alternate tire option for this model.

Compare models

	3500 Electric Forklift lbs	3500 Electric Forklift lbs THIS
Capacity	3500 (lb)	3,500 lbs
Dimensions	1.4/4/42.1 in	1.4 / 4 / 42.1 in
Forks	1.4/4/42.1 (in)	7.9 - 26 in
Lift Height	138 (in)	189 in
Price	$23,999.00 $22,799.05	$26,999.00 $25,649.05
	Check ›	Viewing

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
