Electric Counterbalance | 4400 lbs | Eoslift CPDS 20 EOSLift

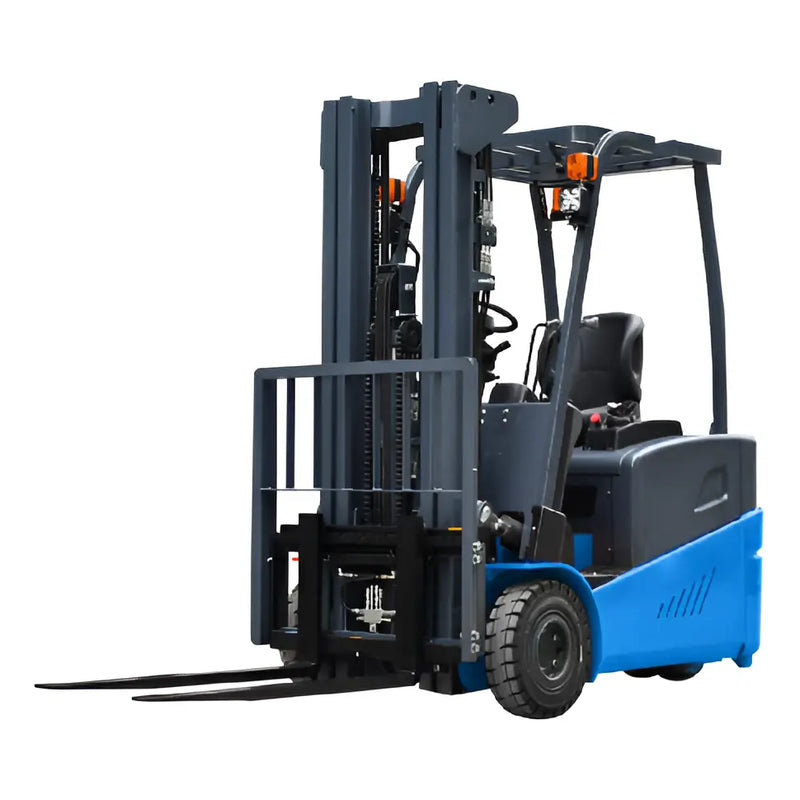

Eoslift CPDS20 Electric Counterbalance Forklift – 4,409 lb, 118" Lift Height

See more by EOSLift

$39,738.74 - $45,742.81

$39,738.74

$39,738.74 - $45,742.81

$39,738.74

In stock

SKU CPDS 20 Duplex

Order today, approve freight before it ships. $0 freight at checkout — we email your exact quote for approval; full refund if you don’t accept it.

Questions or bulk orders? Call sales +1 (307) 441-5529

Quantity

Product Overview

In short

The Eoslift CPDS20 is a 3-wheel electric counterbalance forklift designed for efficient indoor material handling. Powered by a 48V/490Ah battery, it offers a robust 4,409 lb rated capacity and a maximum lift height of 118.11 inches. Its compact design ensures excellent stability and maneuverability, with a turning radius of 65.35 inches, making it ideal for various warehouse environments.

The Eoslift CPDS 20 electric Counter Balance forklift has been designed as an efficient tool for moving materials in warehouses, manufacturing plants, and distribution centers. It is powered by a rechargeable battery and is capable of supporting a maximum load weight of approximately 4400 pounds (approximately 2000 kilograms). The electric motor provides quiet, smooth operation; and emission-free operation, while providing the same stability as its IC engine counterpart, and ergonomic controls to allow for long hours of usage.

Features:

• 4400 lb Load Weight – Offers a versatility in that it can support substantial loads up to approximately 4400 lbs (2000 kg) for a variety of industrial uses.
• Electric Powered Rechargeable Battery – Clean and quiet operation, with zero emissions from local exhaust; ideal for all indoor use.
• Sturdy Counterbalanced Configuration – Four-wheel counterbalanced design offers greater stability, better load control and improved load balance when fully loaded.
• Ergonomically Designed Operator Comfort – Includes a comfortable operator seat and easy-to-use controls to help minimize operator fatigue over long shift periods.
• Solid Rubber Tires/Pneumatic Tire Options – Offered in either solid rubber or pneumatic tire options depending upon your needs; to provide reliable traction and mobility on various surface types.

Specification Table

Eoslift CPDS20 Electric Counterbalance Forklift – 4,409 lb, 118" L
Model	CPDS20
Power Type	Battery
Operation Type	Driving Style
Rated Capacity	4409.24 lbs. 3527.39 lbs.
Load Center	19.68 in.
Wheelbase	58.26 in.
Service Weight (inc. battery)	7054.79 lbs. 6724.09 lbs.
Wheel Type	Solid Rubber Tires
Load Wheel	15x 4.5-8 in.
Drive Wheel	17.9x 7-10 18x7-8 in.
Number of Wheels, front/rear   (x=drive wheel)	2x/2
Wheel Tread, load side	7.08
Tilting	6/6/
Mast Closed Height	78.54 in.

FAQ about this model

How much can the Eoslift CPDS20 lift?

The CPDS20 is rated at 4,409.24 lb at a 19.68 in. load center. Our product data also lists a second rated capacity of 3,527.39 lb, which applies to an alternate configuration of the truck, so confirm which build you are quoting. Usable capacity falls as the load's center of gravity moves further out from the fork face.

What are the mast heights, and will it fit in my building?

Closed mast height is 78.54 in. and the truck lifts to 118 in. Measure your lowest doorway, trailer opening and sprinkler clearance against the 78.54 in. closed height, since that is the space the mast occupies when lowered. The wheelbase is 58.26 in. Free-lift and extended mast height are not listed in this data.

How much does the truck weigh, and does that matter for my floors?

Service weight including the battery is 7,054.79 lb, with 6,724.09 lb listed for the alternate configuration. A counterbalance forklift weighs more than the load it carries, which is normal. Check your floor slab, mezzanine, dock plate and any elevator ratings against the service weight plus the load before putting the truck into service.

What powers it, and can I run it indoors?

Power type is battery, so this is an electric truck with no engine exhaust — the usual reason buyers choose it over an LPG or diesel unit. Battery voltage, amp-hour capacity, charger type and run time per charge are not stated in this product data, so request those figures before you plan your charging area.

What tires does it have, and what surfaces does it suit?

It rides on solid rubber tires, with two drive wheels at the front and two wheels at the rear. Load wheels are listed at 15x4.5-8 in. and drive wheels at 17.9x7-10 and 18x7-8 in. Solid rubber suits smooth, maintained surfaces such as concrete warehouse floors, not mud, gravel or broken yard ground.

How is it operated, and who can drive it?

Operation type is listed as driving style, meaning the operator rides on the truck rather than walking behind it. Mast tilt is listed as 6/6, forward and back. In the United States, OSHA requires employers to train and evaluate operators of powered industrial trucks before those operators use the equipment on the job.

Compare models

	CPDS16 Eoslift Electric Counterbalance	CPDS20 Eoslift Electric Counterbalance THIS
Capacity	4409.24 lbs. 3527.39 lbs.	4409.24 lbs. 3527.39 lbs.
Load Center	19.68 in.	19.68 in.
Load Wheel	15x 4.5-8 in.	15x 4.5-8 in.
Mast Closed Height	78.54 in.	78.54 in.
Price	$38,537.21	$39,738.74
	Check ›	Viewing

Specs from Amulet manufacturer data. Prices update live and reflect current promotions.
