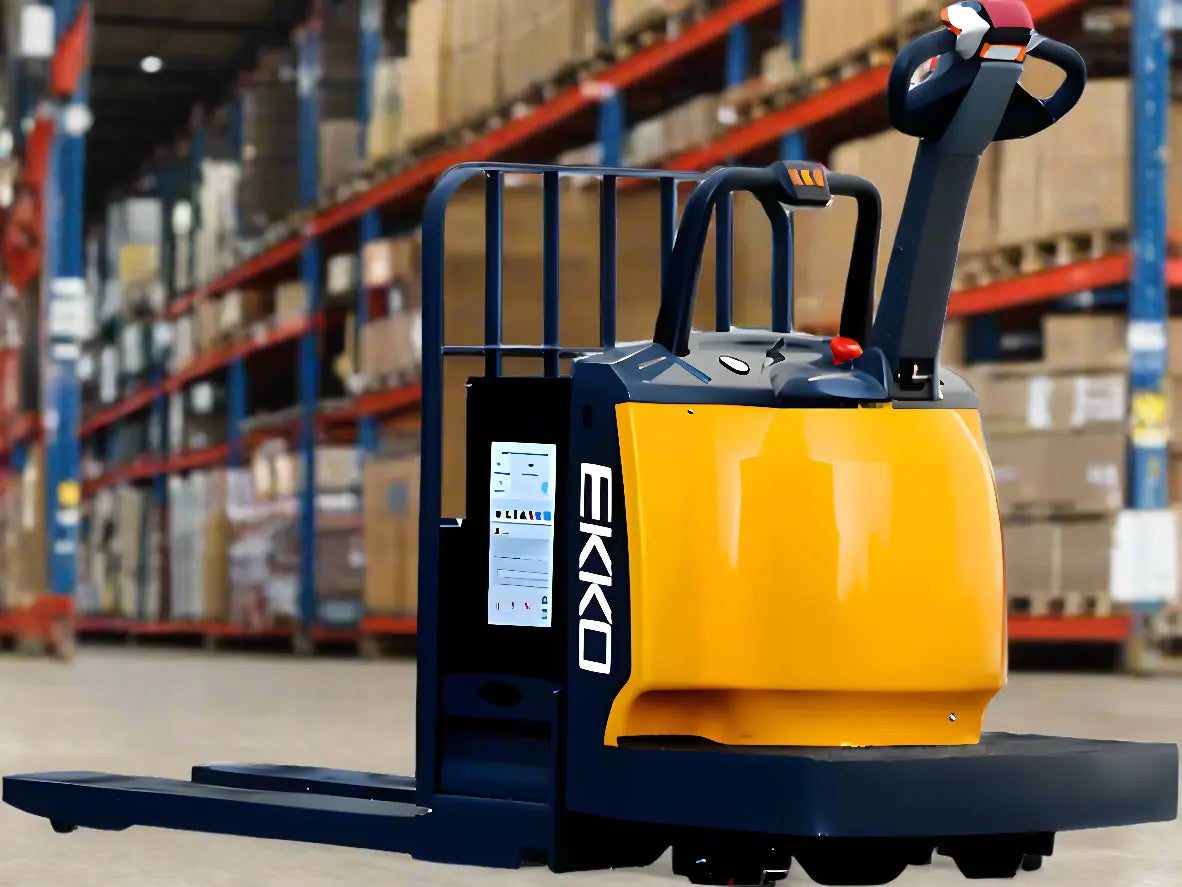

EKKO EP30A electric pallet truck in yellow and black with ergonomic handle and safety features

EKKO EP30A electric pallet jack in warehouse with yellow and black body for heavy lifting

EKKO EP30A electric pallet jack with 6600 lbs capacity and electromagnetic braking

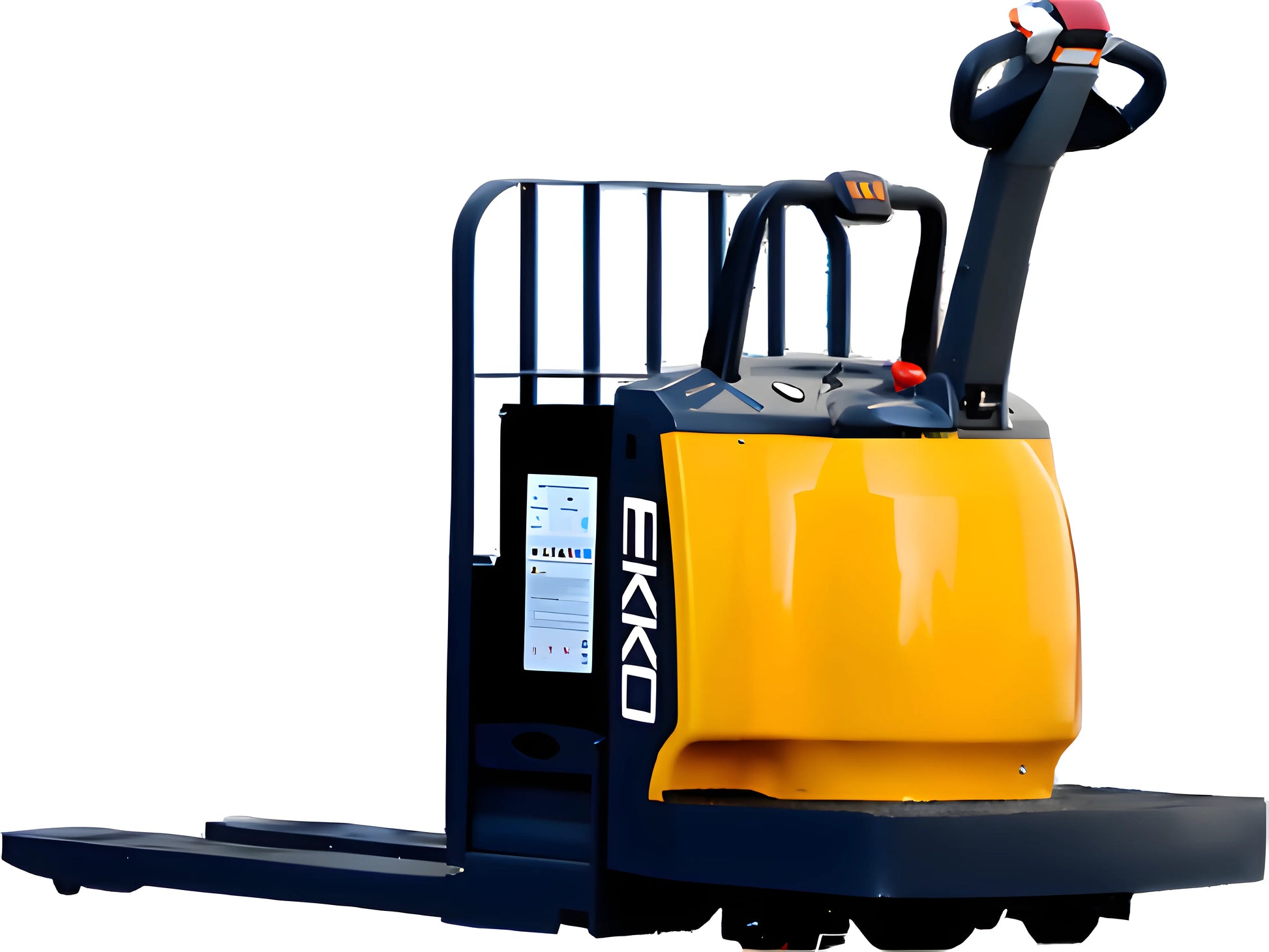

EKKO EP30A electric pallet jack with yellow body and ergonomic handle for efficient material handling

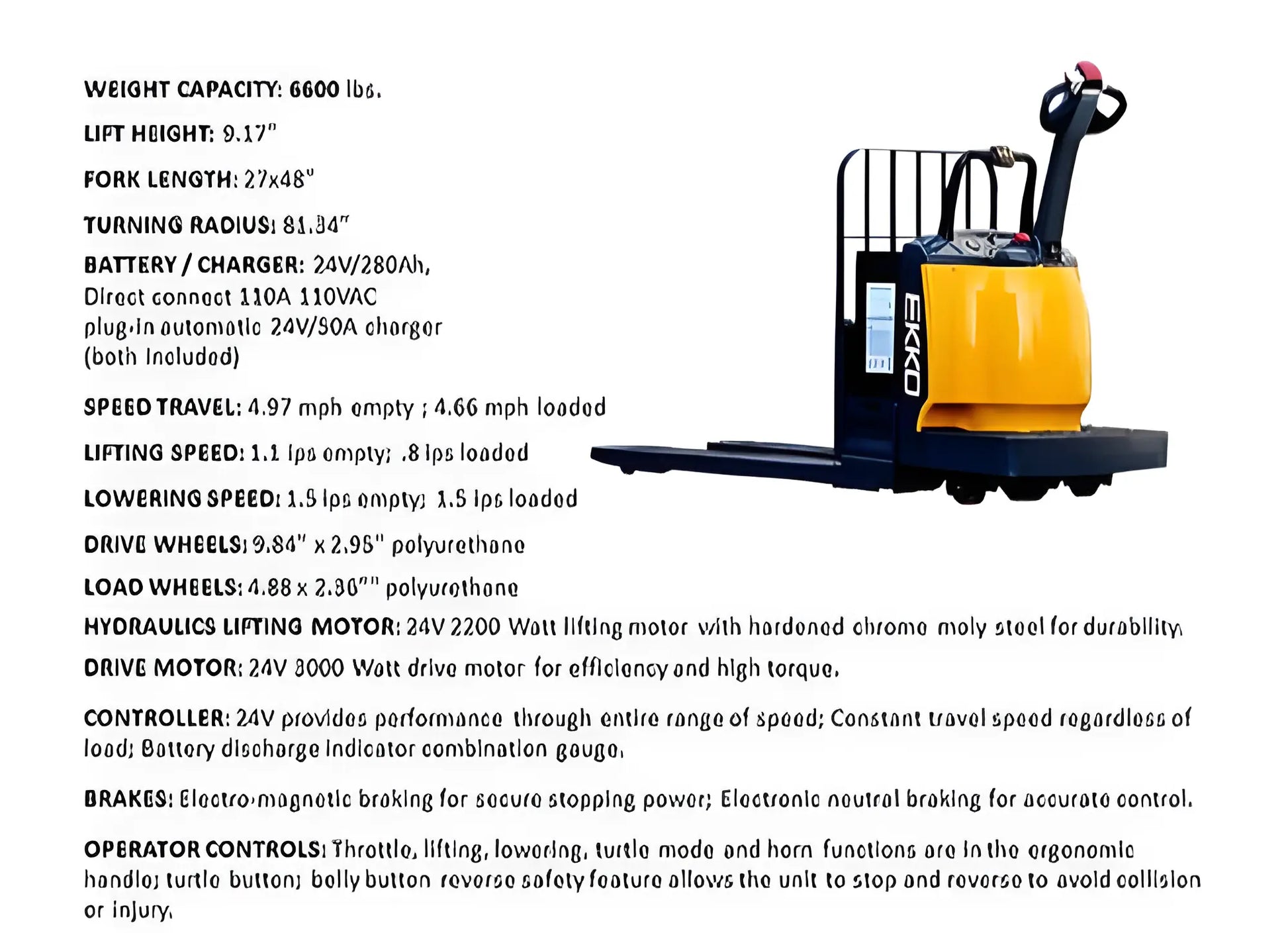

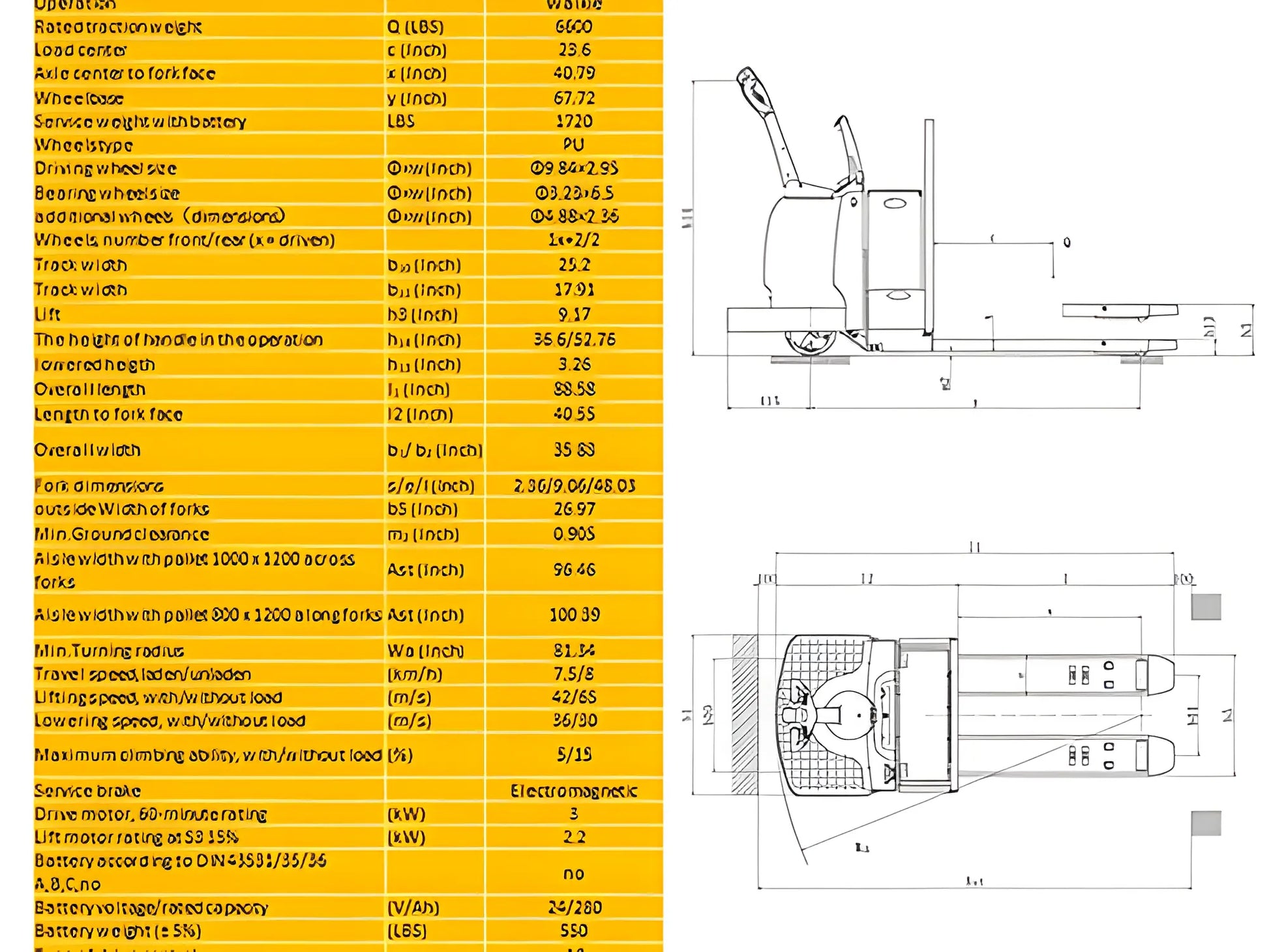

Technical specifications and dimensional drawings of EKKO EP30A electric pallet truck

EKKO EP30A | Rider Pallet Truck | with 6600 lb Load Capacity

Q: How much can the EKKO EP30A carry, and at what load center?

Rated load capacity is 6,600 lbs (3,000 kg) at a load center of 23.62 in. The load center is measured from the fork face to the center of gravity of the load, so a pallet loaded evenly within that distance is what the rating assumes. Loads stacked unevenly or extending farther out reduce the weight the truck can safely handle.

Q: What are the fork dimensions, and will they fit my pallets?

Each fork is 9.06 in wide and 48.03 in long, with an outer width across both forks of 26.77 in. Forks sit 3.27 in off the floor when lowered and rise to 9.06 in. Measure your pallet openings, entry height and stringer spacing against these figures before ordering, since pallet construction varies by supplier.

Q: How much floor space does the EP30A need?

Overall dimensions are 88.11 in long, 35.12 in wide and 56.69 in high. The 88.11 in length is the figure that matters most in tight aisles and inside trailers, since the truck is a rider unit with an operator platform. No turning radius or minimum aisle width is published in these specifications, so confirm clearances against your own layout.

Q: What are the operating limits for temperature, lighting and ramps?

The EP30A is rated for +41°F to +104°F and requires at least 50 lux of illumination at the work area. Operation on slopes is prohibited, so it is intended for flat, level surfaces only. That makes it suited to indoor warehouse floors, distribution centers and level dock areas rather than yards, ramps or cold storage.

Q: What safety systems does it have?

The truck includes emergency reverse, an emergency stop, brake override and a turtle (reduced) speed mode. Turtle speed is useful in congested aisles and when entering trailers. Note that OSHA classifies rider pallet trucks as powered industrial trucks, which means operators must be trained and evaluated before use regardless of the safety features fitted to the machine.

Q: Who is this truck for, and who should look at something else?

It suits horizontal pallet movement over distance: dock-to-stock workflow, staging and order consolidation in warehouses and distribution centers. Because the operator rides rather than walks, it reduces fatigue on long runs and improves throughput. It is not a stacker; forks raise only to 9.06 in, and lifting is slow at 0.03 m/s, intended for pallet transport rather than racking.

See more by EKKO

$679.90 Off Limited time deal

$13,598.00

$13,598.00 - $13,598.00

$13,598.00

$12,918.10

$12,918.10 - $12,918.10

$12,918.10

In stock

SKU EP30A

Quantity

Product Overview

In short

The EKKO EP30A is a full electric rider pallet truck built for material handling in warehouses, distribution centers, and loading docks. It carries a rated load capacity of 6,600 lb (3,000 kg) and features a raised fork height of 9.06 in, making it suited for long-distance pallet transport, staging, and dock-to-stock workflows.

This EKKO Rider Pallet Truck model was developed to assist with both the moving of large quantities of products quickly through warehouses/distribution centers/loading docks and the transportation of heavy pallets on a regular basis. The truck has a 6600 pound load capacity which will allow it to support many different types of heavy pallet loads; therefore, providing the ability to move materials efficiently throughout the warehouse or other facility. The design as a rider will reduce the amount of time that operators have to walk while operating the vehicle and will help to provide them with less fatigue when working extended hours. This unit is designed for maximum stability and safety. It provides smooth acceleration and controlled braking and will maintain its performance at all times in the most active work areas. Its rugged construction and ease of operation by the operator makes it perfect for use in staging areas, loading trailers and quick pallet transfers. Overall, this unit is a great option for customers who are looking for reliable productivity and the ability to move pallets in their warehouse effectively.

Key Features

• 6600 lb Load Capacity to meet the needs of heavy-duty pallet transport applications

• Rider Style Increases Productivity While Operating Over Long Distances

• Smooth Acceleration/Controlled Braking Provides Safe/Stable Handling of Products

• Durable Heavy Duty Construction to Meet the Needs of Demanding Warehouse/Dock Use

• Operator Friendly Controls Provide Comfort and Precise Maneuverability

Specification Table

EP30A · Full Electric Pallet TruckSKU EP30A
Rated Load Capacity	6,600 lbs
Load Center	23.62 in
Fork Length	48.03 in
Fork Outer Width	26.77 in
Fork Width	9.06 in
Lowered Fork Height	3.27 in
Raised Fork Height	9.06 in
Lifting Speed	0.03 m/s
Lowering Speed	0.04 m/s
Overall Length	88.11 in
Overall Width	35.12 in
Overall Height	56.69 in
Bolt/Nut Grade	8.8
Operating Temperature Range	+41°F to +104°F
Minimum Operating Illumination	50 lux
Operation on Slopes	Prohibited
Noise Level	< 70 dB(A)
Safety Systems	Emergency reverse, emergency stop, brake override, turtle speed
Brand / Model	EKKO EP30A
Operator Type	Rider (Ride-On)
Power Source	Electric
Load Capacity	6600 lb (3000 kg)
Drive System	Electric Drive
Lift System	Electric Lift
Primary Applications	Warehouses, Distribution Centers, Loading Docks
Best Use Case	Long-distance pallet transport, staging, dock-to-stock workflow
Key Benefits	Reduced fatigue, improved throughput, stable handling

FAQ about this model

How much can the EKKO EP30A carry, and at what load center?

Rated load capacity is 6,600 lbs (3,000 kg) at a load center of 23.62 in. The load center is measured from the fork face to the center of gravity of the load, so a pallet loaded evenly within that distance is what the rating assumes. Loads stacked unevenly or extending farther out reduce the weight the truck can safely handle.

What are the fork dimensions, and will they fit my pallets?

Each fork is 9.06 in wide and 48.03 in long, with an outer width across both forks of 26.77 in. Forks sit 3.27 in off the floor when lowered and rise to 9.06 in. Measure your pallet openings, entry height and stringer spacing against these figures before ordering, since pallet construction varies by supplier.

How much floor space does the EP30A need?

Overall dimensions are 88.11 in long, 35.12 in wide and 56.69 in high. The 88.11 in length is the figure that matters most in tight aisles and inside trailers, since the truck is a rider unit with an operator platform. No turning radius or minimum aisle width is published in these specifications, so confirm clearances against your own layout.

What are the operating limits for temperature, lighting and ramps?

The EP30A is rated for +41°F to +104°F and requires at least 50 lux of illumination at the work area. Operation on slopes is prohibited, so it is intended for flat, level surfaces only. That makes it suited to indoor warehouse floors, distribution centers and level dock areas rather than yards, ramps or cold storage.

What safety systems does it have?

The truck includes emergency reverse, an emergency stop, brake override and a turtle (reduced) speed mode. Turtle speed is useful in congested aisles and when entering trailers. Note that OSHA classifies rider pallet trucks as powered industrial trucks, which means operators must be trained and evaluated before use regardless of the safety features fitted to the machine.

Who is this truck for, and who should look at something else?

It suits horizontal pallet movement over distance: dock-to-stock workflow, staging and order consolidation in warehouses and distribution centers. Because the operator rides rather than walks, it reduces fatigue on long runs and improves throughput. It is not a stacker; forks raise only to 9.06 in, and lifting is slow at 0.03 m/s, intended for pallet transport rather than racking.

Compare models

	6600 Rider Pallet Truck with THIS	6600 Lithium Rider Pallet Truck	4000 Curtis Controller Lithium Electric	Stainless Steel Manual Pallet	4000 Full Electric Narrow Pallet
Lowered Fork Height	3.27 in	3.27 in	3.3 (in)	2.95 in	Stable Fork Lift and Smooth Travel Performance
Overall Width	35.12 in	35.12 in	2/6/48 s/e/l (in)	Stable Lifting and Smooth Lowering Control	3.35 h13 (Inch)
Forks	48.03 in	48.03 in	4000 (lb)	48 in	22 b1/ b2 (Inch)
Price	$13,598.00 $12,918.10	$14,108.00 $13,402.60	$4,588.00 $4,358.60	$2,038.00 $1,936.10	$2,888.00 $2,743.60
	Viewing	Check ›	Check ›	Check ›	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@vovlift.com

More information on shipping and returns can be found here.

Warranty

EKKO 3-Year Limited Warranty. EKKO covers the frame, forks and mast for three (3) years. Electrical and drive components — including the transmission, weldments, traction motor, steering (SBW) motor and decoders, wheel controller and charger — are covered for one (1) year. Where equipped, lithium battery packs carry a five (5) year warranty against defects. Warranty excludes normal wear and tear, abuse, improper storage and labor.

Documents

EKKO EP30A User's Manual
