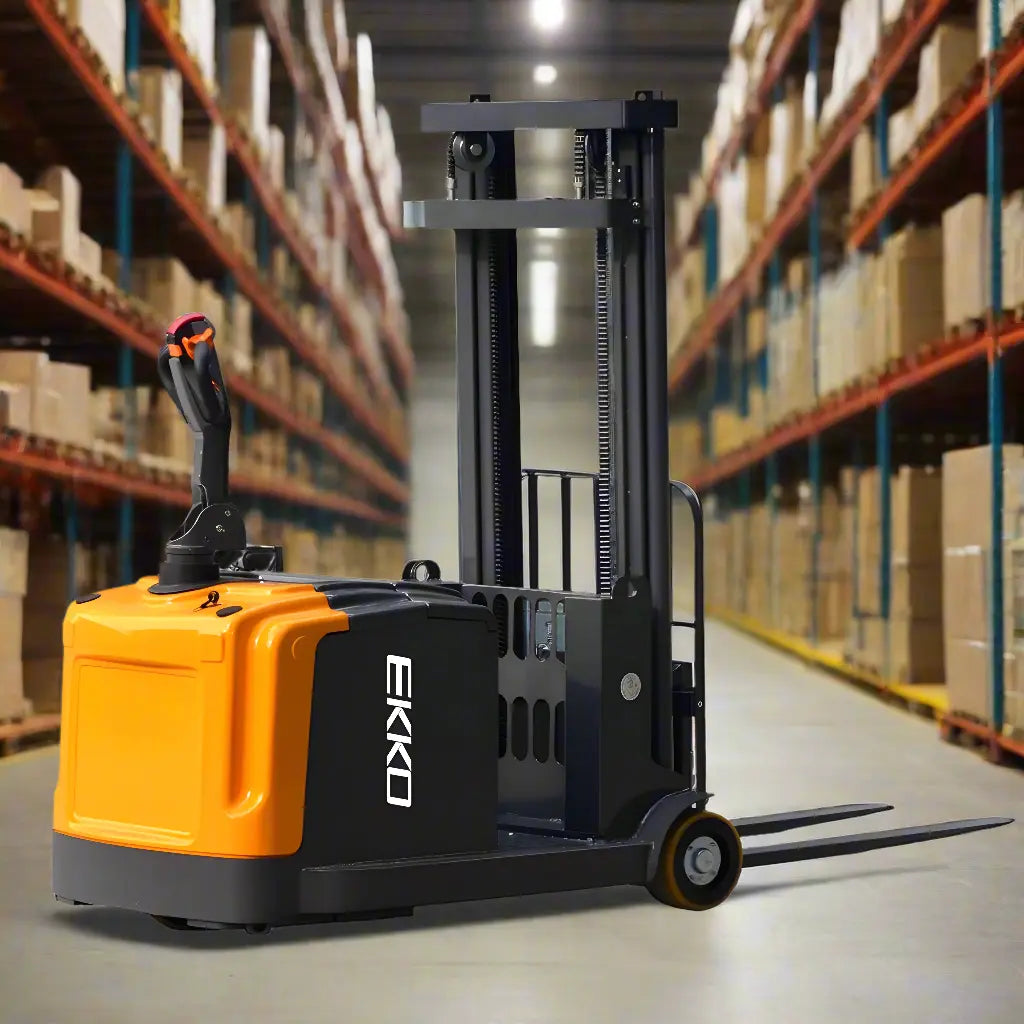

EKKO EK14-130 electric forklift with orange and black design for warehouse lifting tasks

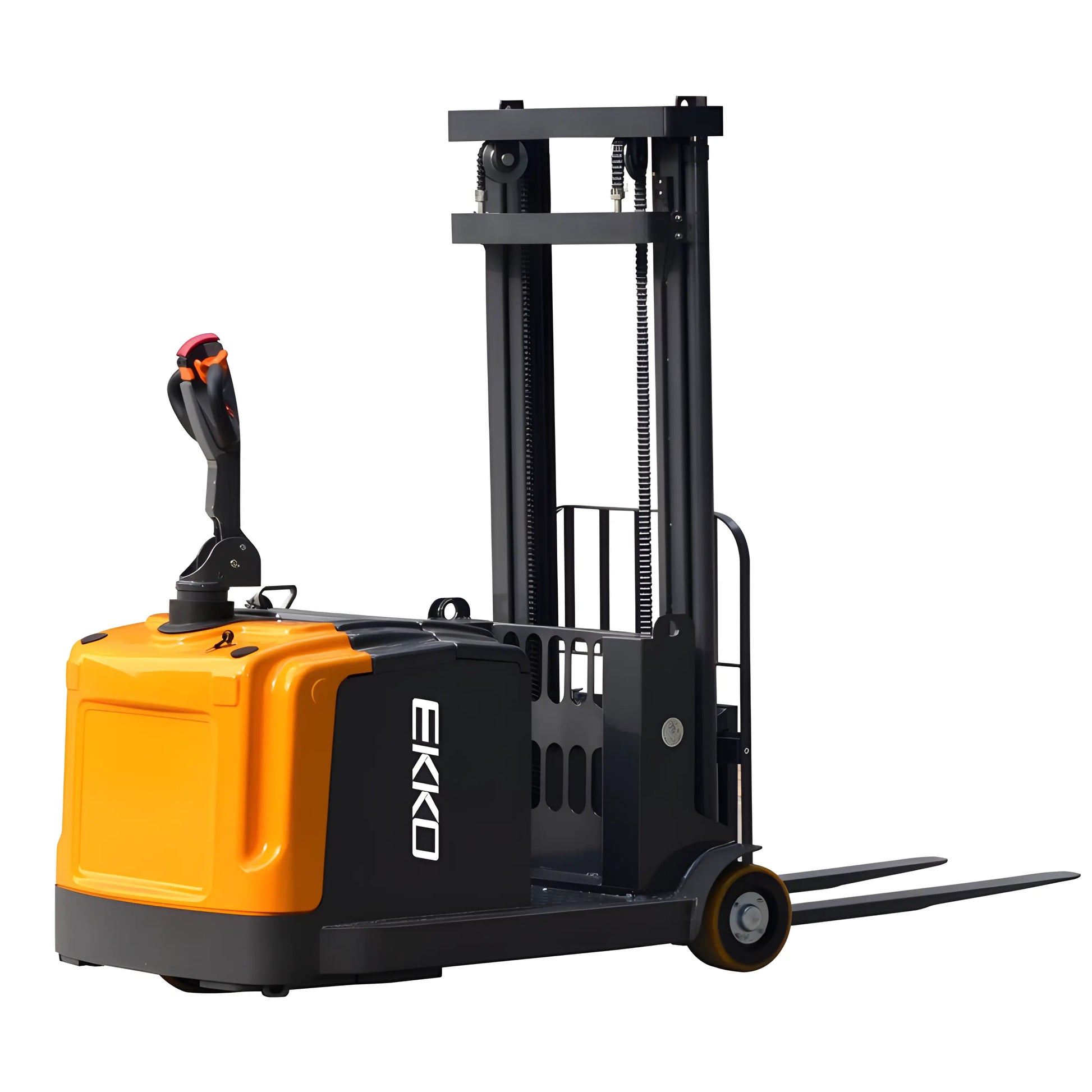

EKKO EK14-130 electric pallet stacker forklift with orange and black body in warehouse aisle

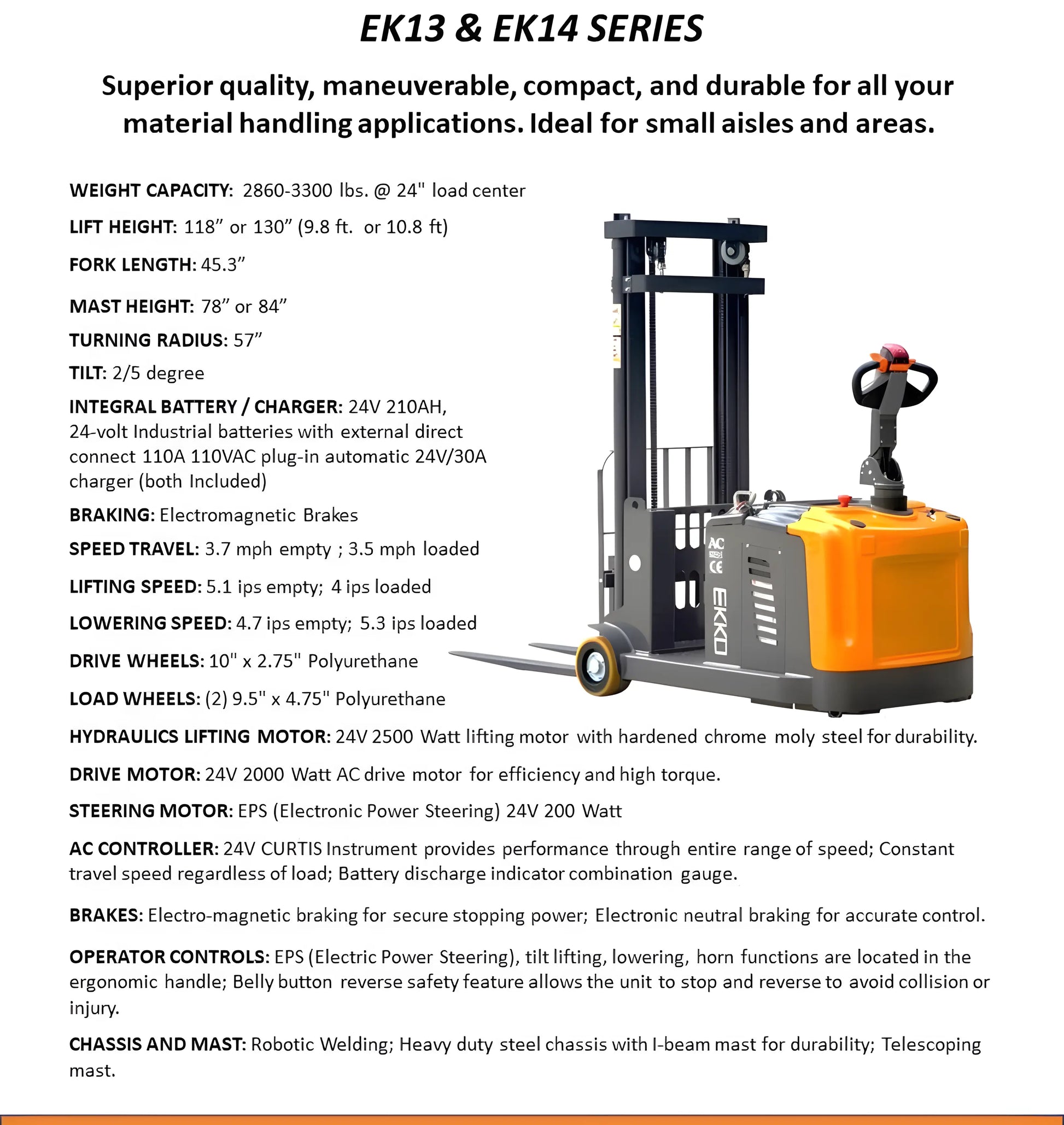

EKKO EK14-130 electric power steer forklift with 2860-3300 lbs load capacity and Curtis instrument controller

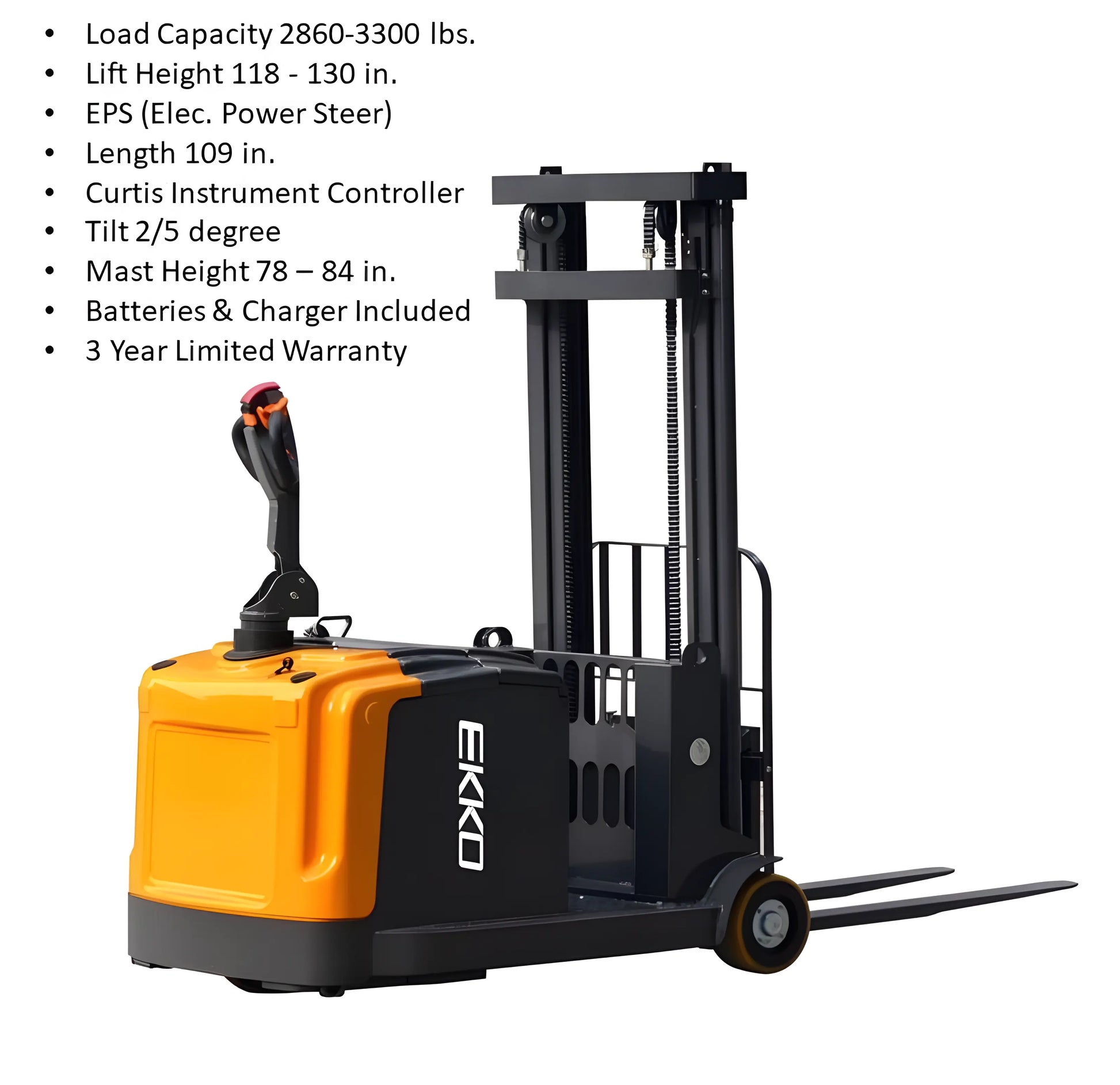

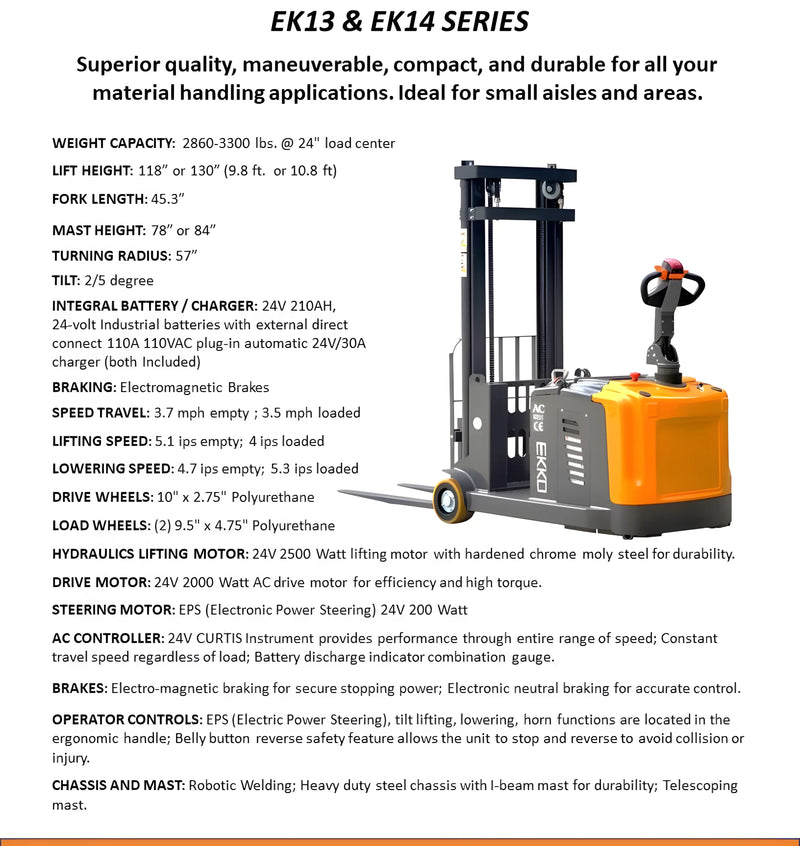

EKKO EK14-130 electric pallet stacker with compact design, durable chassis, and ergonomic handle for material handling

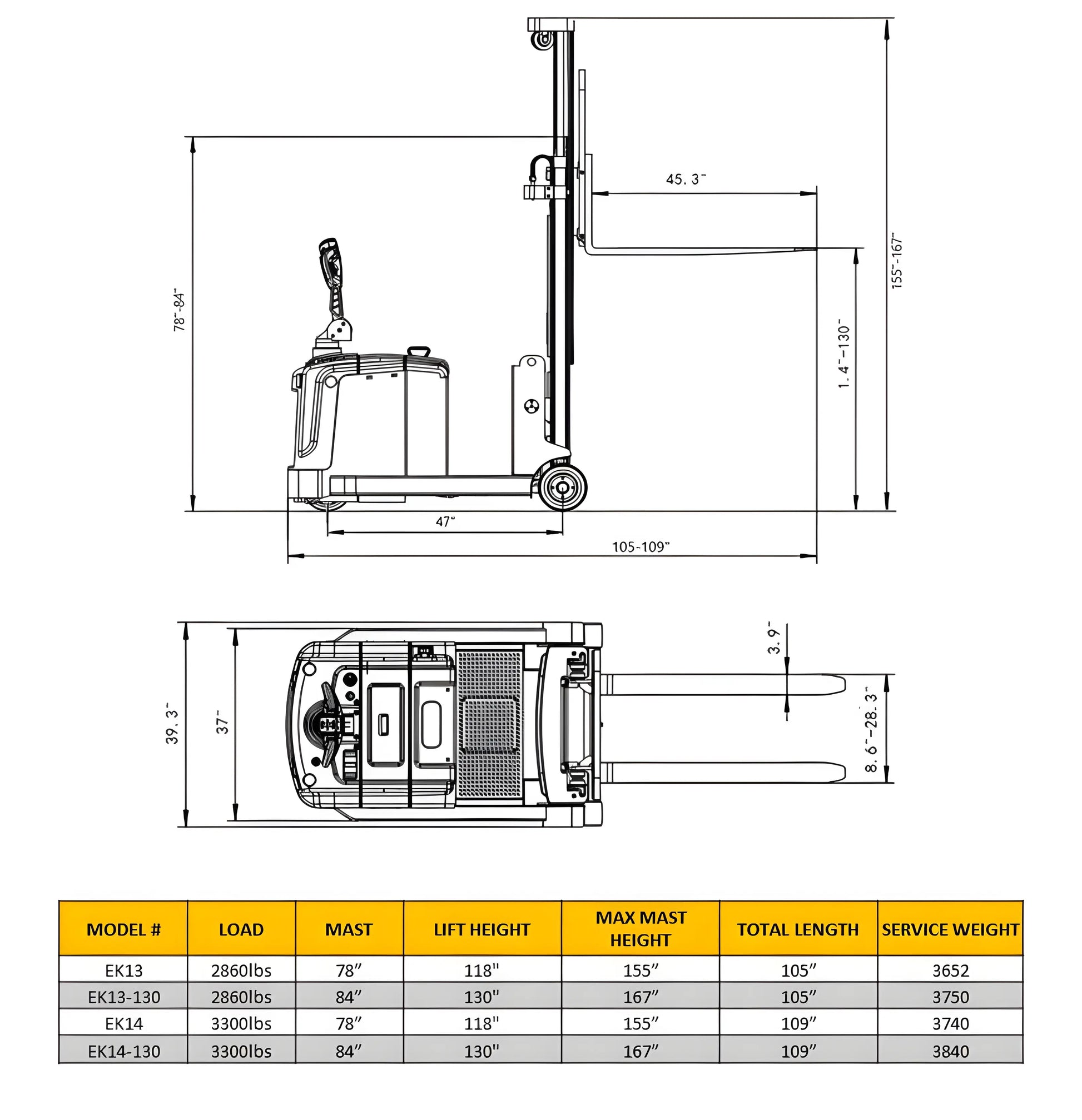

Technical drawing and specifications chart of EKKO EK14-130 forklift showing dimensions and load capacities

EKKO EK14-130 | Counterbalanced Walkie Stacker | 130" Lift Height | 3300 lb Capacity

Name: EKKO EK14-130 | Counterbalanced Walkie Stacker | 130" Lift Height | 3300 lb Capacity
Brand: EKKO
SKU: EK14-130
Price: 16110.1 USD
Availability: InStock

See more by EKKO

$847.90 Off Limited time deal

$16,958.00

$16,958.00 - $16,958.00

$16,958.00

$16,110.10

$16,110.10 - $16,110.10

$16,110.10

In stock

SKU EK14-130

Quantity

Product Overview

In short

The EKKO EK14-130 is a fully electric counterbalanced walkie stacker with a 3300 lb (1500 kg) load capacity and a 130 in maximum lift height. Because it uses a counterbalanced design instead of outrigger support legs, it can maneuver and stack in tighter work areas across warehouse, manufacturing, storage, and distribution settings.

The EKKO EK14-130 Counterbalanced Walkie Stacker is an electric, walk-behind material handling solution built for warehouses and distribution centers. With a 3300 lb load capacity and 130-inch maximum lift height, it helps facilities make better use of vertical storage space while moving pallets efficiently. Its counterbalanced design eliminates the need for support legs, making it ideal for tighter work areas.

Key Benefits

High Load Capacity: Handles up to 3300 lbs, making it suitable for a range of palletized and irregular loads.
Extended Lift Height: Reaches a maximum lift height of 130 inches, with an extended mast height of 155 inches, allowing access to higher racking positions.
Counterbalanced Design: Operates without support legs, giving operators flexible stacking capability in tighter aisles and confined spaces.
Walk-Behind Operation: The stand-up, walk-behind operator style offers precise control while navigating through warehouse and storage environments.
Electric Drive System: Powered by a 2.5 kW drive motor and 3.0 kW lift motor, supported by a 24V/150AH-Li battery for reliable performance.
Durable Construction: PU tires and a service weight of 3750 lbs (with battery) contribute to stable, dependable operation during daily tasks.

The EKKO EK14-130 is well-suited for warehouse, manufacturing, storage, and distribution environments where efficient pallet handling is essential. It is particularly useful for facilities needing to stack and move pallets or irregular loads in tighter work areas without the footprint of outrigger legs. This stacker supports improved productivity, reduced manual effort, and enhanced safety for operators handling daily material movement tasks.

Specification Table

EK14-130 · Counterbalanced Walkie StackerSKU EK14-130
Drive type	Electric
Type of operation	Walike type
Load Capacity	3300 Q (LBS)
Load Centre	24 c (Inch)
Distance between fork backrest and front wheel	6 x (Inch)
Wheelbase	47 y (Inch)
Service Weight（with battery）	3750 LBS
Tire material	PU
Driving wheel size	Φ9.8×3.1 Φ×w(Inch)
Front wheel size	Φ9.84×4.71 Φ×w(Inch)
No of Driving wheel,Balance wheel/Bearing wheel(X=Driving wheel	2/1X
Operator type	Stand
Mast/fork carriage tilt, forward/backward	2/5 α/β (°)
Lowered mast height	84 h1 (Inch)
Free lift height	4 h2 (Inch)
Lift height	130 h3 (Inch)
Extended mast height	155 h4 (Inch)
Height of seat/stand-on platform	5 h7 (mm)
Fork carriage width	3.5 (in)
Overall Length	105 l1 (Inch)
The max driving speed laden/unladen	16850/204724 (in/h)
Overall Width	39 b1 (Inch)
Fork Size	1.4/4/37 s/e/l (Inch)
Fork Width	8.7-28 b5 (Inch)
Ground clearance under mast	2.4 m1 (Inch)
Steering Motor	24V/0.2kw
Aisle width for pallets 1000*1200 crossways	119 Ast (Inch)
Aisle width for pallets 800*1200 lengthways	123 Ast (Inch)
Turing Radius	62 Wa (Inch)
Lifting Speed load/unload	4/5.5 (in/s)
Lowered Speed load/unload	5.3/4.7 (in/s)
Maximum gradeability load/unload	6/10 (%)
Charger	24V/50A
Drive Motor	2.5 (kW)
Lift Motor	3.0 (kW)
Battery voltage/rate capacity	24/150AH-Li (V/Ah)
Brand / Model	EKKO EK14-130
Design Type	Counterbalanced (No Support Legs)
Operation Style	Walk-Behind
Maximum Lift Height	130 in (Approx. 3302 mm)
Primary Applications	Warehouse, Manufacturing, Storage, Distribution
Best Use Case	Handling pallets and irregular loads in tighter work areas
Handling Advantage	Flexible stacking without outrigger legs
Key Benefits	Improved productivity, reduced manual effort, enhanced safety

FAQ about this model

What applications and loads is the EKKO EK14-130 best suited for?

The EK14-130 is designed for warehouse, manufacturing, storage, and distribution environments. Its best use case is handling pallets and irregular loads in tighter work areas, thanks to its counterbalanced design that allows flexible stacking without the need for outrigger support legs.

What do the key specifications of the EK14-130 mean for daily use?

The unit has a load capacity of 3300 lb (1500 kg) and a maximum lift height of 130 in (approximately 3302 mm), with a lowered mast height of 84 in and an extended mast height of 167 in. Fork dimensions are 1.4 in thick by 4 in wide by 45.3 in long, with an adjustable fork width of 8.6–28.3 in. The overall length is 109 in, overall width is 39 in, wheelbase is 47 in, and turning radius is 57 in, giving operators a sense of the footprint and maneuvering space required.

Is the EK14-130 electric, and how is it operated?

Yes, the EK14-130 features both electric lift and electric drive systems. It is a walk-behind (walkie) style unit, powered by an AC 24V/2500W driving motor and a 24V/2500W lifting motor, along with a 24V/200W EPS steering motor. It runs on a 24V/210Ah side battery and includes a 24V/30A charger.

How does the EK14-130 compare to other walkie stackers in its category?

Unlike traditional walkie stackers that rely on outrigger support legs for stability, the EK14-130 uses a counterbalanced design, eliminating the need for legs. This gives it a handling advantage in tighter work areas where support legs would otherwise restrict access to pallets or racking, while still delivering a 3300 lb capacity and 130 in lift height for demanding material handling tasks.

Compare models

	1550 Counterbalanced Walkie Stacker 118"	3300 Counterbalanced Walkie Stacker 118"	3300 Counterbalanced Walkie Stacker 130" THIS	3300 Counterbalanced Walkie Stacker 138"
Capacity	1550 (lbs)	3300 Q (LBS)	3300 Q (LBS)	3300
Engine / Motor	AC 24V/0.75kw	24V/0.2kw	24V/0.2kw	AC 24V/2500W (V/W)
Forks	1.4/2.9/42 (in)	3.5 (in)	3.5 (in)	1.4/4/37 (in)
Lift Height	118 (in)	84 h1 (Inch)	84 h1 (Inch)	138 (in)
Price	$11,198.00 $10,638.10	$15,998.00 $15,198.10	$16,958.00 $16,110.10	$17,598.00 $16,718.10
	Check ›	Check ›	Viewing	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
