All Lift Cranes L586 | Light Duty Floor Mounted Jib Crane 1/4 Ton Capacity

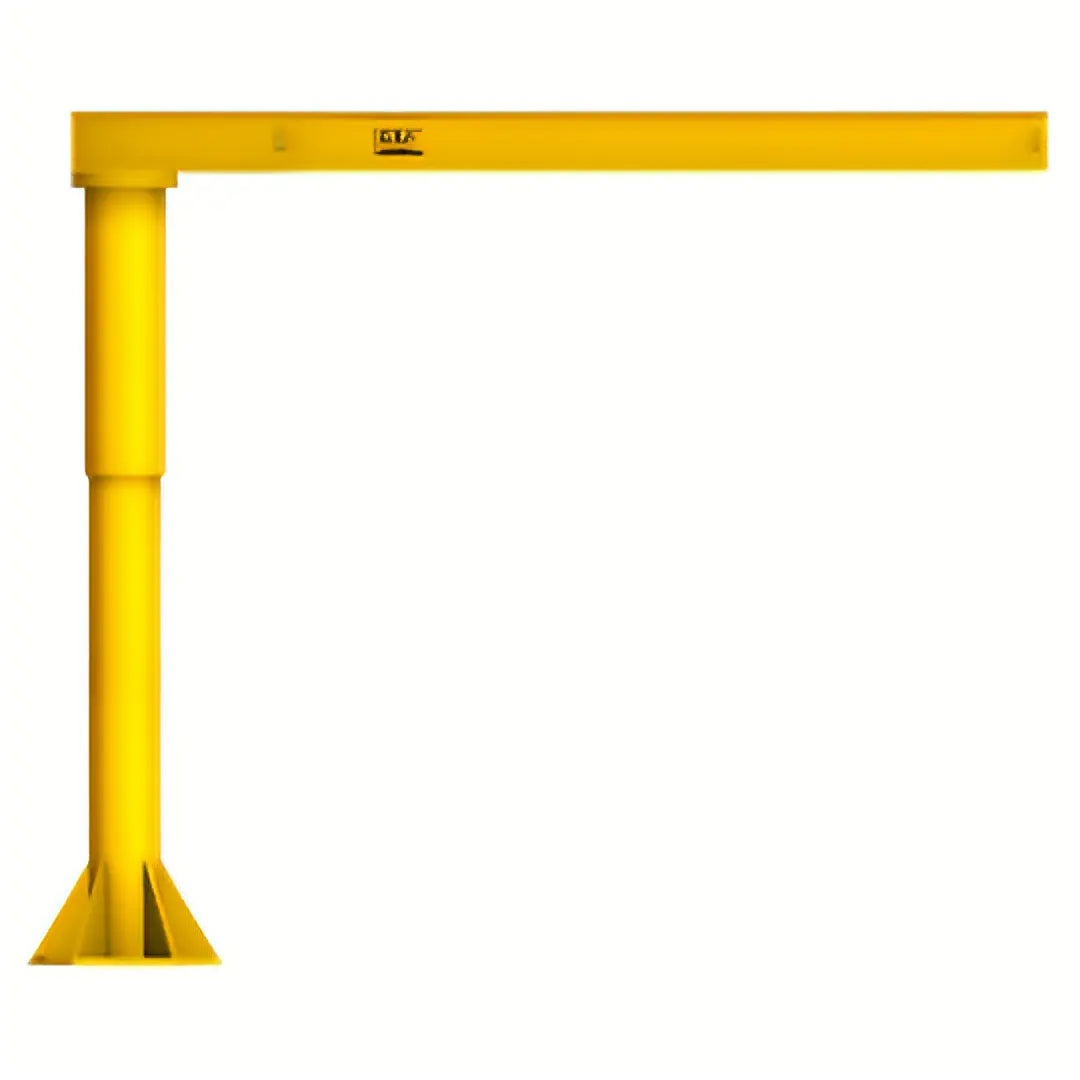

Light Duty Floor Mounted L-Series Jib Crane - Quarter Ton Capacity

Features:

• Structural steel: mast heavy duty for minimum deflection and maximum stability.
• A 360° rotating: I-beam section with tapered flanges for easy and fluid movement of the trolley.
• Safety end stops: secure trolley travel movement (removable);
• Long-lasting: construction with back plate reinforcement.
• Multicam: with outdoor and stainless steel options

Product Description

Lift Cranes Light Duty Floor Mounted L-Series Jib Crane is designed for welding stations, small assembly, and light labor converters. From a quarter-ton capacity and with a floor-mounted design, this jib crane has great serviceability in a range of industrial contexts and provides your business with an overhead material handling solution that's efficient and safe. It has a heavy-duty structural steel mast designed to take the rigors of daily use without deforming. This allows for constant alignment and it extends the life and effectiveness of the crane itself due to its large diameter base plate.

An excellent feature of the L-Series Jib Crane is its I-beam that rotates 360°. The bent steel I-beam is particularly fit with a tapered flange to enable smoother and more precise trolley travel, which could make an enormous difference in fast-paced situations. Its rotation system guarantees the operator can move load side to side, giving more versatility to the operator in his daily work. It also has removable ends stops to limit trolley travel, so that the equipment stays within limits for added safety.

Various options can be added to this system, making this light-duty jib crane customizable to your specific needs. From Tagline Kits, Bolt pattern templates, and hoist options, we can help get you the versatility you need for whatever the Industrial application. The optional top-entry collector ring makes the system easy to use, even in unusual mounting configurations. The added features of this crane make it a versatile and reliable choice for light-duty material handling tasks.

The first step to installing an L-Series Jib Crane is ensuring a solid foundation. The minimum specifications are a 3’ deep by 4’ square cement footing, but an additional span will need a 3’ deep by 5’ square footing. Install 3000 psi compressive force-reinforced rebar, with 5/8” diameter bars at the top and bottom, spaced 12” on center. This configuration enables a safe and stable working crane.

The L-Series Jib Crane is ideal for applications like welding stations, assembly lines, or light labor. With its compact size due to integrated outriggers and a wide-range of features products, it is an ideal solution for companies looking for a solid and easy to install crane system. This mini crawler crane is also powerful enough for heavy equipment lifting in the factory or for lighter works in the workshop.

Fit all looks great for all the elements removed and inside sloppy but for the price, it is more than one day when lifting in the place. This one will support your operations for years to come with its easy installation, sturdy construction, and customizable features.
