All Lift Cranes Heavy Duty 2 Ton Floor Mounted H-Series Jib Crane
Features:
-
Wide Base & Heavy Duty Construction: Made of heavy wall structural steel pipe mast and reinforced large diameter base plate for strength.
-
Rotating Boom 360°: These cranes come with well rolled steel I-beam section with tapered flange for easy trolley travel which are capable of full circle rotation.
-
Safety end stops: Factory installed safety end stops on both ends of the boom to limit trolley travel and increase operational safety.
-
Multi-Purpose: Ideal for industrial factory, warehouse and other applications where extra lifting power is needed.
-
Custom Option: Optional extras including tagline kits (with S-hooks), bolt pattern templates, and motorized rotation.
Product Description

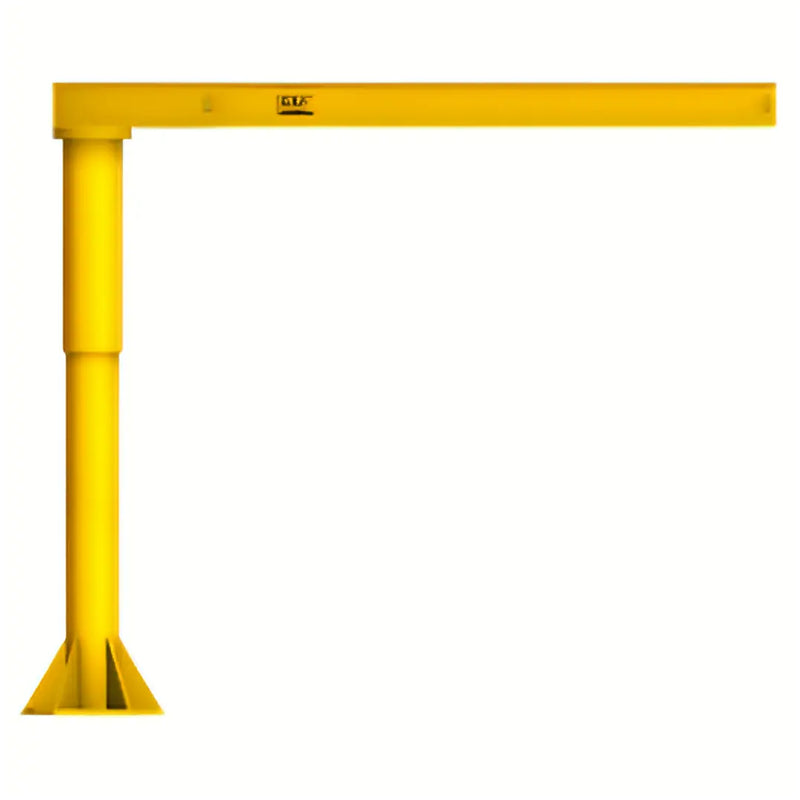

The All Lift Cranes H Series 2 Ton Heavy Duty Floor Mounted Jib Crane is designed for industrial-grade horizontal lifting needs. It is made up of a heavy wall structural steel pipe mast, providing maximum stability and strength for long-lasting performance in a demanding environment. With a large diameter base plate reinforced to reduce deflection and preserve constant alignment, they provide the versatility and capacity required in warehouses, manufacturing facilities, and industrial work environments.
Durable and Reliable Design
Roll steel I-beam section has a tapered flange which allows smooth and efficient trolley travel. Whether handling heavy weight equipment and materials, you can rest assure the H-Series Jib Crane is the answer. With safety in mind, integrated safety end stops at both boom ends prevent accidental trolley travel beyond the effective area.
Versatile Applications
The H-Series 2 Ton Jib Crane is engineered for a broad range of industrial and warehouse applications, and you are specifically designed for areas that move a lot of loads as well as a repeater load. This crane offers good versatility whether you are using it for assembly lines, machine shops or outdoor lifting applications.
Freedom of Range and Customization

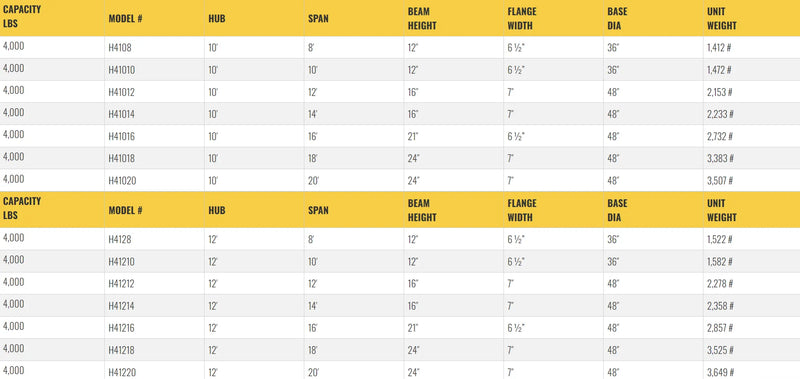

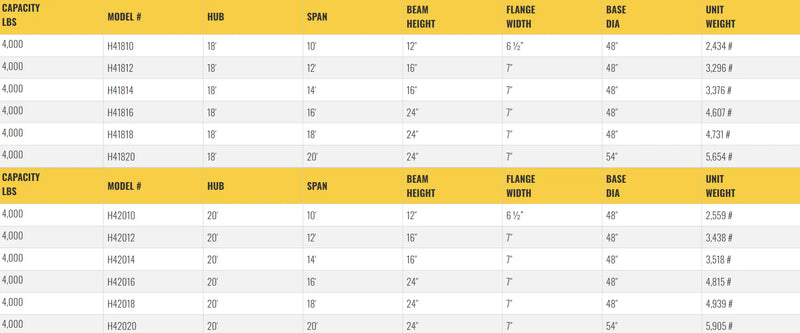

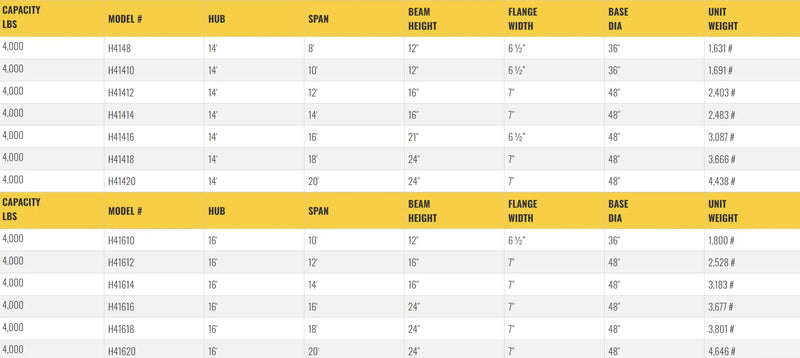

Available span for jib crane is 8ft to 20ft and min HUB is 10ft. The base plate is available in several sizes with bolt holes of 32", 44" or 50" bolt circle diameters providing flexibility for various installation scenarios. The diversity of the training would help further enhance the functionality of the crane with options like tagline kits featuring S-hooks, bolt pattern templates, and motorized rotation, among others, aimed at customizing the crane for particular operational needs.
Hardware Requirements for Robust Setting
Installing it properly is the other thing that ensures performance. The H-Series Jib Crane's dimensionsFor the H-Series Jib Crane, a 4-foot deep reinforced concrete foundation is needed; its dimensions can vary from 6' square to 9' square, depending on the size of the base plate. The footer shall be 3000 psi and shall be reinforced with 12" on center 1/2" diamond rebar.
The All Lift Cranes Heavy Duty Floor Mounted H-Series 2 Ton Jib Crane is a smart choice for growing companies that need a high-capacity, dependable lift system. Its durable build, smooth function, and wide customization possibilities make it the go-to solution for lifting processes in any industrial environment.
