What is the lifting capacity of this gantry crane?
All models in the AG-Series line are rated for 1 ton capacity. Capacity is the same across every span and height configuration listed, from the AG1-809 up to the AG1-2012, so you choose based on span and height rather than load rating.

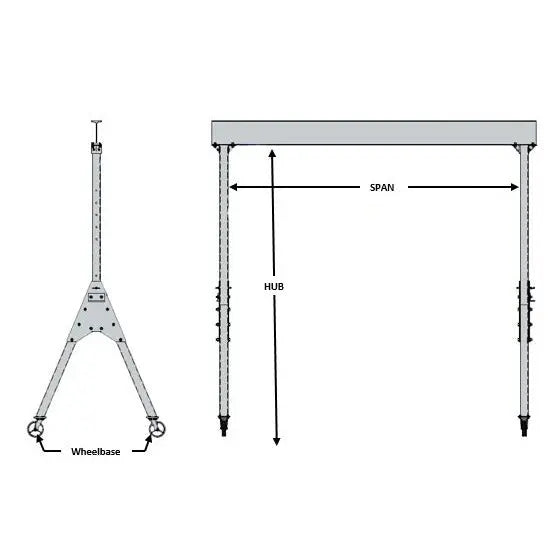

What span and height options are available?
Spans range from 8 ft to 20 ft, with models at 8, 10, 12, 16, 18, and 20 ft. Each span comes in two height-adjustment ranges: 6-9 ft or 8-12 ft, giving you 12 model configurations to match your workspace and load height needs.
How much does the crane weigh, and does it change with size?
Weight increases with both span and height range. The smallest unit, the AG1-809 (8 ft span, 6-9 ft height), weighs 316 lbs, while the largest, the AG1-2012 (20 ft span, 8-12 ft height), weighs 543 lbs. All other configurations fall between these two weights.
What's the difference between the 6-9 ft and 8-12 ft height models?
They cover different height-adjustment ranges for the same span. For example, the AG1-1609 adjusts from 6-9 ft and weighs 431 lbs, while the AG1-1612 (same 16 ft span) adjusts from 8-12 ft and weighs 450 lbs. Pick the range that matches your load's lift height.
Which model should I choose for a 12 ft wide workspace?
For a 12 ft span, you have two options: the AG1-1209 (6-9 ft height adjustment, 362 lbs) or the AG1-1212 (8-12 ft height adjustment, 381 lbs). Both carry the same 1 ton capacity, so the choice depends on how high you need to lift.
Is the crane height adjustable, or fixed once installed?
Every AG-Series model has adjustable height within its listed range, either 6-9 ft or 8-12 ft depending on the model. This lets you set the working height to match your load and application without needing a separate unit for each height.
