How much weight will these tables hold?

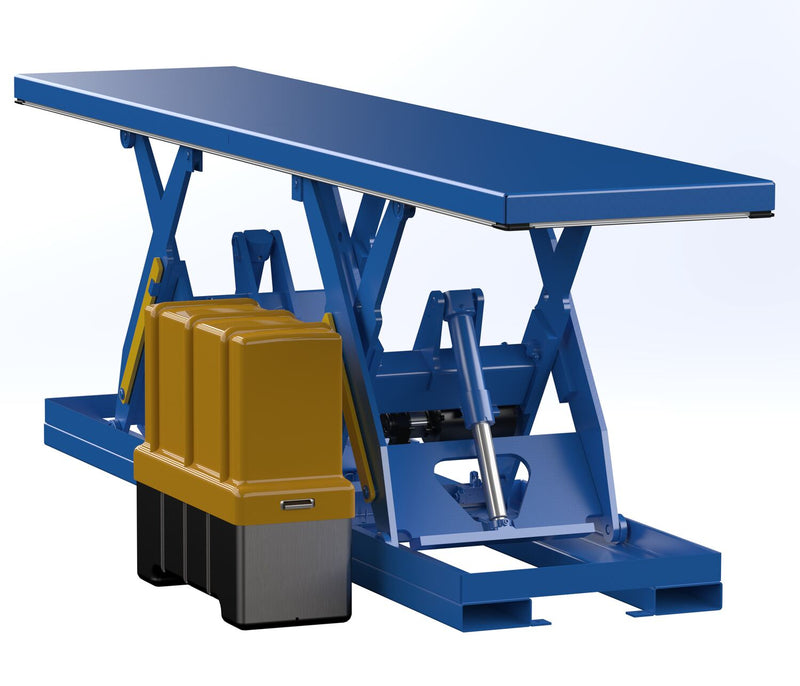

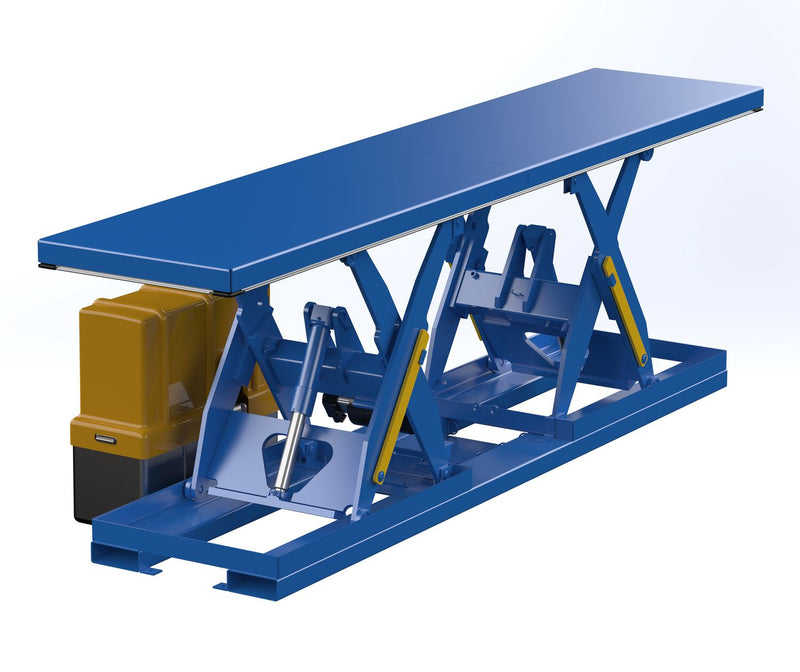

Each model is rated at either 2,000 lb or 4,000 lb, so the range across the line is 2,000 – 4,000 lb. The model number shows the rating: EHLT-TL-30144-2-46 is a 2,000 lb table, EHLT-TL-30144-4-46 is the 4,000 lb version of the same size. Pick the rating above your heaviest load including pallet or fixture weight.
What platform sizes are available?
Four platform sizes are offered: 30"×144", 48"×144", 30"×180" and 48"×180". Each of those decks comes in a 2,000 lb and a 4,000 lb version, which is how the line reaches eight models. Measure your longest load and your available floor run before choosing, since the 180" decks need considerably more clear length than the 144" decks.
What does "tandem" mean on these lifting tables?
Tandem means two lift units operate together under a single long platform rather than one lift under a short deck. That is what allows deck lengths of 144" and 180" while keeping the load supported along its length. It suits long or extended workpieces that would overhang a standard single-scissor lift table.
How are they powered and operated?
They are electric hydraulic, so an electric motor drives the hydraulic pump and no manual pumping is required. The specifications published here cover capacity, deck size, price and warranty but not voltage, phase or amperage, so confirm the electrical requirements for the specific model number before you order and make sure a suitable supply is available at the install point.
What do the eight models cost, and what drives the price?

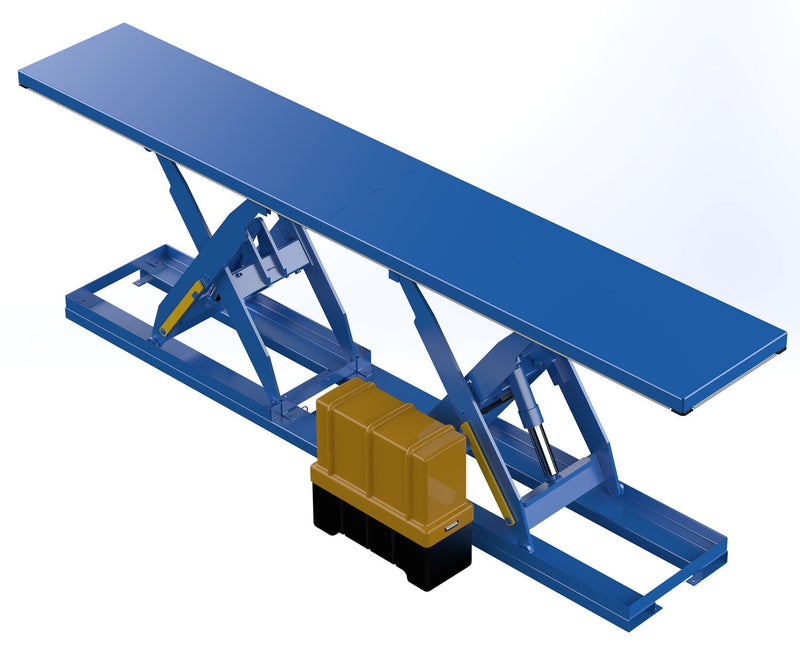

Prices run from $9,403.22 to $14,026.02 across the eight models. Both capacity and deck length raise the price, and length matters more than capacity here: the 2,000 lb 30"×180" model is $12,776.52, above the 4,000 lb 30"×144" model at $11,816.16. The highest-priced model is the 4,000 lb 48"×180" at $14,026.02.
Where are they made and what warranty comes with them?
They are made in the USA by Vestil Manufacturing and carry a 1-Year Limited warranty. That warranty applies to the equipment as supplied; specific coverage terms, exclusions and claim handling come from Vestil. No other coverage period, service plan or certification is included in the published specifications for this product line.
