What load capacities do these spreader beams come in?

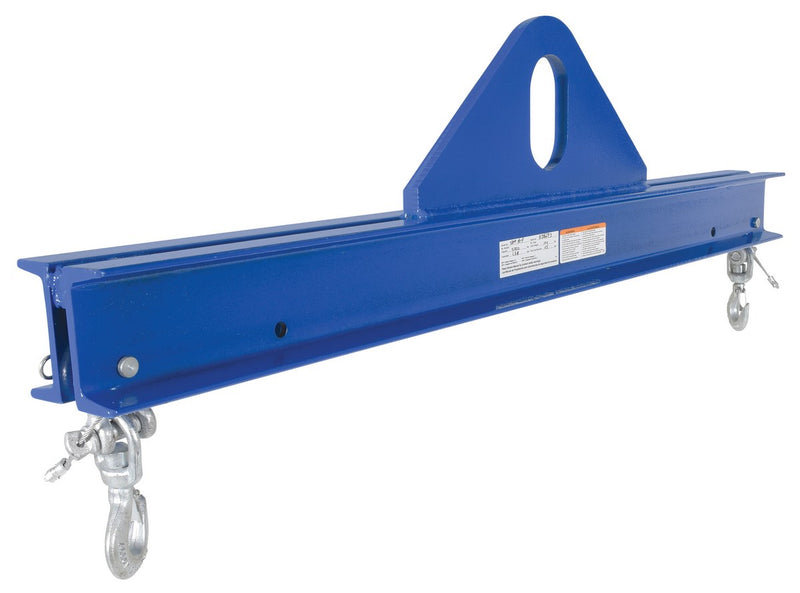

Four rated capacities are offered: 1,000 lb, 2,000 lb, 4,000 lb and 6,000 lb. Each model carries one fixed rating, shown in its description — for example, SBM-40-6 is the 4,000 lb, 72 in beam. Choose a beam whose rating covers the full load, including any slings, shackles or other rigging hanging below the hook.
What spread lengths are available, and can I get any length with any capacity?

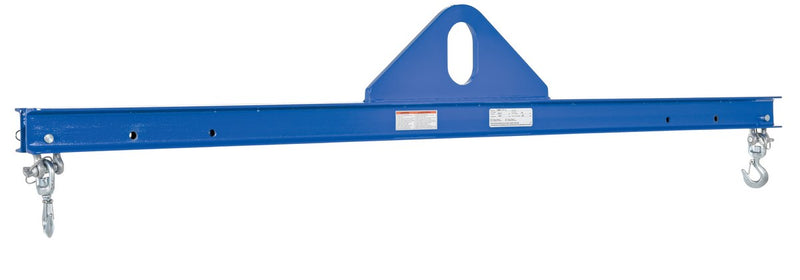

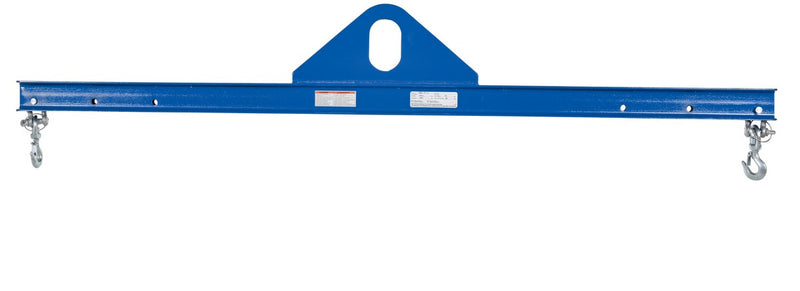

Six spread lengths are offered — 36 in, 48 in, 72 in, 96 in, 120 in and 144 in — and every length is available in all four capacities. That gives 24 models in total. Capacity is not reduced at longer spreads: the 6,000 lb rating applies to the 144 in beam (SBM-60-12) the same as to the 36 in beam.
How do I choose between a short and a long beam?
Match the spread to the pick points on your load, not to the load's overall size. The beam should place the sling legs close to vertical above the lifting points so it takes the horizontal compression instead of your slings. Longer beams suit wide crates, bundled pipe and machinery skids; shorter beams handle compact loads in tight bays.
Do these require any power or hookup?

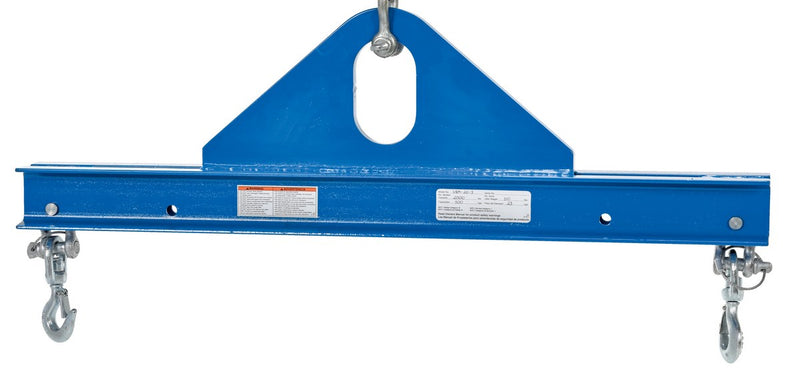

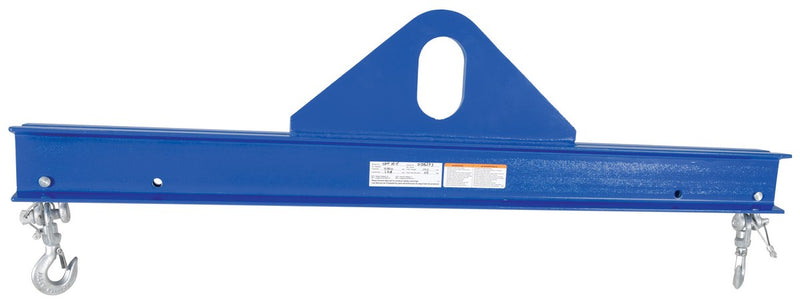

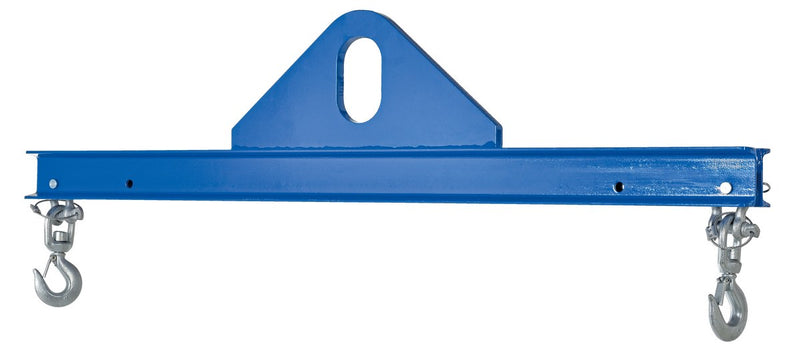

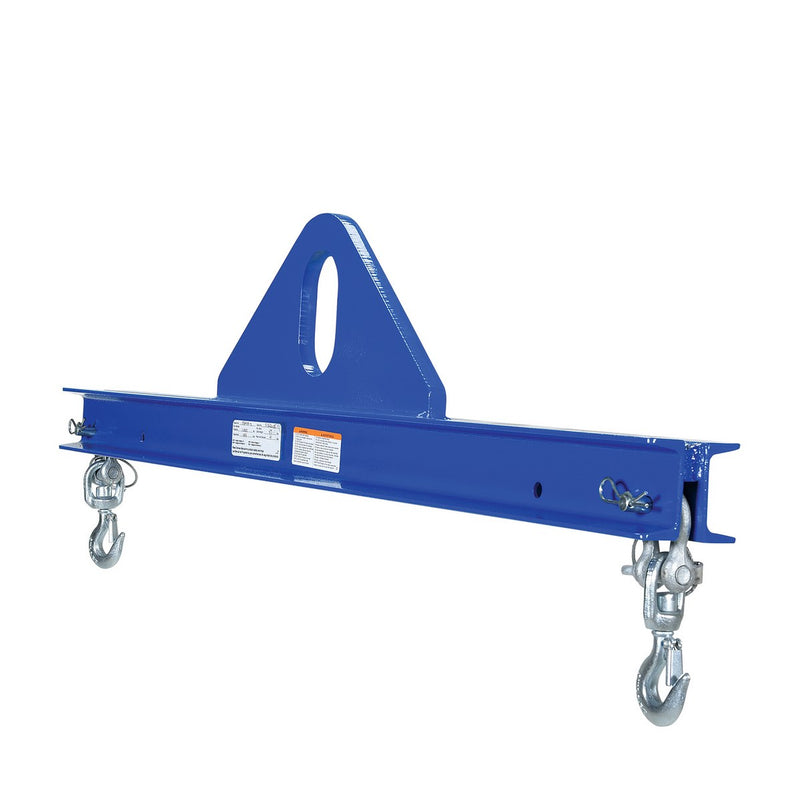

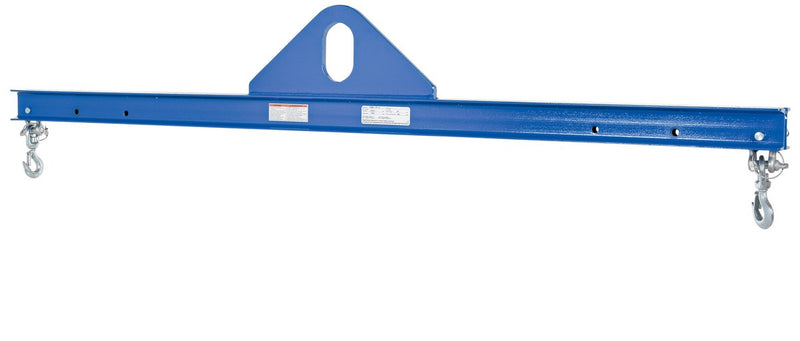

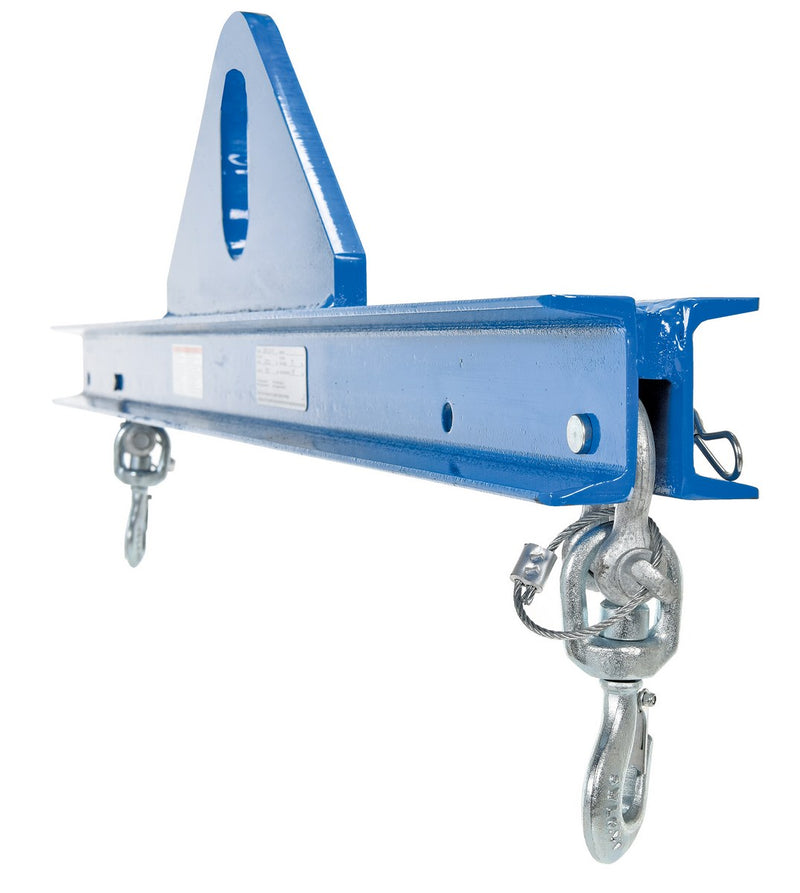

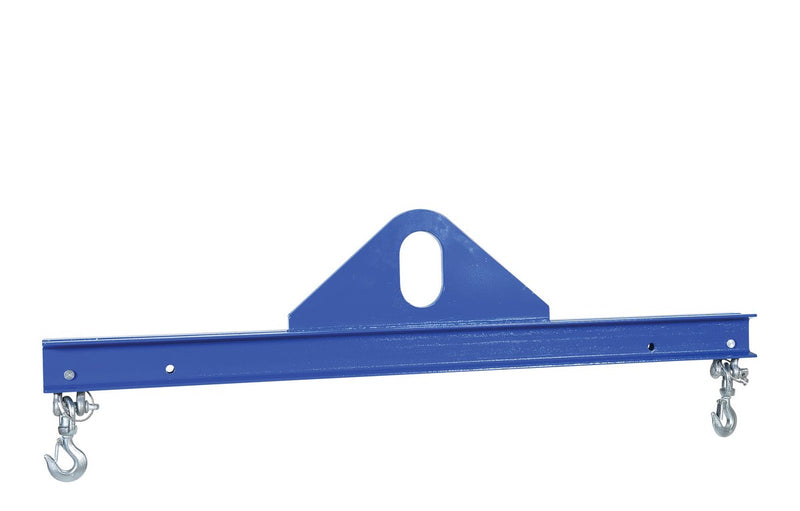

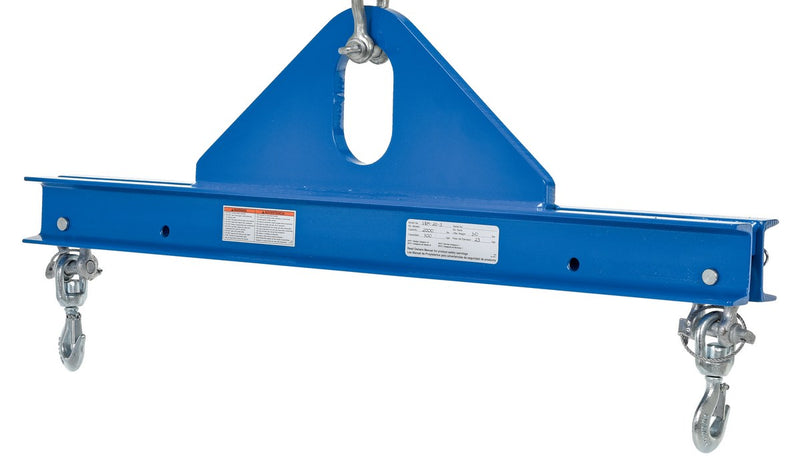

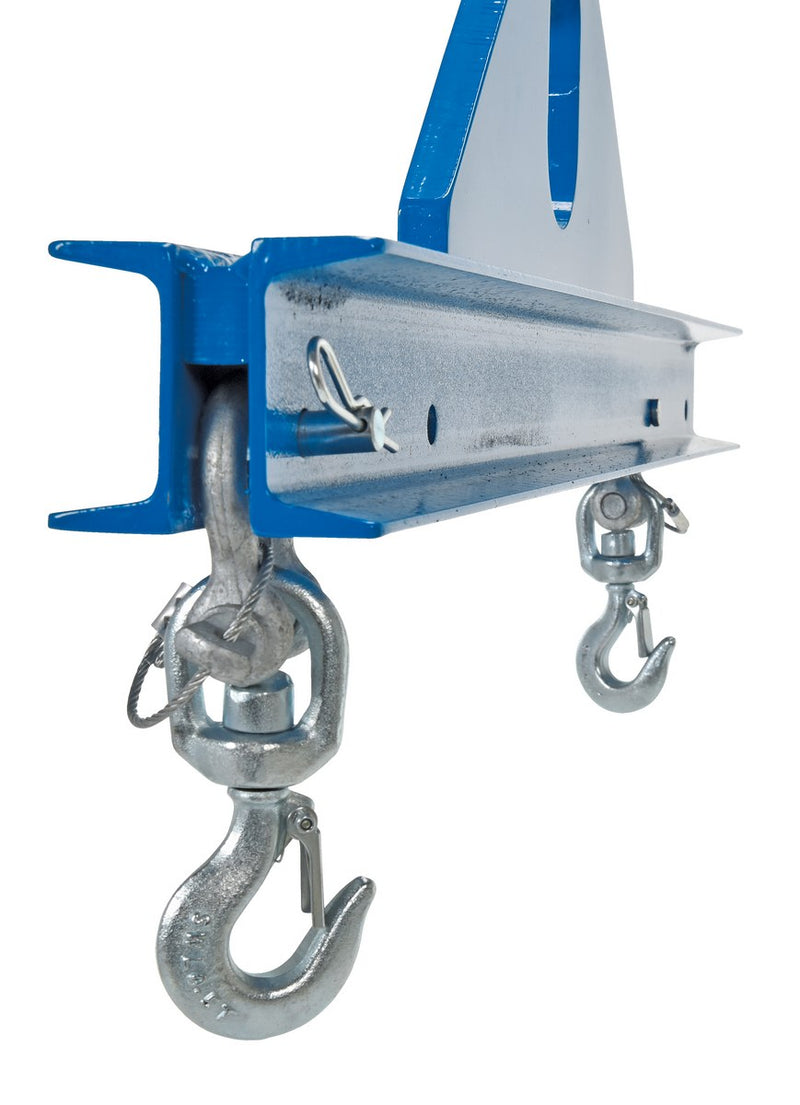

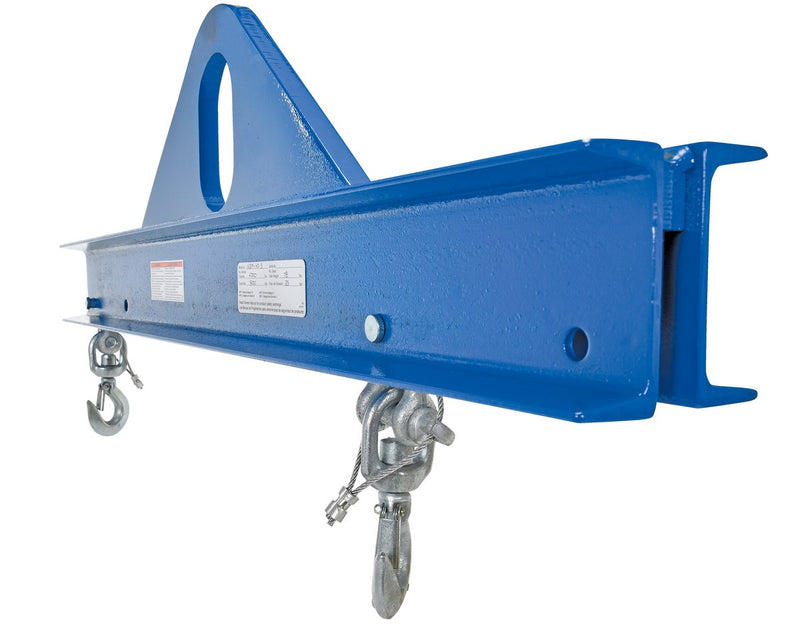

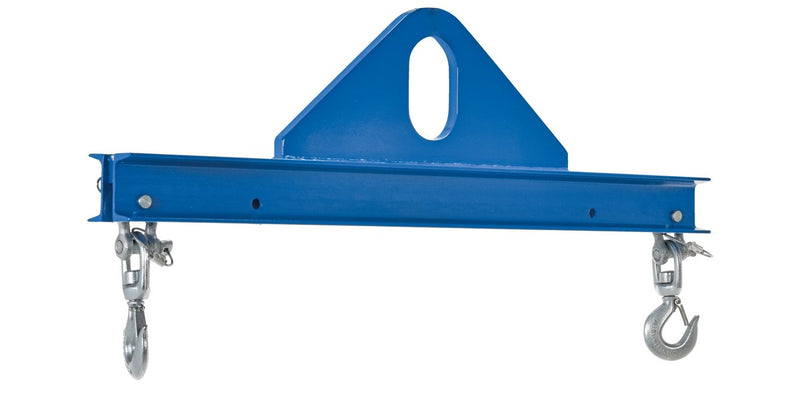

No. A spreader beam is a passive below-the-hook device — there is no electrical, hydraulic or pneumatic connection. It hangs from your crane or hoist hook at the top bail, with slings or shackles rigged to the end fittings. Your existing lifting equipment supplies all the force; nothing on the beam is powered or adjusted during a lift.
What do they cost?

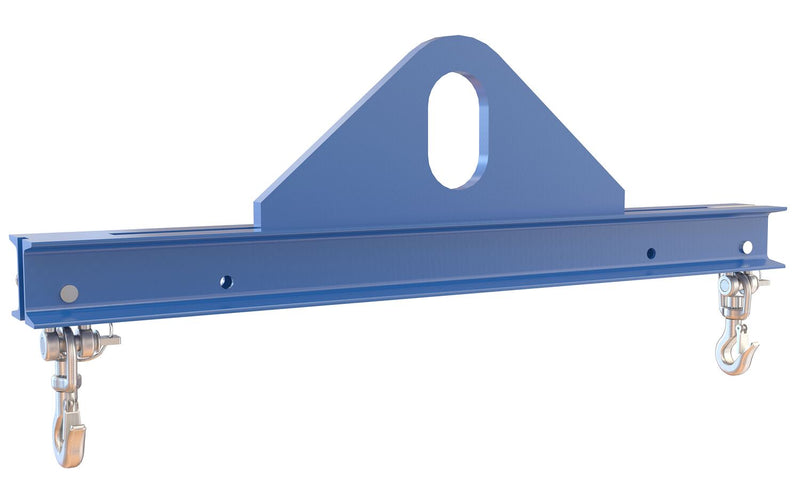

Prices run from $477.60 to $1,582.25 across the 24 models. The lowest is SBM-10-3, the 1,000 lb 36 in beam at $477.60; the highest is SBM-60-12, the 6,000 lb 144 in beam at $1,582.25. Cost rises with both capacity and spread length, so specify no more of either than the job needs.
Where are they made and what warranty applies?
They are made in the USA by Vestil Manufacturing and carry a 1-Year Limited warranty. As a below-the-hook lifting device, this equipment falls under ASME B30.20, published by the American Society of Mechanical Engineers, which sets out inspection and marking requirements — plan for periodic inspection as part of your normal rigging program.
