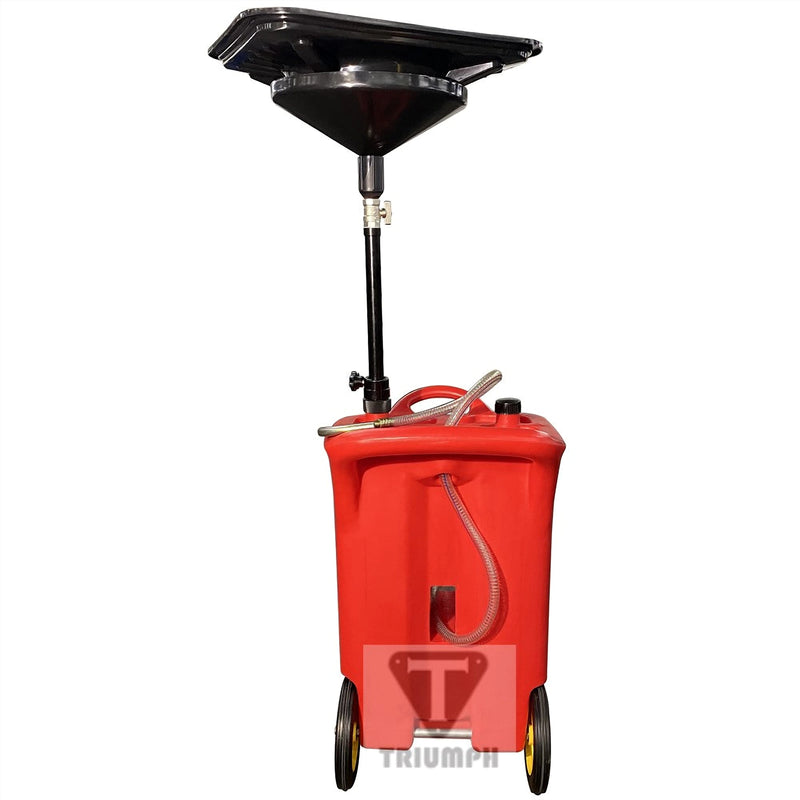

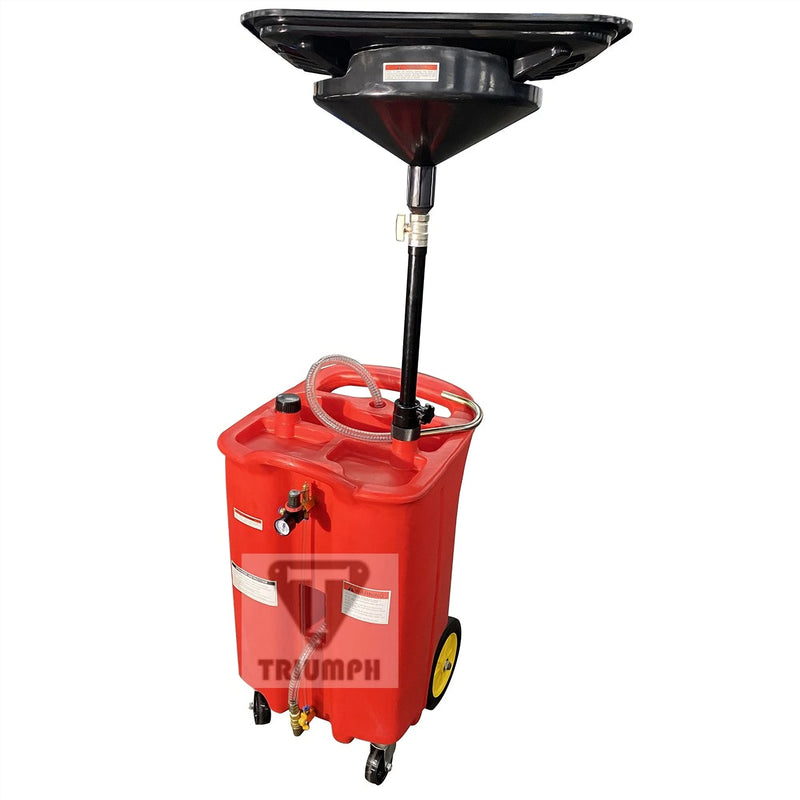

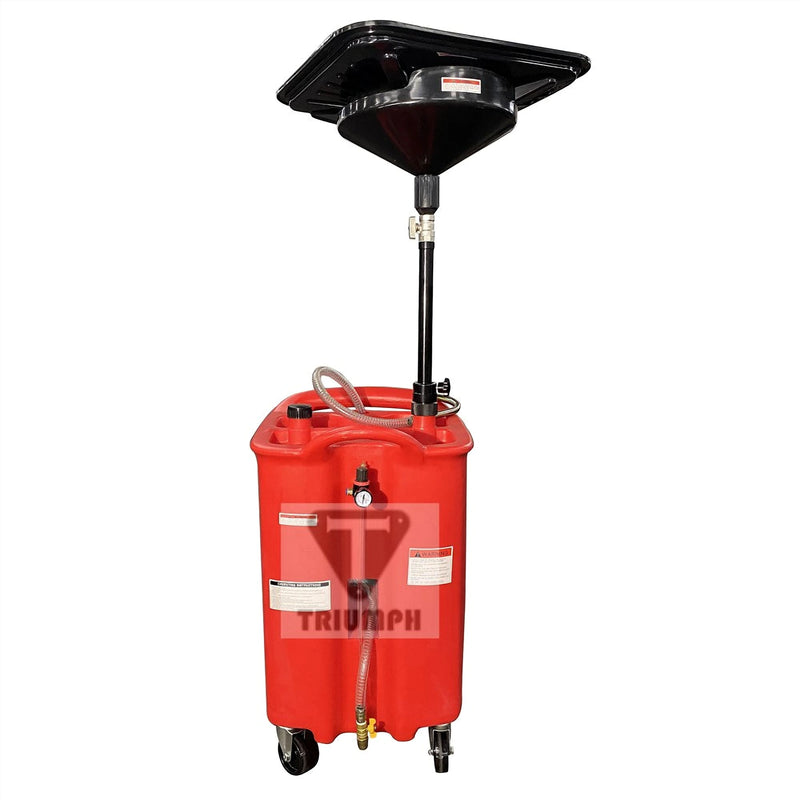

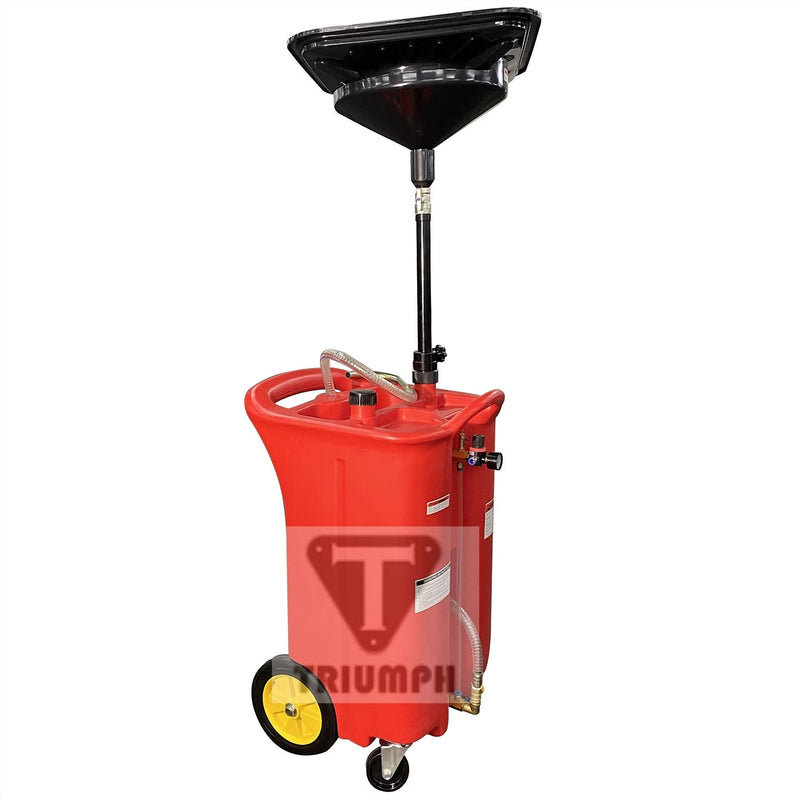

Triumph NOD-26 26 Gallon Oil Drain

See more by Triumph

$335.00 - $395.00

$335.00

$335.00 - $395.00

$335.00

In stock

SKU NOD-26

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

The NOD-26 is a rolling shop oil drain with a 26 gallon tank, sized for shops running multiple oil changes a day under an auto lift. A 22"x25" funnel on a 54"-69" adjustable column catches the drain, and shop air pressure evacuates the oil back out of the tank.

What the NOD-26 is built for

This is a mobile drain for shops doing oil changes in volume rather than one car a week. The tank holds 26 gallons, so a bay can run through a stack of passenger-car and light-truck services before anyone has to stop and empty it. The 22"x25" funnel gives a wide catch area, which matters when you are working off a lift and lining the funnel up under a drain plug by eye rather than by feel. Swivel caster wheels on all corners let the unit be pushed, pulled, or spun in place, so it moves between bays and tucks out of the way without being dragged.

Height range and working under a lift

The funnel column adjusts from 54" to 69". That range is aimed squarely at work over an auto lift: raise the vehicle, roll the drain underneath, and set the funnel just below the pan so the stream drops straight in instead of splashing off the rim. Because the adjustment is a range rather than a fixed height, the same unit works for a low sedan pan and a taller truck pan on the same lift. Measure the clearance in your own bays before ordering. If your lift routinely puts drain plugs below 54" or above 69", this drain is not the right height class for that work.

Emptying the tank with shop air

The NOD-26 uses air pressure to evacuate oil from the tank. Instead of wheeling the unit outside and tipping it, you connect shop air, pressurize the tank, and push the used oil out to your bulk waste-oil storage. In practice that means the drain needs to live within reach of a compressed-air drop, and your shop needs an air supply already in place. No electrical requirement is listed for this unit, so there is no cord to route and no dedicated circuit to plan for. The listing does not state an operating air pressure, hose size, or fitting type, so confirm those details before you plumb it in.

What the listing does and does not cover

The published specs for the NOD-26 are the 26 gallon capacity, the 22"x25" funnel, the 54"-69" adjustable height, the swivel caster wheels, and air pressure evacuation from the tank. Anything beyond that is not documented here. There is no stated tank material, empty weight, overall footprint, wheel diameter, air inlet size, or certification listing, and no included-accessory list. If any of those points decide the purchase for you, ask before ordering rather than assuming. The price of $395 is shipped to your address. Shipping timeframes, stock status, and warranty coverage are not stated in the source material for this model.

Key features

26 gallon tank — sized for shops running multiple oil changes a day rather than occasional service
22"x25" funnel — wide catch area for lining up under a pan while the vehicle is raised
54"-69" adjustable height — set the funnel close under the drain plug on a lift instead of catching from a distance
Air pressure evacuation — shop air pushes used oil out of the tank to bulk storage, no tipping the unit
Swivel caster wheels — roll and turn the drain in any direction between bays
Auto lift companion — intended as an addition to a bay that already has a lift in it

Specification Table

NOD-26 · TriumphSKU NOD-26
Model	NOD-26
Type	Oil Drain
Capacity	26 Gallon
Funnel size	22"x25"
Adjustable height	54"-69"
Mobility	Swivel caster wheels
Oil evacuation	Air pressure oil evacuation from tank
Price	$395 shipped to address

FAQ about this model

How much oil does the NOD-26 hold?
The tank capacity is 26 gallons.

Does the NOD-26 need electrical power?
No electrical requirement is listed for this unit. Emptying the tank is done with air pressure, so you need a compressed-air supply in the bay.

How do you empty the tank?
The NOD-26 uses air pressure oil evacuation from the tank. You pressurize the tank with shop air and push the used oil out to your bulk waste-oil container instead of tipping or hand-pouring it.

What height does the funnel adjust to?
The funnel column adjusts from 54" to 69". Check the drain-plug height on your own lift to confirm it falls inside that range.

How big is the funnel?
The funnel measures 22"x25".

Will it work under my two-post or four-post lift?
It is intended for shops with an auto lift, and it rolls on swivel casters to position under a raised vehicle. The deciding factor is whether your raised drain-plug height lands within the 54"-69" adjustment range.

Can I move it around the shop easily?
Yes. It rides on swivel caster wheels for mobility between bays.

What does the NOD-26 cost and does that include shipping?
The price is $395 shipped to your address.

Is a tank material or weight published?
No. The source specs cover capacity, funnel size, height range, casters, and air evacuation only. Contact us before ordering if material, weight, or footprint is a deciding factor.
