Product Overview
Specification Table
FAQ about this model
What is the lifting capacity and primary application of the Eoslift LR20?

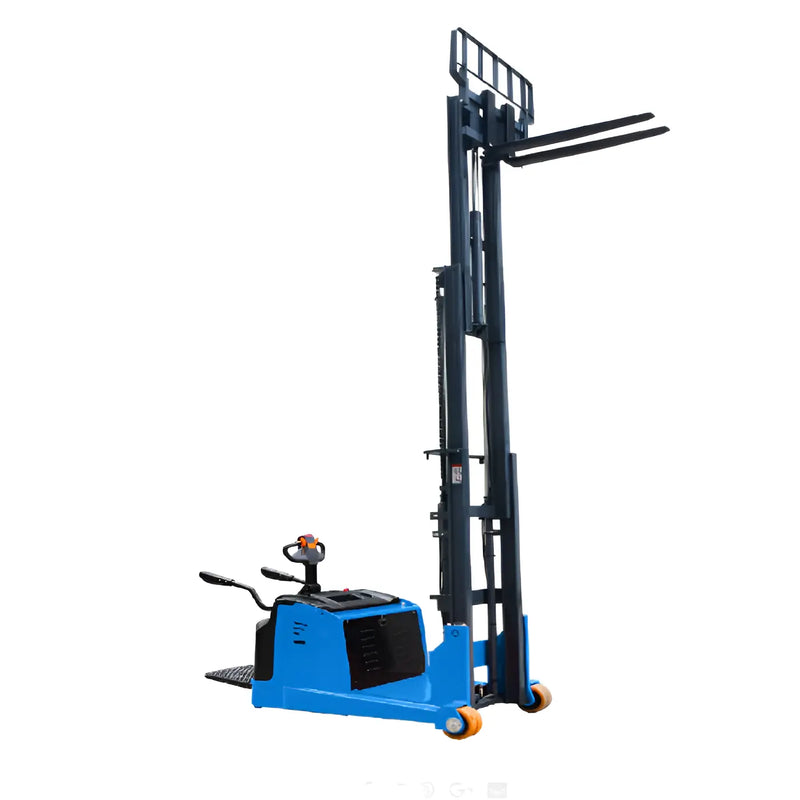

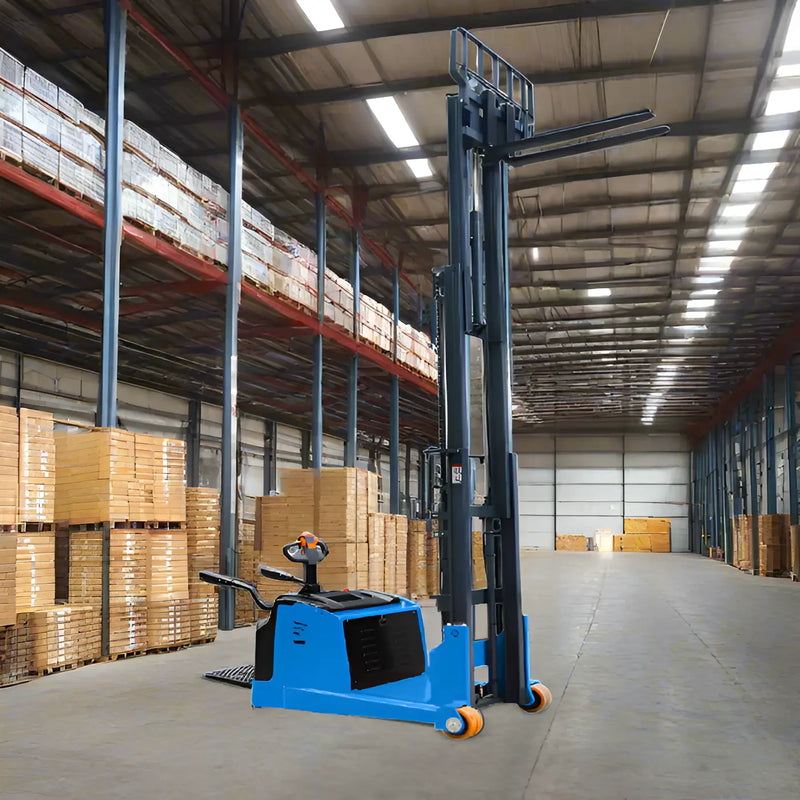

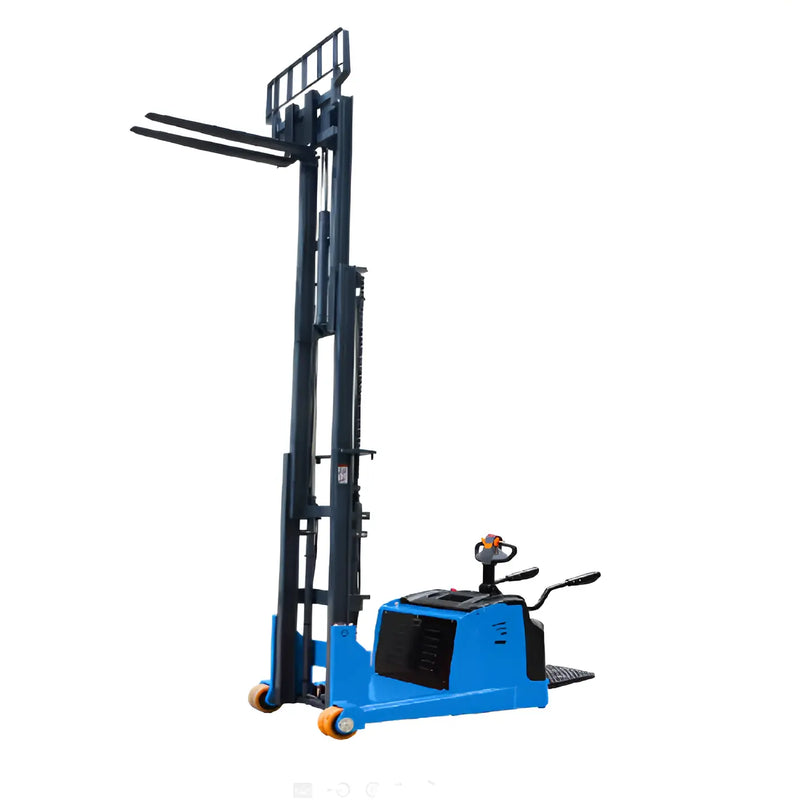

The Eoslift LR20 Stand-On Counterbalance Reach Stacker has a rated capacity of 4,409 lb (2,000 kg) with a load center of 19.69 inches. It is built for high-productivity lifting, stacking, and transport of pallets and loads in warehouses, distribution centers, and manufacturing plants.
How is the LR20 powered and operated?
The LR20 is a battery-powered electric reach stacker, featuring a 24 V / 270 Ah battery. It operates as a stand-on unit, offering EPS (Electric Power Steering) for maneuverability and operator comfort in demanding industrial environments.
What are the key dimensions and weight of this reach stacker?
The Eoslift LR20 has an overall length of 117.71 inches and a service weight of 5,622 lb. Its compact footprint is designed for maneuverability in various industrial settings. The fork size is 42.12 in (L) / 4.80 in (W) / 1.57 in (T).
Compare models
| LR20 Stand-On Counte THIS | LR20 Electric Reach | |
|---|---|---|
| Model | LR20(triplex full free mast) LR20(Double cylinder duplex mast) | LR20(triplex full free mast) LR20(Double cylinder duplex mast) |
| Power Type | Battery | Battery |
| Operation Type | Stand On | Stand On |
| Rated Capacity | 4409.245lbs. | 4409.245lbs. |
| Price | $0.00 | $16,648.58 |
| Viewing | Check › |
Specs from Amulet manufacturer data. Prices update live and reflect current promotions.
Shipping & Returns
We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.
60-DAY NO-HASSLE REFUNDS AND RETURNS
If thereβs an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@vovlift.com
More information on shipping and returns can be found here.
Warranty
EOSLift Limited Warranty (Policy W2015-001), Electric & Semi-Electric Equipment β EOSLift USA Corporation warrants this product to the original purchaser: 24 months on frame, transmission (gearbox/shaft), weldments, traction motor, SBW motor/decoder and wheel controller; 12 months on lift motor, hydraulic pump, SBW sensor, built-in chargers and wiring harness; 6 months on transistor controls, control cables, tires, motor brushes, contact tips, switches and bearings; batteries and chargers 180β360 days (first 90 days unconditional, then pro-rata). The first 90 days are unconditional against defects in material and workmanship. Warranty covers parts only (labor and travel excluded) and is void under abnormal use, unauthorized repair or modification, abuse, overloading beyond rated capacity, improper installation or transport damage. Original purchaser only. Contact: EOSLift USA Corporation, 1590 S. Milliken Ave Unit H, Ontario CA 91761 Β· 1-888-264-5008.
