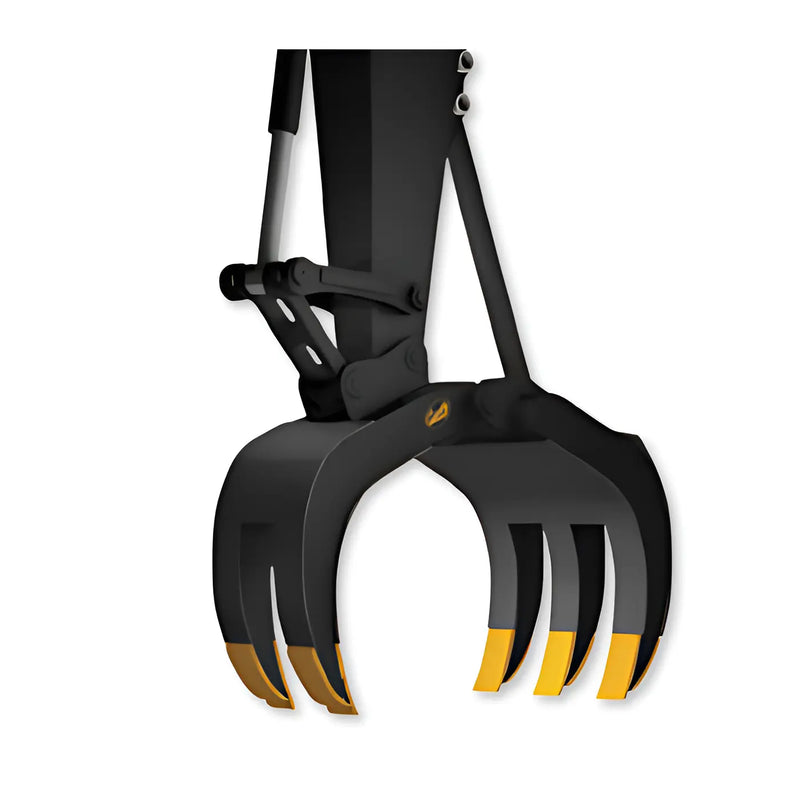

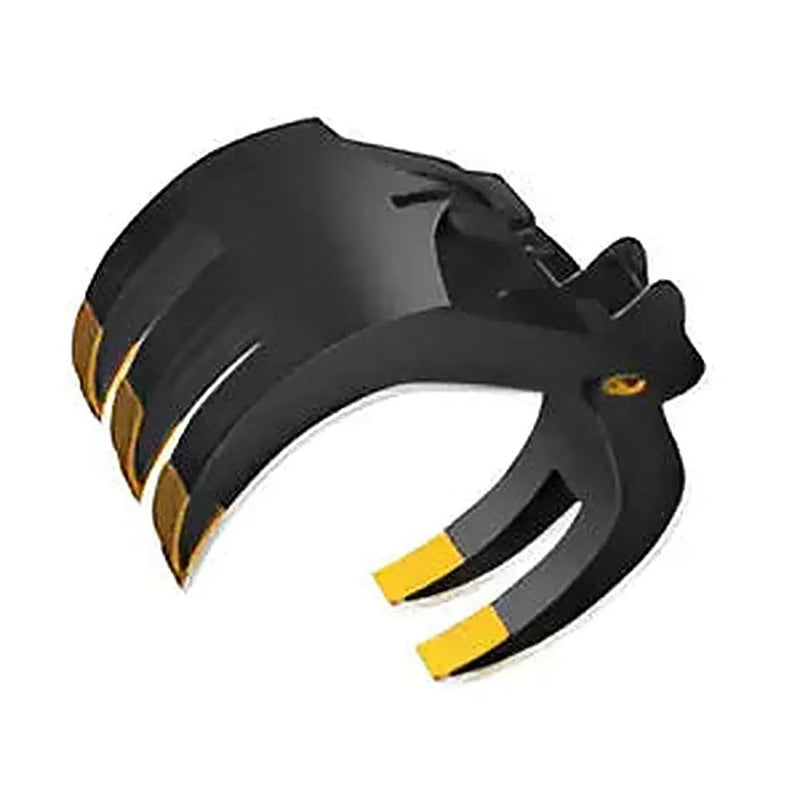

Geith Heavy Duty Mechanical Grapple
Designed for 18–41 ton excavators, the Geith Heavy Duty Mechanical Grapple delivers exceptional strength and performance for demolition, waste handling, and bulk material applications. Built with reinforced structural components and optimized jaw geometry, it provides powerful gripping force, wide opening capacity, and long-term durability in demanding jobsite conditions.
Key Features
- Wide jaw opening up to 3607 mm for handling large materials efficiently
- Heavy-duty reinforced construction for maximum durability
- Optimized jaw design for superior grip and material control
- Compatible with 18–41 ton excavators
- Low-maintenance design to reduce downtime
Specifications
| Excavator Weight (Tons) | Model | Weight (kg) | Weight (lbs) | Full Open (mm) | Complete Close (mm) | Height Closed (mm) | Width Upper Moveable Jaw (mm) | Width Lower Fixed Jaw (mm) |
|---|---|---|---|---|---|---|---|---|
| 18 - 23 | HDG110 | 1249 | 566 | 2413 | 230 | 1549 | 762 | 1118 |
| 23 - 27 | HDG120 | 1619 | 734 | 2870 | 260 | 1702 | 762 | 1118 |
| 30 - 36 | HDG140 | 2268 | 1029 | 2946 | 295 | 1829 | 889 | 1270 |
| 36 - 41 | HDG160 | 2778 | 1260 | 3607 | 330 | 2134 | 991 | 1397 |
