Product Overview

In short

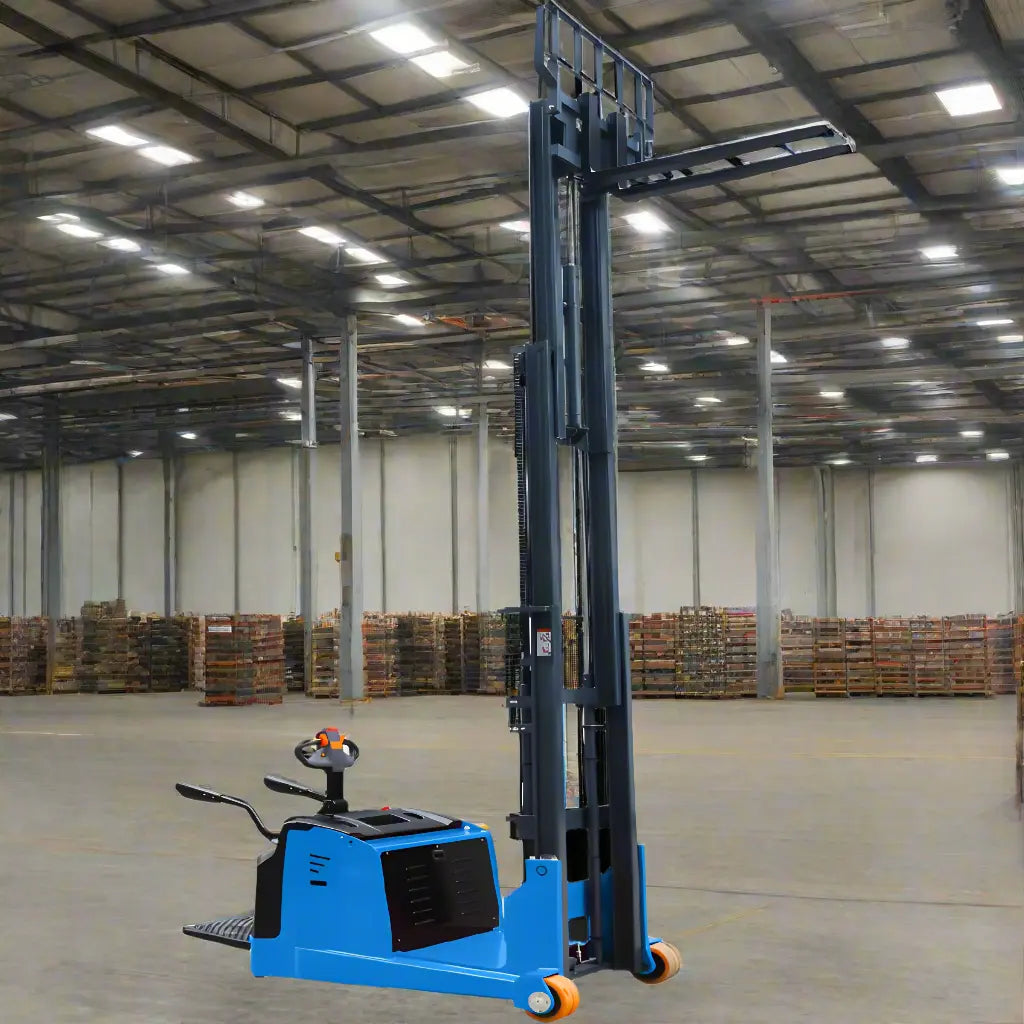

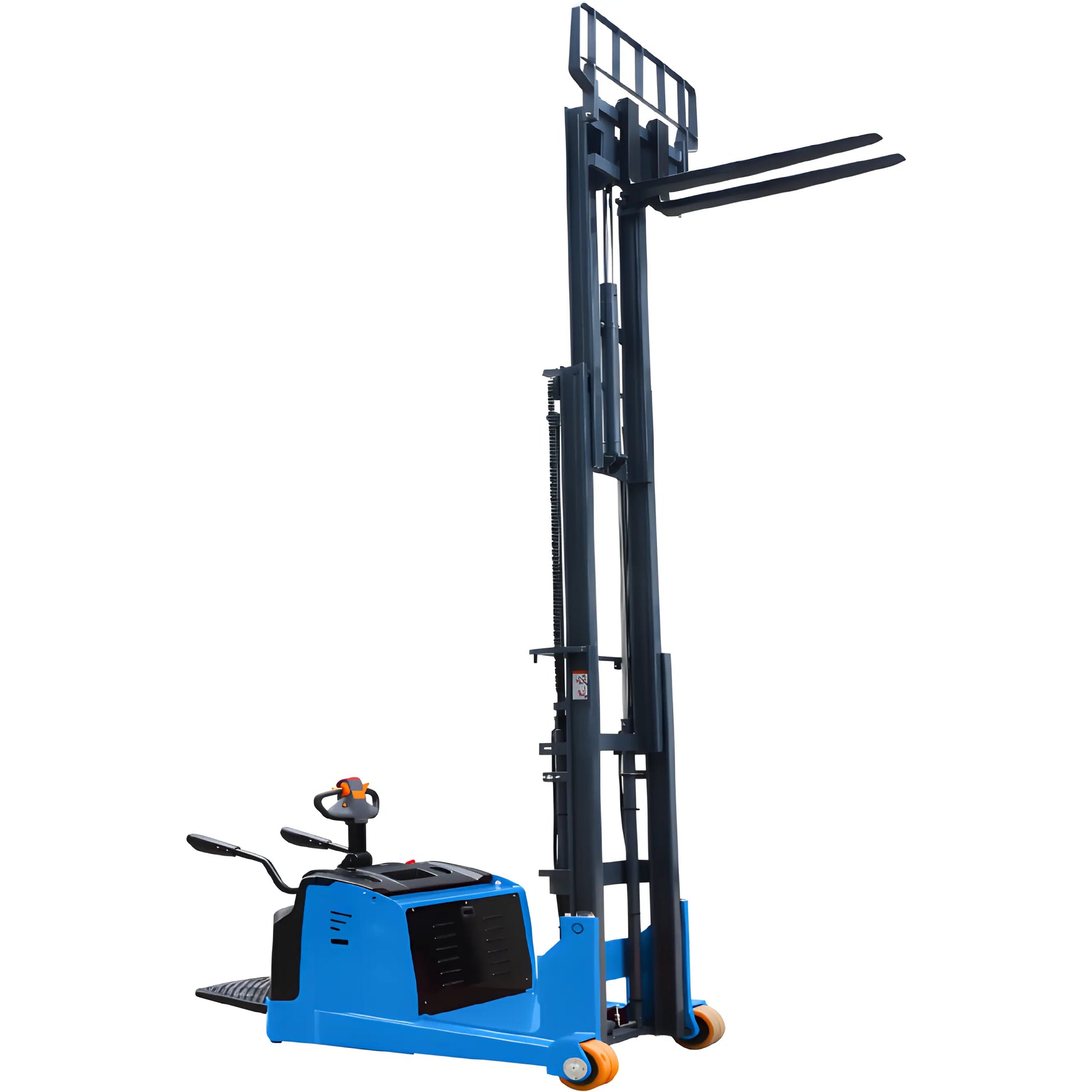

The Eoslift LR20 is a stand-on electric reach stacker designed for efficient material handling in warehouses and factories. It boasts a 4,409 lb rated capacity and features AC drive and EPS steering for ergonomic operation. Built with a reinforced H-shape alloy-steel mast, it offers strong resistance to bending and torsion, making it a reliable workhorse for various material handling tasks.

The Eoslift LR20 is a stand-on electric reach stacker rated for 4,409 lb, engineered for efficient material handling in warehouses and factories. It is well suited for operations that require frequent stacking, transporting, and order picking, where an ergonomic stand-on design and precise handling are valued. Its reinforced H-shape alloy-steel mast is built for strong resistance to bending and torsion, supporting reliable performance under repeated daily use.

Key specifications include a load center of 19.685 inches and a wheelbase of 57 inches, providing a stable operating footprint. The unit runs on polyurethane (PU) wheels, with a drive wheel measuring 10" x 3.93" and a load wheel measuring 8.26" x 2.16", arranged in a 4 front / 1 rear (drive) wheel configuration, and a load-side wheel tread of 35.66 inches. Power comes from a 24V/270Ah side-pull battery, paired with AC drive and EPS (electric power steering) for smooth, low-effort maneuvering. Fork dimensions are 42.12" (length) x 4.80" (width) x 1.57" (thickness). Depending on configuration, the unit is available with a triplex full free mast (6,062.712 lbs service weight) or a double-cylinder duplex mast (5,621.788 lbs service weight), each offering tilting capability — 2/5 degrees of fork tilting on the triplex version, or 2/5 degrees of mast tilting on the duplex version.

With its combination of a stable three-pivot chassis, AC drive, and EPS steering, the LR20 is designed for typical warehouse and factory tasks such as pallet handling, stacking, and internal transport where maneuverability and operator comfort matter. The stand-on operation type allows for quick, repeated short-distance moves, making it practical for busy storage and distribution environments.

Overall, the Eoslift LR20 combines a durable mast construction, ergonomic steering, and a battery-powered AC drive system into a dependable reach stacker for everyday material handling needs, with mast configuration options to match different operational requirements.

Specification Table

Eoslift LR20 Electric Reach Stacker – 4,409 lb
Model	LR20(triplex full free mast) LR20(Double cylinder duplex mast)
Power Type	Battery
Operation Type	Stand On
Rated Capacity	4409.245lbs.
Load Center	19.685 inch.
Wheel Base	57 inch.
Service Weight	6062.712 lbs. 5621.788 lbs.
Wheel Type	PU
Drive Wheel	10"x 3.93"
Load Wheel	8.26"x 2.16"
Number of Wheels, front/rear   (x=drive wheel)	4/1x
Wheel Tread, load side	35.66"
Tilting	2/5 (Fork Tilting) 2/5 (Mast Tilting)
Mast Closed Height	Refer to Mast spec

FAQ about this model

What is the rated capacity and load center for the LR20?

The LR20 is rated for 4,409.245 lbs at a 19.685 inch load center. If your load's center of gravity sits farther out than that, actual lift capacity will be lower than the rated figure, so check your load dimensions against this load center before ordering.

What mast options are available, and does that affect weight?

The LR20 comes in two mast configurations: a triplex full free mast and a double cylinder duplex mast. Service weight differs between them — 6062.712 lbs for one configuration and 5621.788 lbs for the other — so confirm which mast type matches your quoted unit before planning floor loading or transport.

How is the LR20 powered and operated?

It runs on a battery power source with stand-on operation, meaning the operator rides standing rather than seated. No engine or fuel system is involved, so there are no emissions to manage indoors.

What are the wheelbase and wheel tread dimensions?

The wheel base is 57 inches and the wheel tread on the load side is 35.66 inches. Use these figures to check aisle width and turning clearance in your facility layout before purchase.

What wheels and drive configuration does the LR20 use?

It uses PU (polyurethane) wheels throughout, with a 10" x 3.93" drive wheel and an 8.26" x 2.16" load wheel. The wheel setup is 4 wheels on the front and 1 drive wheel on the rear.

Can the forks or mast tilt for load positioning?

Yes, the LR20 has both fork tilting and mast tilting, each rated at 2/5 (2 degrees forward, 5 degrees back). This tilt range helps level loads on uneven ground or adjust fork angle during pick-up and set-down.
