AMGO J5H Manual Rolling Jack 5,000 lbs. Capacity designed

See more by AMGO

$1,125.00 - $1,125.00

$1,125.00

$1,125.00 - $1,125.00

$1,125.00

In stock

SKU J5H

Insured freight from $275 exact flat rate at checkout

Free warehouse pickup Manning, SC · Dallas, TX

Quantity

Product Overview

In short

The AMGO J5H is a manual rolling jack with a 5,000 lbs. lifting capacity, operated by a commercial-grade hand pump with no air source required. It reaches a maximum lifting height of 14" without adapters (16 9/16" with the included stackable adapters) and fits between runways spaced 35 5/8" to 50 3/16" apart.

Overview

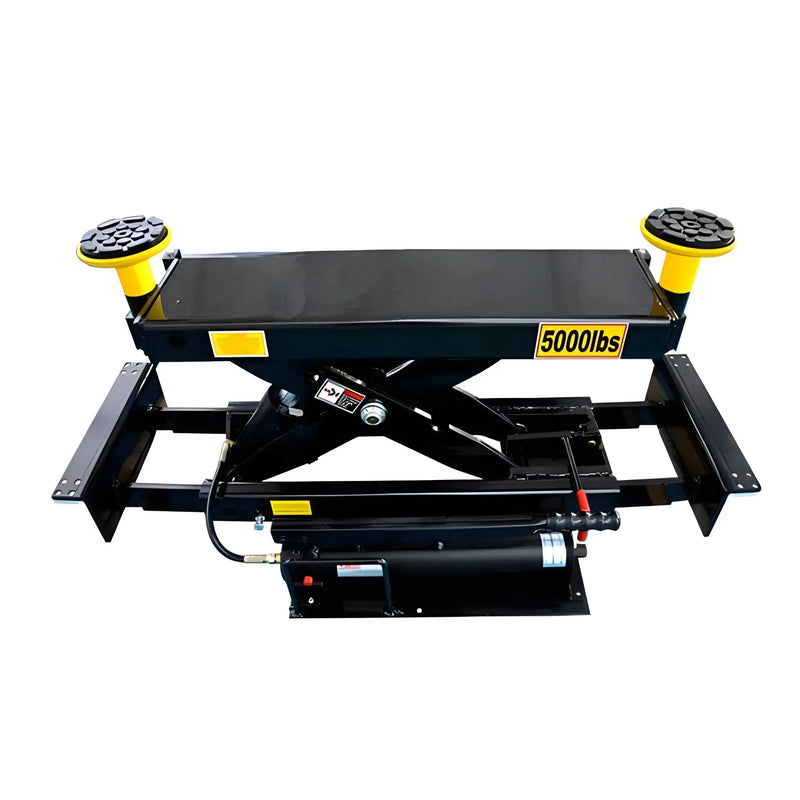

The AMGO J5H Manual Rolling Jack is a 5,000 lbs. capacity jack built for use on drive-on lift runways. It relies on a commercial-grade hand pump that works with no air source required, lifting a vehicle in about 50 seconds. The extendable lower sliding assembly rides on plastic sliders for smooth movement along the runways, and an ergonomic guardrail doubles as a booster handle for gliding the jack into position.

Key features

Commercial-grade hand pump - easy-to-use manual operation that needs no air source
5,000 lbs. lifting capacity - lifts in about 50 seconds
Extendable lower sliding assembly - plastic sliders ensure smooth movement and fit runways spaced 35 5/8" to 50 3/16" apart
Standard 2.5" stackable adapters - reach various vehicle chassis heights, raising max lifting height from 14" to 16 9/16"

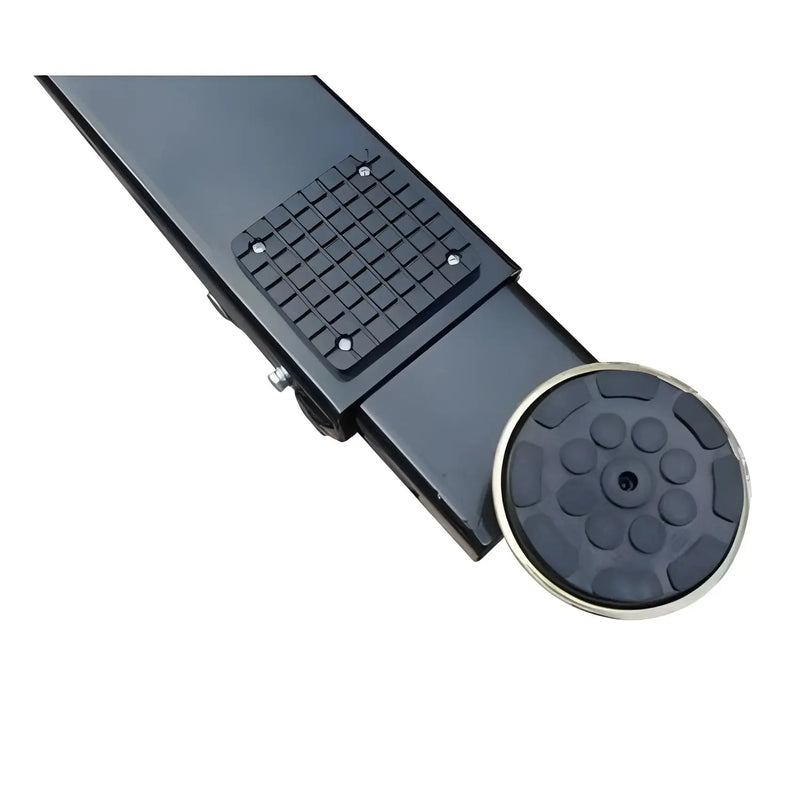

Adjustable arms - position easily on the recommended support points (arm pads reach 33 1/8" to 53 7/16")
Standard sturdy rubber pads assembly - minimum rubber pad height of 5 1/16"

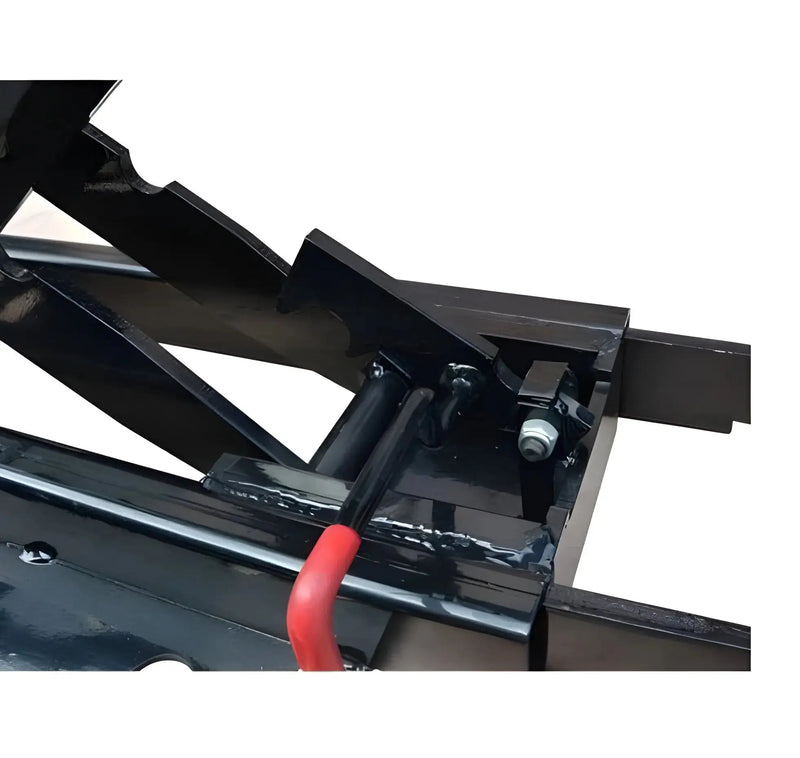

Manual safety lock - helps you work comfortably and securely
Ergonomic guardrail - doubles as a booster handle for gliding the jack

Specifications

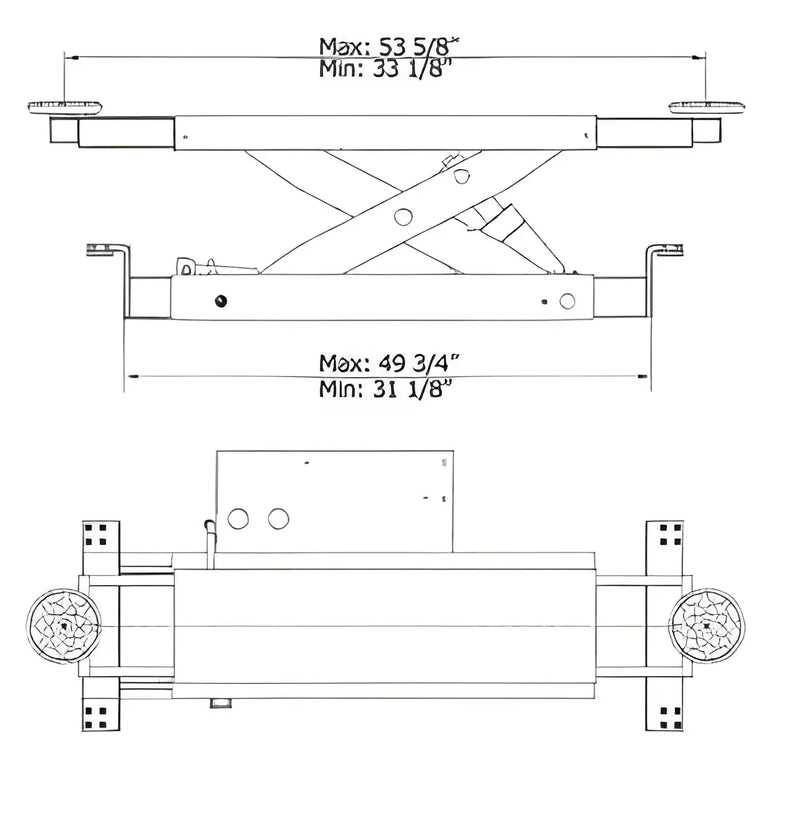

Lifting capacity 5,000 lbs. · Lifting time 50s · Arm pads reach 33 1/8"–53 7/16" · Min. height 8 11/16" · Support base width 35 5/8"–50 3/16" · Min. rubber pad height 5 1/16" · Max. lifting height 14" (without adapters) / 16 9/16" (with adapters) · Overall width 20 1/16" · Gross weight 273 lbs. · Pump: Hand pump

Specification Table

J5H · J5HSKU J5H
Lifting Capacity	5,000 lbs
Lifting Time	50s
Arm Pads Reach	33 1/8"-53 7/16"
Min. Height	8 11/16"
Support Base Width	35 5/8"-50 3/16"
Min Rubber Pad Height	5 1/16"
Max. Lifting Height (Without adapters)	14"
Max. Lifting Height (With adapters)	16 9/16"
Overall Width	20 1/16"
Gross Weight	273 lbs
Pump	Hand Pump

FAQ about this model

What is the lifting capacity of the AMGO J5H?
The J5H has a lifting capacity of 5,000 lbs.

Does the J5H require an air source to operate?
No. The J5H uses a commercial-grade hand pump that works with no air source required.

How high will the J5H lift?
The maximum lifting height is 14" without adapters, and 16 9/16" when using the standard 2.5" stackable adapters.

What runway width does the J5H fit?
Its extendable lower sliding assembly fits a support base width of 35 5/8" to 50 3/16" between runways.

How much does the J5H weigh and how fast does it lift?
The J5H has a gross weight of 273 lbs. and a lifting time of about 50 seconds.

Warranty

AMGO 5/3/2 Limited Warranty. AMGO Hydraulic warrants steel structural components — columns, carriages, lifting arms, beams, platform, scissor and base — for five (5) years; hydraulic parts including cylinders, seals and hoses for three (3) years; and electrical components, the power unit and other parts for two (2) years. Consumable parts such as rubber pads are excluded. Coverage applies within the 48 contiguous states.

Warranty

Authorized AMGO Dealer

Full Manufacturer Warranty Included

Vovlift is a factory-authorized AMGO Hydraulics dealer. Every lift ships brand-new with the complete AMGO manufacturer warranty and US-based support — so you are covered from day one.

5 Years

Structural Parts

3 Years

Hydraulic Parts

2 Years

Other & Electrical

*Manufacturer warranty applies to the 48 contiguous states; consumption parts (e.g. rubber pads) excluded. For areas outside the 48 states, contact AMGO Hydraulic Corporation.

Documents

AMGO J5H Manual
