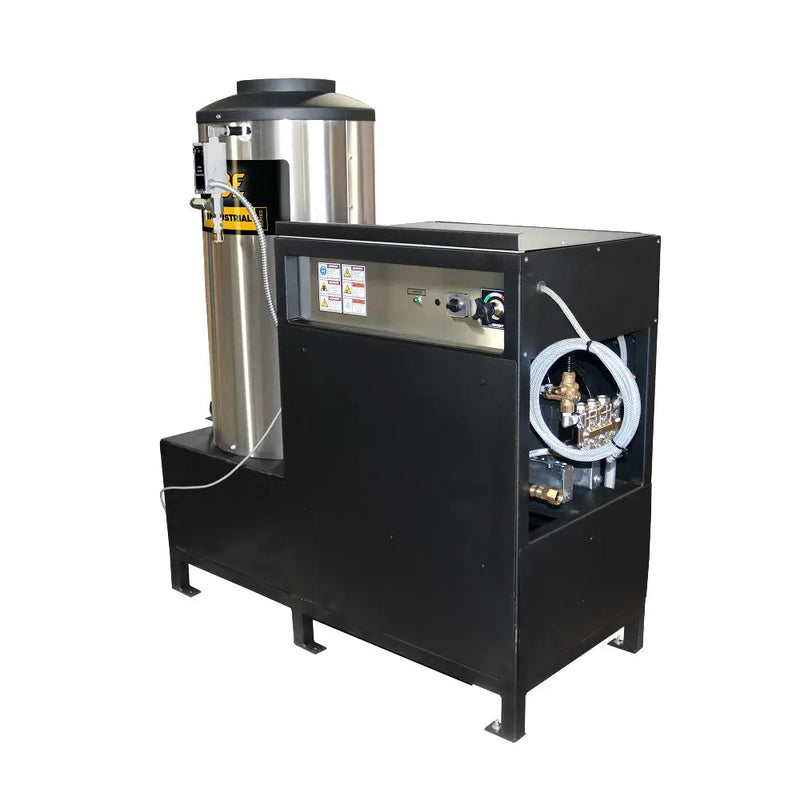

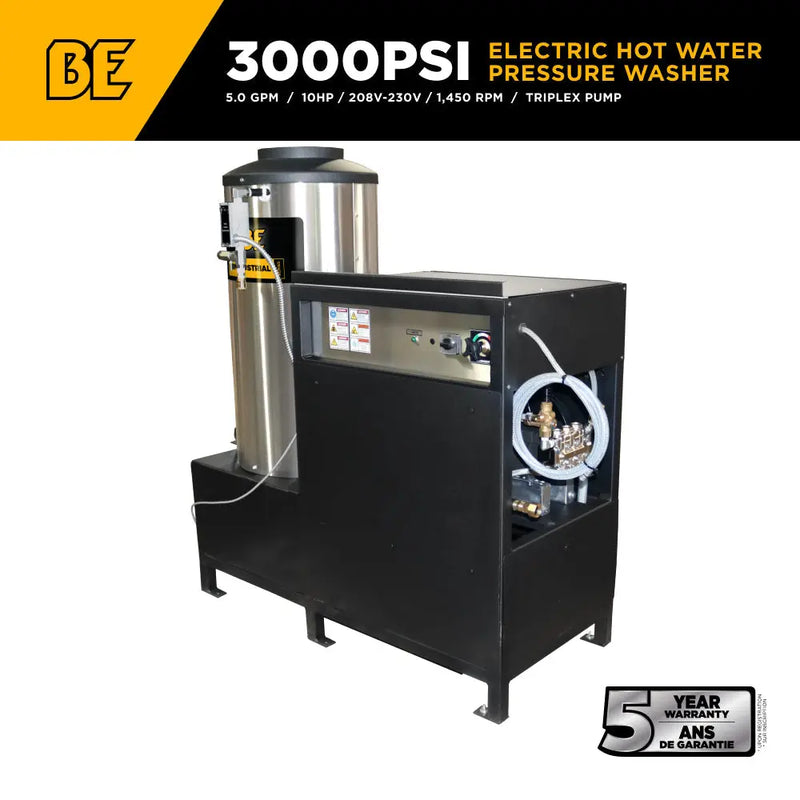

Product Overview
Specification Table
| Parameter | Specification |
|---|---|
| Model | 67HD-3 |

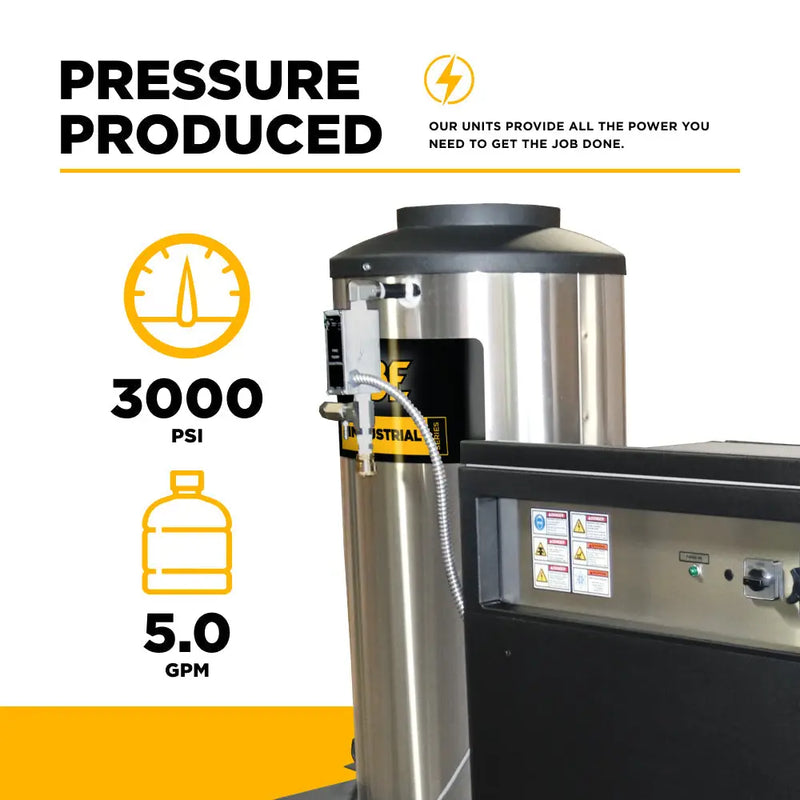

| Pressure | 3,000 PSI |
| Flow Rate | 5.0 GPM |
| Motor | 10 HP Baldor Electric Motor |
| Phase | Three-phase |
| Voltage | 208V–230V |
| Amperage | 35–34A |
| Motor Speed | 1,750 RPM |

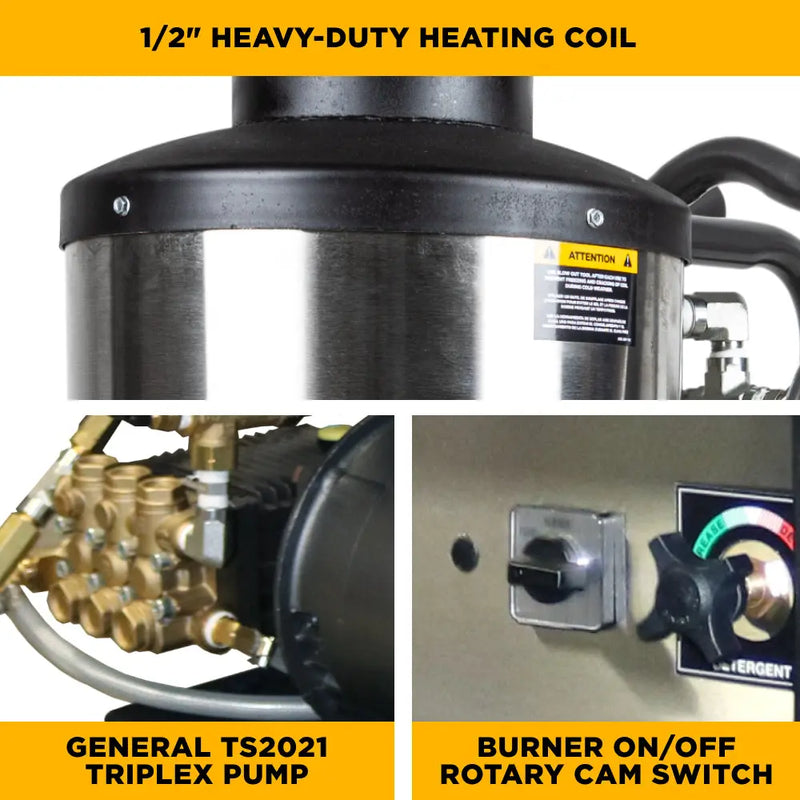

| Pump | General Triplex TS2021 |
| Pump Class | P8 |
| Unloader | External |
| Chemical Injection | Adjustable High-Pressure Metering Valve |
| Burner Type | Electronic Ignition |
| Burner Fuel Compatibility | Natural Gas or LP |
| BTU Output | 440,000 |
| Maximum Water Temperature | 93°C / 200°F |

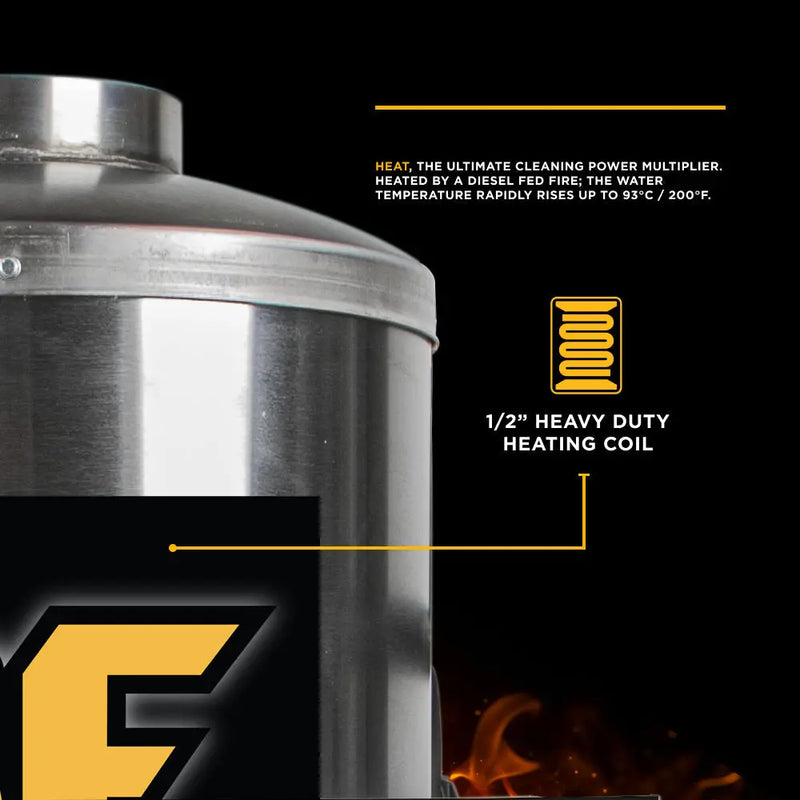

| Heating Coil | 230’ x 1/2” Schedule 80 Cold-Rolled Steel |
| Thermostat | Adjustable |
| Time-Delay Shutdown | Yes |
| Hour Meter | Yes |
| Flow Switch | Yes |
| Pressure Relief Valve | Yes |

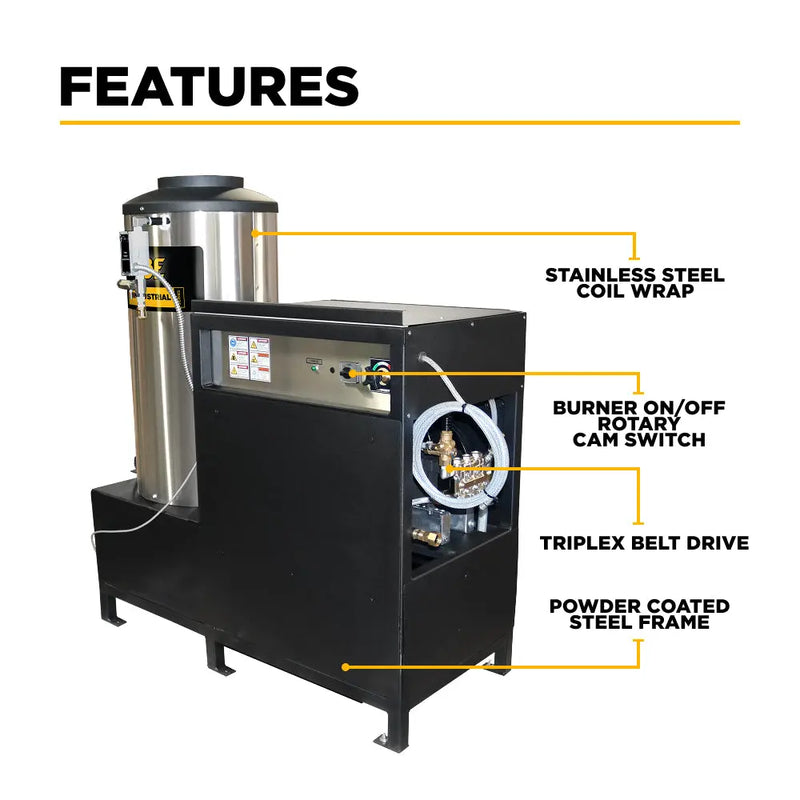

| Burner Switch | Rotary Cam |
| Power Cord / Plug | 10’ Cord / No Plug |

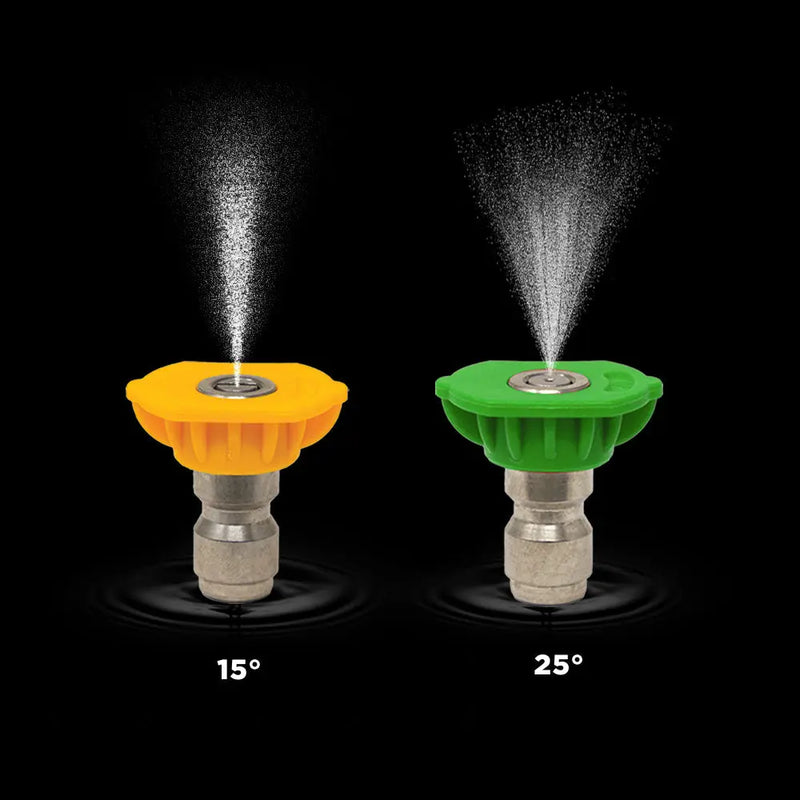

| Included Accessories | 50 ft. Twin-Wire Braided High-Pressure Hose, Commercial Insulated Spray Gun, 48” Insulated Spray Wand with Quick-Connect Fittings, 2 Quick-Connect Spray Nozzles (15° and 25°) |
| Motor Warranty | 2 Years |
| Pump Warranty | 5 Years |
| Burner Warranty | 3 Years |
| Coil Warranty | Lifetime |
| Shipping Weight | 835 lbs |

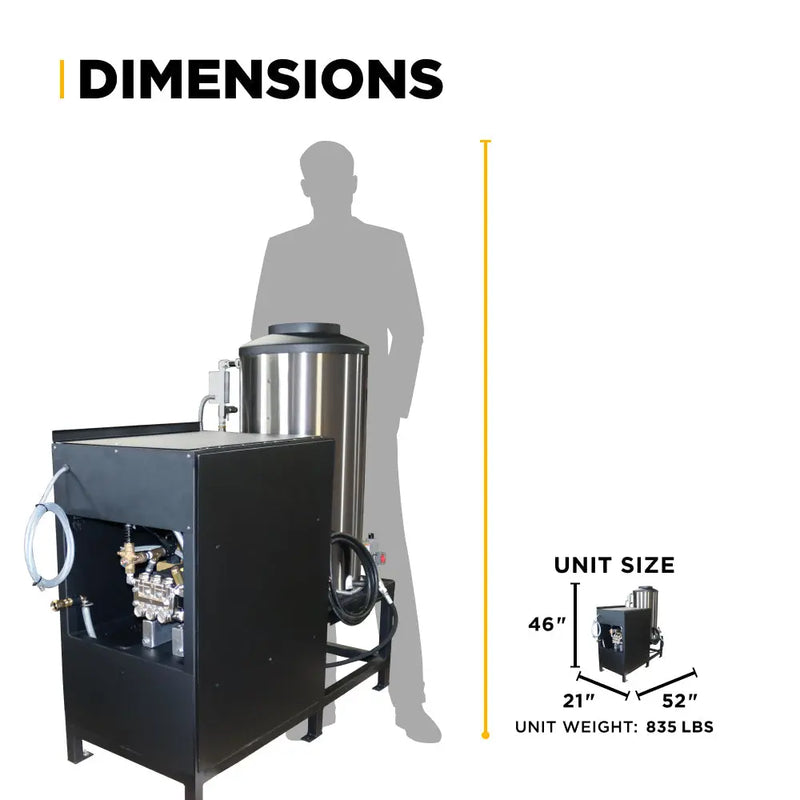

| Shipping Dimensions (L × W × H) | 60” × 40” × 67” |
