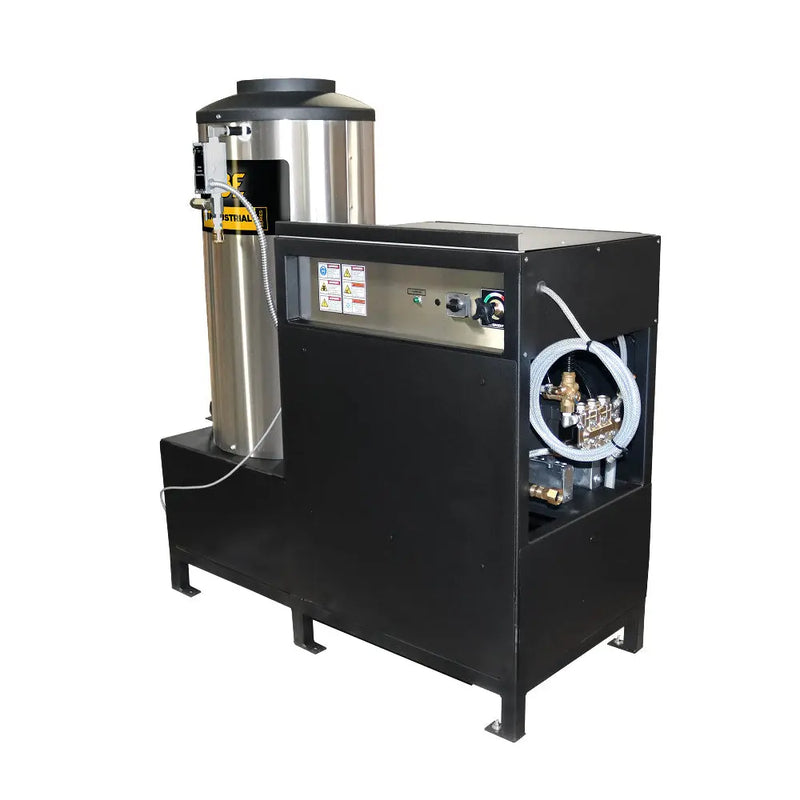

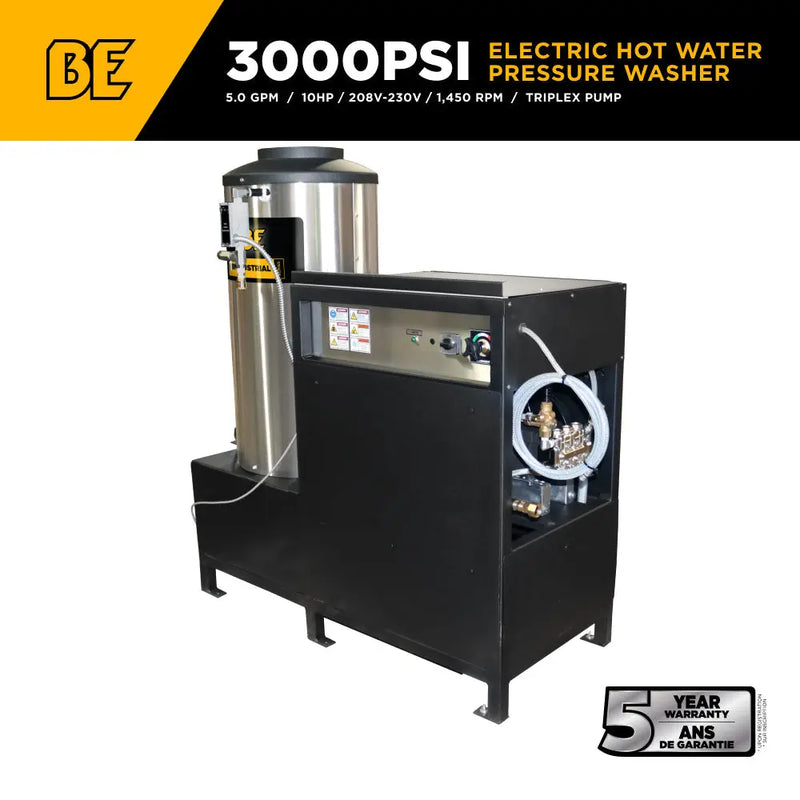

Product Overview
Specification Table
| Parameter | Specification |
|---|---|
| Model | 67HD |

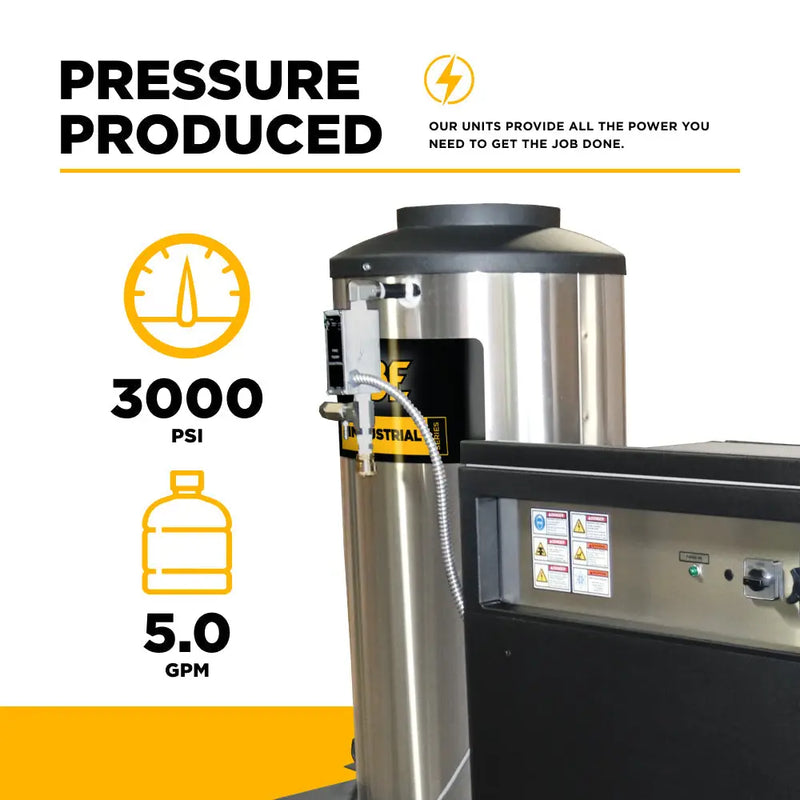

| Pressure | 3,000 PSI |
| Flow Rate | 5.0 GPM |
| Motor Brand | Baldor electric motor |
| Motor Horsepower | 10 HP |
| Motor Phase | Single-phase |
| Motor Voltage | 208V–230V |
| Motor Amperage | 47–46A |
| Motor Speed | 1,750 RPM |

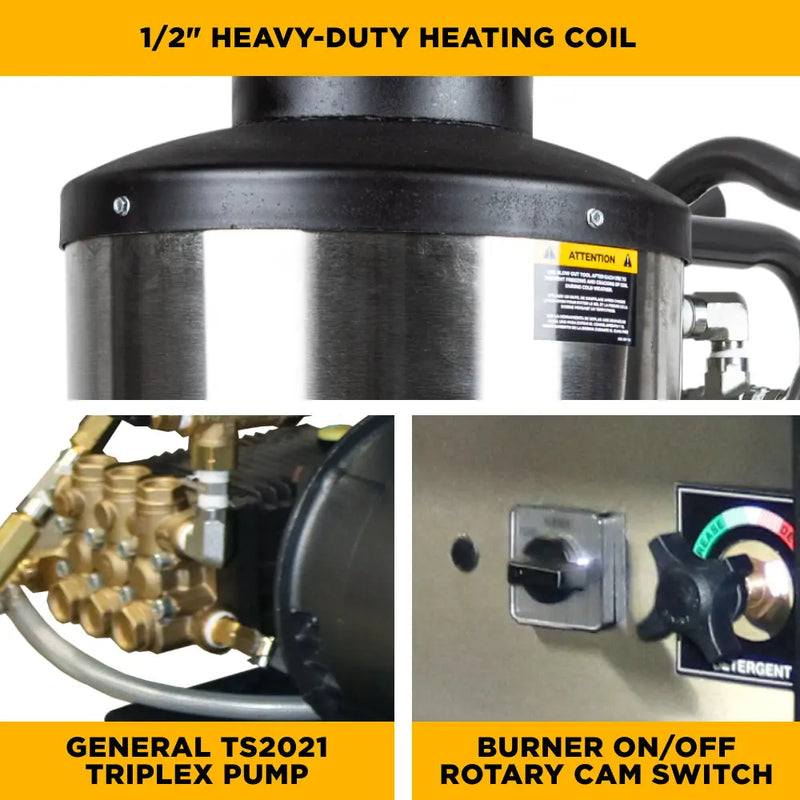

| Pump Brand | General Triplex TS2021 |
| Pump Class | P8 |
| Unloader Type | External |
| Chemical Injection | Adjustable high-pressure metering valve |
| Burner Type | Electronic ignition (natural gas or LP) |
| BTU Output | 440,000 |
| Maximum Water Temperature | 93°C / 200°F |

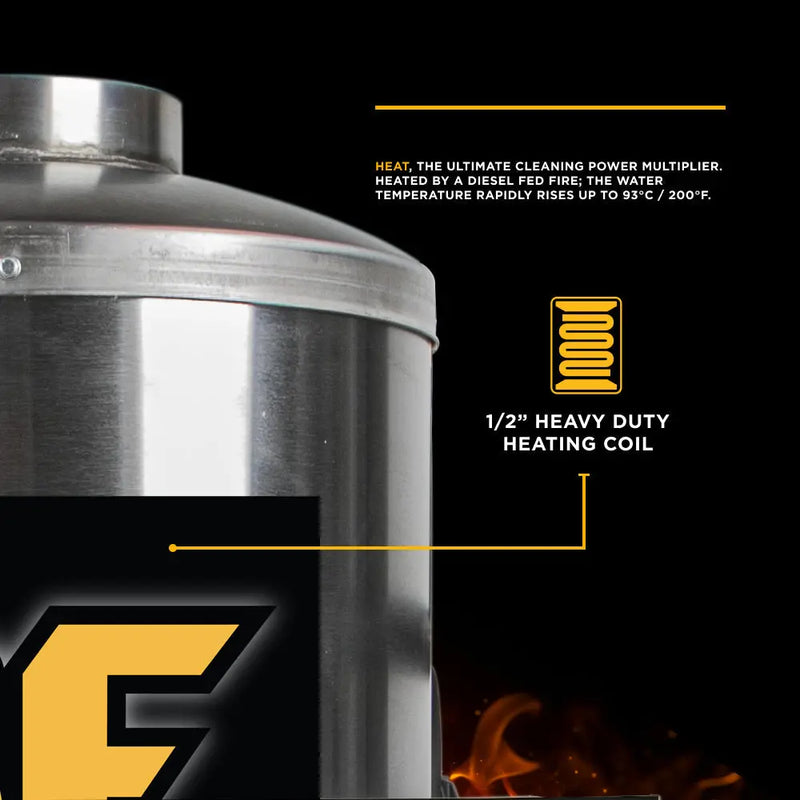

| Heating Coil | 230’ x 1/2” Schedule 80 cold-rolled steel |
| Thermostat | Adjustable |
| Time-Delay Shutdown | Yes |
| Hour Meter | Yes |
| Flow Switch | Yes |
| Pressure Relief Valve | Yes |

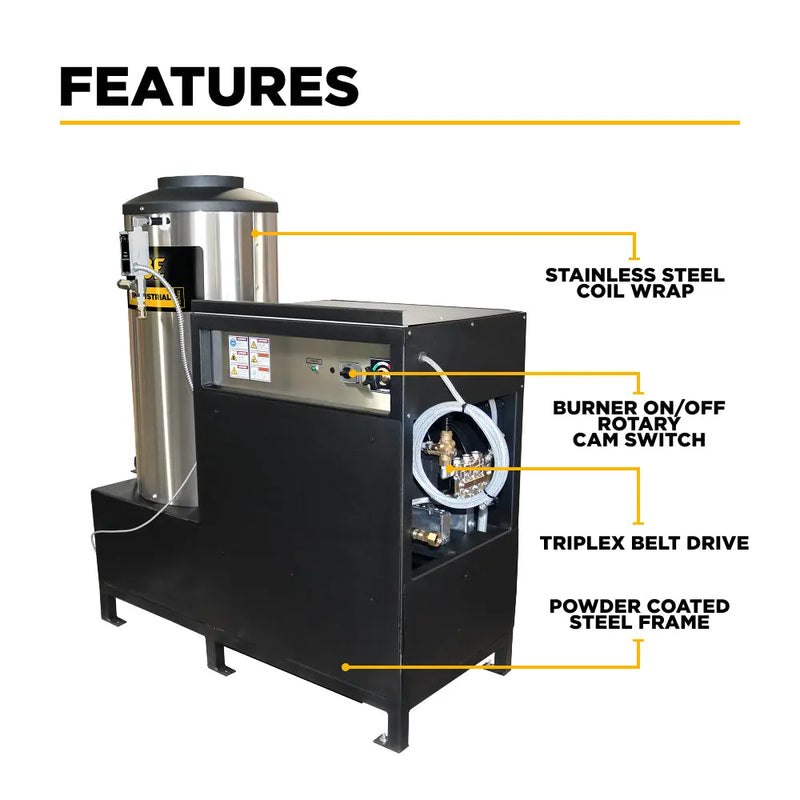

| Burner Switch | Rotary cam |
| Power Cord / Plug | 10’ cord / no plug |
| Motor Warranty | 2 Years |
| Pump Warranty | 5 Years |
| Burner Warranty | 3 Years |
| Coil Warranty | Lifetime |
| Shipping Weight | 835 lbs |

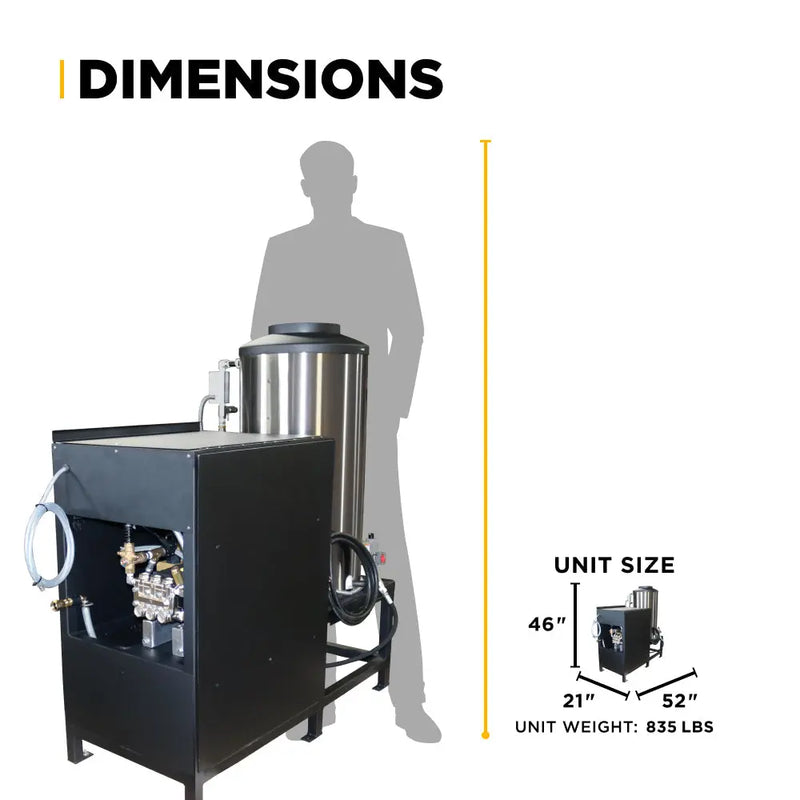

| Shipping Dimensions (L × W × H) | 60” × 40” × 67” |

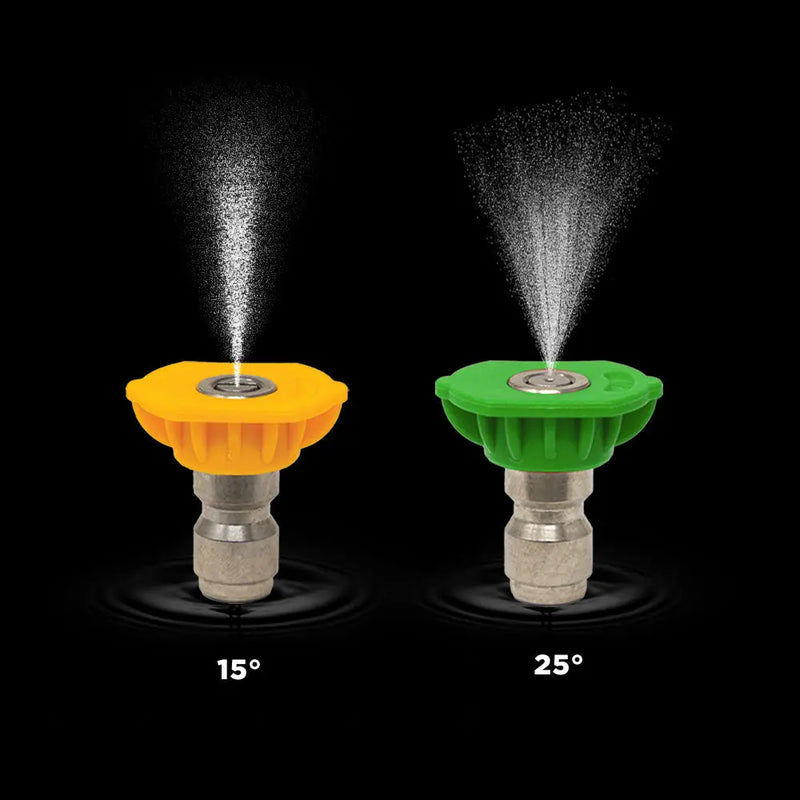

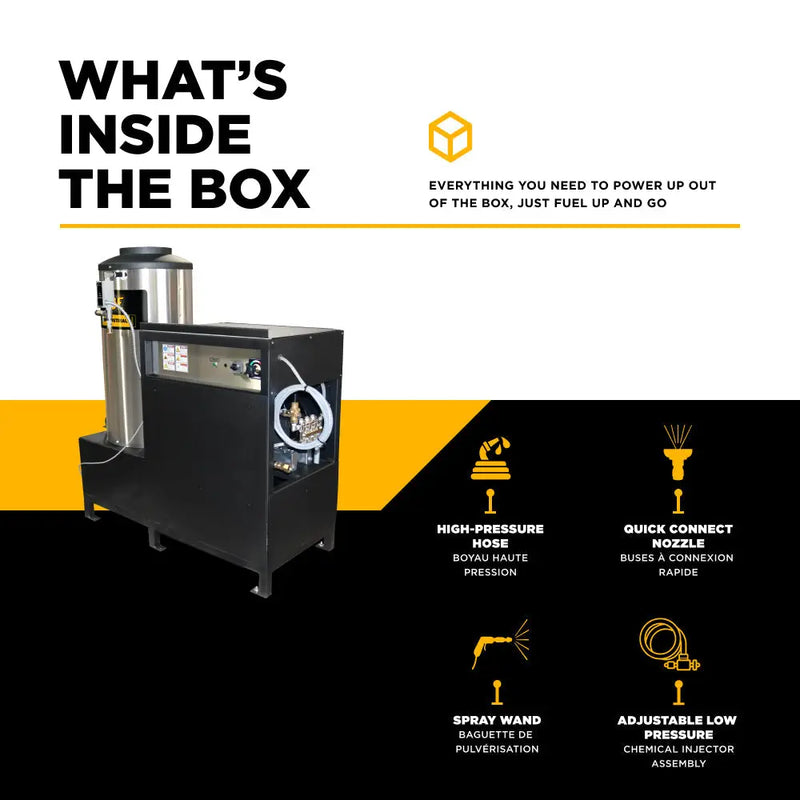

| Included Accessories | 50 ft. twin-wire braided high-pressure hose, Commercial insulated spray gun, 48” insulated spray wand with quick-connect fittings, 2 quick-connect spray nozzles (15° and 25°) |
