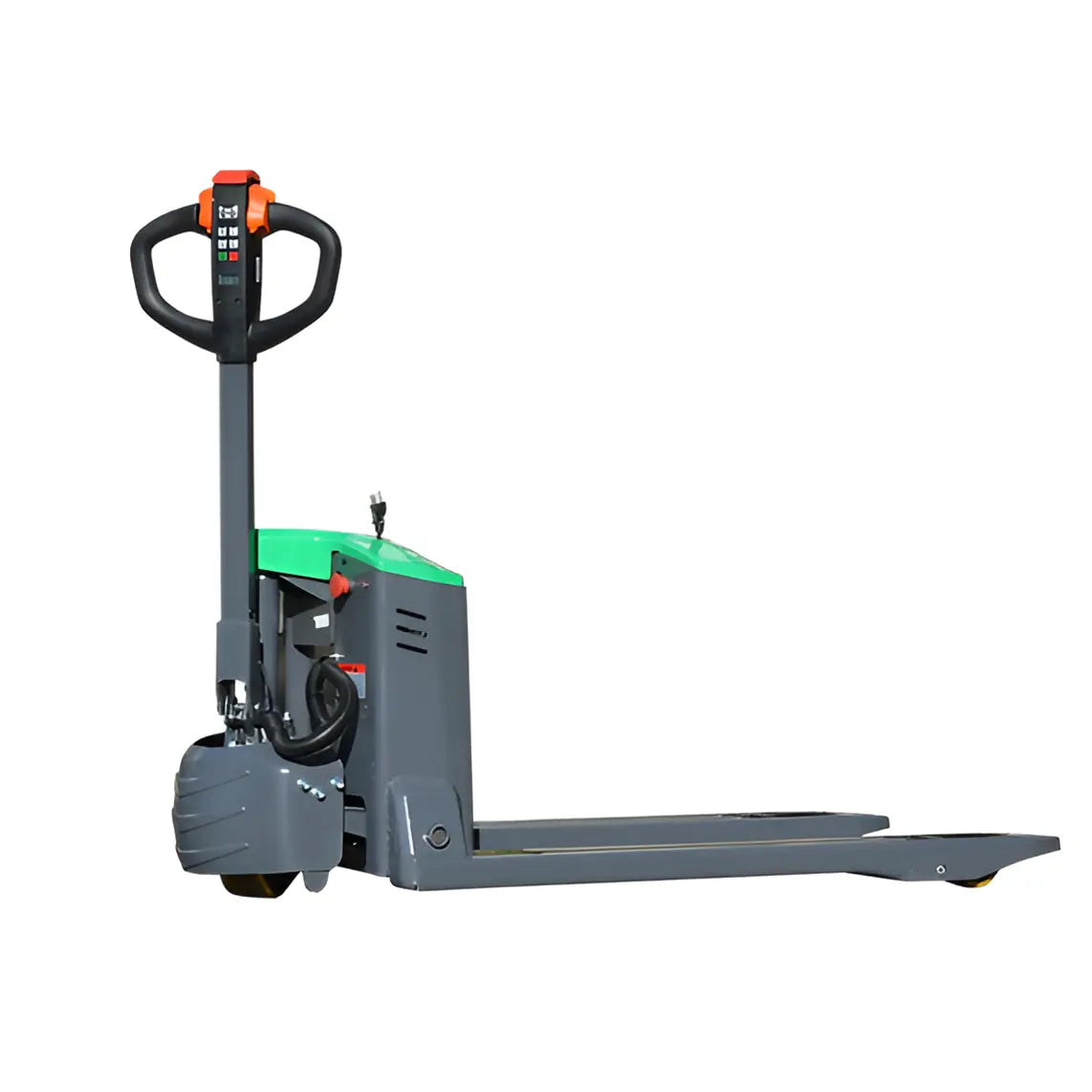

EKKO EP15JLIC straddle stacker pallet jack with green and gray body and ergonomic handle

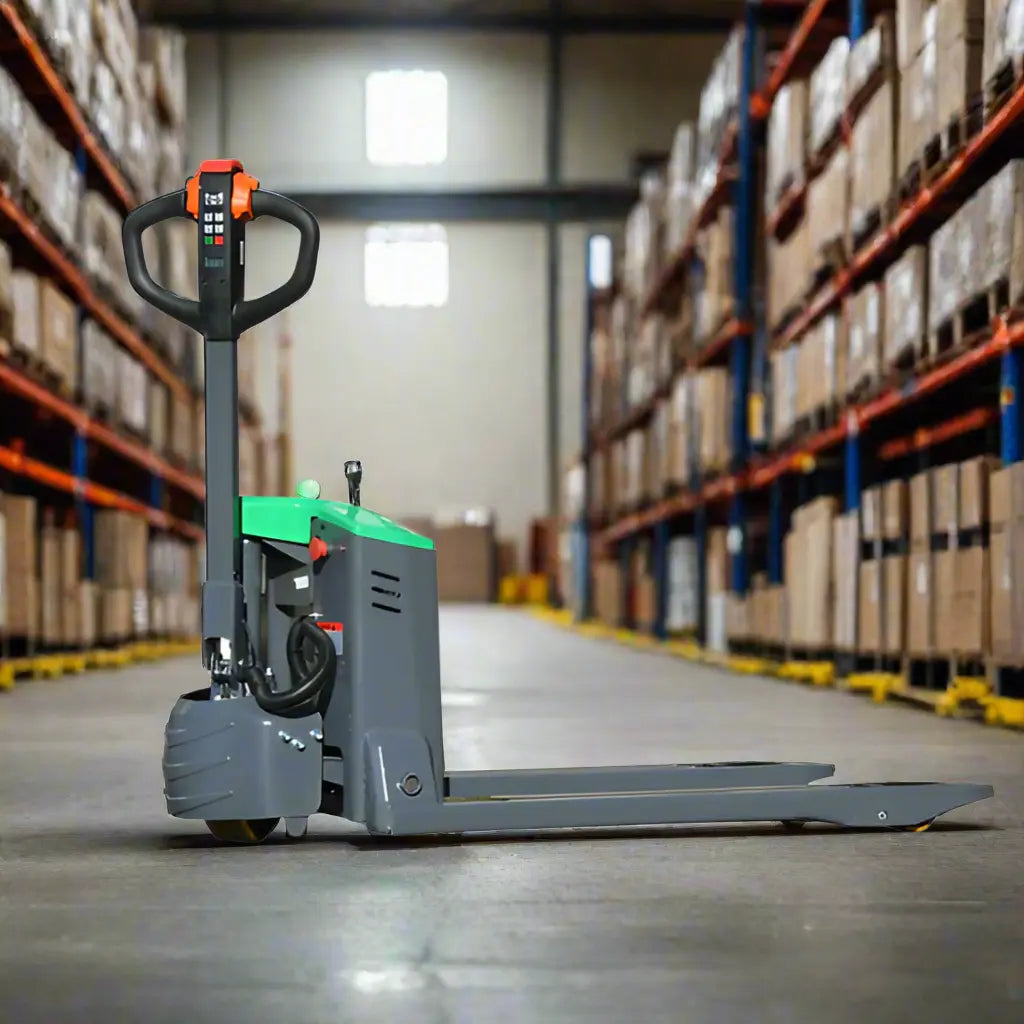

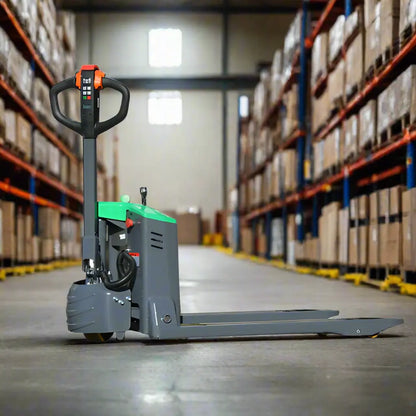

EKKO EP15JLIC electric straddle stacker in warehouse aisle with long forks for heavy lifting

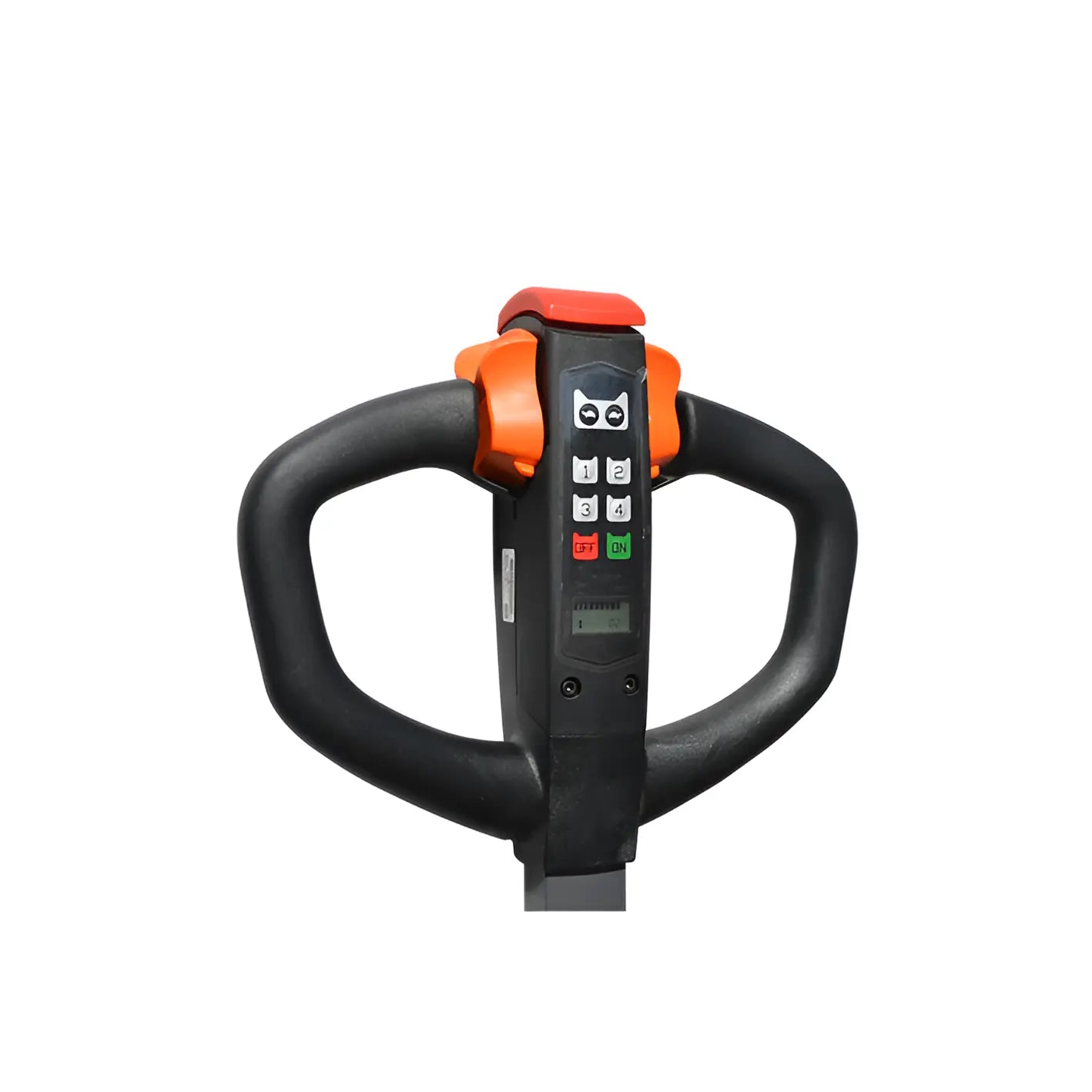

Control handle of EKKO EP15JLIC straddle stacker with buttons and display screen

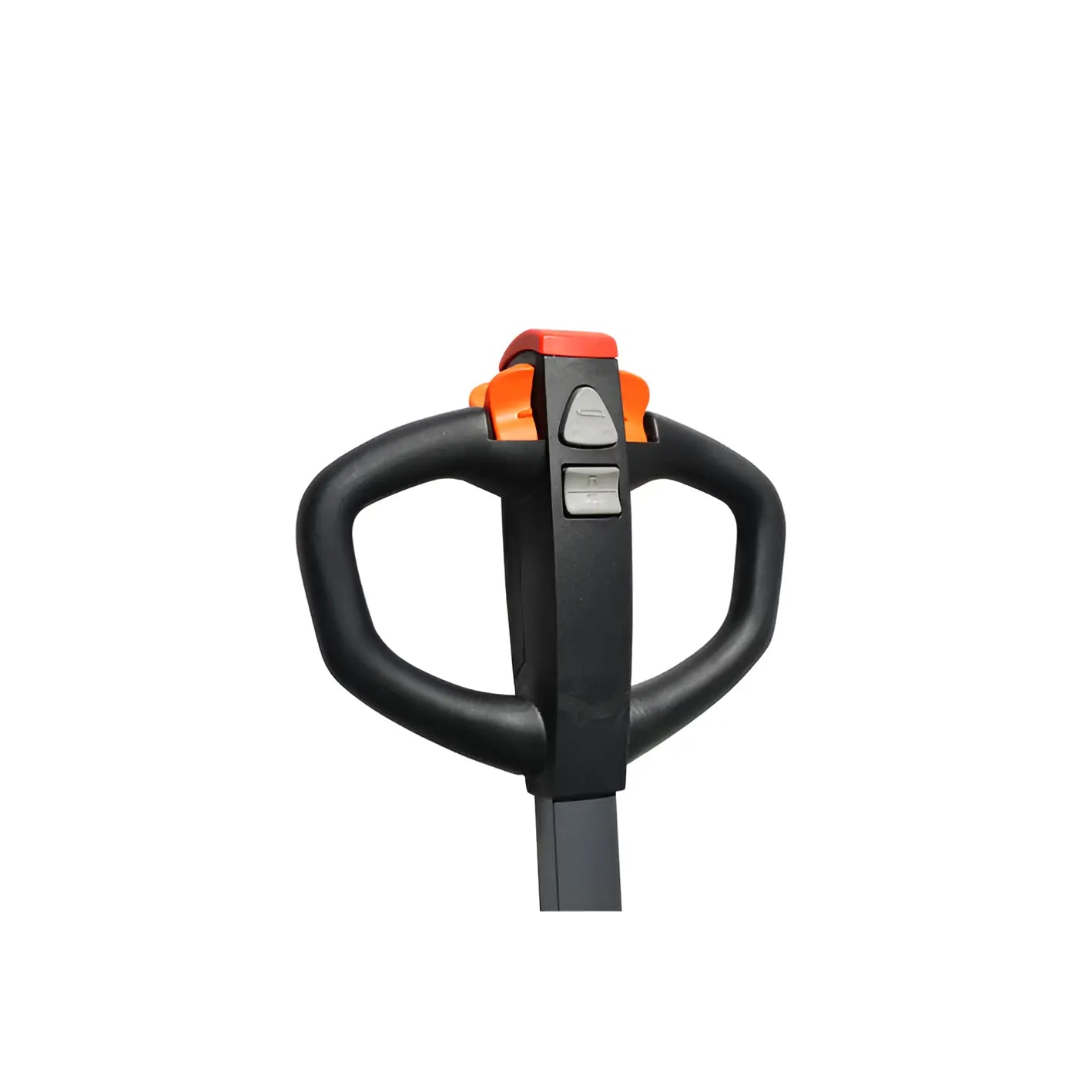

Handle control of EKKO EP15JLIC straddle stacker with ergonomic grip and control buttons

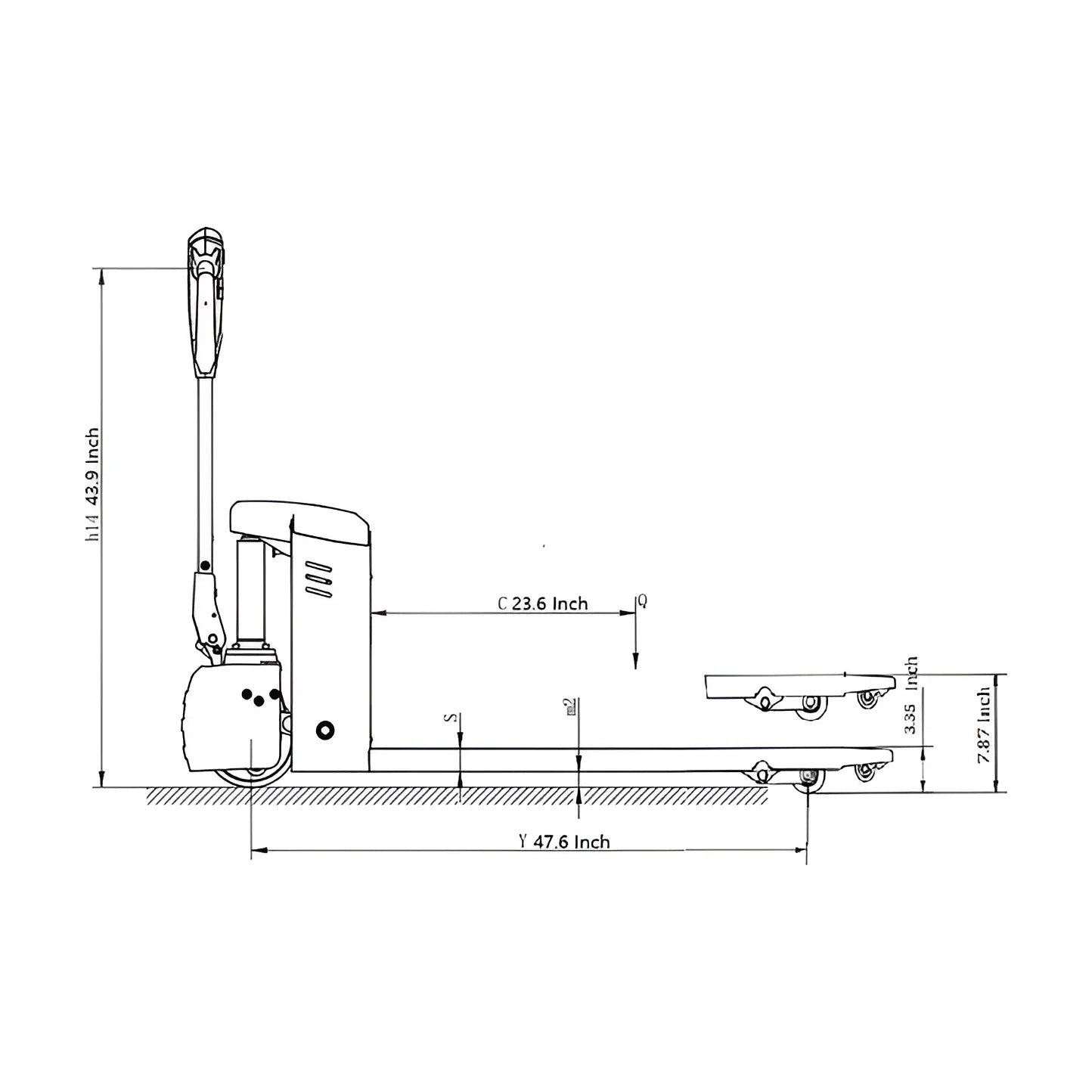

Technical line drawing of EKKO EP15JLIC straddle stacker with dimensions in inches

EKKO EP15JLIC | Electric Pallet Jack | Lithium Iron | 3300 lbs Capacity

Name: EKKO EP15JLIC | Electric Pallet Jack | Lithium Iron | 3300 lbs Capacity
Brand: EKKO
SKU: EP15JLIC
Price: 2743.6 USD
Availability: InStock

See more by EKKO

$144.40 Off Limited time deal

$2,888.00

$2,888.00 - $2,888.00

$2,888.00

$2,743.60

$2,743.60 - $2,743.60

$2,743.60

In stock

SKU EP15JLIC

Quantity

Product Overview

In short

The EKKO EP15JLIC is an electric walkie pallet jack with a 3,300 lb rated load capacity and a maximum lift height of 7.48 inches. It runs on a 24V LiFePO₄ 30 Ah lithium battery and is designed for walkie-style operation in warehouse and stockroom environments.

The EKKO EP15JLIC is an electric walkie-style pallet jack built for warehouses, stockrooms, and loading docks that need reliable, lithium-powered material handling. With a 3,300 lb load capacity and a lightweight 328 lb service weight (with battery), it delivers efficient pallet transport without the upkeep of traditional battery types. Its compact frame and polyurethane tires support smooth, controlled operation in tight indoor spaces.

Key Features & Benefits

Lithium Iron Battery: Powered by a 24V/30Ah LiFePO4 battery weighing only 21.1 lbs, offering efficient, low-maintenance operation.
Strong Load Capacity: Rated for up to 3,300 lbs, suitable for a wide range of standard palletized loads.
Electromagnetic Braking: Provides reliable stopping control for safer operation in confined warehouse aisles.
Polyurethane Wheels: Durable Φ8.27×2.95 drive wheel and Φ2.91×3.66 load wheels provide smooth rolling performance and long service life.
Compact Turning Radius: A 57.5 inch turning radius supports maneuverability in narrow aisles, with an 88.9 inch aisle width for crossways pallet handling.
Low Noise Operation: Operates at a noise level of ≤70 dB(A), supporting a quieter work environment.

The EP15JLIC is well suited for facilities that require efficient, everyday pallet transport, including distribution centers, retail stockrooms, manufacturing floors, and loading dock operations. Its walkie design and compact turning radius make it a practical choice for operators moving palletized goods through standard warehouse aisles and doorways.

Specification Table

EP15JLIC · Full Electric Pallet TruckSKU EP15JLIC
Drive type	Electric
Manner of operation	Walkie
Load Capacity	3300 Q (LBS)
Load Centre	23.6 c (Inch)
Axle centre to fork face	37 x (Inch)
Wheel Base	50.3 y (Inch)
Tire material	Polyurethane
Driving wheel size	Φ8.27×2.95 Φ×w(Inch)
Bearing wheel size	Φ2.91×3.66 Φ×w(Inch)
Qty of wheel，Front/Rear（x=driving wheel）	1x/2
Tread	21.06 b11 (Inch)
Lifting Height	7.48 h3 (Inch)
The height of handle in the operation position	48.2 h14 (Inch)
Lowered fork height	2.95 h13 (Inch)
Overall Length	64 l1 (Inch)
Body Length	16.53 l2 (Inch)
Overall Width	27 b1/ b2 (Inch)
Fork Size	2.24/6.3/45.28 s/e/l (Inch)
Fork Width	27 b5 (Inch)
Min.Ground clearance	1.06 m2 (Inch)
Aisle width for pallets 39.37*47.24 crossways	88.9 Ast (Inch)
Aisle width for pallets 31.5*47.24 lengthways	83.9 Ast (Inch)
Turing Radius	57.5 Wa (Inch)
Driving Speed，load/unload	2.6/2.8 (km/h)
Maximum gradeability load/unload	0.24/0.39 (in/s)
Brake Type	Electromagnetic brake
Drive Motor	0.75 (kW)
Lift Motor	0.8 (kW)
Lithium LiFePO4 Battery voltage rate capacity	24/30 (V/Ah)
Battery Weight（±5%）	21.1 LBS
Type of drive control	DC
Noise level	≤70 (dB(A))
Service Weight（with battery）	328 LBS
Rated Load Capacity	3300 lbs
Number of Wheels (F/R)	1/2
Lift Height (Max)	7.48 in
Handle Height (Operating)	48.2 in
Fork Size (s/e/l)	2.24/6.3/45.28 in
Turning Radius	57.5 in
Driving Speed (Loaded/Unloaded)	2.6/2.8 km/h
Maximum Gradeability (Loaded/Unloaded)	0.24/0.39
Drive Motor Power	0.75 kW
Lift Motor Power	0.8 kW
Battery Type	24 V LiFePO₄ 30 Ah
Battery Weight	21.1 lbs
Control Type	DC

FAQ about this model

What applications and load types is the EP15JLIC suited for?

With a rated load capacity of 3,300 lbs and a load centre of 23.6 in, the EP15JLIC is built for moving standard palletized loads in warehouses, stock rooms, and truck unloading operations. Its fork size (2.24/6.3/45.28 in) and 27 in fork width accommodate common pallet configurations.

What do the key specifications mean for daily use?

The unit has a maximum lift height of 7.48 in and a lowered fork height of 2.95 in, allowing it to pick up and slightly raise pallets for transport. Overall length is 64 in and overall width is 27 in, with a turning radius of 57.5 in, which affects maneuverability in tighter aisles.

How is the EP15JLIC powered and operated?

This is an electric walkie-type pallet jack, meaning the operator walks alongside the unit while controlling it rather than riding on it. It is powered by a 24V LiFePO₄ (lithium iron phosphate) battery rated at 30 Ah, with a drive motor rated at 0.75 kW and a lift motor rated at 0.8 kW. Driving speed is 2.6 km/h loaded and 2.8 km/h unloaded.

How does the EP15JLIC compare within the electric pallet jack category?

Within electric walkie pallet jacks, the EP15JLIC is defined by its 3,300 lb capacity, lithium iron phosphate battery chemistry, and a service weight (with battery) of 328 lbs. Its noise level is rated at ≤70 dB(A), and it uses polyurethane tires on both the driving wheel (8.27×2.95 in) and bearing wheels (2.91×3.66 in), which are common configuration points when comparing walkie pallet jacks in this class.

Compare models

	3300 Electric Pallet Jack Lithium THIS	4400 Lithium Walkie Pallet Jack	5500 Manual Pallet Jack	4000 EKKO EP18JLIC lb	EKKO A25G 5500lbs Galvanized
Capacity	3300 Q (LBS)	4400 Q (LBS)	5,500 lbs	4000 Q (LBS)	5,500 lbs
Forks	2.24/6.3/45.28 s/e/l (Inch)	2.24/6.3/45.28 s/e/l (Inch)	48 in	2.24/6.3/45.28 s/e/l (Inch)	48 in
Lift Height	7.48 h3 (Inch)	7.48 h3 (Inch)	7.5 in	7.48 h3 (Inch)	7.5 in
Overall Length	64 l1 (Inch)	64 l1 (Inch)	63 in	64 l1 (Inch)	63 in
Price	$2,888.00 $2,743.60	$3,398.00 $3,228.10	$440.00 $418.00	$3,228.00 $3,066.60	$733.00 $695.40
	Viewing	Check ›	Check ›	Check ›	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
