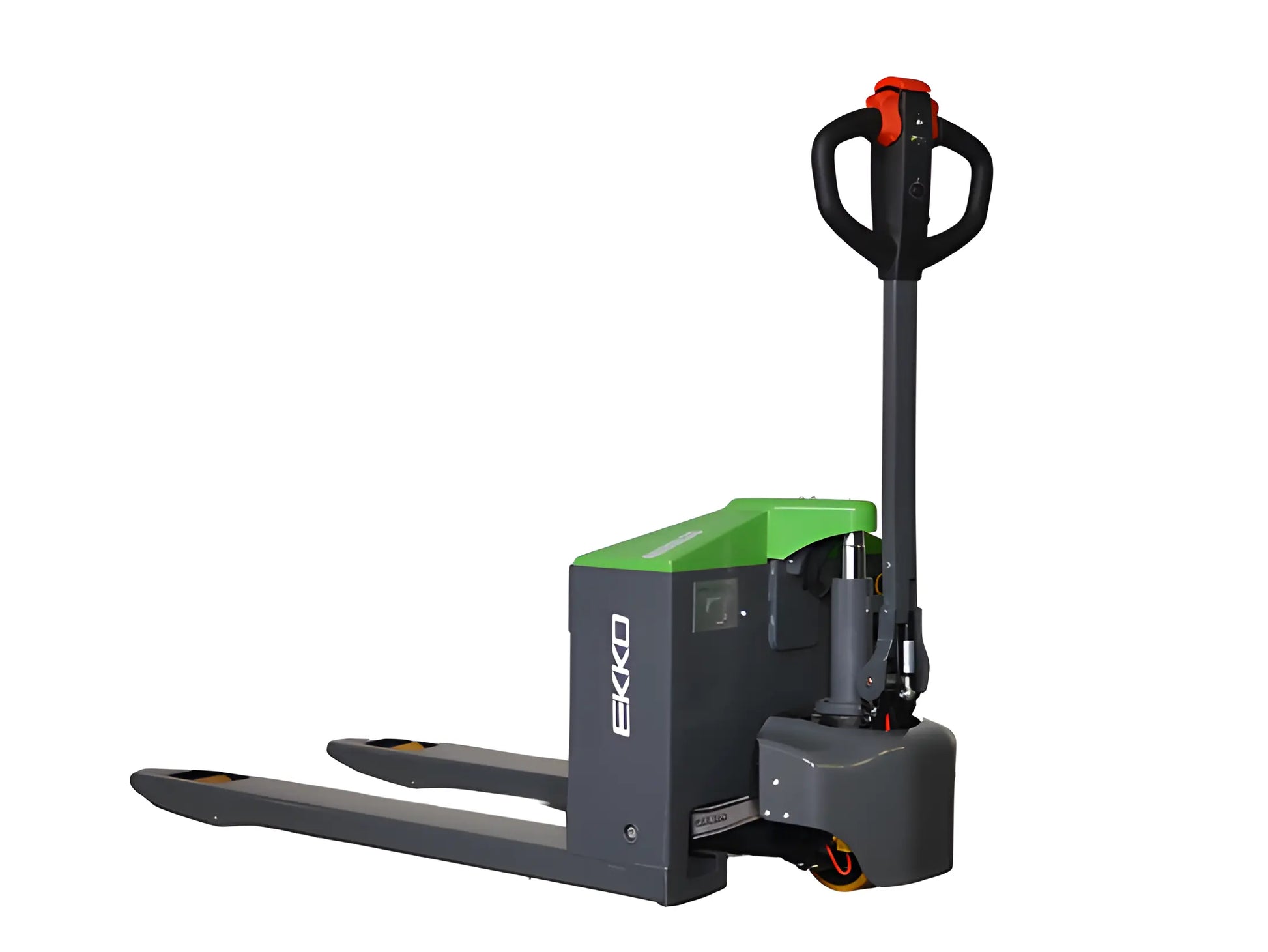

EKKO EP20JLIC electric pallet jack with gray and green body and ergonomic handle

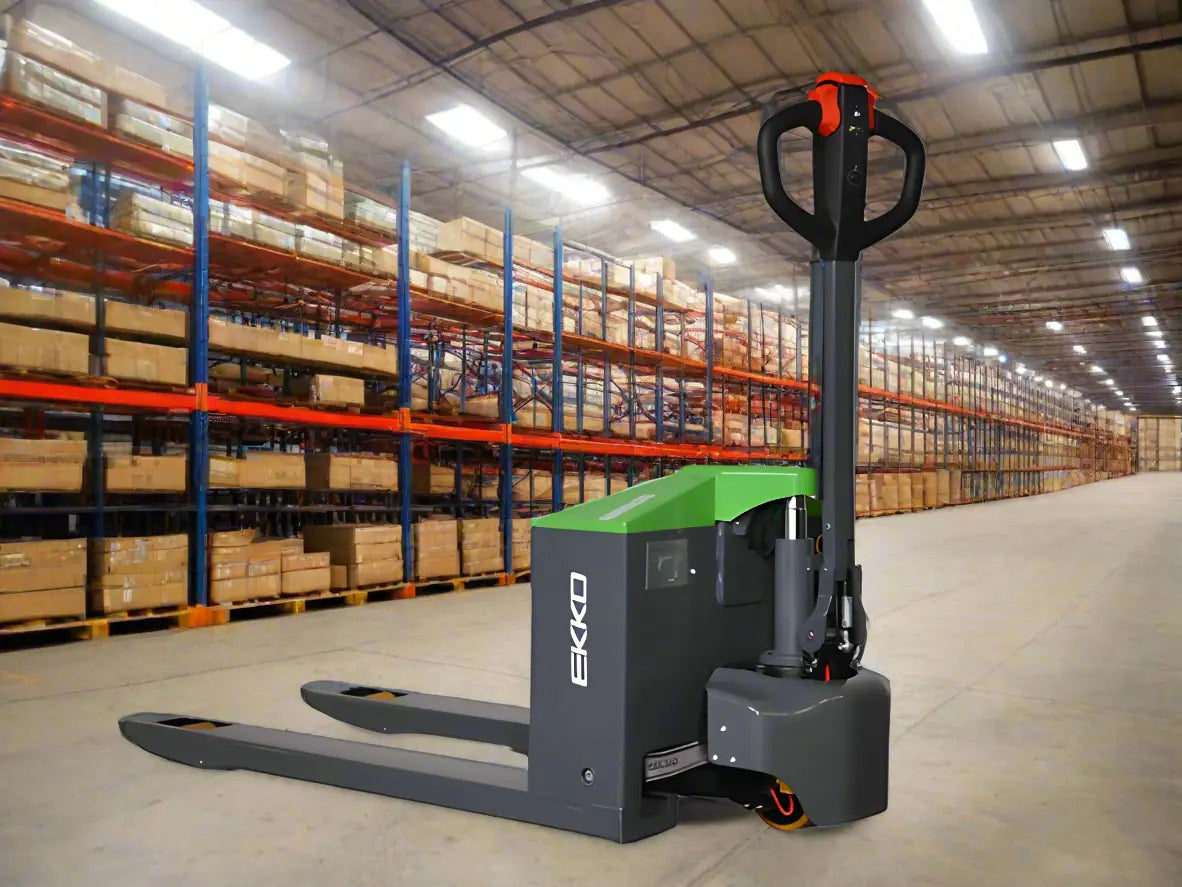

EKKO EP20JLIC electric pallet jack in warehouse with shelving and boxes in background

EKKO EP20JLIC | Lithium Walkie Pallet Jack | 4400 lb Capacity

See more by EKKO

$169.90 Off Limited time deal

$3,398.00

$3,398.00 - $3,398.00

$3,398.00

$3,228.10

$3,228.10 - $3,228.10

$3,228.10

In stock

SKU EP20JLIC

Quantity

Product Overview

In short

The EKKO EP20JLIC is an electric walkie pallet jack powered by a 48V lithium-ion (LiFePO4) battery, built for medium and large volume loading and off-loading tasks. It offers a 4400 lb load capacity with a lifting height of 7.48 in, making it suited for frequent pallet handling in warehouse and distribution environments. Ergonomic controls and a compact walkie design allow for maneuverability in tighter aisles.

Designed for warehouse, dock area, stockroom or production floor applications, the EKKO EP20JLIC Lithium Walkie Pallet Jack is a low maintenance, high efficiency and space saving electric pallet truck. The unit runs on a 48 V lithium ion battery that provides a smooth and continuous power source during both lift and drive modes of operation. The battery also makes the pallet jack lighter than other options on the market and easier to maneuver. With a 4,400 lb load capacity, the ergonomic design of the walkie handle, as well as the durable steel construction make the pallet jack ideal for use on the majority of your material handling applications within your facility. The pallet jack features polyurethane wheels which provide better traction and control when traveling, as well as an electromagnetic brake to help you come to a stop safely. Additionally, the onboard charger will reduce your down time due to lack of charge and the long lasting battery will help to minimize the need for frequent replacement. The pallet jack's pin wheel turn capabilities allow you to navigate through tight aisles, and the 3 year limited warranty will give you the peace of mind to operate your pallet jack for years to come, providing you with reliable service in a fast paced industrial environment.

Key Features:

Load capacity of 4400 lbs to support lifting large pallets.
48 V Lithium Ion battery with onboard charger included.
Ergonomic design of handle and controls to promote comfortable operation.
Polyurethane wheels and electromagnetic brakes to provide a smooth ride and braking capabilities.
Pin wheel turn capabilities to allow for tight aisle maneuverability.

Specification Table

EP20JLIC · Full Electric Pallet TruckSKU EP20JLIC
Drive type	Electric
Manner of operation	Walkie
Load Capacity	4400 Q (LBS)
Load Centre	23.6 c (Inch)
Axle centre to fork face	37 x (Inch)
Wheel Base	50.3 y (Inch)
Tire material	Polyurethane
Driving wheel size	Φ8.27×2.95 Φ×w(Inch)
Bearing wheel size	Φ2.91×3.66 Φ×w(Inch)
Qty of wheel，Front/Rear（x=driving wheel）	1x/2
Tread	21.06 b11 (Inch)
Lifting Height	7.48 h3 (Inch)
The height of handle in the operation position	48.2 h14 (Inch)
Lowered fork height	2.95 h13 (Inch)
Overall Length	64 l1 (Inch)
Body Length	16.53 l2 (Inch)
Overall Width	27 b1/ b2 (Inch)
Fork Size	2.24/6.3/45.28 s/e/l (Inch)
Fork Width	27 b5 (Inch)
Min.Ground clearance	1.06 m2 (Inch)
Aisle width for pallets 39.37*47.24 crossways	88.9 Ast (Inch)
Aisle width for pallets 31.5*47.24 lengthways	83.9 Ast (Inch)
Turing Radius	57.5 Wa (Inch)
Driving Speed，load/unload	2.6/2.8 (km/h)
Maximum gradeability load/unload	0.24/0.39 (in/s)
Brake Type	Electromagnetic brake
Drive Motor	0.75 (kW)
Lift Motor	0.8 (kW)
Lithium LiFePO4 Battery voltage rate capacity	48/20 (V/Ah)
Battery Weight（±5%）	21.1 LBS
Type of drive control	DC
Noise level	≤70 (dB(A))
Service Weight（with battery）	359 LBS
Battery Type	48V Lithium‑Ion (LiFePO4)
Number of Wheels (Front/Rear)	1×/2
Tread Width	21.06 in
Handle Height (Operating)	48.2 in
Fork Size (s/e/l)	2.24/6.3/45.28 in
Aisle Width (39.37×47.24 Pallets)	88.9 in
Aisle Width (31.5×47.24 Pallets)	83.9 in
Turning Radius	57.5 in
Driving Speed (Loaded/Unloaded)	2.6/2.8 km/h
Maximum Gradeability (Loaded/Unloaded)	0.24/0.39 in/s
Drive Motor Power	0.75 kW
Lift Motor Power	0.8 kW
Warranty	3 Years Limited

FAQ about this model

What load capacity does the EP20JLIC handle, and at what load center?

It's rated for 4400 lbs at a 23.6 inch load center. If your pallets are heavier or the load center is longer, actual lifting capacity will be lower than the rated figure, so check your load dimensions against this spec before ordering.

How much aisle space do I need to operate this pallet jack?

The turning radius is 57.5 inches. Aisle width needed is 88.9 inches for pallets loaded crossways (39.37 x 47.24 in) and 83.9 inches for pallets loaded lengthways (31.5 x 47.24 in). Measure your narrowest aisle against these figures before buying.

What battery does it use and how heavy is it?

It runs on a 48V LiFePO4 lithium-ion battery rated at 20 Ah, weighing 21.1 lbs (±5%). The drive motor is 0.75 kW and the lift motor is 0.8 kW, with a DC control system.

Will the forks fit my pallets, and how low do they go?

Fork size is 2.24/6.3/45.28 inches (thickness/width/length combined dimensions), with 27 inch fork width overall. Lowered fork height is 2.95 inches and max lift height is 7.48 inches, so check your pallet's entry opening and deck height against these numbers.

How fast does it move and what grade can it climb?

Driving speed is 2.6 km/h loaded and 2.8 km/h unloaded. Maximum gradeability is 0.24 in/s loaded and 0.39 in/s unloaded. It's a walkie-type unit, so the operator walks alongside rather than riding.

How much does the unit weigh, and is there a warranty?

Service weight with battery installed is 359 lbs. The unit comes with a 3 year limited warranty. At 359 lbs plus load, confirm your dock plates or floor loading can support the combined weight during operation.

Compare models

	3300 Electric Pallet Jack Lithium	4400 Lithium Walkie Pallet Jack THIS	5500 Manual Pallet Jack	4000 EKKO EP18JLIC lb	EKKO A25G 5500lbs Galvanized
Capacity	3300 Q (LBS)	4400 Q (LBS)	5,500 lbs	4000 Q (LBS)	5,500 lbs
Forks	2.24/6.3/45.28 s/e/l (Inch)	2.24/6.3/45.28 s/e/l (Inch)	48 in	2.24/6.3/45.28 s/e/l (Inch)	48 in
Lift Height	7.48 h3 (Inch)	7.48 h3 (Inch)	7.5 in	7.48 h3 (Inch)	7.5 in
Overall Length	64 l1 (Inch)	64 l1 (Inch)	63 in	64 l1 (Inch)	63 in
Price	$2,888.00 $2,743.60	$3,398.00 $3,228.10	$440.00 $418.00	$3,228.00 $3,066.60	$733.00 $695.40
	Check ›	Viewing	Check ›	Check ›	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.

Shipping & Returns

We offer standard 1-5 business day shipping (following dispatch) via LTL Freight, FedEx, UPS, DHL, or USPS. Orders typically process in 1-2 business days (starting the following business day). Shipping rates are usually calculated at checkout; however, we reserve the right to provide custom shipping quotes for oversized or specialized equipment.

60-DAY NO-HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy.
To be eligible for a return, your item must be in the same condition that you received it, unworn or unused or unused, with tags, and in its original packaging. To contact us, email info@vovlift.com

More information on shipping and returns can be found here.

Warranty

EKKO 3-Year Limited Warranty. EKKO covers the frame, forks and mast for three (3) years. Electrical and drive components — including the transmission, weldments, traction motor, steering (SBW) motor and decoders, wheel controller and charger — are covered for one (1) year. Where equipped, lithium battery packs carry a five (5) year warranty against defects. Warranty excludes normal wear and tear, abuse, improper storage and labor.

Documents

EKKO EP20JLIC Manual PDF
