Yellow jib crane with base plate, designed for lifting applications.

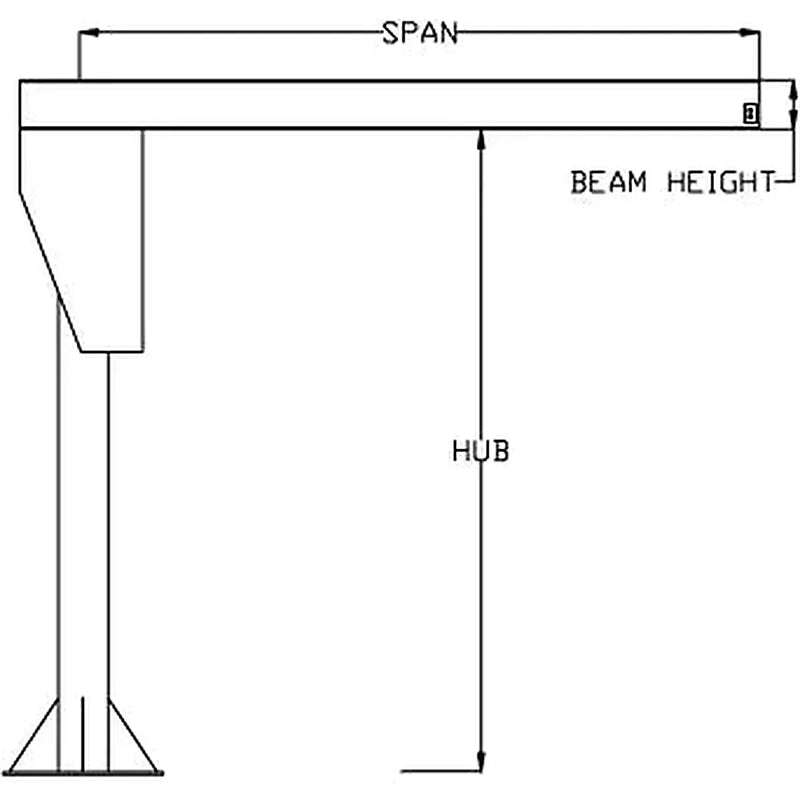

Technical drawing of a jib crane showing span, hub, and height.

Table listing specifications for gantry crane models, including dimensions.

All Lift Cranes PM-Series Pillar Mounted Jib Crane | 1 Ton Capacity

Name: All Lift Cranes PM-Series Pillar Mounted Jib Crane | 1 Ton Capacity
Brand: All Lift Cranes
SKU: PM208-10
Price: 3642.0 USD
Availability: InStock

See more by All Lift Cranes

$3,642.00 - $7,491.00

$3,642.00

$3,642.00 - $7,491.00

$3,642.00

In stock

SKU PM208-10

Freight is quoted per delivery location — enter yours and we'll email your exact, all-in cost.

or order now

Order today, approve freight before it ships. $0 freight at checkout — we email your exact quote for approval; don't accept it, full refund.

Questions or bulk orders? Call sales +1 (307) 441-5529

Accessories

All Lift Cranes Tagline Kit with S-Hooks Learn More

$97.00

Quantity

Product Overview

In short

The All Lift Cranes PM-Series is a pillar mounted jib crane rated for 1 ton capacity, available in 28 HUB height and span configurations (8-20 ft HUB heights, 10-16 ft spans). It's manufactured in the USA by All Lift Cranes, Inc. in Appleton, Wisconsin, and backed by a 3-year warranty on materials and workmanship.

The All Lift Cranes PM-Series Pillar Mounted Jib Crane delivers 1 ton of lifting capacity in a pillar-mounted design built for fixed-point material handling. With 28 HUB height and span combinations spanning 8 ft to 20 ft in height and 10 ft to 16 ft in span, the PM-Series can be configured to match the exact working envelope of your shop or job site.

Each crane ships with 2 mounting plates and end stops included, ready for installation onto a properly engineered pillar foundation. Mounting bolts (7/8in, Grade 5+) are not included and must be sourced separately to match your specific installation. The PM-Series pairs with standard hoists from manufacturers such as CM, R&M, and Yale, allowing you to build out a complete lifting solution around equipment you may already run.

All Lift Cranes, Inc. is a family-owned manufacturer based in Appleton, Wisconsin, USA. Every PM-Series crane is backed by a 3-year warranty covering material and workmanship, with replacement parts provided free FOB job site.

Specification Table

Model	HUB Height	Span	Weight (lbs)
PM208-10	8 ft	10 ft	641
PM208-12	8 ft	12 ft	701
PM208-14	8 ft	14 ft	761
PM208-16	8 ft	16 ft	821
PM210-10	10 ft	10 ft	787
PM210-12	10 ft	12 ft	847
PM210-14	10 ft	14 ft	907
PM210-16	10 ft	16 ft	967
PM212-10	12 ft	10 ft	847
PM212-12	12 ft	12 ft	907
PM212-14	12 ft	14 ft	967
PM212-16	12 ft	16 ft	1,027
PM214-10	14 ft	10 ft	907
PM214-12	14 ft	12 ft	967
PM214-14	14 ft	14 ft	1,027
PM214-16	14 ft	16 ft	1,087
PM216-10	16 ft	10 ft	980
PM216-12	16 ft	12 ft	1,040
PM216-14	16 ft	14 ft	1,100
PM216-16	16 ft	16 ft	1,160
PM218-10	18 ft	10 ft	1,356
PM218-12	18 ft	12 ft	1,436
PM218-14	18 ft	14 ft	1,516
PM218-16	18 ft	16 ft	1,596
PM220-10	20 ft	10 ft	1,436
PM220-12	20 ft	12 ft	1,516
PM220-14	20 ft	14 ft	1,596
PM220-16	20 ft	16 ft	1,676

FAQ about this model

How do I choose the right HUB height and span for my PM-Series crane?

The PM-Series is available in HUB heights from 8 ft to 20 ft and spans from 10 ft to 16 ft, giving 28 total configurations. Select the HUB height based on your required lifting clearance and the span based on the horizontal reach needed for your work area.

What's involved in installing the PM-Series jib crane?

The PM-Series is a pillar mounted jib crane and includes 2 mounting plates and end stops. Mounting bolts (7/8in, Grade 5+) are not included and need to be provided separately for installation onto your pillar foundation.

What warranty comes with the PM-Series crane?

All Lift Cranes, Inc. backs the PM-Series with a 3-year warranty covering material and workmanship, with replacement parts provided free FOB job site.

Which hoists are compatible with the PM-Series crane?

The PM-Series pairs with standard hoists, including those from CM, R&M, and Yale.
