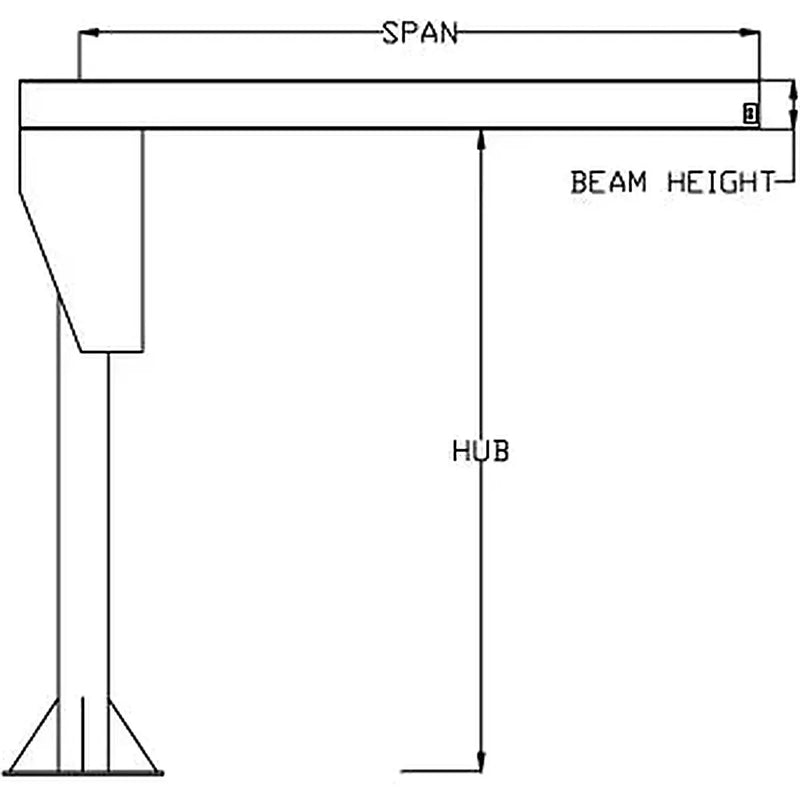

Technical drawing of a jib crane showing span, hub, and height.

Table listing specifications for gantry crane models, including dimensions.

All Lift Cranes PM-Series Pillar Mounted Jib Crane | 1/2 Ton Capacity

Name: All Lift Cranes PM-Series Pillar Mounted Jib Crane | 1/2 Ton Capacity
Brand: All Lift Cranes
SKU: PM108-10
Price: 3794.0 USD
Availability: InStock

See more by All Lift Cranes

$3,794.00 - $5,583.00

$3,794.00

$3,794.00 - $5,583.00

$3,794.00

In stock

SKU PM108-10

Freight is quoted per delivery location — enter yours and we'll email your exact, all-in cost.

or order now

Order today, approve freight before it ships. $0 freight at checkout — we email your exact quote for approval; don't accept it, full refund.

Questions or bulk orders? Call sales +1 (307) 441-5529

Accessories

All Lift Cranes Tagline Kit with S-Hooks Learn More

$97.00

Quantity

Product Overview

In short

The All Lift Cranes PM-Series is a pillar mounted jib crane rated at 1/2 ton capacity, offered in 28 configurations combining HUB heights from 8 ft to 20 ft with spans from 10 ft to 16 ft. It's manufactured in Appleton, Wisconsin, USA by family-owned All Lift Cranes, Inc., and backed by a 3-year warranty on materials and workmanship.

The All Lift Cranes PM-Series Pillar Mounted Jib Crane delivers 1/2 ton lifting capacity in a fixed-column design built to serve a defined work envelope around a single mounting point. With 28 model configurations spanning HUB heights of 8 ft, 10 ft, 12 ft, 14 ft, 16 ft, 18 ft, and 20 ft, and spans of 10 ft, 12 ft, 14 ft, and 16 ft, you can match the crane to your ceiling clearance and coverage area. Pricing across the PM-Series ranges from $3,794 to $5,583, with unit weights from 630 lbs to 1,157 lbs depending on the configuration selected.

Each PM-Series crane is a pillar mounted jib and includes two mounting plates and end stops as standard equipment. Mounting bolts (7/8 in, Grade 5 or higher) are not included and must be sourced separately for installation. The crane is designed to pair with standard hoists, including CM, R&M, and Yale models, giving you flexibility in outfitting the jib for your specific lifting application.

All Lift Cranes, Inc. is a family-owned manufacturer based in Appleton, Wisconsin, USA. Every PM-Series crane is backed by a 3-year warranty covering material and workmanship, with parts replaced free of charge FOB job site.

Specification Table

Model	HUB Height	Span	Weight (lbs)
PM108-10	8 ft	10 ft	630
PM108-12	8 ft	12 ft	690
PM108-14	8 ft	14 ft	750
PM108-16	8 ft	16 ft	810
PM110-10	10 ft	10 ft	672
PM110-12	10 ft	12 ft	732
PM110-14	10 ft	14 ft	792
PM110-16	10 ft	16 ft	852
PM112-10	12 ft	10 ft	714
PM112-12	12 ft	12 ft	774
PM112-14	12 ft	14 ft	834
PM112-16	12 ft	16 ft	894
PM114-10	14 ft	10 ft	777
PM114-12	14 ft	12 ft	837
PM114-14	14 ft	14 ft	897
PM114-16	14 ft	16 ft	957
PM116-10	16 ft	10 ft	813
PM116-12	16 ft	12 ft	873
PM116-14	16 ft	14 ft	933
PM116-16	16 ft	16 ft	993
PM118-10	18 ft	10 ft	905
PM118-12	18 ft	12 ft	975
PM118-14	18 ft	14 ft	1,045
PM118-16	18 ft	16 ft	1,115
PM120-10	20 ft	10 ft	947
PM120-12	20 ft	12 ft	1,017
PM120-14	20 ft	14 ft	1,087
PM120-16	20 ft	16 ft	1,157

FAQ about this model

How do I choose the right HUB height and span for my PM-Series jib crane?

The PM-Series is available in 28 configurations, combining HUB heights of 8, 10, 12, 14, 16, 18, or 20 ft with spans of 10, 12, 14, or 16 ft. Select the HUB height and span combination that fits your overhead clearance and the work area you need the jib to cover.

What's involved in installing the PM-Series jib crane?

The PM-Series is a pillar mounted jib crane and comes with two mounting plates and end stops included. Mounting bolts (7/8 in, Grade 5 or higher) are not included and will need to be provided separately for installation.

What warranty comes with the PM-Series jib crane?

All Lift Cranes, Inc. backs the PM-Series with a 3-year warranty on material and workmanship. Covered parts are replaced free of charge, FOB job site.

Which hoists are compatible with the PM-Series jib crane?

The PM-Series pairs with standard hoists, including CM, R&M, and Yale models.
