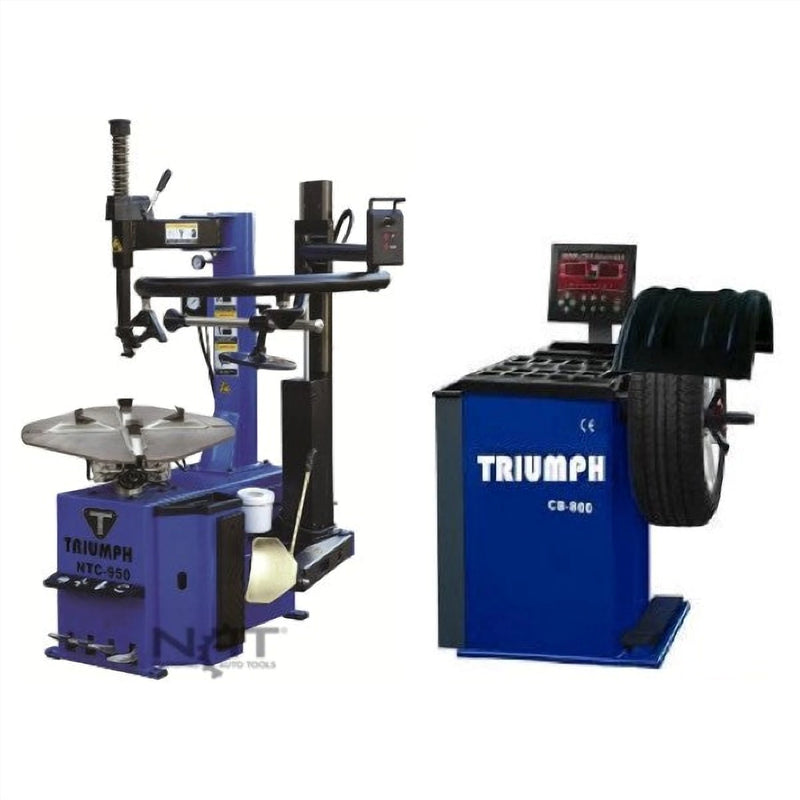

Triumph NTC-950-1 Tire Changer and NTB-800 Wheel Balancer Combo

See more by Triumph

$4,300.00 - $5,150.00

$4,300.00

$4,300.00 - $5,150.00

$4,300.00

In stock

SKU Combo NTC-950-1/NTB-800

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

The Triumph NTC-950-1 / NTB-800 combo pairs a commercial-style tire changer with an assist arm and a wheel balancer that reads to ±1 gram. Both machines run on 110V power.

What the combo covers

This package is the two machines a tire bay needs to take a wheel from old rubber to a balanced, road-ready assembly. The NTC-950-1 is a commercial-style tire changer with a single assist arm, which adds support when mounting run-flat and low-profile tires. Its bead breaker delivers 5,500 lbs of force for stubborn beads, and a jet-blast bead-seating system helps set the bead on the rim. Inflation is rated to 120 PSI. The NTB-800 balancer turns a cycle in 6 to 9 seconds and reads each wheel to ±1-gram accuracy, so one operator can mount, demount, and balance without leaving the workstation. Each machine is also sold on its own if you only need to add one to an existing bay.

Wheel and tire sizes each machine handles

On the changer, the turntable clamps wheels from 16" to 28" on the inside and 14" to 26" on the outside. Maximum wheel width is 15" and maximum tire diameter is 43". Those two numbers are the real limits to check before you buy: a tall light-truck tire or an extra-wide wheel that exceeds them will not fit the machine. The NTB-800 balancer takes wheels from 10" to 28" in diameter, rim widths from 1.5" to 20", and tires up to 44" in diameter, with a maximum wheel weight of 150 lbs. The balancer shaft is 36 mm. Between the two, the range covers passenger cars and most light-truck wheels that roll into a general-service shop.

Power, air, and floor space

Both the tire changer and the wheel balancer run on standard 110-volt power, so the combo drops into a shop without a dedicated high-voltage circuit. The changer uses a 1.5 HP motor; the balancer uses a 1/4 HP motor. Maximum inflation pressure on the changer is 120 PSI, so your air supply needs to reach that for jet-blast bead seating. Assembled dimensions for the balancer are 28" x 48" x 62". The listing does not publish assembled dimensions for the tire changer, so plan its footprint from the machine itself rather than from a published figure. Shipping dimensions are 51" x 38" x 51" at 820 lbs for the changer and 30" x 39" x 51" at 300 lbs for the balancer.

What ships with each machine and how it arrives

The NTC-950-1 includes a metal and plastic demount head, plastic wheel-clamp covers, a tire iron, and a lube bucket and brush. The NTB-800 includes a plastic safety hood, a quick-release wing nut, cone adapters, a wheel-weight hammer, and a rim caliper. Two NTB-800 details matter on the floor: a wheel brake holds the wheel still while you place weights, so the reading you balanced to is the reading you keep, and automatic data entry lets you enter a single parameter while the balancer captures the other two. The combo ships by LTL freight with lift-gate service, and the driver lowers the equipment to the ground at the back of the truck. Shipping is free to the lower 48. Triumph backs the combo with a 1-year parts warranty.

Key features

Single assist arm — added support when mounting run-flat and low-profile tires on the NTC-950-1
5,500 lbs bead breaker force — for stubborn beads on the tire changer
Jet-blast bead-seating system — helps set the bead on the rim, with inflation rated to 120 PSI
Automatic data entry — enter one parameter on the NTB-800 and the balancer calculates the other two
Wheel brake — holds the wheel in place while you set weights so the balanced reading is preserved
±1-gram accuracy, 6–9 second cycle — with a standard or metric display on the balancer
Both machines run on 110V — no dedicated high-voltage circuit required

Specification Table

Combo NTC-950-1/NTB-800 · TriumphSKU Combo NTC-950-1/NTB-800
Tire changer inside clamping	16"-28"
Tire changer outside clamping	14"-26"
Tire changer max wheel width	15"
Tire changer max tire diameter	43"
Bead breaker force	5,500 lbs
Bead blast	Yes
Tire changer motor	1.5 HP
Max inflation pressure	120 PSI
Tire changer power	110V
Tire changer shipping dimensions	51" x 38" x 51"
Tire changer shipping weight	820 lbs
Balancer wheel diameter	10"-28"
Balancer max tire diameter	44"
Balancer rim width	1.5"-20"
Balancer max wheel weight	150 lbs
Balancer shaft diameter	36 mm
Balancing accuracy	±1 gram
Cycle time	6-9 sec
Automatic data entry	Yes
Display	Standard or Metric
Balancer motor	1/4 HP
Balancer power	110V
Balancer assembled dimensions	28" x 48" x 62"
Balancer shipping dimensions	30" x 39" x 51"
Balancer shipping weight	300 lbs

Compare models

	NTC-950-1 / NTB-800 Tire Changer and Balancer Combo THIS	NTC-950 / NTB-800 Tire Changer and Balancer Combo	NTC-650 Heavy-Duty Truck Tire Changer	NTC-650 / NTB-1200 Truck Tire Changer & Balancer Combo
Tire changer clamping range	16"-28" inside / 14"-26" outside	16" - 28" inside, 14" - 26" outside	14"–26"	14" - 26"
Tire changer max tire diameter	43"	43"	63"	63"
Bead breaker force	5,500 lbs	5,500 lbs	30.5"	30.5"
Balancer wheel diameter range	10"-28"	10" - 28"	120 PSI	10" - 28"
Price	$4,300.00	$3,765.00	$5,995.00	$8,800.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

What wheel and tire sizes does this combo handle?
The NTC-950-1 clamps wheels from 16" to 28" inside and 14" to 26" outside, with wheel widths up to 15" and tire diameters up to 43". The NTB-800 balances wheels from 10" to 28" in diameter, rim widths from 1.5" to 20", and tires up to 44".

What power supply does the NTC-950-1 / NTB-800 combo need?
Both the tire changer and the wheel balancer run on standard 110-volt power. The changer uses a 1.5 HP motor and the balancer a 1/4 HP motor.

How much air pressure does the tire changer need?
Maximum inflation pressure on the NTC-950-1 is 120 PSI, and the machine includes a jet-blast bead-seating system to set the bead on the rim.

How much floor space do these machines take up?
Assembled dimensions for the NTB-800 balancer are 28" x 48" x 62". Assembled dimensions for the NTC-950-1 tire changer are not published in the manufacturer's specifications.

What comes with each machine?
The tire changer ships with a metal and plastic demount head, plastic wheel-clamp covers, a tire iron, and a lube bucket and brush. The balancer ships with a plastic safety hood, a quick-release wing nut, cone adapters, a wheel-weight hammer, and a rim caliper.

Can the NTC-950-1 handle run-flat and low-profile tires?
Yes. The NTC-950-1 has a single assist arm that adds support for run-flat and low-profile work, plus a bead breaker rated at 5,500 lbs of force.

What is automatic data entry on the NTB-800?
Instead of entering three parameters, you enter one and the balancer captures the other two on its own. It trims setup time on every wheel.

How heavy a wheel can the balancer take?
The NTB-800 is rated for a maximum wheel weight of 150 lbs, mounted on a 36 mm shaft.

Can I buy just the tire changer or just the balancer?
Yes. The NTC-950-1 tire changer and the NTB-800 wheel balancer are each available separately if you only need to add one machine to an existing bay.
