Katool KT-4H150 15,000lbs 4 Post Alignment Lift With Rolling Jack Katool

Katool KT-4H150 15,000lbs 4 Post Alignment Lift With Rolling Jack

See more by Katool

$5,700.00 - $5,700.00

$5,700.00

$5,700.00 - $5,700.00

$5,700.00

In stock

SKU KT-4H150

Accessories

Katool KT-RJ60 Rolling Jack 6,000 lbs Air/Hydraulic Bridge Jack for 4-Post Lifts Learn More

$1,149.00

Delivery Option: Warehouse Pickup

Warehouse Pickup Location

Quantity

Product Overview

In short

The Katool KT-4H150 is a 15,000 lb (6,804 kg) 4-post alignment lift with an included 6,000 lb rolling jack. It raises to 76" on 92" columns, runs on 220 V electric-hydraulic power, and is CE-certified. Built for wheel alignment, heavy service, and long-term storage in one footprint.

One lift that does the job of three

A 15,000 lb four-post lift usually means one thing — storage and heavy lifting. The KT-4H150 does more. It ships with a 6,000 lb rolling jack already in the box — the accessory most brands sell separately — so you can raise the whole vehicle on the runways, then lift a single axle for brake, tire, suspension, or alignment work without buying a second tool. With turn-table-ready runways, the same lift handles wheel alignments, heavy service, and overnight storage.

Who it's for

Busy independent shops, tire and alignment bays, fleet maintenance, and serious home garages working on dually trucks, work vans, and ¾-ton vehicles up to 15,000 lb. If you keep renting alignment time or juggling a separate jack, this is the lift that brings it all in-house.

Built to be trusted

Every KT-4H150 is CE-approved and load-tested to 115% dynamic and 150% static capacity. A spring-loaded primary lock engages continuously as the lift rises, with a secondary slack-cable lock for backup, plus non-skid diamond-plate platforms and a sealed hydraulic system. A pneumatic single-point control releases all four locks together (shop air supply required). Install on a level slab at least 3.93" thick rated for 3,000 PSI.

Key features

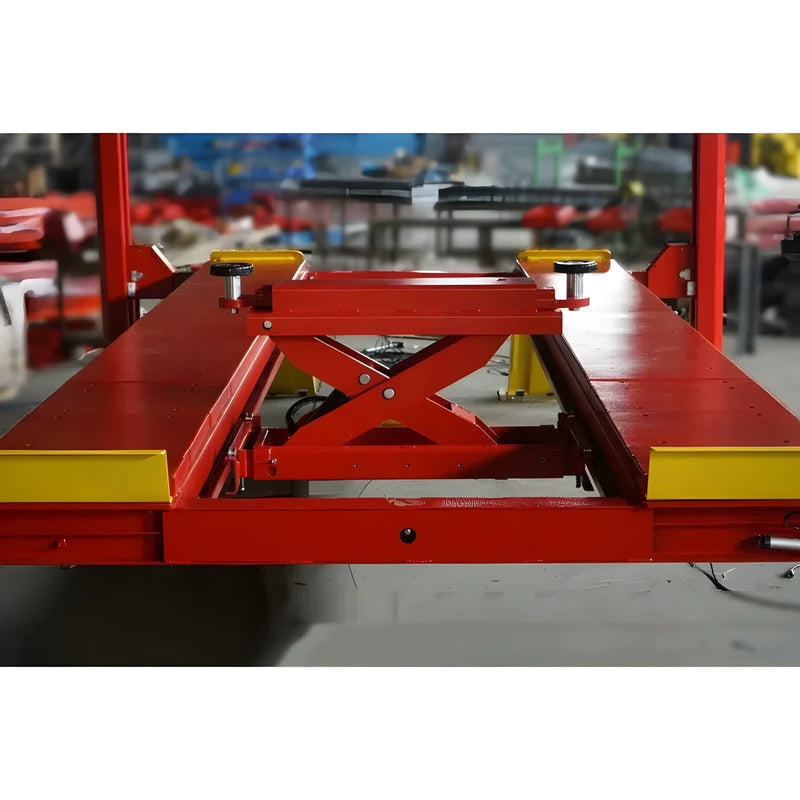

Included 6,000 lb rolling jack — lift a single axle for brake, tire, suspension or alignment work without a second tool
15,000 lb capacity — dually trucks, work vans and ¾-ton vehicles
Turn-table-ready runways — doubles as an in-house wheel-alignment bay
Dual safety locks — spring-loaded primary plus secondary slack-cable, pneumatic single-point release
CE-approved — 115% dynamic / 150% static load-tested
220 V electric-hydraulic, 3 kW; raises to 76" in about 60 seconds

Specification Table

KT-4H150 · 4-Post Car LiftSKU KT-4H150
Lifting Capacity	15,000 lbs (6,804 kg)
Max. Lifting Height	76" (1,930 mm)
Column Height	92" (2,340 mm)
Lifting Time (Up / Down)	~60 s / ~55 s
Overall Width	136" (3,456 mm)
Overall Length	245" (265" with ramps extended)
Width Between Columns	118" (3,000 mm)
Min. Runway Height	~9" (228 mm)
Safety Locks	Multiple adjustable positions, pneumatic single-point release
Motor	Electric hydraulic, 3 kW, 220 V / 60 Hz / 1 Ph
Net Weight	4,850 lbs (2,200 kg)
Concrete Required	min. 3.93" (100 mm) at 3,000 PSI
Shop Air Supply	Required for the pneumatic lock release
Included	4-Post Lift + 6,000 lb Rolling Jack
Certification	CE-approved (115% dynamic / 150% static tested)

Compare models

	KT-4H110 Katool 11,000 lb	KT-4H150 Katool 15,000lbs 4 THIS	4H950 Katool 9,500 lbs	KT-4H120X Katool 12,000 lb
Lifting capacity	11,000 lb	15,000 lb	9,500 lb	12,000 lb
Power	110 V (opt. 220)	220 V	110 V (opt. 220)	220 V
Overall width	126"	136"	113"	135"
Rolling jack	Optional	Included	Optional	Optional
Alignment-ready	—	Yes	—	—
Best for	Service	Alignment + HD	Storage	HD service
Capacity	11,000 lbs (4,990 kg)	15,000 lbs (6,804 kg)	9,500 lbs (4.3 t)	12,000 lbs (≈ 5,443 kg)
Lift Height	84.3" (2,140 mm)	76" (1,930 mm)	84.5″ (~2,146 mm)	86.9″ (2208 mm)
Overall Width	126" (3,200 mm)	136" (3,456 mm)	112.7″ (~2,863 mm)	135.2″ (3435 mm)
Width Between Columns	112.8" (2,865 mm)	118" (3,000 mm)	99.4″ (~2,525 mm)	112.81″ (2865 mm)
Price	$3,799.00 $3,299.00	$5,700.00	$2,999.00	$4,500.00
	Check ›	Viewing	Check ›	Check ›

Specs from Katool manuals. Prices update live and reflect current promotions.

FAQ about this model

What is the lifting capacity of the Katool KT-4H150?
15,000 lb (6,804 kg) — suited to dually trucks, vans and heavy-duty vehicles.

Does the KT-4H150 come with a rolling jack?
Yes. A 6,000 lb rolling jack is included; on the lighter KT-4H110 and KT-4H850 it is an optional add-on.

Can the KT-4H150 be used for wheel alignment?
Yes — it is a 4-post alignment lift and is turn-table ready (turn tables optional), so it doubles as a service and alignment lift.

What power supply does it need?
220 V / 60 Hz / single-phase electric-hydraulic power, plus a shop air supply for the pneumatic lock release.

What is the maximum lifting height?
76 inches (1,930 mm) to the runways, on 92-inch columns, with a full raise taking about 60 seconds.

What does the KT-4H150 need for installation?
A level concrete slab at least 3.93 inches (100 mm) thick rated for 3,000 PSI, 220 V single-phase power, and a shop air supply.
