Hydraulic 2 Post Car Lifts: What This Category Covers

A hydraulic 2 post car lift raises a vehicle on four adjustable arms that contact the manufacturer's designated lift points on the frame or pinch welds. Two carriages travel up the columns, driven by hydraulic cylinders and synchronized by an equalization cable or chain, and mechanical locks engage at intervals so the load rests on steel rather than hydraulic pressure. Because the wheels hang free, this is the configuration most shops choose for brake, suspension, exhaust and drivetrain work. This collection carries two-post automotive vehicle hoists from Katool and AMGO with rated loads from 6,600 lb to 18,000 lb, alongside mid-rise scissor units, a 4-post model and replacement parts such as the Katool Two Post Lift Replacement Pump and the AMGO LED Light Kits for Two Post Lifts.

Clear-Floor vs. Baseplate Two Post Lift Designs

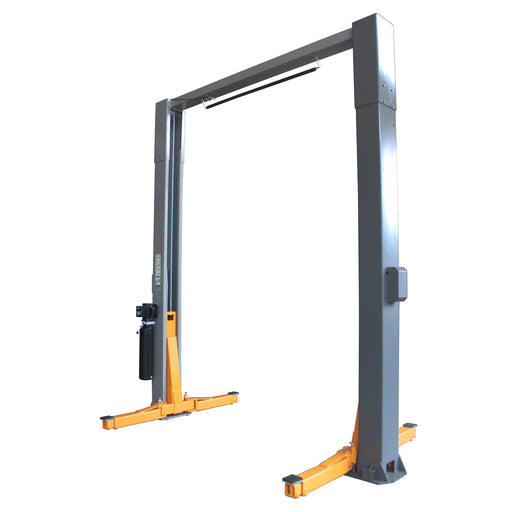

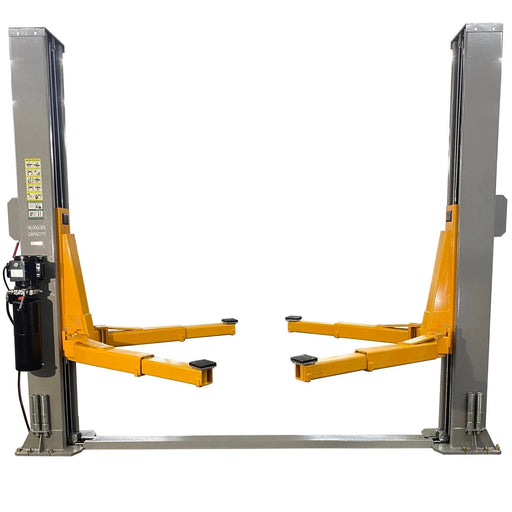

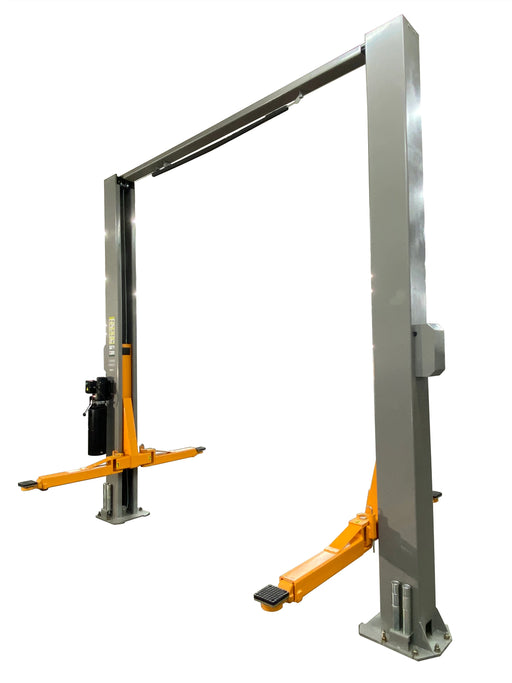

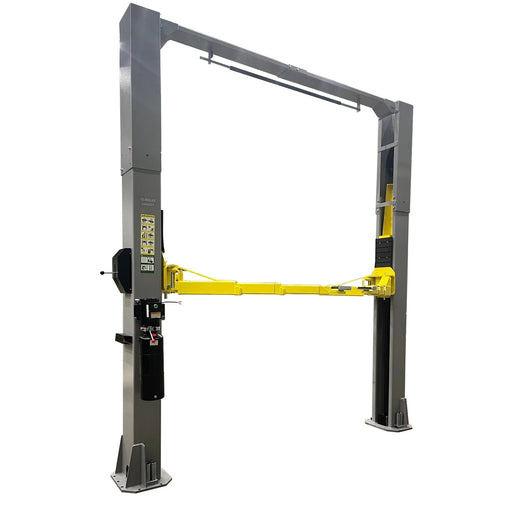

The first real decision is where the equalization cables run. Overhead or clear-floor designs route them through a top crossbar, leaving the floor between the columns completely open — easier to roll a transmission jack across, but the crossbar sets a hard ceiling requirement. The Katool AM120SD is listed as a clear-floor 12,000 lb model and the Katool KT-M140XD as a 14,000 lb overhead lift. Baseplate and floorplate designs run the cables through a plate at floor level instead, which is the usual answer for garages with low or obstructed ceilings; the Katool H115Z is a 220V floorplate model and AMGO's BP-9, BP-9X, BP-10 and BP-12 fill the same role. The tradeoff is a raised plate you drive over and step around all day.

Symmetric and Asymmetric Arms

Symmetric lifts face the columns directly across from each other and use four arms of equal length, centering the vehicle between the posts. That distributes load evenly and suits trucks, vans and long wheelbases — the Katool KT-M150D is the symmetric 15,000 lb option here. Asymmetric lifts rotate the columns and pair shorter front arms with longer rear arms so the vehicle sits further back, which lets doors open between the posts without hitting them. The Katool KT-AS110D is the asymmetric 11,000 lb model in this collection. If most of what you lift is passenger cars and you want to get in and out of the cabin while it is raised, asymmetric is worth the arm-placement discipline it demands.

Capacity, Power Supply and Slab Requirements

Buy capacity against the heaviest vehicle you actually service, not the average one. A 9,000 to 10,000 lb heavy duty car lift handles most passenger cars, crossovers and half-ton pickups; 12,000 lb and up is for duallies, cargo vans and light commercial vehicles. Verified specs from our product data show what these installations demand:

On power, the Katool KT-M110 and H115Z both list 220V/60Hz single-phase as standard with a 110V/60Hz single-phase conversion offered as a $199 add-on, and the Katool KT-4H850 four-post accepts 110V or 220V single-phase at a 30-amp requirement. On concrete, the Katool KT-H120D, KT-M110 and H115Z each specify a minimum 5.9″ (150 mm) slab rated at 3,000 PSI, while the KT-4H850 calls for 3.93″ (100 mm) at 3,000 PSI. Measure your existing slab before ordering — cutting and pouring an engineered footing is the single most expensive surprise in a lift installation.

Ceiling Height and Lift Height

Measure to the lowest obstruction in the bay — a garage door track, light fixture or beam — not to the peak of the ceiling. The Katool KT-H120D lists an overall height of roughly 110.9″ (2,818 mm) with a maximum lifting height of 74.8″ (1,900 mm) and about 98.4″ (2,500 mm) of drive-through clearance, so an overhead lift of that class needs a genuinely tall bay. Width matters as much: that same model is about 140″ overall, and the KT-M150D lists a 116.14″ passing width against a 160.59″ machine width. Chalk the footprint on the floor and check door swing and workbench clearance before committing.

Mid-Rise and Scissor Alternatives

If ceiling height or a rented slab rules out a two-post, the mid-rise and scissor units in this collection cover a lot of the same work. Shoppers searching for an automotive double scissor lift are generally after full-rise scissor designs, which reach closer to two-post working heights while folding nearly flat; the Katool KT-X99 is a 7,700 lb full-rise hydraulic scissor lift. For lower-profile service there is the Katool KT-X90E, an 8,000 lb electric mid-rise with a 47″ lift height and a 30-second lift time, the KT-X77 at 7,000 lb, and the portable KT-X66 at 6,600 lb. The tradeoff is access: scissor platforms sit under the rocker area, so wheels-free suspension work is limited compared with a two-post.

Installation, Inspection and Operator Practice

Anchoring, shimming and torque are not optional details — ANSI/ALI ALIS is the standard covering automotive lift installation and service, and ANSI/ALI ALOIM covers operation, inspection and maintenance, including periodic inspection by a qualified lift inspector and a daily operator check before use. The Automotive Lift Institute also runs a third-party certification program for lifts sold in North America, and buyers should confirm certification status on any lift they are comparing. Product-level testing is listed per model: the Katool KT-H120D is described as CE approved with 115% dynamic and 150% static testing, and the KT-M110 and KT-4H850 list the same 115% dynamic / 150% static loading standards. Day to day, the failure modes are mundane: arm pads set off the manufacturer's lift points, locks not audibly engaged before going under, and anchor bolts never re-torqued after the first months of use.
