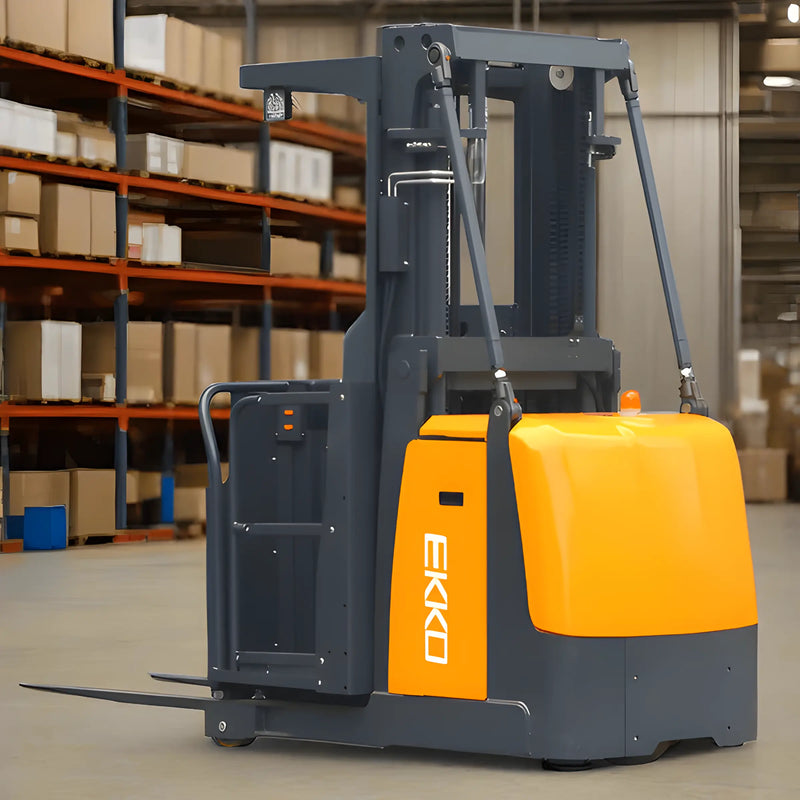

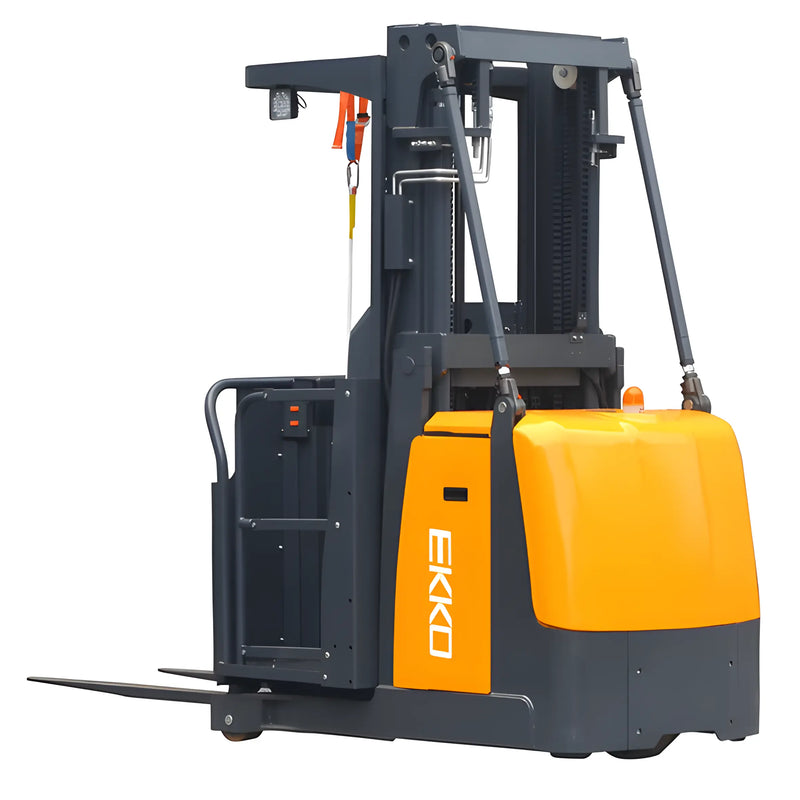

EKKO EOP70 Order Picker 2200lb. Cap., 196" Lift

Name: EKKO EOP70 Order Picker 2200lb. Cap., 196" Lift
Brand: EKKO
SKU: EOP70
Price: 31349.05 USD
Availability: InStock

See more by EKKO

$1,649.95 Off Limited time deal

$32,999.00

$32,999.00 - $32,999.00

$32,999.00

$31,349.05

$31,349.05 - $31,349.05

$31,349.05

In stock

SKU EOP70

Quantity

Product Overview

In short

The EKKO EOP70 is an electric stand-on order picker built for warehouse order picking and replenishment, with a 2,200 lb (approx. 1,000 kg) load capacity and a maximum lift height of 196 inches. It's designed for high-volume distribution and fulfillment centers where stable, elevated access to racking is required.

The EKKO EOP70 Order Picker is an electric, stand-on picking truck engineered for high-volume distribution and fulfillment center operations. With a 2200 lb rated capacity and 196-inch lift height, it enables operators to safely and efficiently perform order picking and replenishment tasks at elevated rack levels. Built with an AC drive control system, the EOP70 delivers reliable performance for demanding warehouse environments.

Key Performance Features

Rated Capacity: Handles loads up to 2200 lbs (approx. 1000 kg) at a 19.68-inch load center for dependable order picking.
Lift Height: Reaches a 196-inch lift height, with a total lift height of 227 inches and picking height of 258.01 inches for access to upper rack levels.
Electric Powertrain: Powered by a 3 kW drive motor and 6 kW lift motor, running on a 24V/350Ah battery system with AC drive control.
Stable Maneuvering: Features a 53.46-inch wheelbase and 61.81-inch turning radius, supporting controlled movement through warehouse aisles.
Climbing Ability: Rated for 3% climbing ability laden and 6% unladen, supporting operation across varied warehouse floor conditions.
Low Noise Operation: Operates at a noise level of ≤75 dB(A), contributing to a more comfortable working environment.

The EKKO EOP70 is designed for order picking and replenishment tasks within racking systems, making it well suited for high-volume distribution and fulfillment center operations. It is intended for warehouse teams that require an operator platform picking truck capable of reaching elevated storage levels while maintaining stable, controlled movement throughout picking zones.

Specification Table

EOP70 · Order PickerSKU EOP70
Power unit	Electric
Operation	Stand on
Rated loading capacity	2200 Q (lbs)
Load centre	19.68 c (Inch)
Between fork backrest & front wheel	7.56 x (Inch)
Wheelbase	53.46 y (Inch)
Service weight with battery	6600 lbs
Wheels type	PU
Driving wheel size	Φ9.84×5 Φ×w(Inch)
Bearing wheel size	Φ5.9×3.23 Φ×w(Inch)
Wheels, number front/rear (x = driven)	1，/2
Track width	37.8 b11 (Inch)
Lowered mast height	93.11 h1 (Inch)
Lifting height	196" h3 (Inch)
Extended mast height	285 h4 (Inch)
Height of overhead guard(cabin)	89.48 h6 (Inch)
height of seat/stand-on platform	10.67 h7 (Inch)
Additional lift height	30.71 h9 (Inch)
total lift height	227 h10 (Inch)
Platform lifting height	206.873 h12 (Inch)
Lowered fork height	1.97 h13 (Inch)
Picking height	258.01 h15 Inch)
Overall length	111.41 l1 (Inch)
Body Length	69.29 l2 (Inch)
Overall width	39.37/145.28 b1/ b2 (Inch)
Fork Size	1.37/3.93/42.13 s/e/l (Inch)
Width of fork fixing frame	35.83 b3 (Inch)
outside fork width	34.33 b5 (Inch)
Min.Ground clearance	1.97 m2 (Inch)
Aisle width for pallets 39.37*47.24 crossways	122.24 Ast (Inch)
Aisle width for pallets 31.5*47.24 lengthways	126.77 Ast (Inch)
Turing Radius	61.81 Wa (Inch)
Travel speed,laden/unladen	8 (km/h)
Lifting speed, with/without load(cabin)	n/a (mm/s)
Lifting speed, with/without load(Fork)	n/a (mm/s)
Lowering speed, with/without load(cabin)	n/a (mm/s)
Lowering speed, with/without load(Fork)	n/a (mm/s)
Climbing ability, with/without load	3/6 (%)
Brake Type	Electromagnetic brake
Drive Motor	3 (kW)
Lift Motor	6 (kW)
Battey, DIN 43531/35/36 A,B,C,no	no
Battery voltage/rate capacity	24/350 (V/Ah)
Battery Weight（±5%）	n/a (LBS)
Type of drive control	AC
Noise level	≤75 (dB(A))
Brand / Model	EKKO EOP70
Capacity	2200 lb (Approx. 1000 kg)
Maximum Lift Height	196 in (Approx. 4978 mm)
Application	Order Picking / Warehouse Fulfillment
Operation Style	Operator Platform / Picking Truck
Lift System	Powered Lift
Primary Use	Picking and replenishment in racks
Best Use Case	High-volume distribution and fulfillment centers
Key Benefits	Higher pick efficiency, stable access, improved productivity

FAQ about this model

What applications and loads is the EKKO EOP70 best suited for?

The EOP70 is built for order picking and replenishment tasks in warehouses and distribution centers. It carries a rated capacity of 2,200 lb (approx. 1,000 kg), making it well suited for high-volume distribution and fulfillment operations where operators need to access racked inventory efficiently and safely.

What do the capacity and lift height specs mean for my operation?

The 2,200 lb capacity indicates how much weight the unit can safely lift and transport, while the 196-inch maximum lift height determines how high the operator platform and forks can reach into racking systems. Together, these specs allow the EOP70 to support picking and replenishment tasks at elevated rack levels in a warehouse fulfillment environment.

Is the EKKO EOP70 electric or manual, and how does the operator use it?

The EOP70 is an electric order picker with a stand-on operation style, meaning the operator rides on a platform that rises with the mast to reach picking locations. It uses a powered lift system, which supports stable access and helps maintain productivity during repetitive picking cycles.

How does the EOP70 compare to other order pickers in the EKKO lineup?

Within the order picker category, the EOP70 is positioned for high-volume distribution and fulfillment center use, emphasizing higher pick efficiency, stable access, and improved productivity. As a stand-on, powered-lift electric order picker, it's built specifically for picking and replenishment tasks rather than general pallet transport, distinguishing it from other EKKO material handling equipment types like forklifts, stackers, and pallet jacks.
