All Lift Cranes TG-Series Telescoping Gantry Crane | 4 Ton Capacity

Name: All Lift Cranes TG-Series Telescoping Gantry Crane | 4 Ton Capacity
Brand: All Lift Cranes
SKU: TG4-816
Price: 10807.0 USD
Availability: InStock

See more by All Lift Cranes

$9,019.00 - $12,154.00

$10,807.00

$9,019.00 - $12,154.00

$10,807.00

In stock

SKU TG4-816

Freight is quoted per delivery location — enter yours and we'll email your exact, all-in cost.

or order now

Order today, approve freight before it ships. $0 freight at checkout — we email your exact quote for approval; don't accept it, full refund.

Questions or bulk orders? Call sales +1 (307) 441-5529

Accessories

All Lift Cranes Tagline Kit with S-Hooks Learn More

$97.00

All Lift Cranes Steel Cable Trolley (1 per 5 ft of span) Learn More

$18.00

Quantity

Product Overview

In short

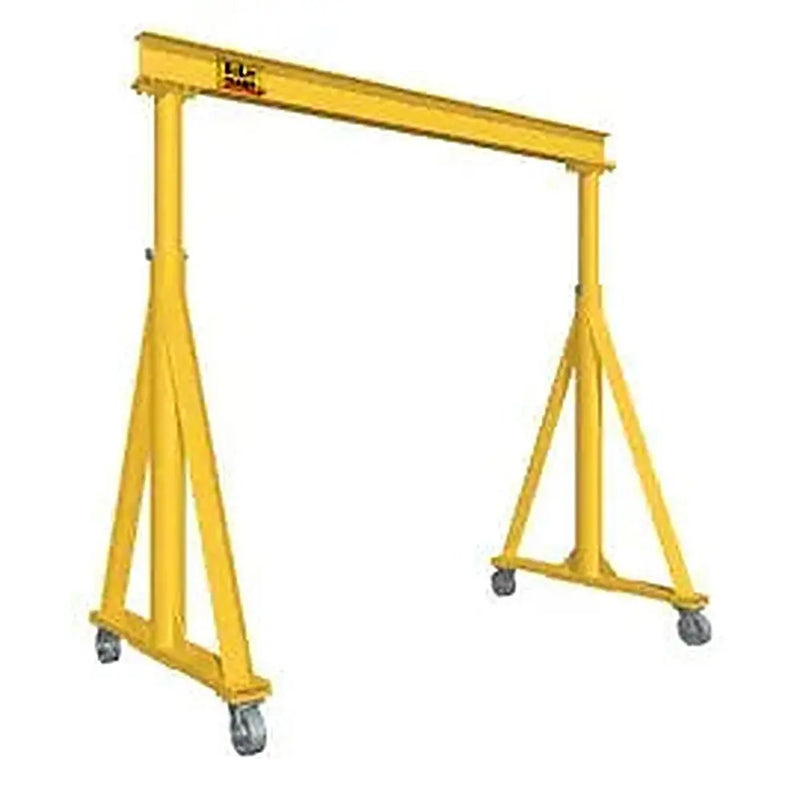

The All Lift Cranes TG-Series is a 4 ton capacity telescoping gantry crane available in spans from 8 ft to 20 ft with height adjustment ranges of 8-12 ft or 12-16 ft. It's manufactured in the USA by All Lift Cranes, Inc. in Appleton, Wisconsin, and backed by a 3-year warranty on materials and workmanship.

The All Lift Cranes TG-Series Telescoping Gantry Crane delivers 4 ton lifting capacity in a mobile, adjustable-height design suited for shops, warehouses, and job sites that need flexible overhead lifting without a fixed structure. With span options from 8 ft up to 20 ft and a choice of 8-12 ft or 12-16 ft height adjustment ranges, the TG-Series can be configured to match a wide range of workspace dimensions.

Each gantry rolls on 4 steel swivel casters, with 2 equipped with brakes for secure positioning and 2 fitted with cable pullers to aid movement. This makes the crane easy to reposition around a facility while still locking down firmly for lifting operations. The TG-Series pairs with standard hoists from manufacturers such as CM, R&M, and Yale, giving buyers flexibility in outfitting the crane to their existing equipment.

Built by All Lift Cranes, Inc., a family-owned manufacturer based in Appleton, Wisconsin, USA, the TG-Series is backed by a 3-year warranty covering material and workmanship, with parts replaced free FOB job site. Depending on configuration, models range from approximately 1,961 lbs to 3,138 lbs and are priced from $9,019 to $12,154.

Specification Table

Model	Span	Height Adjustment	Weight (lbs)
TG4-816	8 ft	12-16 ft	2,463
TG4-812	8 ft	8-12 ft	1,961
TG4-1016	10 ft	12-16 ft	2,569
TG4-1012	10 ft	8-12 ft	2,067
TG4-1216	12 ft	12-16 ft	2,675
TG4-1212	12 ft	8-12 ft	2,173
TG4-1416	14 ft	12-16 ft	2,820
TG4-1412	14 ft	8-12 ft	2,232
TG4-1616	16 ft	12-16 ft	2,887
TG4-1612	16 ft	8-12 ft	2,385
TG4-1816	18 ft	12-16 ft	3,032
TG4-1812	18 ft	8-12 ft	2,444
TG4-2016	20 ft	12-16 ft	3,138
TG4-2012	20 ft	8-12 ft	2,550

FAQ about this model

How do I choose the right span and height adjustment for my TG-Series gantry crane?

TG-Series models are available in spans from 8 ft to 20 ft and two height adjustment ranges: 8-12 ft or 12-16 ft. Select the span that matches the width you need to cover and the height range that fits your ceiling clearance and lift height requirements.

What's involved in installing a TG-Series telescoping gantry crane?

The TG-Series is a mobile gantry crane, not a fixed installation. It moves on 4 steel swivel casters, 2 with brakes for stable positioning during lifts and 2 with cable pullers to help maneuver the unit into place, so no foundation work is required.

What warranty comes with an All Lift Cranes TG-Series crane?

All Lift Cranes, Inc. backs the TG-Series with a 3-year warranty covering material and workmanship, with replacement parts provided free FOB job site.

Which hoists are compatible with the TG-Series gantry crane?

The TG-Series is designed to pair with standard hoists, including models from CM, R&M, and Yale.

Compare models

	1 Ton Capacity	2 Ton Capacity	3 Ton Capacity	4 Ton Capacity THIS	5 Ton Capacity
Weight	1015–2026	1080–2568	1348–3040	1961–3138	2001–3552
Lift Height	8–12 ft	8–12 ft	8–12 ft	8–12 ft	8–12 ft
Span	8–20 ft	8–20 ft	8–20 ft	8–20 ft	8–20 ft
Price	$4,504.00	$5,560.00	$6,618.00	$9,019.00	$8,878.00
	Check ›	Check ›	Check ›	Viewing	Check ›

Specs from All Lift Cranes manuals. Prices update live and reflect current promotions.
