All Lift Cranes TG-Series Telescoping Gantry Crane | 1 Ton Capacity

See more by All Lift Cranes

$4,504.00 - $7,206.00

$5,289.00

$4,504.00 - $7,206.00

$5,289.00

In stock

SKU TG1-816

Freight is quoted per delivery location — enter yours and we'll email your exact, all-in cost.

or order now

Order today, approve freight before it ships. $0 freight at checkout — we email your exact quote for approval; don't accept it, full refund.

Questions or bulk orders? Call sales +1 (307) 441-5529

Accessories

All Lift Cranes Tagline Kit with S-Hooks Learn More

$97.00

All Lift Cranes Steel Cable Trolley (1 per 5 ft of span) Learn More

$18.00

Quantity

Product Overview

In short

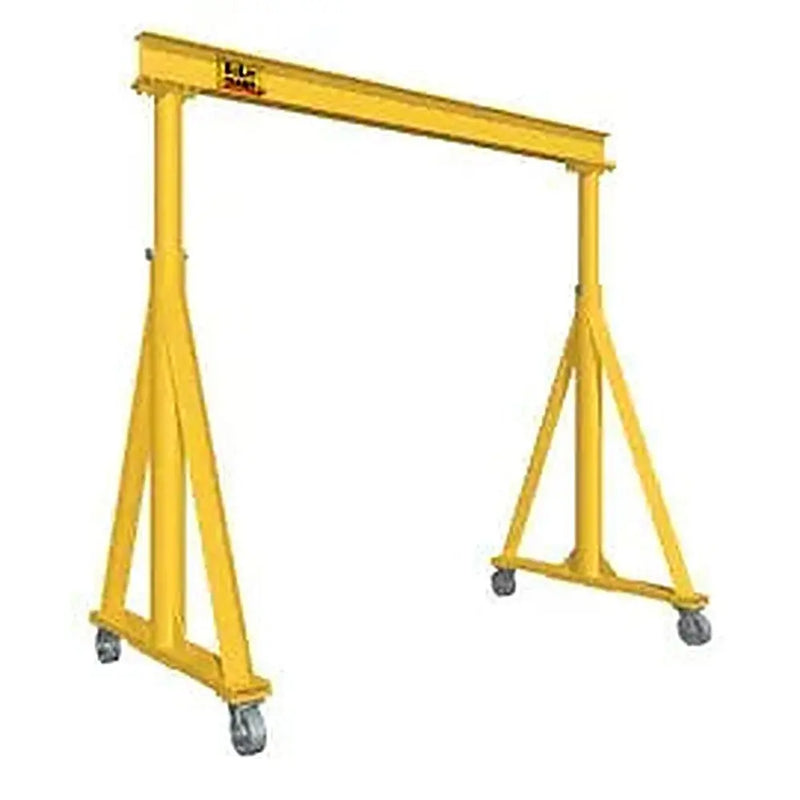

The All Lift Cranes TG-Series is a 1-ton capacity telescoping gantry crane available in spans from 8 ft to 20 ft with height adjustment ranges of either 8-12 ft or 12-16 ft. It is manufactured in the USA by All Lift Cranes, Inc. in Appleton, Wisconsin, and backed by a 3-year warranty on materials and workmanship.

The All Lift Cranes TG-Series Telescoping Gantry Crane offers 1-ton lifting capacity in a portable, adjustable-height design. With 14 models spanning 8 ft to 20 ft and two height adjustment ranges (8-12 ft or 12-16 ft), the TG-Series can be matched to a wide range of shop, warehouse, and jobsite lifting needs.

Each crane rolls on 4 steel swivel casters, 2 of which include brakes for secure positioning and 2 fitted with cable pullers, making the unit easy to maneuver and lock in place once positioned. Depending on the model selected, unit weight ranges from 1,015 lbs to 2,026 lbs. The TG-Series is designed to pair with standard hoists from manufacturers such as CM, R&M, and Yale.

All Lift Cranes, Inc. is a family-owned manufacturer based in Appleton, Wisconsin, USA. Every TG-Series crane is backed by a 3-year warranty covering material and workmanship, with replacement parts shipped free FOB job site.

Specification Table

Model	Span	Height Adjustment	Weight (lbs)
TG1-816	8 ft	12-16 ft	1,496
TG1-812	8 ft	8-12 ft	1,015
TG1-1016	10 ft	12-16 ft	1,556
TG1-1012	10 ft	8-12 ft	1,083
TG1-1216	12 ft	12-16 ft	1,616
TG1-1212	12 ft	8-12 ft	1,115
TG1-1416	14 ft	12-16 ft	1,626
TG1-1412	14 ft	8-12 ft	1,223
TG1-1616	16 ft	12-16 ft	1,736
TG1-1612	16 ft	8-12 ft	1,269
TG1-1816	18 ft	12-16 ft	1,946
TG1-1812	18 ft	8-12 ft	1,487
TG1-2016	20 ft	12-16 ft	2,026
TG1-2012	20 ft	8-12 ft	1,547

FAQ about this model

What is the lifting capacity, and does it change with span?

Every TG-Series model on this page is rated at 1 ton. That rating applies across all spans from 8 ft through 20 ft and to both height-adjustment ranges, so choosing a wider span does not reduce what the crane will lift. If your heaviest load exceeds 1 ton, this series is not the right fit.

What spans are available?

Spans of 8, 10, 12, 14, 16, 18 and 20 ft are offered. Span is the clear distance between the legs, so measure the load and any staging area the crane has to straddle before choosing. Longer spans add weight: the 8 ft TG1-812 is 1,015 lbs, while the 20 ft TG1-2012 is 1,547 lbs.

How much height adjustment do I get?

Height adjustment comes in either an 8-12 ft range or a 12-16 ft range, and the model number tells you which: TG1-1012 adjusts 8-12 ft, TG1-1016 adjusts 12-16 ft. Check your door and ceiling clearance against the top of the range, and your required hook height against the bottom of it.

How heavy is the crane itself?

Weights run from 1,015 lbs for the TG1-812 up to 2,026 lbs for the TG1-2016. Within the same span, the taller 12-16 ft version is always heavier than the 8-12 ft version — at 14 ft span, 1,626 lbs versus 1,223 lbs. Factor the total weight into floor loading and into how the crane will be unloaded on delivery.

Does it need electrical power, and is a hoist included?

The published specifications cover span, height adjustment and weight only; no electrical supply, motor or hoist data is listed. The gantry is the supporting structure, and any hoist or trolley used with it is specified separately. Ask for a written list of included components before ordering rather than assuming them from this page.

Who is a telescoping gantry crane right for?

It suits lifting that moves between locations, or bays where a permanent overhead structure is not practical, for loads up to 1 ton within a span of 8 to 20 ft. It is less suitable for continuous high-cycle production lifting or for loads above 1 ton, where a fixed installed crane is usually the better answer.

Compare models

	1 Ton Capacity THIS	2 Ton Capacity	3 Ton Capacity	4 Ton Capacity	5 Ton Capacity
Weight	1015–2026	1080–2568	1348–3040	1961–3138	2001–3552
Lift Height	8–12 ft	8–12 ft	8–12 ft	8–12 ft	8–12 ft
Span	8–20 ft	8–20 ft	8–20 ft	8–20 ft	8–20 ft
Price	$4,504.00	$5,560.00	$6,618.00	$9,019.00	$8,878.00
	Viewing	Check ›	Check ›	Check ›	Check ›

Specs from All Lift Cranes manuals. Prices update live and reflect current promotions.

Warranty

All Lift Cranes Limited Warranty. All Lift Cranes warrants its jib and gantry cranes against defects in material and workmanship for three (3) years. Misuse, overloading, unauthorized modification and normal wear are excluded.

Warranty

3-Year Manufacturer Warranty

All Lift Cranes, Inc. — Appleton, Wisconsin

Every All Lift crane is warranted against defects in material and workmanship for three years from the date of shipment. Defective parts are replaced free of charge, F.O.B. job site.

Covers
Material & workmanship defects confirmed by factory inspection

Excludes
Misuse, overloading, improper installation or maintenance

Finish
Quality factory paint; touch-up paint available on request
