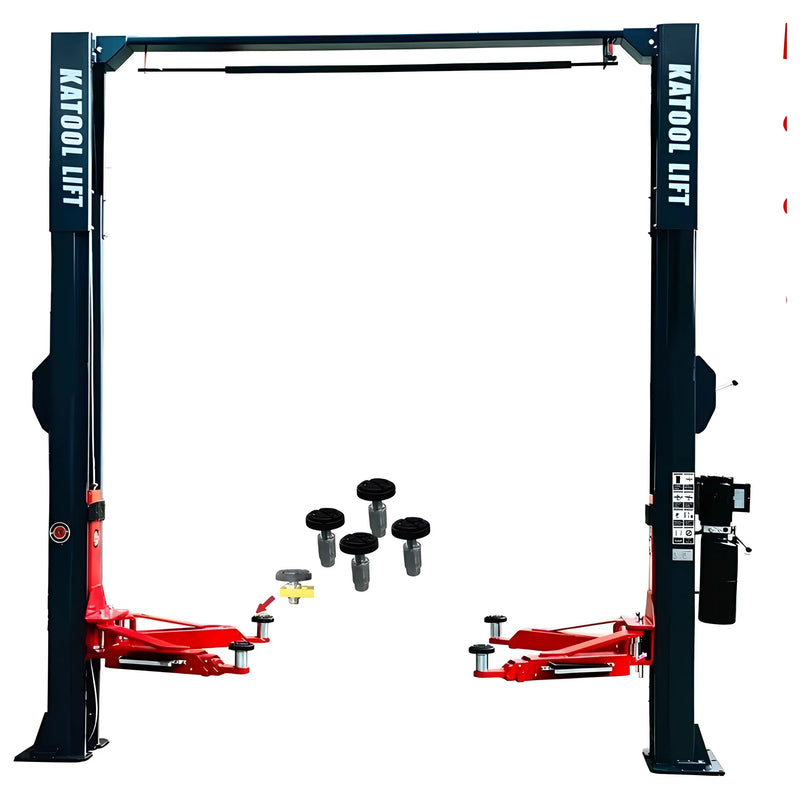

Katool Vehicle Lift with Durable Steel Structure and Adjustable Lifting Arms for Auto Maintenance

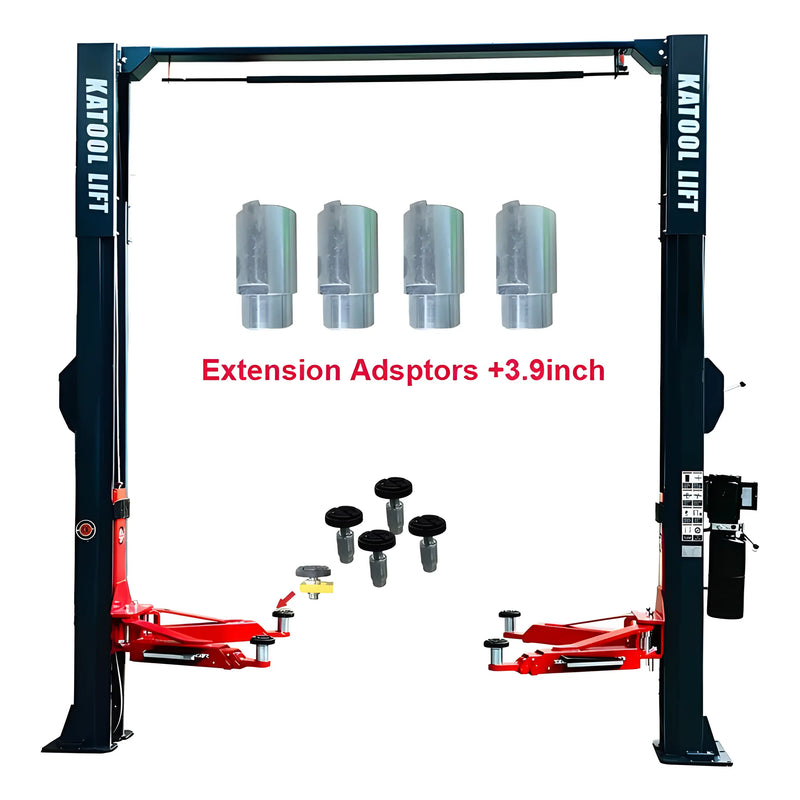

Katool Vehicle Lift with extension adaptors and accessories for enhanced lifting capacity

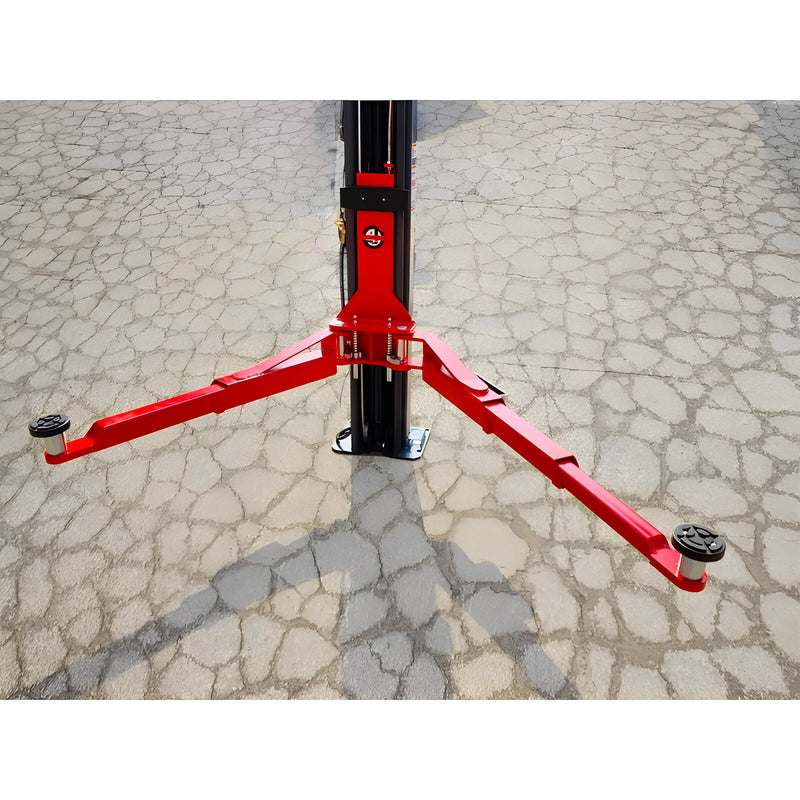

Katool Vehicle Lift with Red Support Arms for Efficient Car Maintenance and Repairs

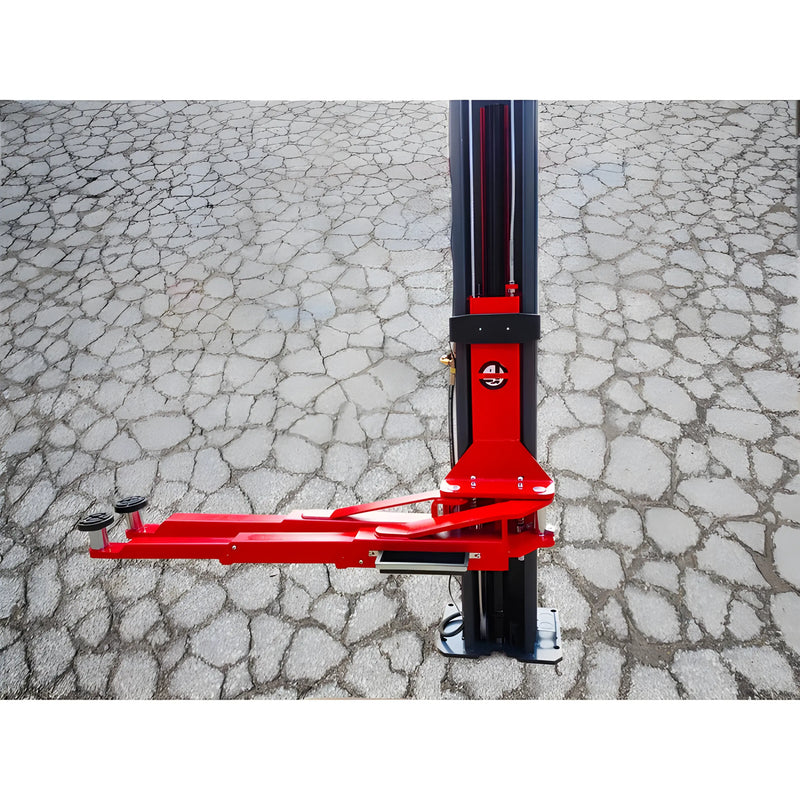

Katool Vehicle Lift with Sleek Red Design and Durable Construction for Efficient Automotive Repair

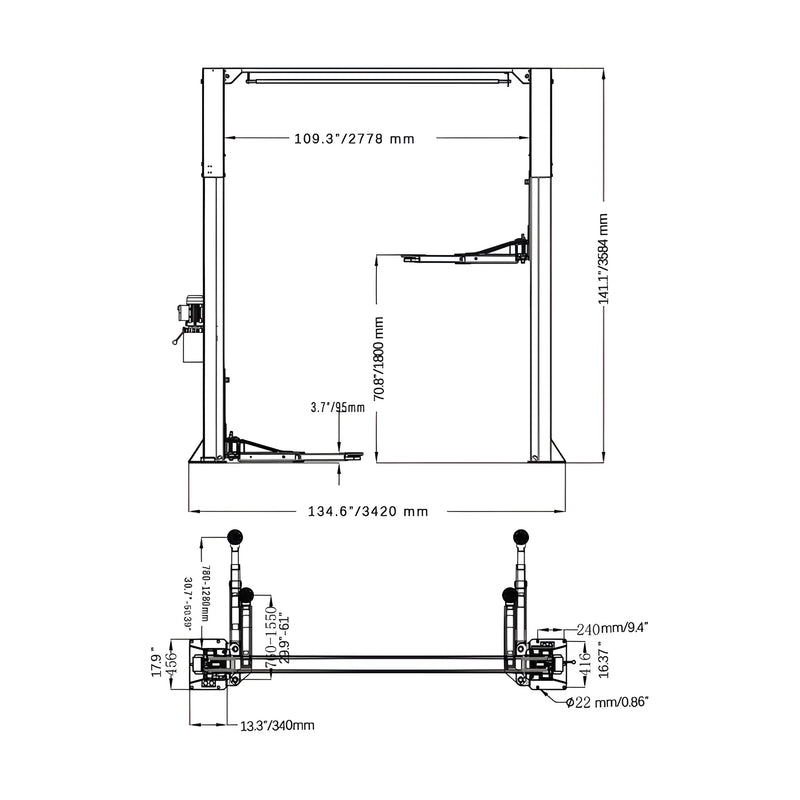

Katool Vehicle Lift Technical Drawing with Dimensions for Installation and Capacity Specifications

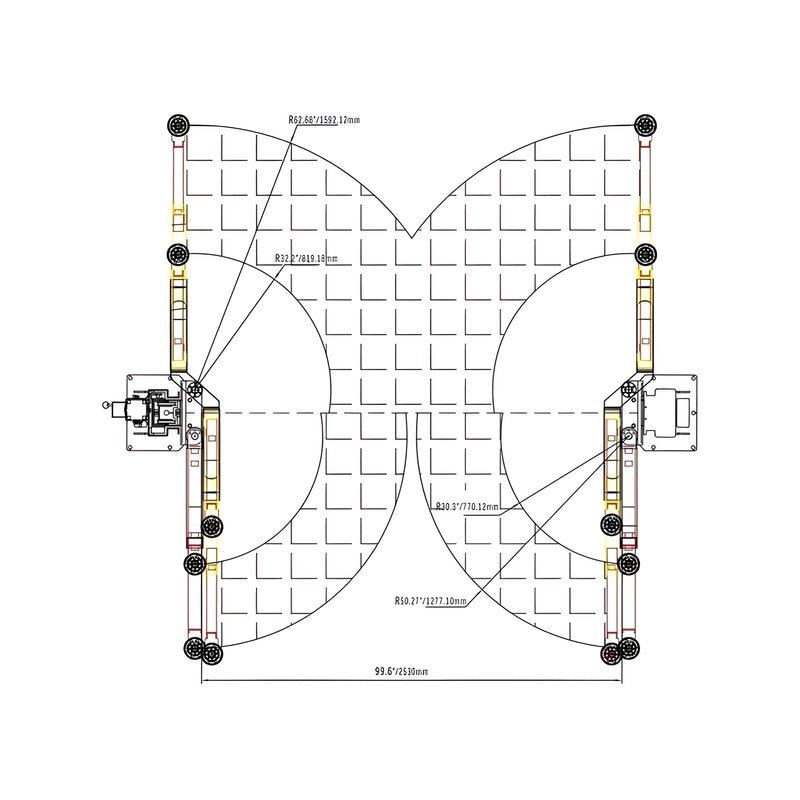

Diagram of Katool Vehicle Lift showcasing dimensions and layout for efficient vehicle servicing

Katool KT-AS110D 11,000 lb Asymmetric Two-Post Vehicle Lift

See more by Katool

$1,000 Off Limited time deal

$3,599.00

$3,599.00 - $3,599.00

$3,599.00

$2,599.00

$2,599.00 - $2,599.00

$2,599.00

In stock

SKU KT-AS110D

Delivery Option: Warehouse Pickup

Warehouse Pickup Location

Quantity

Product Overview

In short

The Katool KT-AS110D is an asymmetric two-post vehicle lift with an 11,000 lb (≈5,000 kg) lifting capacity. It uses adjustable swing arms with pads and an automatic lock with manual release.

Built for everyday shop lifting

The Katool KT-AS110D is an asymmetric two-post vehicle lift rated at 11,000 lbs (≈5,000 kg), making it a capable choice for cars, light trucks, and SUVs in professional and serious home shops. Its asymmetric column design and adjustable swing arms help position the lift points for easier door clearance once the vehicle is raised.

Practical working geometry

With a maximum lifting height of ≈75″ (1,905 mm) and a low minimum height of ≈4.5″ (115 mm), the lift accommodates a range of vehicles and low-clearance work. A drive-thru clearance of ≈99″ (2,515 mm) between the columns gives room to position and load vehicles.

Key features

11,000 lb capacity — rated for ≈5,000 kg lifting
Asymmetric two-post design for improved door clearance
Adjustable swing arms with pads to fit varied lift points
Automatic lock with manual release safety system
≈75″ max lifting height for comfortable underbody access
≈4.5″ minimum height for low-clearance vehicles
220 V AC / 60 Hz / 1 Ph power (optional 110 V)

Specification Table

KT-AS110D · 2-Post Car LiftSKU KT-AS110D
Type	Asymmetric Two Post Vehicle Lift
Lifting Capacity	11,000 lbs (≈5,000 kg)
Max. Lifting Height	≈75″ / 1,905 mm
Min. Height	≈4.5″ / 115 mm
Overall Height	≈115″ / 2,920 mm
Overall Width	≈148″ / 3,760 mm
Drive-Thru Clearance	≈99″ / 2,515 mm
Power Supply	220 V AC / 60 Hz / 1 Ph (Optional 110 V)
Lift Arm Type	Adjustable Swing Arms with Pads
Safety Features	Automatic Lock & Manual Release

Compare models

	KT-M110 Katool Two-Post Vehicle	KT-AS110D Katool 11,000 lb THIS
Capacity	11,000 lbs / 5,000 kg	11,000 lbs (≈5,000 kg)
Lift Height	≈ 75″ / 1,900 mm	≈75″ / 1,905 mm
Overall Height	≈ 112″ / 2,850 mm	≈115″ / 2,920 mm
Overall Width	≈ 145″ / 3,680 mm	≈148″ / 3,760 mm
Price	$2,999.00 $2,099.00	$3,599.00 $2,599.00
	Check ›	Viewing

Specs from Katool manuals. Prices update live and reflect current promotions.

FAQ about this model

How much can the KT-AS110D lift?
It has a rated lifting capacity of 11,000 lbs (approximately 5,000 kg).

What type of lift is this?
It is an asymmetric two-post vehicle lift with adjustable swing arms and pads.

What power supply does it require?
It runs on 220 V AC / 60 Hz / 1 Ph power, with an optional 110 V configuration.

How high does it lift and how low does it go?
Maximum lifting height is approximately 75″ (1,905 mm) and the minimum height is approximately 4.5″ (115 mm).

What safety system does it use?
It uses an automatic lock with manual release to hold the vehicle securely at height.

How much space does it need?
Overall height is approximately 115″ (2,920 mm) and overall width is approximately 148″ (3,760 mm), with about 99″ (2,515 mm) of drive-thru clearance between the columns. Confirm your ceiling height and floor area before installation.

Warranty

Authorized Katool Dealer

Full Manufacturer Warranty Included

Vovlift is a factory-authorized Katool dealer. Every machine ships brand-new with the complete manufacturer warranty and is backed by US-based support — so you are covered from day one.

1 Year

Parts & Defects Coverage

Optional

3 Years

Structural Components

*3-year structural coverage is an optional extension. 1-year parts & defects coverage is included as standard.

Documents

Katool KT-AS110D User Manual
