Triumph NTJ-2 1,000 lb Two-Stage Transmission Jack

Triumph NTJ-2 1,000 lb Two-Stage Transmission Jack

See more by Triumph

$275.00 - $325.00

$275.00

$275.00 - $325.00

$275.00

In stock

SKU NTJ-2

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

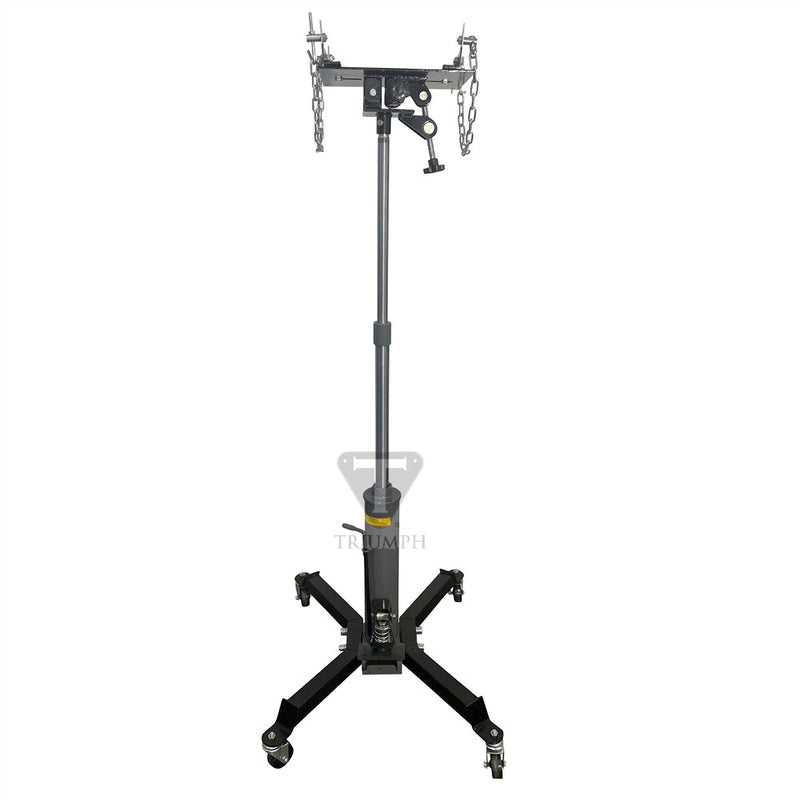

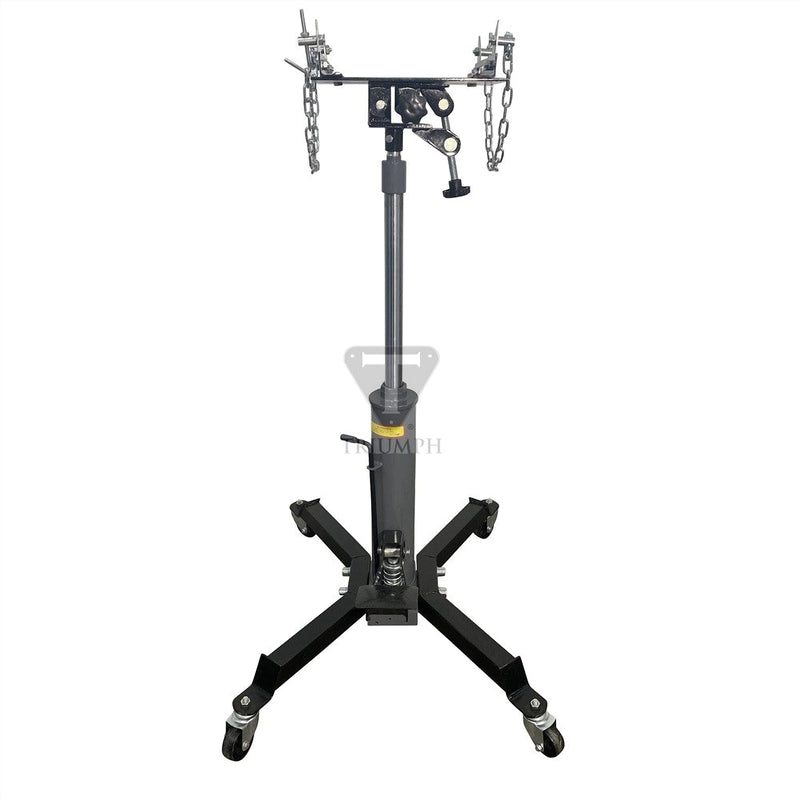

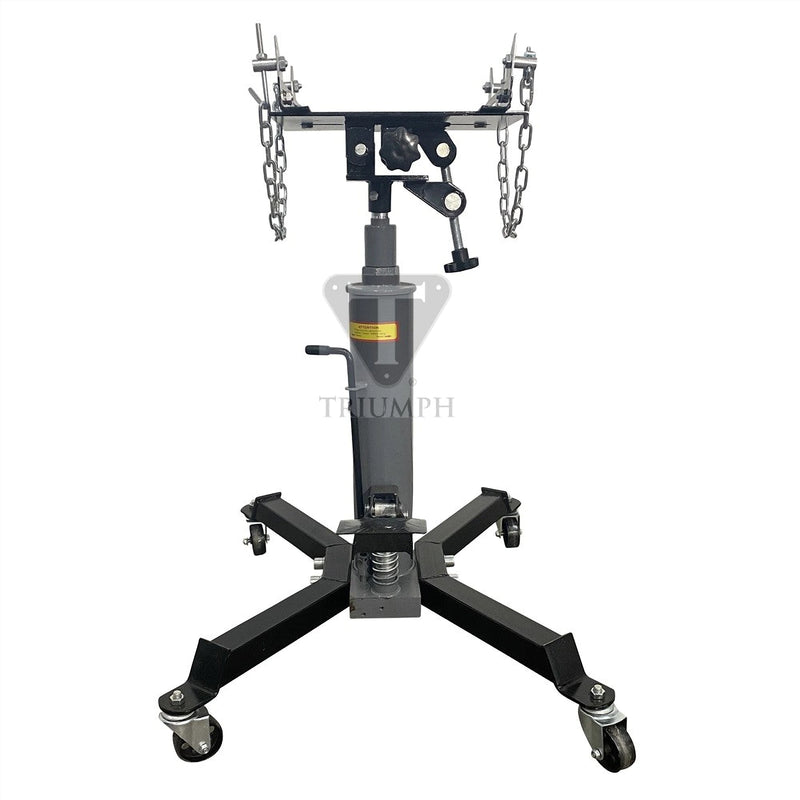

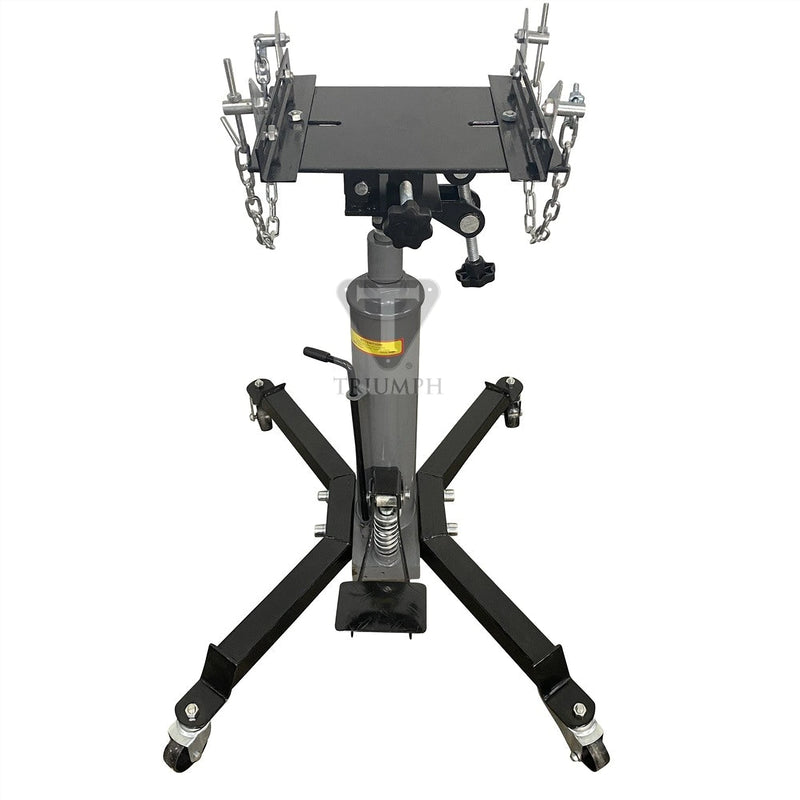

The NTJ-2 is a two-stage transmission jack rated at 1,000 lb., raised by foot pedal and lowered with a spring-loaded release handle. It travels from a 34" lowered height to a 68" raised height on a 30" wide caster base.

What the NTJ-2 is built for

The NTJ-2 is a two-stage transmission jack rated at 1,000 lb. Raising is handled by a foot pedal, so both hands stay free to steady and align the load, and lowering runs through a spring-loaded release handle. The unit sits on a 30" wide base for maximum stability and rolls on heavy duty steel swivel caster wheels. The saddle is fully adjustable and comes with lock down chains for securing the case during removal and installation. The finish is powder coated. One practical note before ordering: the color of the product may vary depending on what is in stock at the time of order, so do not plan on a specific color matching other equipment in the bay.

Height range and shop clearance

The two-stage ram gives a 34" lowered height and a 68" raised height. That span is what defines where this jack fits in a shop. At 34" collapsed, the jack has to roll under a vehicle that is already up on a lift or otherwise held at least that high off the floor, so it is not a low-profile unit for work over jack stands or on a vehicle sitting on the ground. At the top of its stroke it reaches 68", which covers drivetrain work on trucks and vans held high on a two-post or four-post lift. Measure your working height at the transmission crossmember before ordering so you know the saddle lands where you need it.

Saddle, chains and load control

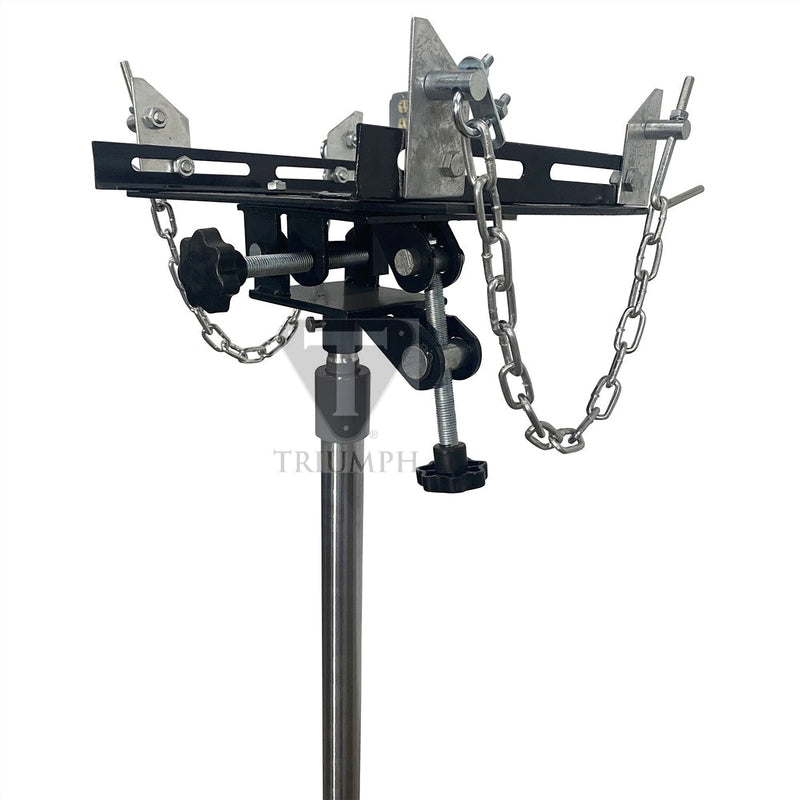

A transmission that shifts on the saddle at chest height is the main hazard in this job, and the NTJ-2 addresses it two ways. The saddle is fully adjustable, so it can be tilted and set to match the angle of the case before the last bellhousing bolts come out. Lock down chains then strap the unit to the saddle so it stays put while the jack is lowered and rolled clear. Raising through a foot pedal keeps both hands on the load rather than on a pump handle, and the spring-loaded release handle controls the descent. The 30" wide base and heavy duty steel swivel caster wheels give the jack a stable footprint while all of that is happening.

Handling, finish and shipping

The jack is powder coated for a durable shop finish. Shipping weight is 150 lb. and the shipping dimensions are 28" x 21" x 12", which is worth checking against your receiving setup and door widths before delivery. Once in service, the heavy duty steel swivel caster wheels let one person reposition the jack around the bay and index it under a vehicle on a lift without dragging it. Plan for help handling the crate itself at 150 lb. Again, color may vary depending on what is in stock at the time of order; the specifications, capacity and travel do not change with the finish.

Key features

1,000 lb. capacity — rated load for transmission, transfer case and similar drivetrain work
Two-stage ram — 34" lowered height extends to a 68" raised height
Foot pedal for raising — hands stay free to steady and align the load
Spring loaded handle for lowering — controlled descent from the release handle
Fully adjustable saddle with lock down chains — angle the case and strap it in place
30" wide base — a wide footprint for maximum stability under load
Heavy duty steel swivel caster wheels — roll and index the jack anywhere in the bay

Specification Table

NTJ-2 · TriumphSKU NTJ-2
Capacity	1,000 lb.
Stages	Two stage
Lowered Height	34"
Raised Height	68"
Base Width	30"
Foot Pedal for raising	Yes
Spring loaded handle for lowering	Yes
Saddle	Fully adjustable, with lock down chains
Casters	Heavy duty steel swivel caster wheels
Powder Coated	Yes
Color	May vary depending on stock at time of order
Shipping Weight	150 lb.
Shipping Dimensions	28" x 21" x 12"

FAQ about this model

How much weight can the NTJ-2 hold?
It is rated at 1,000 lb. capacity. Stay within that rating for the transmission or case plus anything still bolted to it.

What is the lift range on this transmission jack?
The two-stage ram runs from a 34" lowered height to a 68" raised height.

Will it fit under a car on jack stands?
Its lowest height is 34", so the vehicle has to be held at least that far off the floor before the jack can roll underneath. In practice that means a lift, not jack stands.

Does the NTJ-2 need air or electricity?
No air or electrical supply is listed for this jack. Raising is done with a foot pedal and lowering with a spring loaded release handle.

How is the transmission secured on the saddle?
The saddle is fully adjustable and includes lock down chains so the case can be angled to match the vehicle and then strapped down before removal.

How wide is the base?
The base is 30" wide, which is what gives the jack its stability with a load raised. Allow for that footprint when planning clearance around a lift post or crossmember.

How much does it weigh to ship, and what size is the carton?
Shipping weight is 150 lb. and shipping dimensions are 28" x 21" x 12". Arrange help for unloading and check that the carton clears your doorway.

What color will my jack be?
The product is powder coated, but the color may vary depending on what is in stock at the time of order. Capacity and dimensions are unaffected.

Can I move the jack around the shop with it loaded?
It rides on heavy duty steel swivel caster wheels for positioning in the bay. Keep the load chained to the saddle and the jack as low as the job allows when repositioning.
