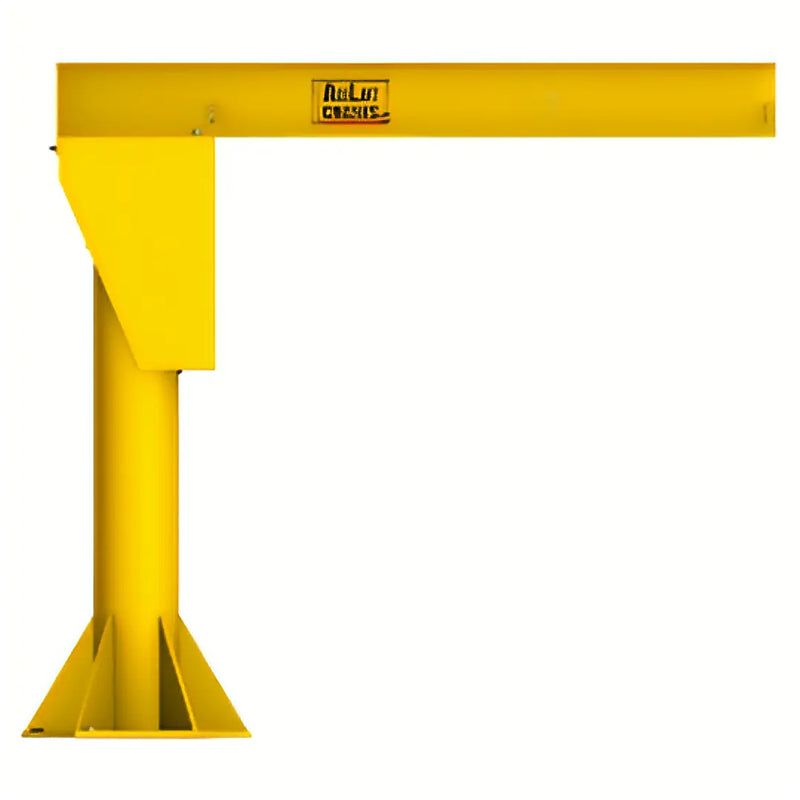

All Lift Cranes FH-FH1108 | Heavy Duty Foundationless Jib 1/2 Ton Capacity 10 to 14 HUB

All Lift Cranes FH-Series Heavy Duty Foundationless Jib 1/2 Ton Capacity 10 to 14 HUB

Features:

• No Foundation Design: Bolts directly to old concrete with no pre-poured foundation required.
• 360° Rotation: The rolled steel I-beam with a tapered flange allows smooth trolley motion.

• Widely useful: Perfect for machining and assembly in addition to outdoors such as loading docks.
• Options for Customization: Comes with tagline kits, motorized rotation and stainless steel configurations.

Product Description

With a lightweight design and efficient operation, the FH Series allows for maximum productivity without the hassle of pre-poured foundations, making it the ideal choice for companies looking to increase their material handling capabilities. Built for versatility and durability, this jib crane is ideal for use in open spaces, multi-station workflows, and outdoor applications.

No Foundation Required

The FH Series, however, bolts directly to an existing concrete surface as long as the concrete meets the minimum requirements of 6” thickness and 3,000 psi compressive strength, eliminating the need for an extensive foundation like what is required for a traditional jib crane. It saves time and money, which makes it well-designed for retrofitting current workspaces or increasing lifting power in open settings.

Smooth and Precise Operation

Its 360° rotating rolled steel I-beam comes with a tapered flange that give smooth trolley travel (even when fully loaded). To not over-travel and enhance operational safety, removable safety end stops are included. Base plate is 48” or 54” in diameter give a solid foundation whilst, the Bolt circle (44” or 50”) locked down.

Versatile Applications

The FH Series is ideal for various applications, such as:

• Machining & Assembly Ops: Identify the most optimized production workflow with accuracy-based lift capabilities.
• Outdoor use: Suited best for loading docks and other outdoor environments.
• Multiple Solutions: Connect additional jib cranes to form custom lifting configurations for expansive spaces.

Customizable Options

Customize the FH Series to your unique applications with a wide range of optional features, such as:

• Epoxy Anchor Bolt Kits: Make sure they are properly installed onto shop.
• In addition, tagline kits with S-Hooks are provided to facilitate material handling and positioning.
• Motorized Rotation: Automate crane rotation to boost efficiency.
• Enhanced Durability for Harsh Environments - Outdoor, Stainless Steel Configurations.

No Special Installation Requirements

For FH Series installation, make sure that the concrete has no cracks, seams, or delaminations in a 10' x 10' square where the base plate will be placed. Soil psi must withstand 2,500 psi and the spread of the foundation is:

Foundations:

• 10’ or less span: 10’ x 10’ foundation
• 11’ to 12’ span: 11’ x 11’ foundation
• 14′ to 16′ span: 12′ x 12′ foundation
