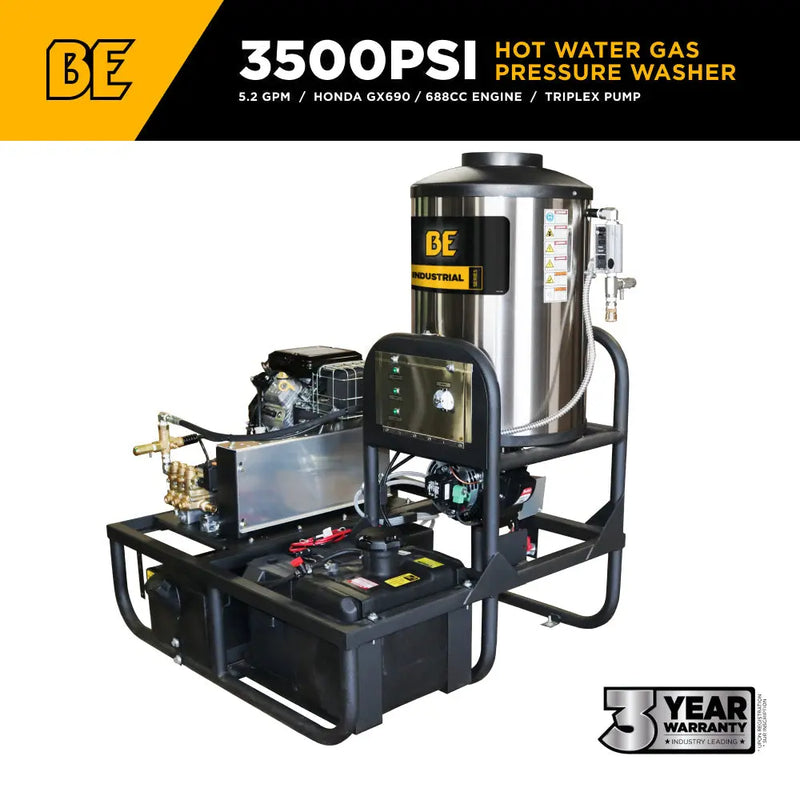

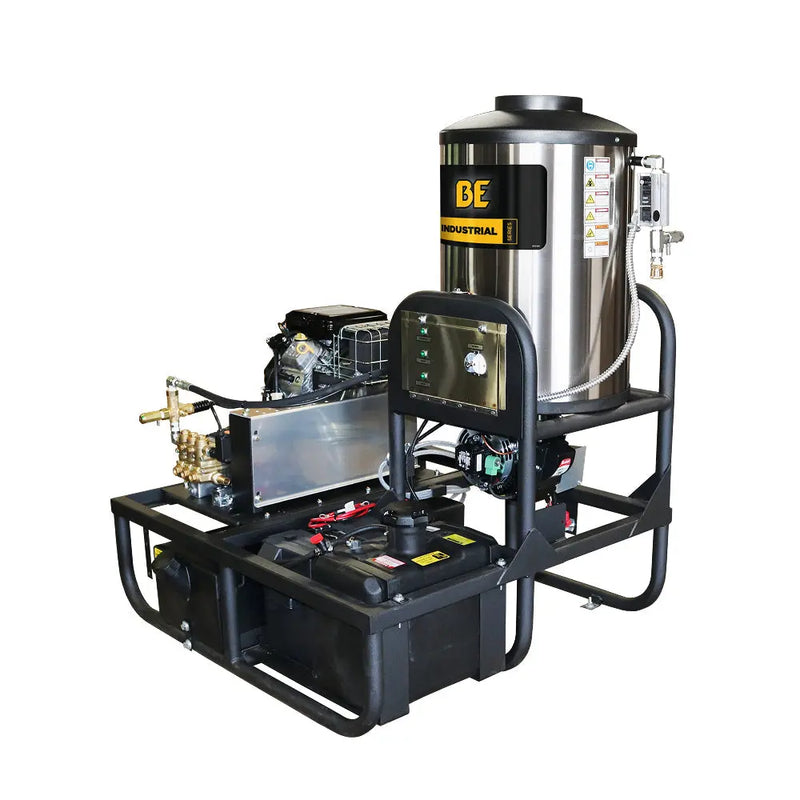

Product Overview
Specification Table
| Parameter | Specification |
|---|---|
| Model | Z5535GPBDH |

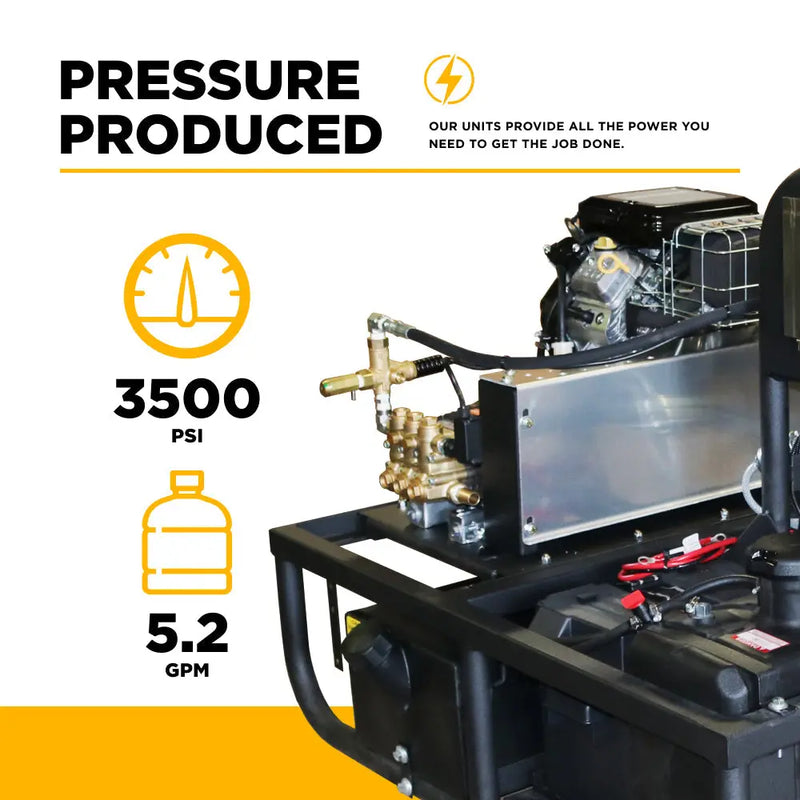

| Pressure | 3,500 PSI |
| Flow Rate | 5.2 GPM |
| Engine | Honda GX690, 688cc V-Twin |
| Start Type | Electric |

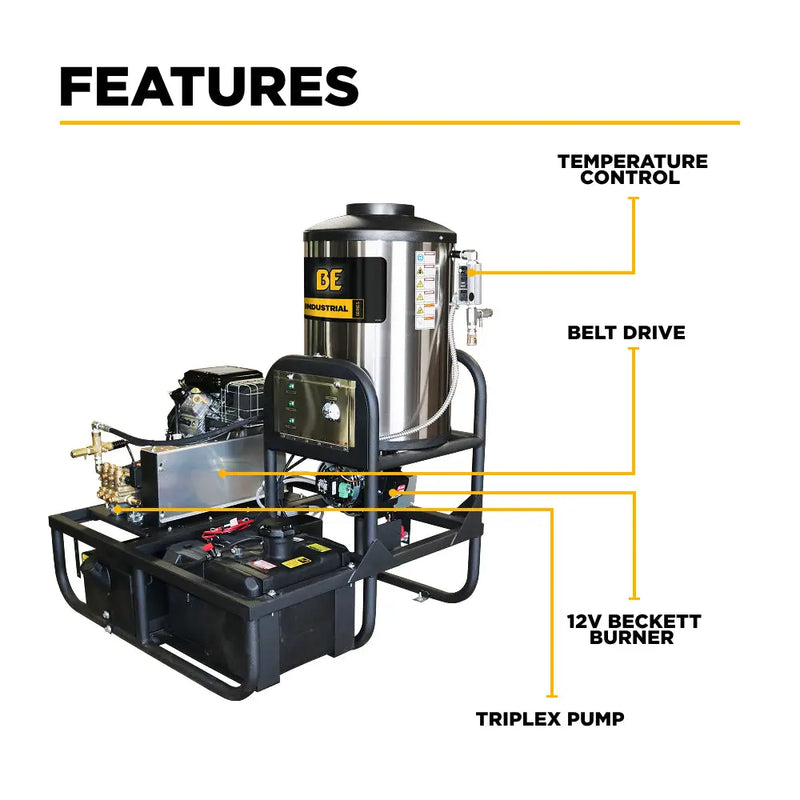

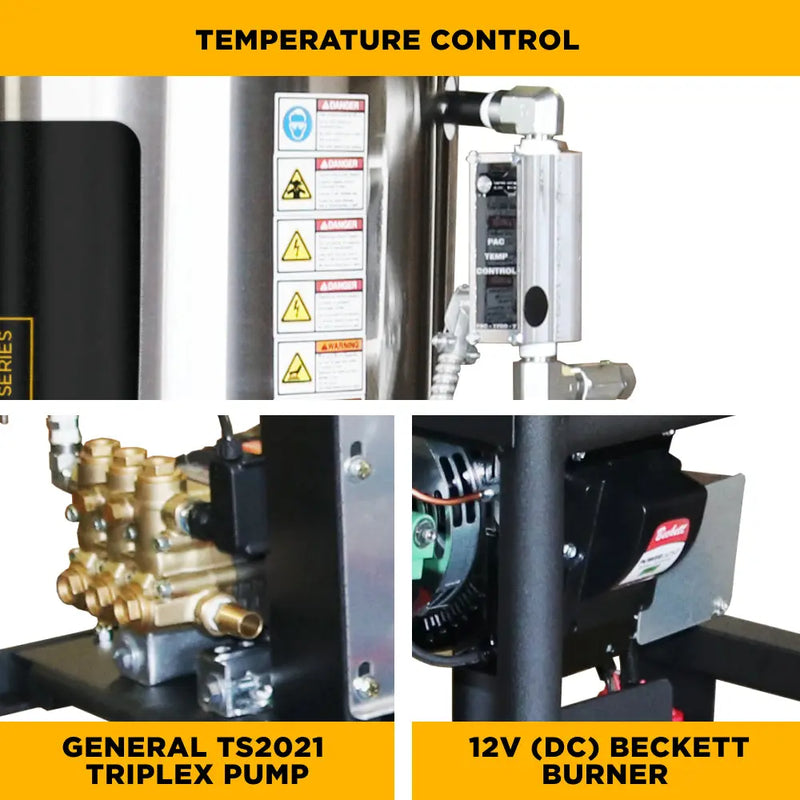

| Pump | General Triplex Pump TS2021 |
| Pump Class | P8 |
| Burner | 12V Beckett |
| Maximum Temperature | 93°C / 200°F |
| BTU Output | 315,000 |

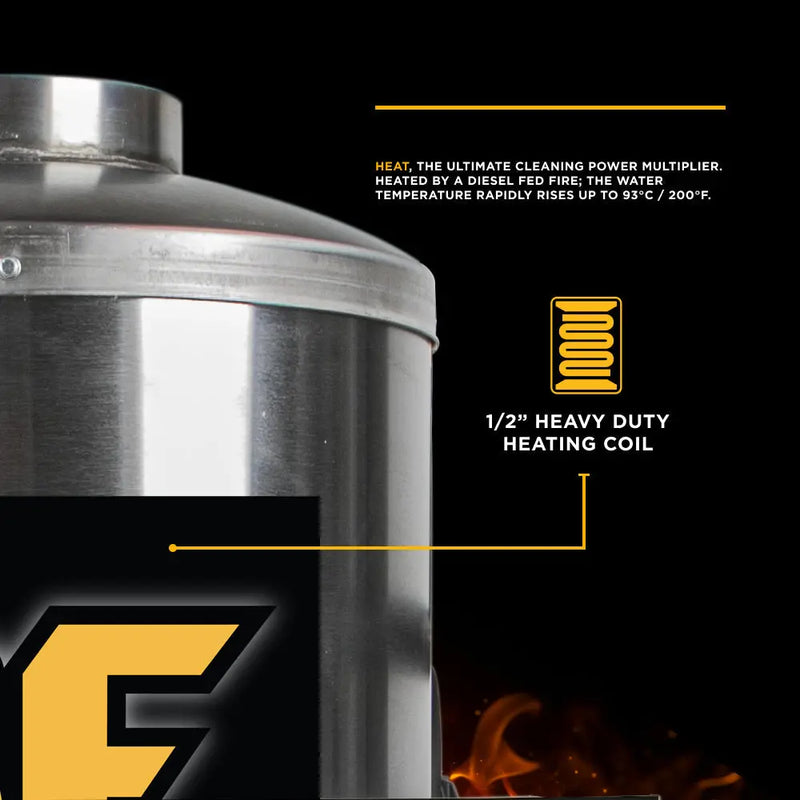

| Heating Coil | 147’ x 1/2” Schedule 80 cold-rolled steel |
| Burner Fuel Tank Capacity | 45.42 L / 12 gal black poly |
| Engine Fuel Tank Capacity | 24.6 L / 6.5 gal |
| Thermostat | Adjustable |
| Hour Meter | Yes |
| Pressure Switch | Yes |
| Pressure Relief Valve | Yes |
| Diagnostic Lights | Yes |
| Burner Switch | Toggle |
| Inline Fuel Filter | Yes |
| Engine Oil Drain Hose | Yes |
| Pump Oil Drain Hose | Yes |
| Unloader | External |
| Frame | Heavy-duty powder-coated steel |
| Included High-Pressure Hose | 50 ft. twin-wire braided |
| Included Spray Gun | Commercial with 48” insulated wand (quick-connect fittings) |

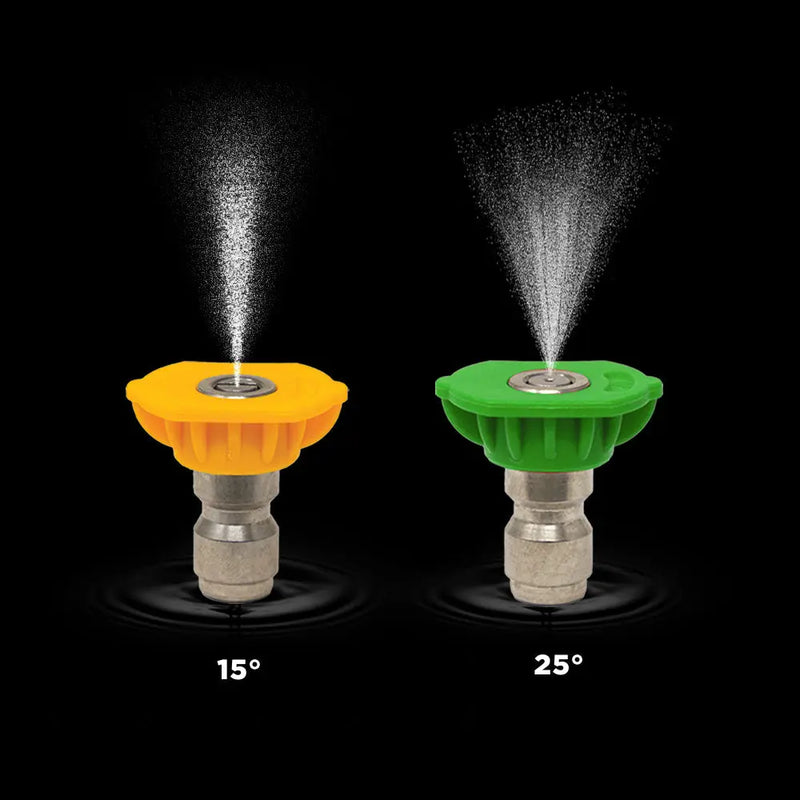

| Included Spray Nozzles | 2 quick-connect (15°, 25°) |
| Engine Warranty | 3 Years |
| Pump Warranty | 5 Years |
| Burner Warranty | 3 Years |
| Coil Warranty | Lifetime |
| Shipping Weight | 700 lbs |

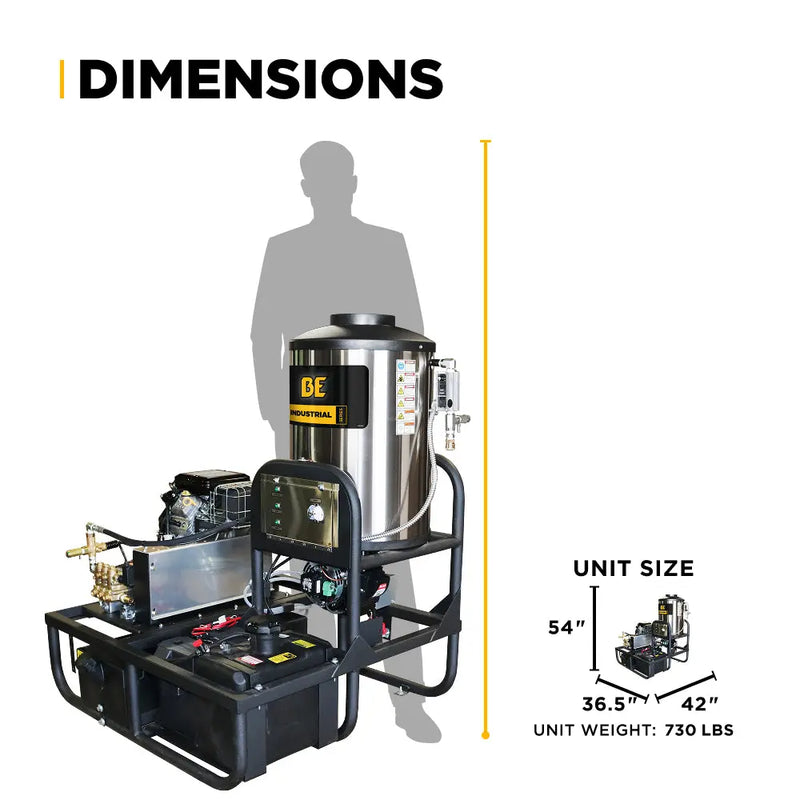

| Shipping Dimensions (L × W × H) | 60” × 52” × 59” |
