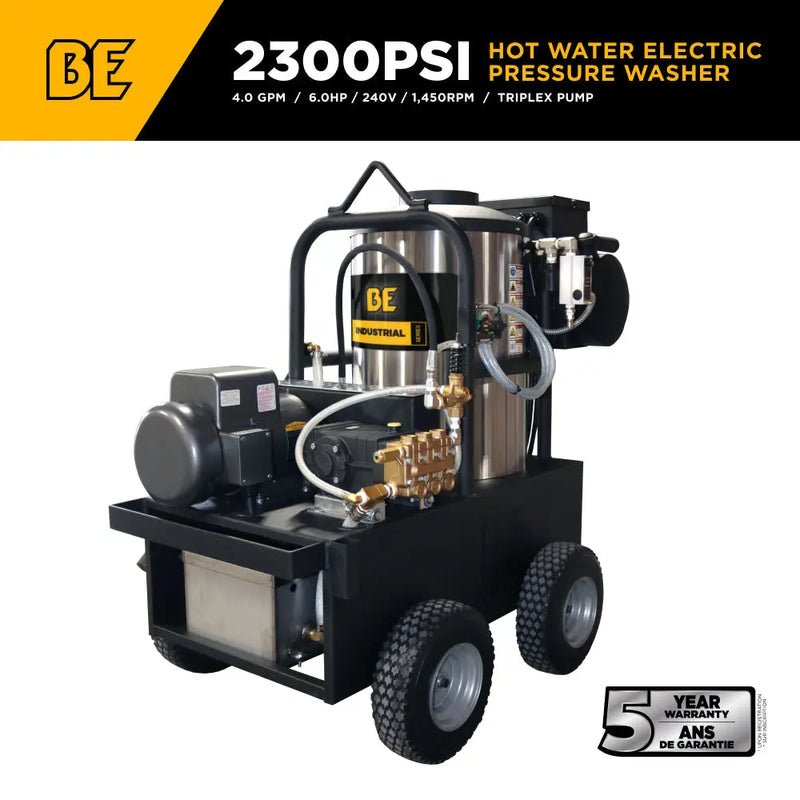

Product Overview
Specification Table
| Parameter | Specification |
|---|---|
| Model | 15-423 |

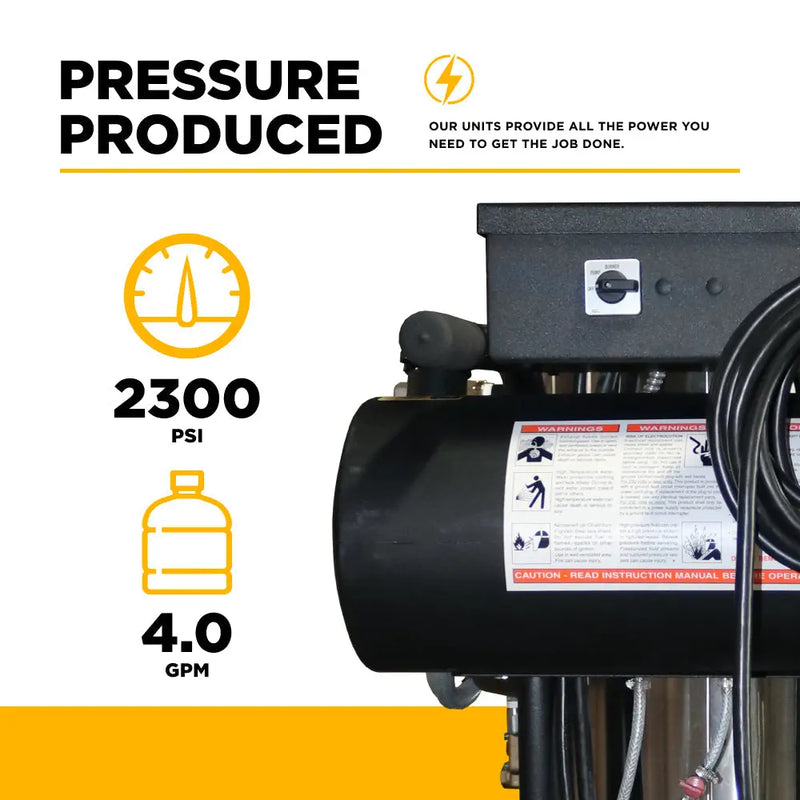

| Pressure | 2,300 PSI |
| Flow Rate | 4.0 GPM |
| Motor | Baldor electric motor |
| Horsepower | 6.0 HP |
| Voltage | 230V |
| Phase | Single |
| Amperage | 28A |
| Motor Speed | 1,725 RPM |

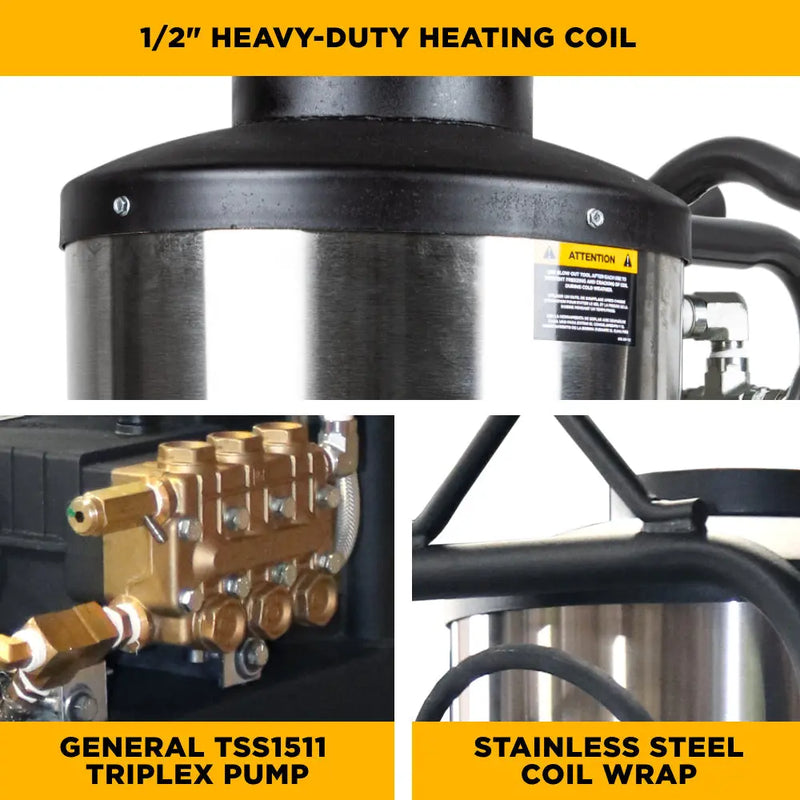

| Pump | General Triplex TSS1511 |
| Pump Class | P8 |
| Unloader | External |
| Chemical Injection | Adjustable high-pressure metering valve |
| Burner | 230V Beckett |
| BTU Output | 315,000 |
| Maximum Temperature | 93°C / 200°F |

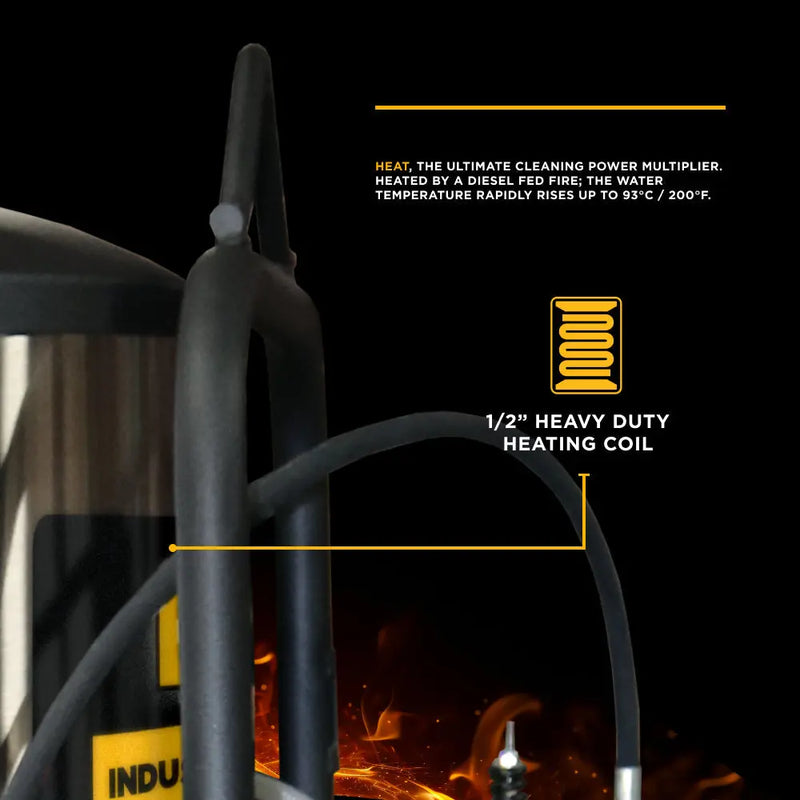

| Heating Coil | 147’ x 1/2” Schedule 80 cold-rolled steel |
| Burner Fuel Tank Capacity | 26.5 L / 7 gal black poly |
| Thermostat | Adjustable |
| Flow / Pressure Switch | Yes |
| Pressure Relief Valve | Yes |
| High Limit Switch | No |
| Burner Switch | Rotary cam |
| Inline Fuel Filter | Yes |
| Power Cord / Plug | 35’ with GFCI |
| Auto Start / Stop | Optional |
| Time Delay Shutdown | Optional |
| Frame | Powder-coated industrial steel with roll cage protection |
| Tires | 12” flat-free |

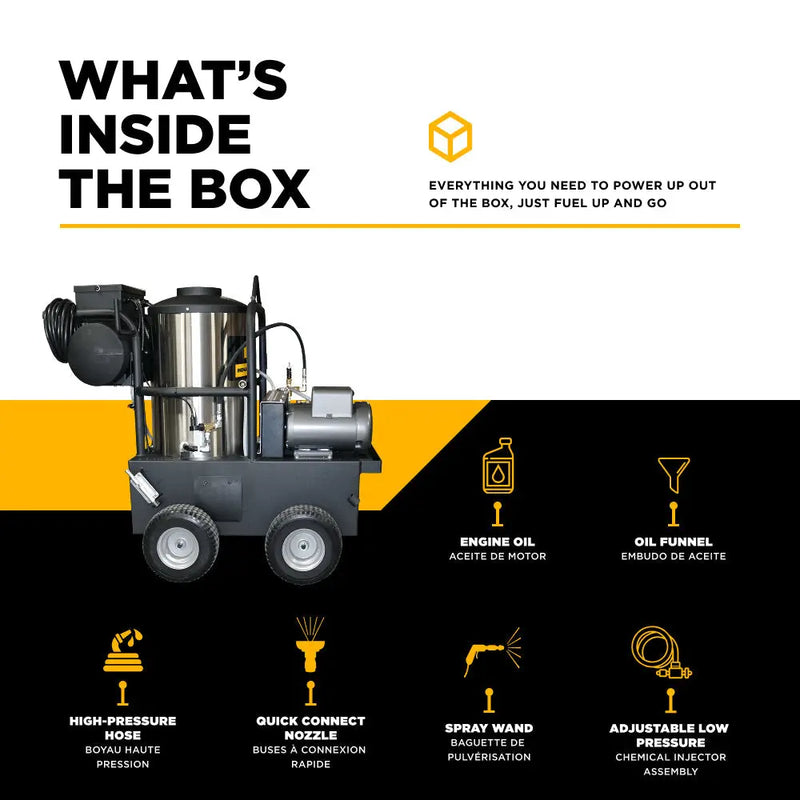

| Included High-Pressure Hose | 50 ft. twin-wire braided |
| Included Spray Gun | Commercial insulated |
| Included Spray Wand | 48” insulated with quick-connect fittings |

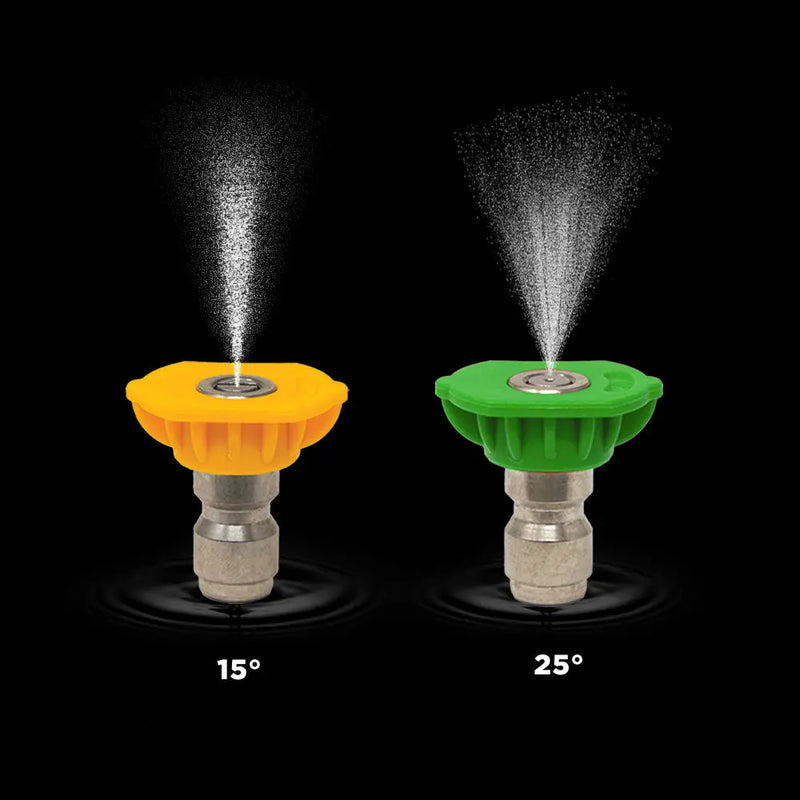

| Included Spray Nozzles | 2 quick-connect (15°, 25°) |
| Motor Warranty | 2 Years |
| Pump Warranty | 5 Years |
| Burner Warranty | 3 Years |
| Coil Warranty | Lifetime |
| Shipping Weight | 650 lbs |

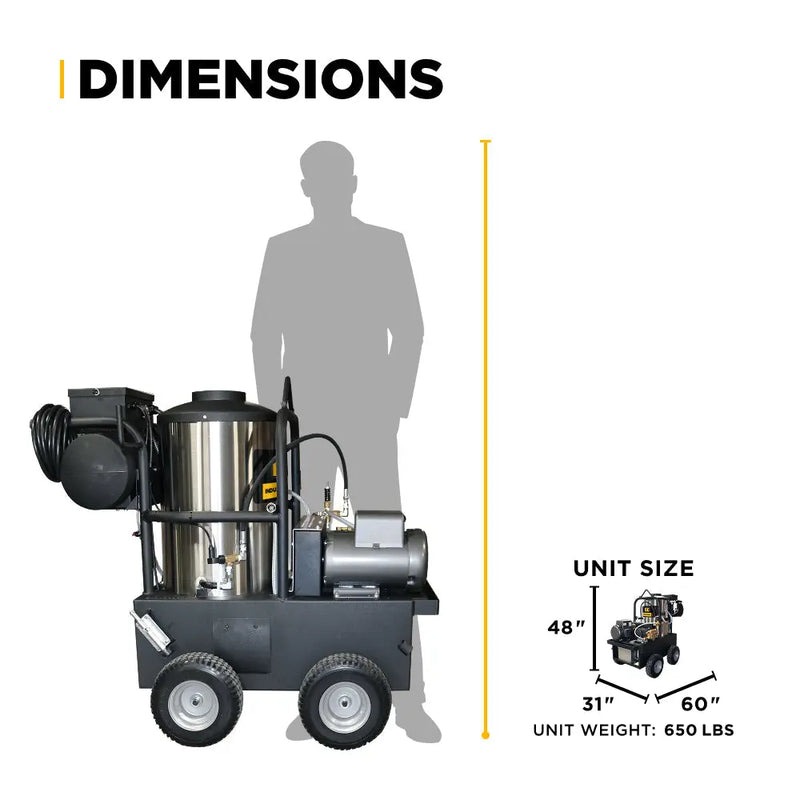

| Shipping Dimensions (L × W × H) | 67” × 41” × 57” |
