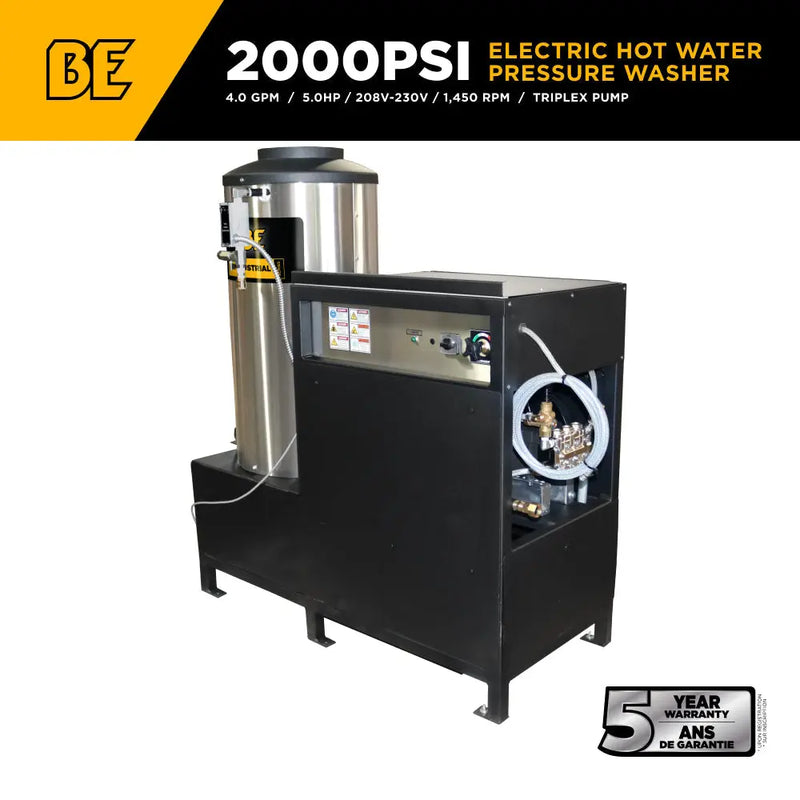

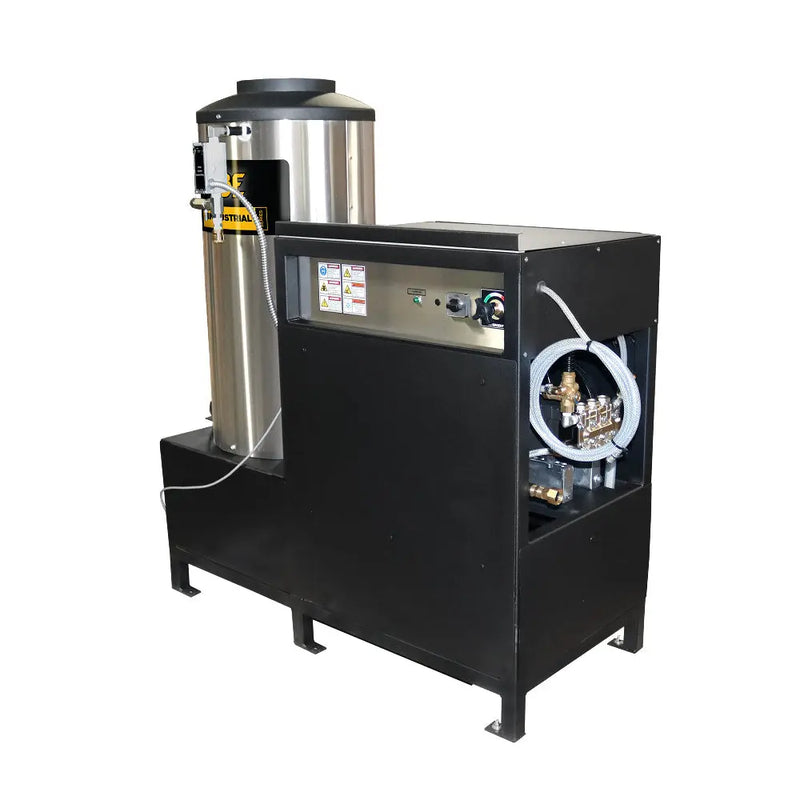

Product Overview
Specification Table
| Parameter | Specification |
|---|---|
| Model | 64HD-3 |

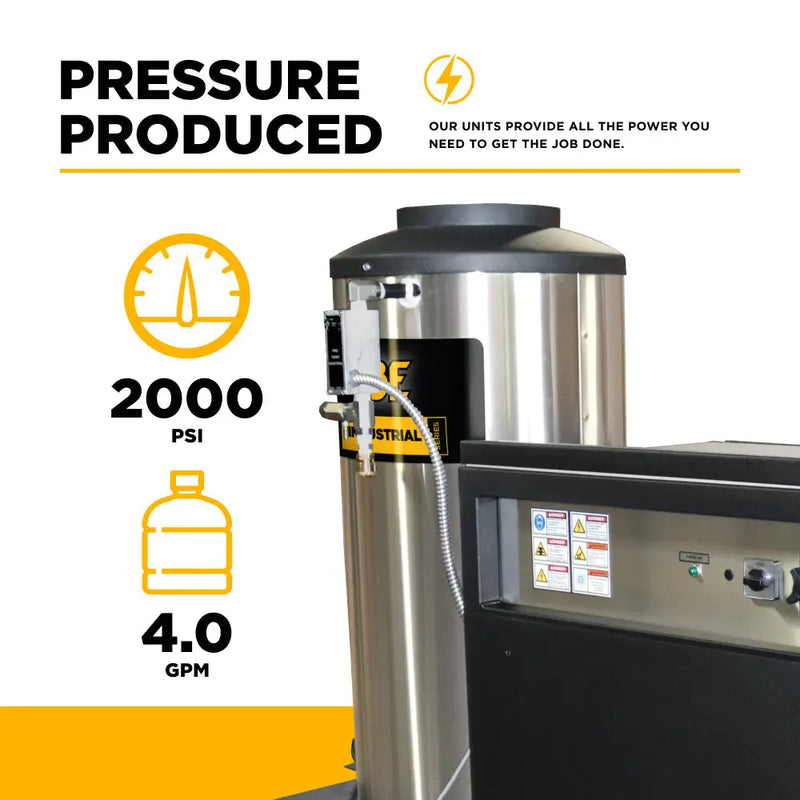

| Pressure | 2,000 PSI |
| Flow Rate | 4.0 GPM |
| Motor Brand | Baldor |
| Motor Type | Electric Motor |
| Horsepower | 5.0 HP |
| Phase | Three-phase |
| Voltage | 208V–230V (specified at order) |
| Amperage | 17–16A |
| Motor Speed | 1,750 RPM |
| Pump Brand | General |

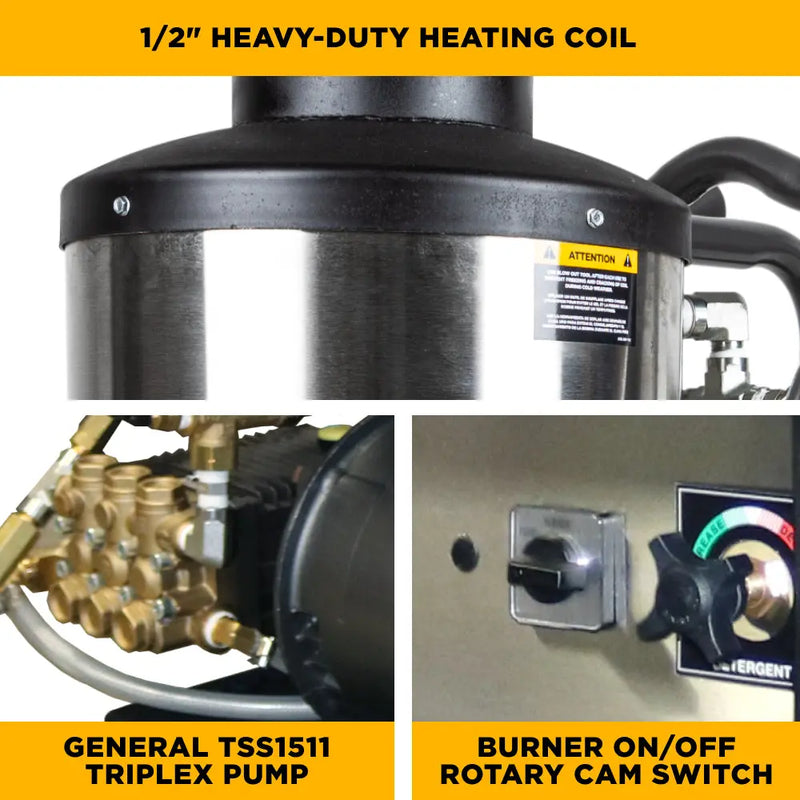

| Pump Model | TSS1511 Triplex Pump |
| Pump Class | P8 |
| Pump Manifold | Forged brass |
| Pump Plungers | Solid ceramic |
| Unloader | External |
| Chemical Injection | Adjustable high-pressure metering valve |
| Burner Type | Electronic ignition |
| Burner Fuel Compatibility | Natural gas or LP |
| BTU Output | 385,000 |
| Maximum Water Temperature | 93°C / 200°F |

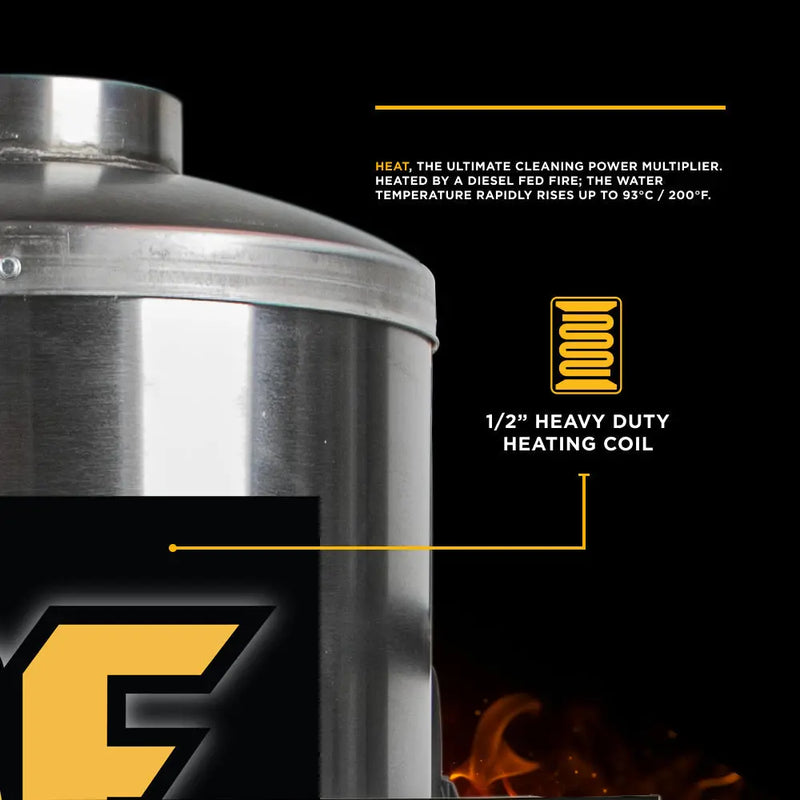

| Heating Coil | 147’ x 1/2” Schedule 80 cold-rolled steel |
| Thermostat | Adjustable |
| Time-Delay Shutdown | Yes |
| Hour Meter | Yes |
| Flow Switch | Yes |
| Pressure Relief Valve | Yes |

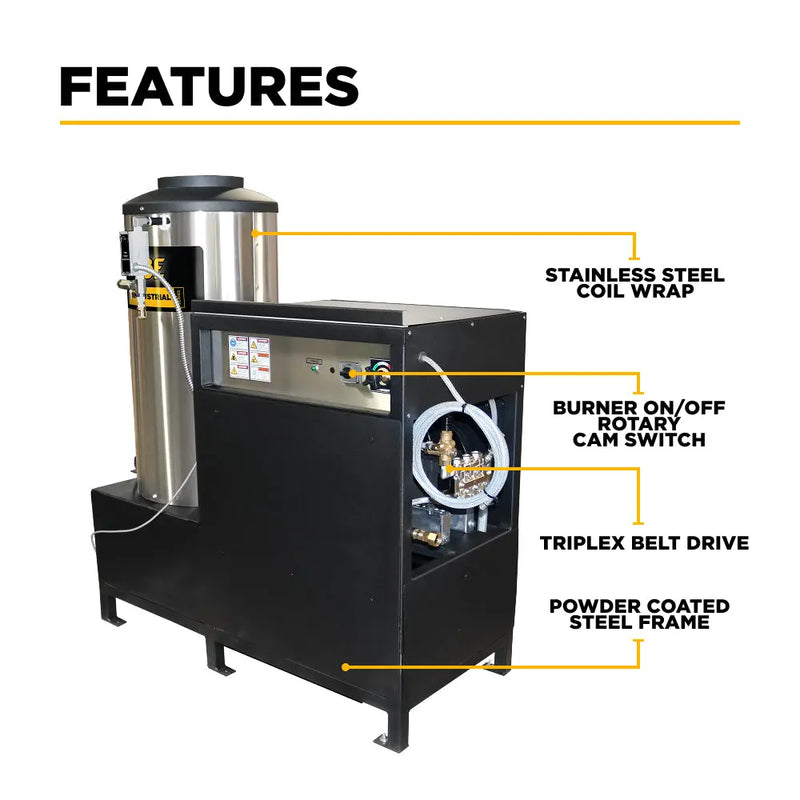

| Burner Switch | Rotary cam / rocker |
| Power Cord / Plug | 10’ cord / no plug |

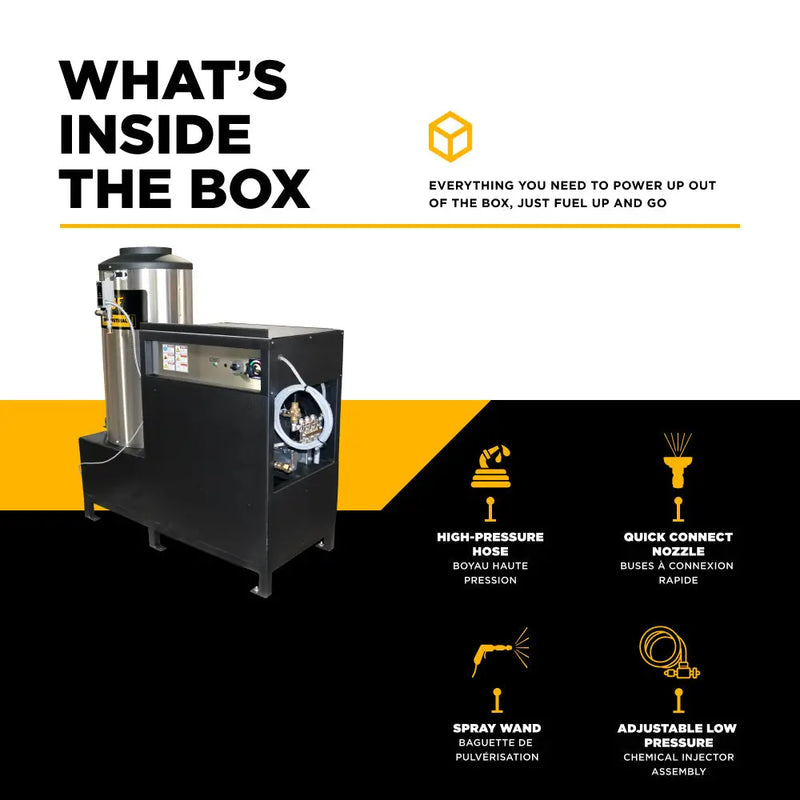

| Included High-Pressure Hose | 50 ft. twin-wire braided |
| Included Spray Gun | Commercial insulated |
| Included Spray Wand | 48” insulated with quick-connect fittings |

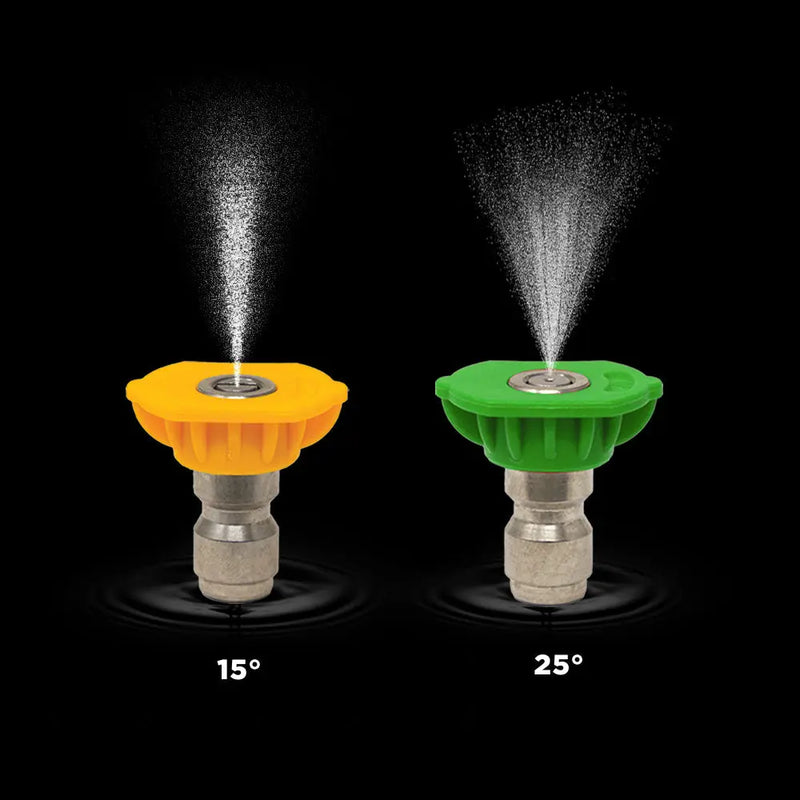

| Included Spray Nozzles | 2 quick-connect (15° and 25°) |
| Motor Warranty | 2 Years |
| Pump Warranty | 5 Years |
| Burner Warranty | 3 Years |
| Coil Warranty | Lifetime |

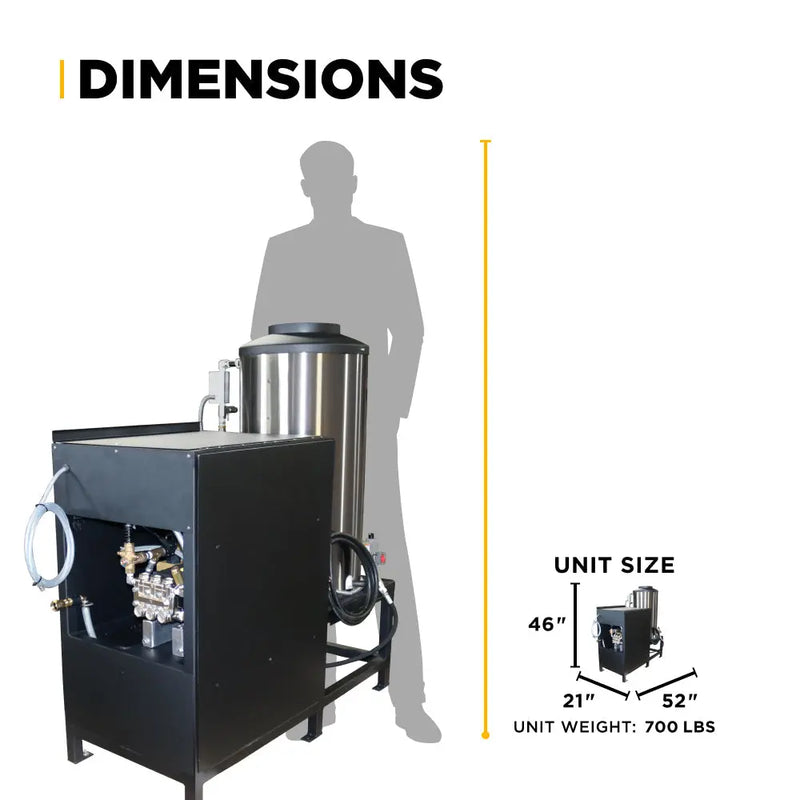

| Shipping Weight | 700 lbs |
| Shipping Dimensions (L × W × H) | 60” × 40” × 67” |
