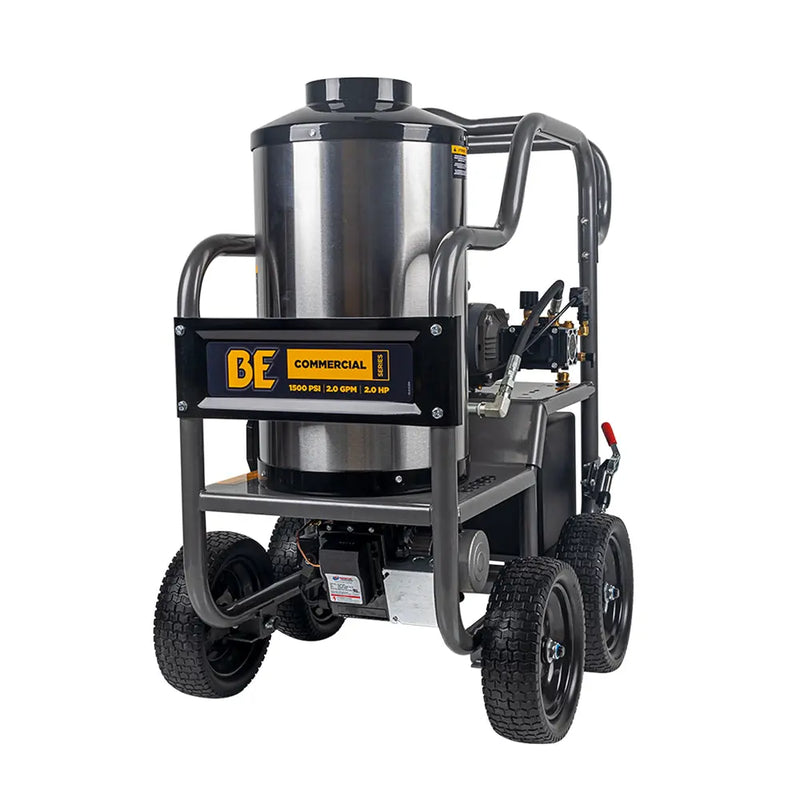

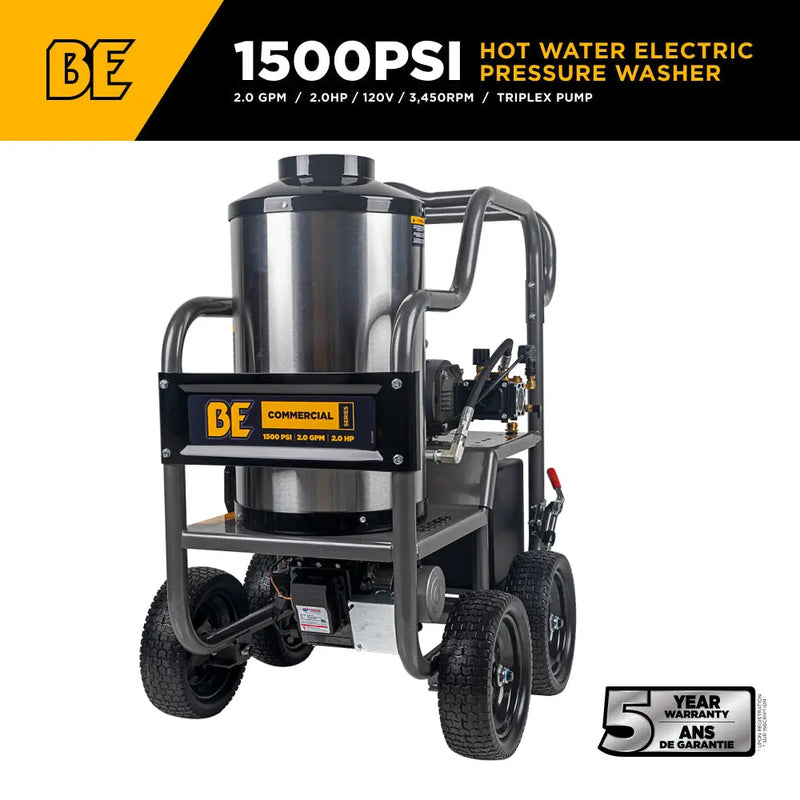

Product Overview
Specification Table
| Parameter | Specification |
|---|---|
| Model | HW152EA |

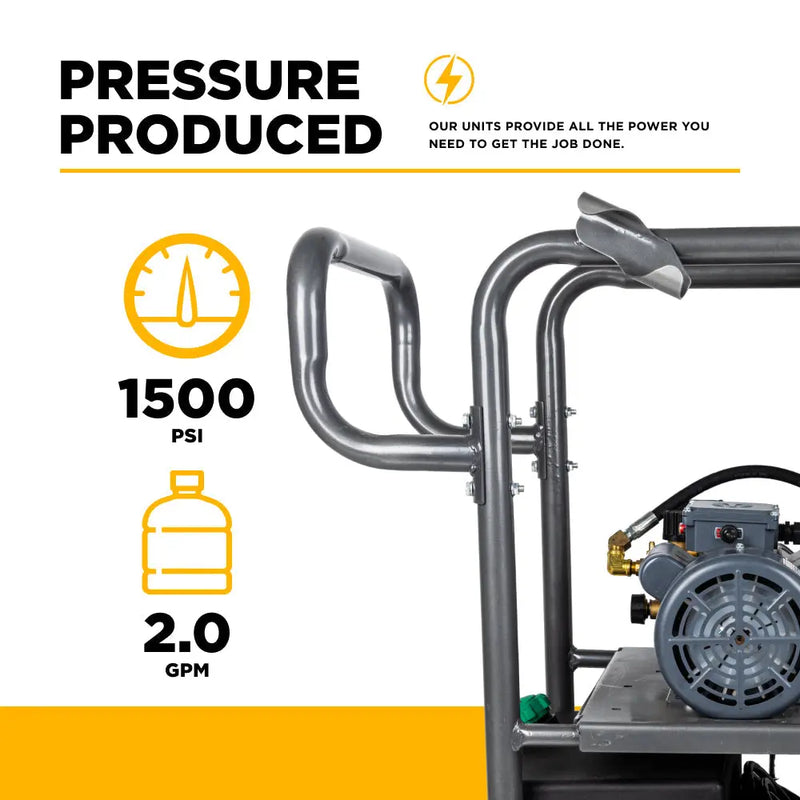

| Pressure | 1,500 PSI |
| Flow Rate | 2.0 GPM |

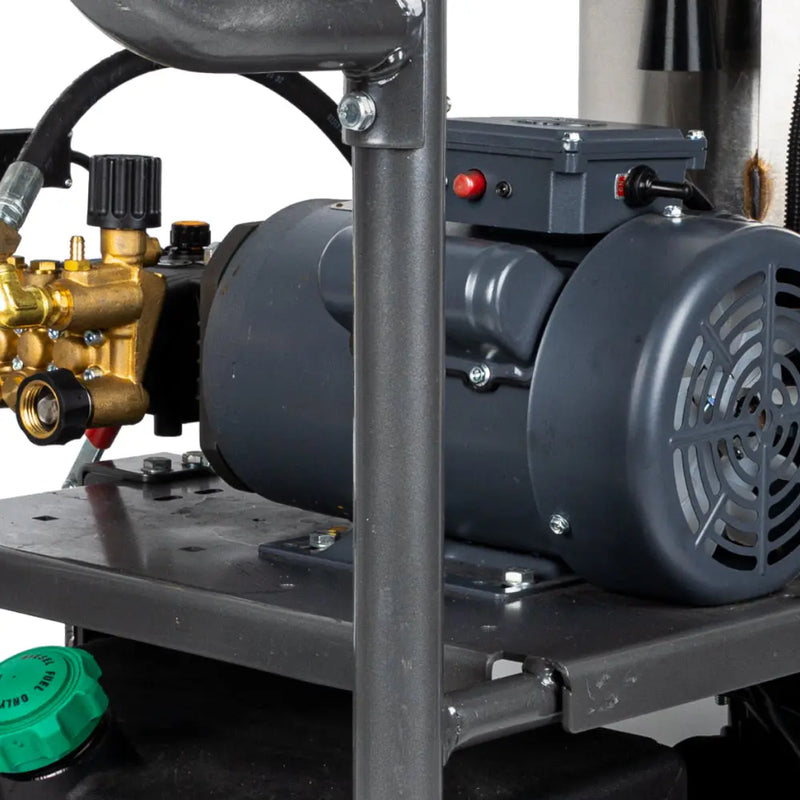

| Motor | TechTop electric motor |
| Horsepower | 2.0 HP |
| Voltage | 120V |
| Phase | Single |
| Amperage | 20A |
| Motor Speed | 3,450 RPM |
| Pump | CP Triplex CTE1 |
| Pump Class | P5 |

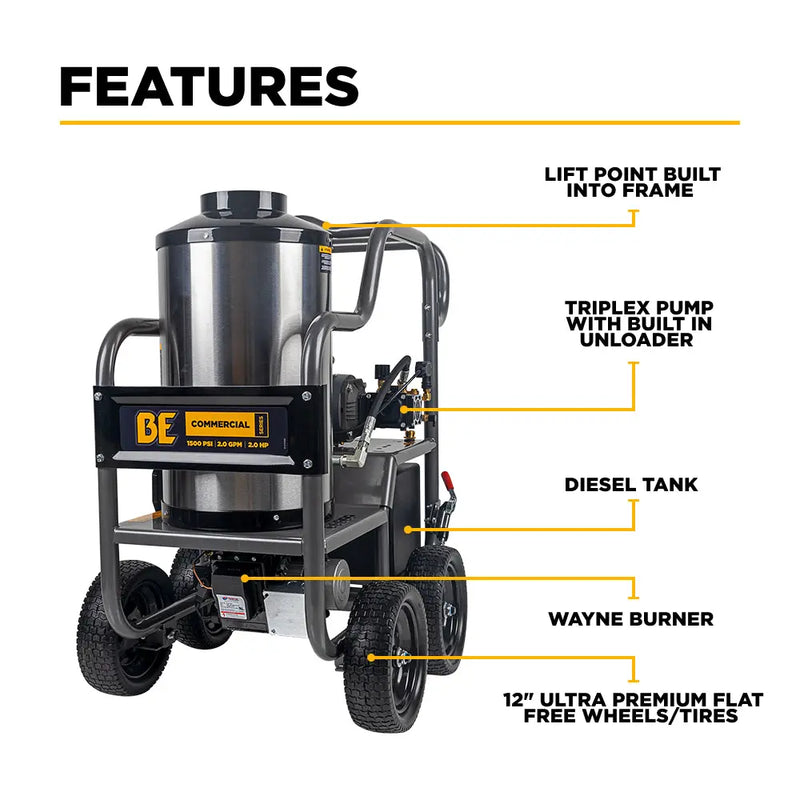

| Burner | 120V AC Wayne |
| BTU Output | 172,000 |
| Maximum Temperature | 89°C / 193°F |

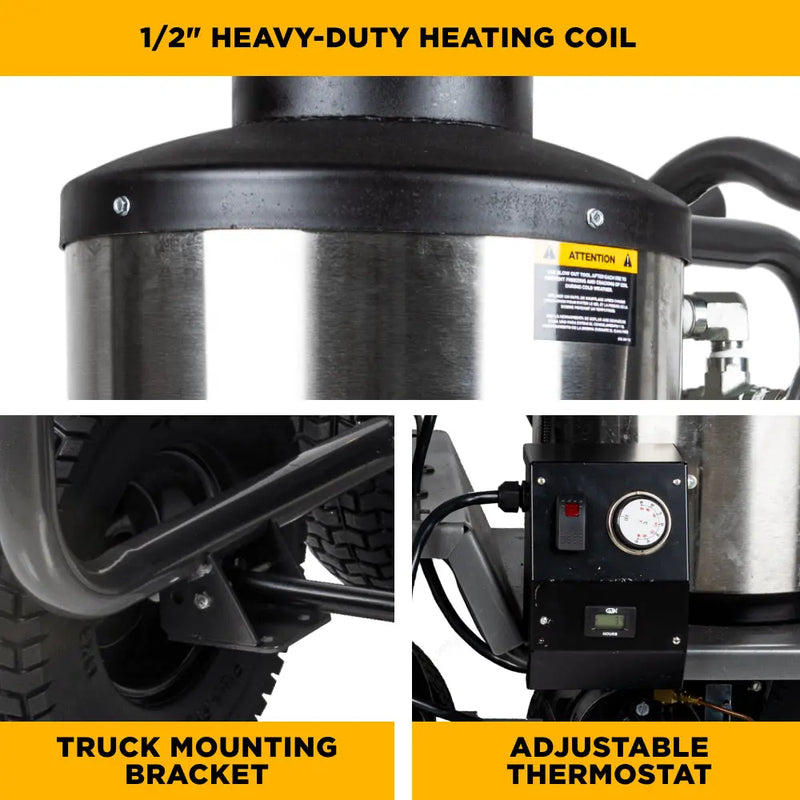

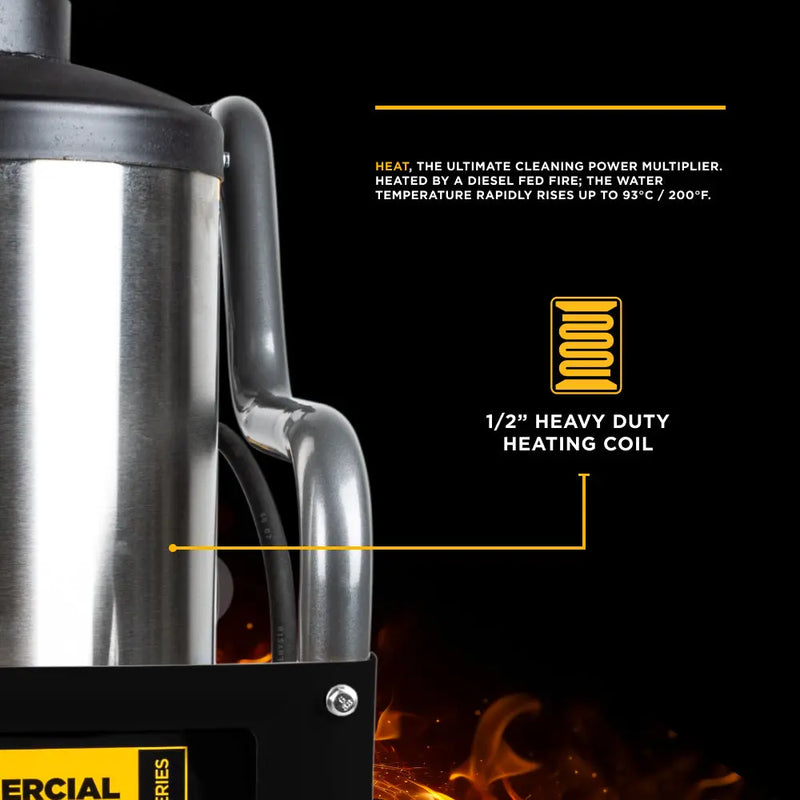

| Heating Coil | 80’ x 1/2” Schedule 80 cold-rolled steel |
| Burner Fuel Tank | 22.7 L / 6 gal black poly |
| Thermostat | Adjustable |
| Hour Meter | Yes |
| Flow / Pressure Switch | Yes |
| Thermal Relief Valve | Yes |
| Diagnostic Lights | Yes |
| Burner Switch | Yes |
| Inline Fuel Filter | Yes |
| Unloader | Built-in |
| Injector | Adjustable |
| Pump Oil Drain Hose | Yes |
| Power Cord / Plug | 26’ / NEMA 5-20 |
| Frame | Powder-coated steel with integrated roll cage |
| Wheels | Flat-free |
| Included High-Pressure Hose | 50 ft. x 3/8” twin-wire braided with quick-connect fittings |
| Included Spray Wand | 36” insulated |
| Included Trigger Gun | Insulated with safety lock |

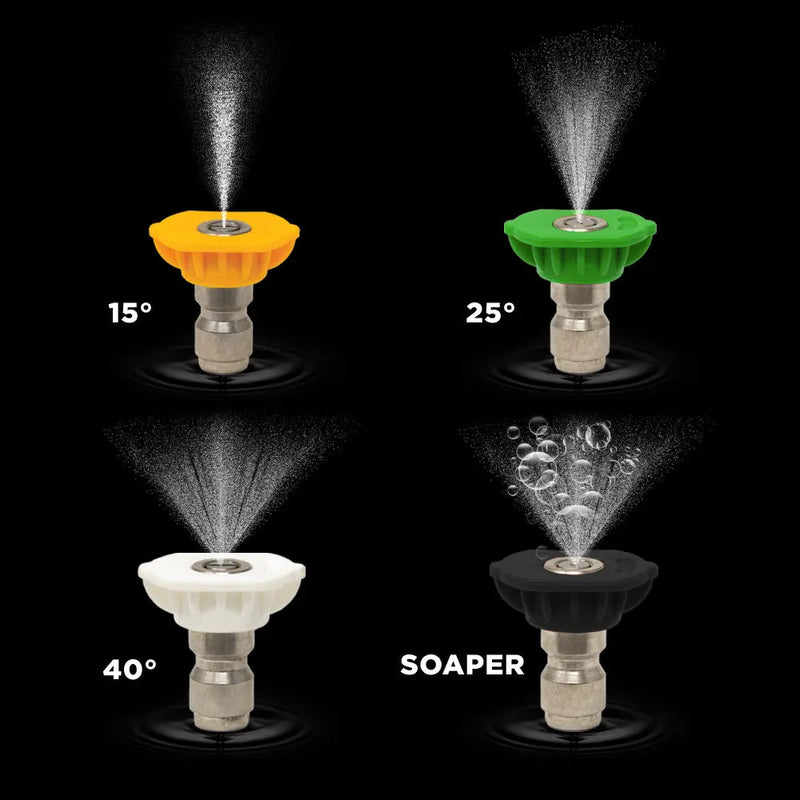

| Included Spray Nozzles | 5 quick-connect (0°, 15°, 25°, 40°, soap) |
| Unit Dimensions (L × W × H) | 41” × 28” × 36” |
| Shipping Weight | 390 lbs |
| Shipping Dimensions | 43” × 30” × 37” |
| Motor Warranty | 2 Years |
| Pump Warranty | 5 Years |
| Burner Warranty | 3 Years |
| Coil Warranty | Lifetime |
