Triumph NTO-20S 20,000 lb Two-Post Auto Lift

Triumph NTO-20S 20,000 lb Two-Post Auto Lift

See more by Triumph

$8,800.00 - $10,500.00

$8,800.00

$8,800.00 - $10,500.00

$8,800.00

In stock

SKU NTO-20Q

Delivery Option: Warehouse Pickup

Pick up at a Triumph warehouse

Quantity

Product Overview

In short

The NTO-20S is an overhead-style two-post automotive lift rated at 20,000 lbs, sized for heavy-duty trucks, vans and dually pickups. It raises on direct-drive cylinders to a maximum lifting height of 74 inches and runs on 220V power.

What the NTO-20S is built to lift

The NTO-20S is rated at 20,000 lbs, which puts it in a different class from the 9,000- and 10,000-lb lifts most general-repair bays run. That rating is what makes it practical for heavy-duty trucks, vans and dually pickups that push past the limits of a standard two-post lift. Maximum lifting height is 74", enough for a technician to work standing under most vehicles, and lowered height is 6" for driving on. Direct-drive cylinders do the lifting, and a full lift takes about 40 seconds. The 20,000 lb rating is the capacity of the lift across both arms, so plan around the total weight of the vehicle rather than a per-arm figure.

Overhead design and drive-thru clearance

This is an overhead-style lift: the crossbar and the safety shut-off sit at the top of the columns instead of in a floor plate, so the drive-through path between the posts stays completely clear. Nothing on the floor catches a low air dam, a floor jack or a rolling toolbox on the way in. The posts stand 124" apart, with a drive-thru width of 113" — that is the number to check against the widest truck or van you service. Overall width is 155", and each column sits on a 21" x 20" base plate. Measure the full 155" footprint against your bay, including room to open doors on a vehicle sitting between the posts.

Ceiling, concrete and power requirements

Two measurements decide whether this lift fits your building. Overall height is 170.5" — roughly 14.2 feet — so the ceiling has to clear the columns and overhead crossbar with working room above a vehicle raised to the 74" lifting height. The floor matters just as much: the lift anchors directly to the slab and requires 6" of concrete rated at a minimum of 4,000 PSI. Verify slab thickness and strength before installation, not after the lift arrives. On the electrical side, the power unit runs on 220V and drives a 3 HP motor, so a 220V supply needs to be available at the installation location before the lift goes up.

Safety systems, included hardware and warranty

A single-point lock release drops both columns' safety locks together, so one control resets the lift instead of two separate releases. An electrical override with automatic safety shut-off stops travel at the top of the stroke. The lift is ISO 9001 manufactured and CE certified. Mounting and anchor hardware and truck adapters are included with every lift, along with an installation instruction manual. Warranty coverage is one year on parts — parts only, no labor. The hydraulic cylinders carry a 30-day full warranty, after which Triumph supplies a seal kit. Rubber lifting pads are not covered under the parts warranty.

Key features

20,000 lb capacity — rated for heavy-duty trucks, vans and dually pickups that exceed standard 9,000- and 10,000-lb lifts
Overhead configuration — crossbar and safety shut-off mount up top, leaving the floor between the posts clear
Direct-drive cylinders — complete a full lift to 74" in about 40 seconds
Single-point lock release — engages and drops both columns' safety locks together
Electrical override with automatic safety shut-off at full height
220V, 3 HP power unit
Free mounting hardware and truck adapters included; ISO 9001 manufactured and CE certified

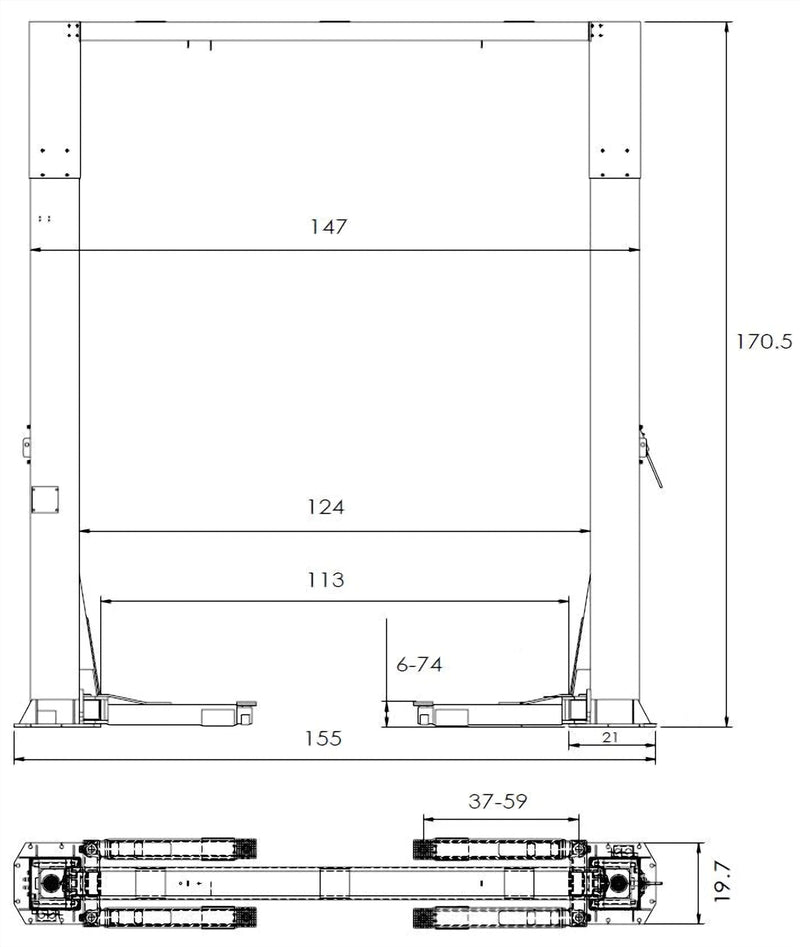

Specification Table

NTO-20Q · TriumphSKU NTO-20Q
Lifting Capacity	20,000 lbs
Maximum Lifting Height	74"
Overall Height	170.5"
Overall Width	155"
Distance Between Posts	124"
Drive-Thru Width	113"
Lowered Height	6"
Base Plate Size	21" x 20"
Lift Time	40 seconds
Cylinders	Direct-drive
Lock Release	Single-point
Electric Safety Cutoff	Yes
Voltage	220V
Motor	3 HP
Concrete	6" slab, 4,000 PSI minimum
Style	Overhead
Truck Adapters	Included
Certification	ISO 9001, CE
Parts Warranty	1 year, parts only (no labor)
Cylinder Warranty	30 days full, seal kit after

Compare models

	NTO-20S 20,000 lb Two-Post THIS	NT-16 16,000 lb Two-Post	NTO-16 16,000 lb Two-Post Overhead	NTO-15Q 15,000 lb Two-Post
Capacity	20,000 lbs	16,000 lbs	16,000 lbs	15,000 lbs
Maximum Lifting Height	74"	72"	Two-post, overhead	72"
Overall Height	170.5"	7"	72"	142"
Overall Width	155"	142"	142"	102"
Price	$8,800.00	$5,145.00	$5,515.00	$6,595.00
	Viewing	Check ›	Check ›	Check ›

Specs from Triumph manuals. Prices update live and reflect current promotions.

FAQ about this model

What concrete does the NTO-20S require?
A minimum 6" slab rated at 4,000 PSI. The lift anchors directly to the slab, so verify or pour the concrete before installation.

What are the electrical requirements?
The power unit runs on 220V and drives a 3 HP motor. Have 220V available at the lift location before installation.

How much ceiling height do I need?
Overall height is 170.5", about 14.2 feet. Confirm your ceiling clears the columns and overhead crossbar with room to work above a vehicle raised to the 74" maximum lifting height.

Will the NTO-20S fit wide trucks and vans?
The posts stand 124" apart with a 113" drive-thru width, and the overall footprint is 155" wide. Rated capacity is 20,000 lbs across both arms.

What is included with the lift?
Mounting and anchor hardware, truck adapters, and an installation instruction manual are included with every lift.

Is this an overhead or floorplate lift?
Overhead. The crossbar and safety shut-off sit at the top of the columns, which leaves the drive-through path between the posts completely clear.

How fast does it lift, and how do the safety locks work?
A full lift takes about 40 seconds on direct-drive cylinders. A single-point lock release drops both columns' safety locks together, and an electrical override with automatic safety shut-off stops travel at the top of the stroke.

What does the warranty cover?
One year on parts, parts only with no labor. Hydraulic cylinders carry a 30-day full warranty, after which Triumph supplies a seal kit. Rubber lifting pads are not covered.

Is the NTO-20S certified?
It is ISO 9001 manufactured and CE certified.
