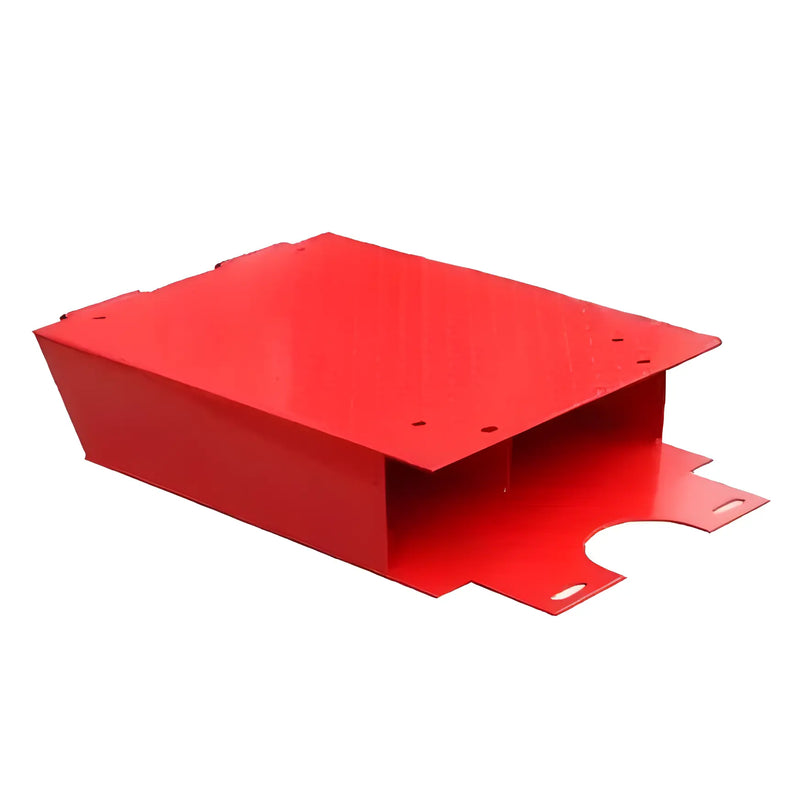

AMGO Extension Platform For PRO-12, PRO-12A (Each)

AMGO Extension Platform For PRO-12, PRO-12A (Each) | 41203

See more by AMGO

$185.00 - $185.00

$185.00

$185.00 - $185.00

$185.00

In stock

SKU 41203

Insured freight from $275 exact flat rate at checkout

Free warehouse pickup Manning, SC · Dallas, TX

Quantity

Product Overview

In short

The AMGO Extension Platform (SKU 41203) is an add-on runway/platform sold individually (each) for the AMGO PRO-12 and PRO-12A four-post lifts, both rated at a 12,000 lb (5,443 kg) lifting capacity. It is built around AMGO's hydraulic, 220V single-phase power unit with mechanical safety locking.

Built for the PRO-12 and PRO-12A

This is an extension platform for the AMGO PRO-12 and PRO-12A four-post lifts, sold each. Both configurations carry a 12,000 lb (5,443 kg) lifting capacity and run on a hydraulic, 220V single-phase power unit, with overall dimensions of roughly 232-5/8 in (5,910 mm) long (with ramps) and 132-1/8 in (3,356 mm) wide.

Key features

12,000 lb (5,443 kg) capacity - matched to the PRO-12 / PRO-12A platform rating
Hydraulic, 220V single-phase power unit - consistent across both configurations
Mechanical safety locks with manual release - on the PRO-12 configuration
Air-released safety locks plus mechanical locking - on the PRO-12A configuration
Alignment-ready (PRO-12A) - rear slip plates and front turnplate cut-outs
Overall length ≈232-5/8 in (5,910 mm) with ramps and width ≈132-1/8 in (3,356 mm)

Two configurations

The PRO-12 configuration lists a max lifting height of ≈73-1/2 in (1,867 mm) and a minimum runway height of ≈6-5/8 in (168 mm), while the PRO-12A configuration lists a max lifting height of ≈75-3/8 in (1,915 mm), a minimum runway height of ≈8-5/8 in (220 mm), and adds alignment features. A drive-thru clearance of ≈104-3/16 in (2,646 mm) is specified.

Specification Table

41203 · AMGO HydraulicSKU 41203
Lifting Capacity	12,000 lbs (5,443 kg)
Max Lifting Height	≈73-1/2 in (1,867 mm)
Minimum Runway Height	≈6-5/8 in (168 mm)
Overall Length (with ramps)	≈232-5/8 in (5,910 mm)
Overall Width	≈132-1/8 in (3,356 mm)
Drive-Thru Clearance	≈104-3/16 in (2,646 mm)
Safety System	Mechanical Safety Locks with Manual Release
Power Unit	Hydraulic, 220V Single Phase
Lifting Capacity	12,000 lbs (5,443 kg)
Max Lifting Height	≈75-3/8 in (1,915 mm)
Minimum Runway Height	≈8-5/8 in (220 mm)
Overall Length (with ramps)	≈232-5/8 in (5,910 mm)
Overall Width	≈132-1/8 in (3,356 mm)
Alignment Features	Rear Slip Plates & Front Turnplate Cut-outs
Safety System	Air-Released Safety Locks + Mechanical Locking
Power Unit	Hydraulic, 220V Single Phase

FAQ about this model

What lifts does the 41203 extension platform fit?
It is designed for the AMGO PRO-12 and PRO-12A four-post lifts. It is sold each (individually).

What is the lifting capacity?
Both the PRO-12 and PRO-12A configurations are rated at 12,000 lbs (5,443 kg).

What power supply does it require?
It uses a hydraulic power unit running on 220V single phase.

How do the PRO-12 and PRO-12A safety systems differ?
The PRO-12 configuration uses mechanical safety locks with manual release, while the PRO-12A configuration uses air-released safety locks plus mechanical locking.

Does this platform support wheel alignment work?
The PRO-12A configuration includes alignment features — rear slip plates and front turnplate cut-outs. These alignment features are not listed for the PRO-12 configuration.

Compare models

	AMGO Extension Platform For PRO-12, PRO-12A (Each) \| 41203 THIS	AMGO Extension Platform For PRO-18, PRO-18A (Each) \| 41801
Overall Width	≈132-1/8 in (3,356 mm)	137 1/8″
Price	$185.00	$460.00
	Viewing	Check ›

Specs from AMGO manuals. Prices update live and reflect current promotions.
