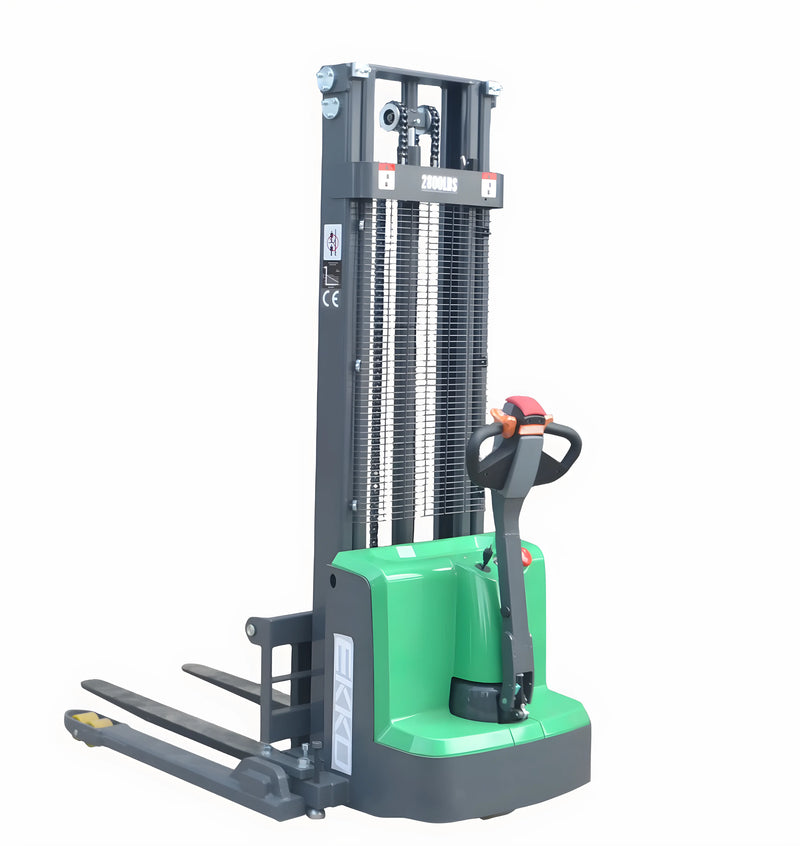

EKKO Electric Pallet Stacker in green and black with ergonomic handle and lifting forks for warehouse use

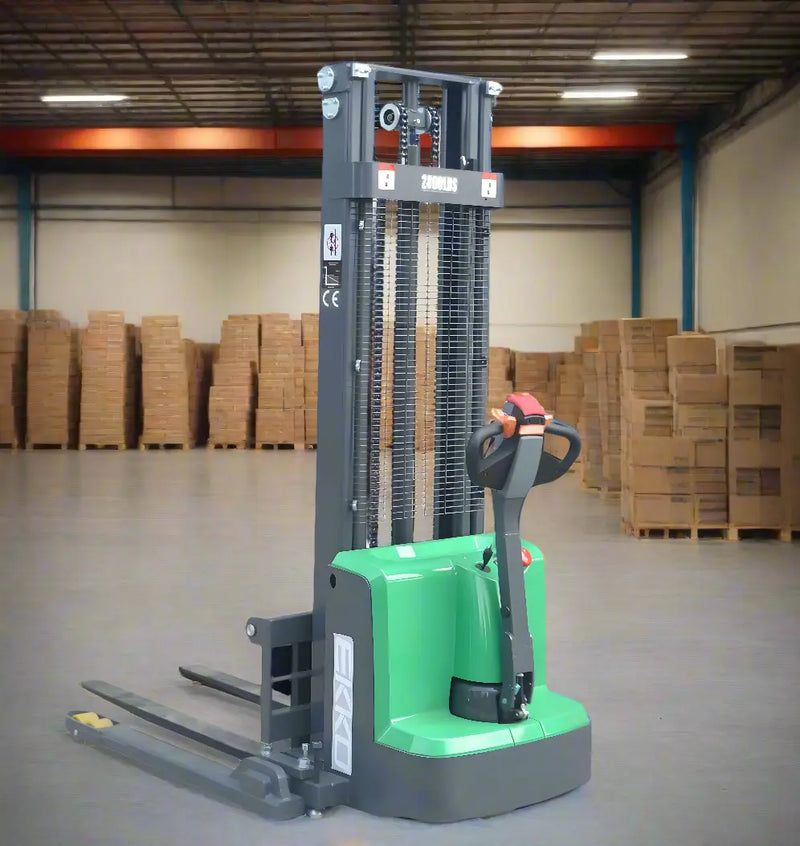

EKKO green Electric Pallet Stacker in warehouse with stacked cardboard boxes in background

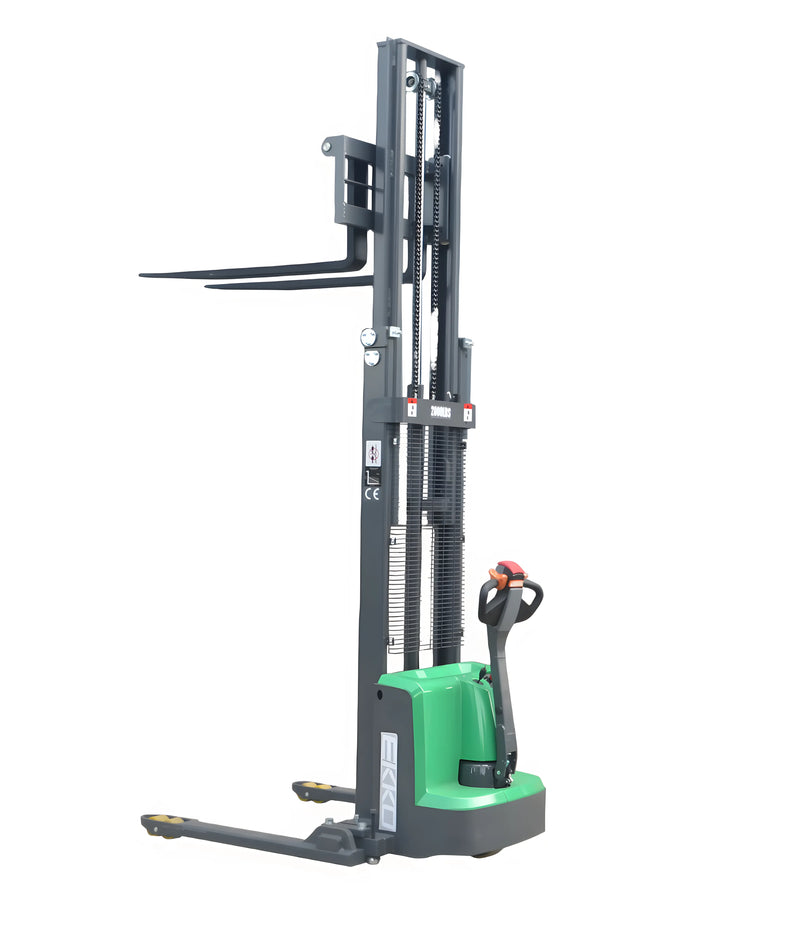

EKKO Electric Pallet Stacker in green and black with dual forks and vertical lifting mechanism

EKKO EB13ES-Li | Electric Pallet Stacker | 119" Lift Height, Side-Shifting, 2800 lbs

Name: EKKO EB13ES-Li | Electric Pallet Stacker | 119" Lift Height, Side-Shifting, 2800 lbs
Brand: EKKO
SKU: EB13ES-LI
Price: 6771.6 USD
Availability: InStock

See more by EKKO

$976.40 Off Limited time deal

$7,748.00

$7,748.00 - $7,748.00

$7,748.00

$6,771.60

$6,771.60 - $6,771.60

$6,771.60

In stock

SKU EB13ES-LI

Quantity

Product Overview

In short

The EKKO EB13ES-Li is a lithium-powered electric pallet stacker built for warehouses, distribution centers, and stockrooms. It offers a 2800 lb load capacity, a maximum lift height of 119 inches, and built-in side-shifting forks for precise pallet placement in tight spaces like loading docks and stockrooms.

The EKKO EB13ES-Li Electric Pallet Stacker is a flexible, high-performance solution that enables warehouse and distribution center workers to safely and efficiently stack pallets in their facilities. This unit has a maximum load weight of 2800 lbs. and will lift pallets up to 119 inches (10 ft.) above the floor allowing pallets to be placed higher on shelving units; thus saving floor space.

This unit also features an integrated side-shift which allows the operator to adjust the forks in both directions from the operating position. This feature allows the operator to place pallets into positions quickly and easily without having to repeatedly move the pallet back and forth. This reduces the amount of time spent by the worker, increasing productivity.

Travel and lift are both fully electric and provide smooth, consistent motion for daily use. The design of this unit provides ample clearance to operate in the tightest aisles. A heavy-duty, compact design combined with safe and easy-to-use operating features, make the EKKO EB13ES-Li a great option for providing dependably efficient material handling solutions.

Key Features

• Maximum Load Weight: 2800 pounds for safe pallet lifting and stacking.
• MAXIMUM LIFT HEIGHT: 119 inches or 9 feet 11 inches for optimal storage of palletized products.
• SIDE-SHIFTING FORK FUNCTION: Allows for quick and easy pallet alignment in less time than traditional pallet jacks.
• FULLY ELECTRIC DRIVE AND LIFT: Smooth, consistent motion for fast and efficient daily use.
• COMPACT WALK-BEHIND DESIGN: Designed to navigate narrow aisles and save valuable floor space.

Specification Table

EB13ES-LI · Full Electric Pallet StackerSKU EB13ES-LI
Load capacity	2800 (lbs)
The max. lifting height	119” (in)
Load center distance	24 (in)
Fork length	45.3 (in)
Single fork width	4 (in)
Overall fork width	8.3-33.5 (in)
Lowered fork height	2.35 (in)
Fixed leg length	36.5 (in)
Adjustable legs	45.5-59.1 (in)
Turning radius	52.6 (in)
Overall length	70 (in)
Max Overall width	61 (in)
Extended mast height	135 (in)
Lowered mast height	82 (in)
Battery voltage (dimensions)	24V/50Ah Lithium (in)
Internal Charger	24V/15A V/A
Lifting Motor	2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s V/Kw
Driving Motor	0.75kw.Driving speed: laden/unladen:4.0/4.2km/h
Service Weight	1635 (lbs)
Brand / Model	EKKO EB13ES-Li
Power Source	Electric (Lithium Powered)
Maximum Lift Height	119 in (Approx. 3023 mm)
Special Function	Side-Shifting Forks
Operation Style	Walk-Behind
Lift System	Electric Lift
Drive System	Electric Drive
Primary Applications	Warehouses, Distribution Centers, Stockrooms

FAQ about this model

What applications and loads is the EKKO EB13ES-Li suited for?

With a 2800 lb (approx. 1270 kg) load capacity, the EB13ES-Li is designed for warehouses, distribution centers, and stockrooms. It's well suited to tasks such as loading docks, unloading trucks, stock room operations, warehouse put-away, and manufacturing floor operations.

What do the key specifications mean for day-to-day use?

The 2800 lb load capacity indicates the maximum weight the stacker can safely lift, while the 119 in (approx. 3023 mm) maximum lift height determines how high pallets can be raised, useful for reaching upper storage levels. The side-shifting forks allow the forks to move laterally, helping operators align and position loads without repositioning the entire stacker.

How is the EB13ES-Li powered and operated?

This is a walk-behind electric pallet stacker powered by a lithium battery, with an electric lift drive system and an electric drive system. This combination provides electric-powered lifting and travel while the operator walks alongside and guides the unit.

How does the EB13ES-Li compare within the electric pallet stacker category?

Within the electric pallet stacker category, the EB13ES-Li stands out for combining a 2800 lb capacity and 119 in lift height with built-in side-shifting forks and lithium power in a walk-behind design. This combination of capacity, lift height, and side-shift functionality makes it a versatile choice for facilities that need precise pallet positioning across multiple warehouse tasks.

Compare models

	2800 Electric Pallet Stacker 119" THIS	2640 Electric Pallet Stacker 145"
Capacity	2800 (lbs)	2640 (lbs)
Lift Height	119” (in)	145" (in)
Service Weight	1635 (lbs)	1495 (lbs)
Adjustable legs	45.5-59.1 (in)	45.7-59.1 (in)
Price	$7,748.00 $6,771.60	$8,926.00 $7,360.60
	Viewing	Check ›

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
