EKKO EB13ES-145Li | Electric Pallet Stacker | 145" Lift Height, Side-Shifting, 2640 lbs

Name: EKKO EB13ES-145Li | Electric Pallet Stacker | 145" Lift Height, Side-Shifting, 2640 lbs
Brand: EKKO
SKU: EB13ES-145LI
Price: 7360.6 USD
Availability: InStock

See more by EKKO

$1,565.40 Off Limited time deal

$8,926.00

$8,926.00 - $8,926.00

$8,926.00

$7,360.60

$7,360.60 - $7,360.60

$7,360.60

In stock

SKU EB13ES-145LI

Quantity

Product Overview

In short

The EKKO EB13ES-145Li is an electric pallet stacker built for lifting loads up to 2640 lbs (1200 kg) to heights of 145 inches. It features side-shifting forks, a walk-behind operation style, and a 24V/50Ah lithium battery, making it suited for warehouses, manufacturing floors, and loading docks that need vertical lift plus lateral fork positioning without a dedicated operator seat.

The EKKO EB13ES-145Li Electric Pallet Stacker is a highly productive way to elevate pallets; place them; position them; and stack pallets in warehouse environments, distribution centers, and other types of storage facilities. The EKKO EB13ES-145Li Electric Pallet Stacker has a 2640 lb load capacity and a maximum lift height of 145 inches, allowing you to safely put pallets up into your higher racking levels while utilizing as much vertical storage space as possible. The side-shifting feature that comes standard with the EKKO EB13ES-145Li Electric Pallet Stacker gives the operator the ability to precisely move the forks from side to side, so they can get their load to exactly where they want it without having to reposition the truck multiple times, saving the operator time and increasing their safety level. The EKKO EB13ES-145Li Electric Pallet Stacker uses an electric power source to give the operator smooth travel and lifting performance, along with consistent control of the pallet or load being lifted. The EKKO EB13ES-145Li Electric Pallet Stacker was designed for use in a fast-paced environment, such as a warehouse aisle, providing the operator with a product that provides a combination of high productivity; compact design; and rugged reliability in daily stacking operations.

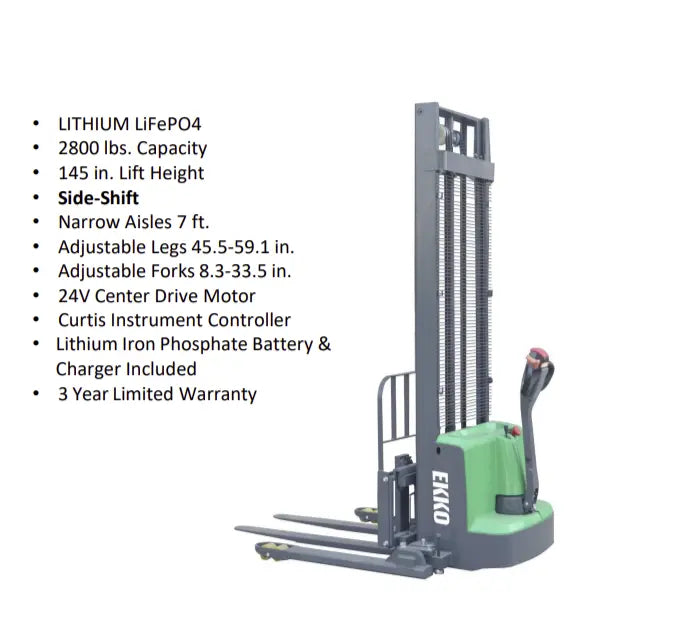

Key Features

A load capacity of 2640 lbs to provide the reliability and consistency you need when lifting and stacking pallets.
A maximum lift height of 145 inches to provide you with the flexibility to reach high-rack storage locations.
The side-shifting fork feature that enables you to precisely position the forks for easy pallet alignment and positioning.
Travel and lift are provided through a fully electric drive train which allows for the smoothest most efficient operation possible.
The compact design of the EKKO EB13ES-145Li Electric Pallet Stacker will enable you to maneuver through even the tightest of aisles.

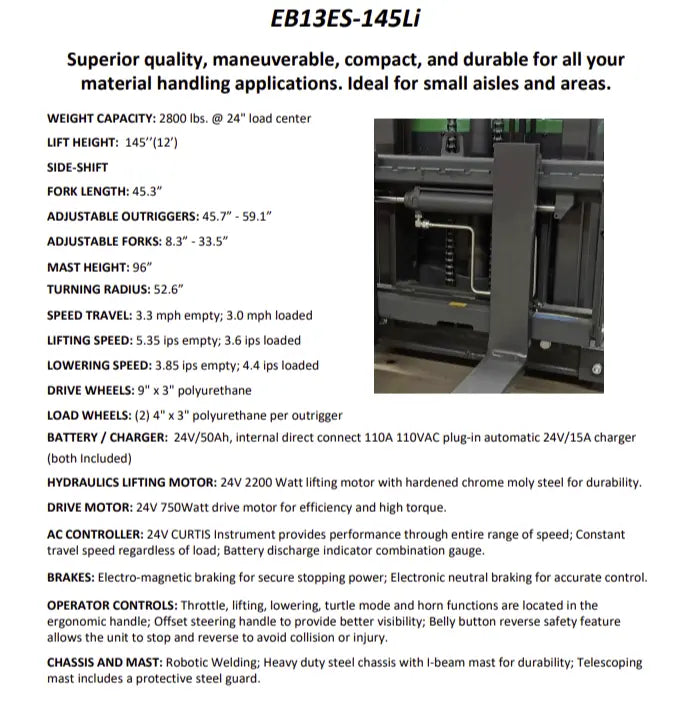

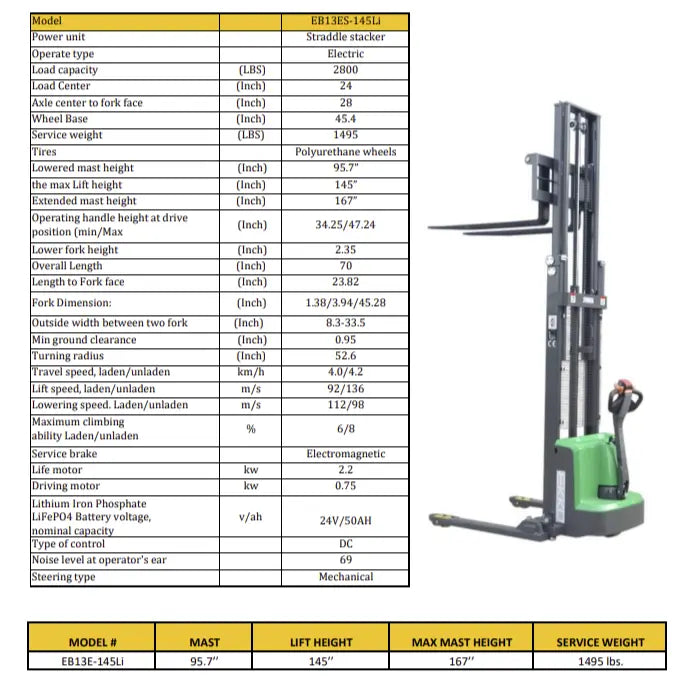

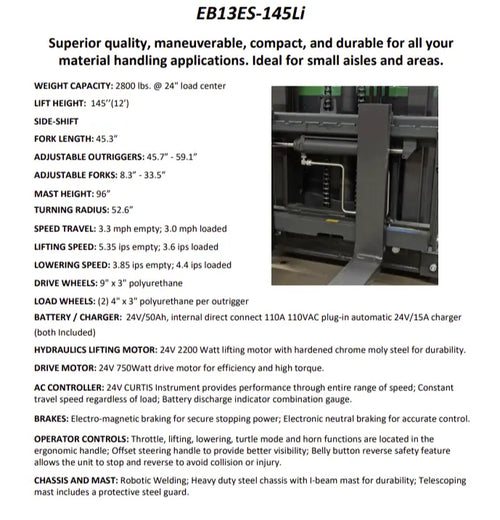

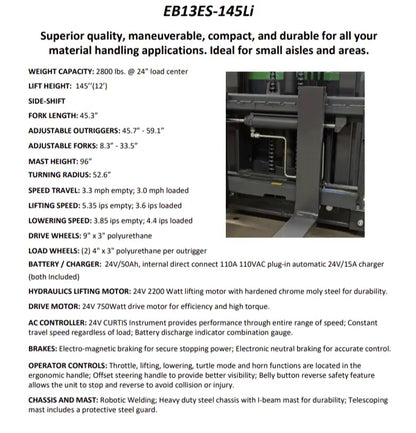

Specification Table

EB13ES-145LI · Full Electric Pallet StackerSKU EB13ES-145LI
Load capacity	2640 (lbs)
The max. lifting height	145" (in)
Load center distance	24 (in)
Fork length	45.3 (in)
Single fork width	4 (in)
Overall fork width	8.3-33.5 (in)
Lowered fork height	2.35 (in)
Fixed leg length	36.5 (in)
Adjustable legs	45.7-59.1 (in)
Turning radius	52.6 (in)
Overall length	70 (in)
Max Overall width	61 (in)
Extended mast height	167 (in)
Lowered mast height	95.7 (in)
Battery voltage (dimensions)	24V/50Ah Lithium (in)
Internal Charger	24V/15A V/A
Lifting Motor	2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s V/Kw
Driving Motor	0.75kw.Driving speed: laden/unladen:4.0/4.2km/h
Service Weight	1495 (lbs)
Brand / Model	EKKO EB13ES-145Li
Power Source	Electric (Lithium Powered)
Maximum Lift Height	145 in (Approx. 3683 mm)
Special Function	Side-Shifting Forks
Operation Style	Walk-Behind
Lift System	Electric Lift
Drive System	Electric Drive

FAQ about this model

What kinds of loads and applications is the EB13ES-145Li suited for?

This stacker is rated for loads up to 2640 lb (1200 kg) with a 24-inch load center, making it appropriate for standard palletized goods in warehouses, manufacturing environments, and loading docks. Its 45.3-inch fork length and adjustable overall fork width of 8.3–33.5 inches allow it to accommodate a range of pallet sizes, while the side-shifting fork function helps position loads precisely without repositioning the entire machine.

What do the key specifications mean for day-to-day use?

The maximum lift height of 145 inches (about 3683 mm) determines how high pallets can be raised, supported by an extended mast height of 167 inches and a lowered mast height of 95.7 inches for clearance in lower spaces. The lowered fork height of 2.35 inches allows the forks to slide under low-profile pallets, and the 52.6-inch turning radius plus 61-inch max overall width give a sense of the space needed to maneuver the unit in aisles.

How is this unit powered and operated?

The EB13ES-145Li runs on a 24V/50Ah lithium battery paired with an internal 24V/15A charger. It uses a 2.2kW electric lifting motor (lift speed 92/136 mm/s laden/unladen, lowering speed 112/98 mm/s) and a 0.75kW electric drive motor (travel speed 4.0/4.2 km/h laden/unladen). It is a walk-behind design, meaning the operator guides the stacker on foot rather than riding on board.

How does this stacker compare within the pallet stacker category?

Compared to basic pallet stackers, the EB13ES-145Li adds side-shifting forks for finer load placement, which is a functional step up for operations needing more precise pallet alignment. With a service weight of 1495 lbs and adjustable legs ranging from 45.7–59.1 inches, it's built to balance stability at height with the maneuverability expected of a walk-behind electric stacker, positioning it as a mid-capacity option for facilities that need lift height and lateral adjustment in one unit.

Compare models

	2800 Electric Pallet Stacker 119"	2640 Electric Pallet Stacker 145" THIS
Capacity	2800 (lbs)	2640 (lbs)
Lift Height	119” (in)	145" (in)
Service Weight	1635 (lbs)	1495 (lbs)
Adjustable legs	45.5-59.1 (in)	45.7-59.1 (in)
Price	$7,748.00 $6,771.60	$8,926.00 $7,360.60
	Check ›	Viewing

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
