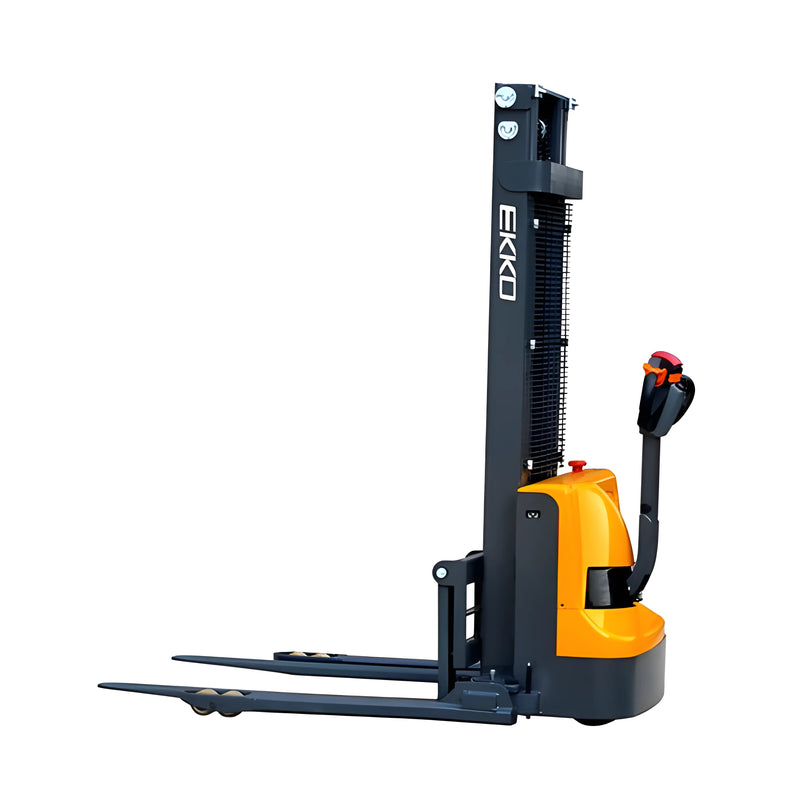

EKKO EB13E electric pallet stacker with yellow and black design for efficient warehouse lifting

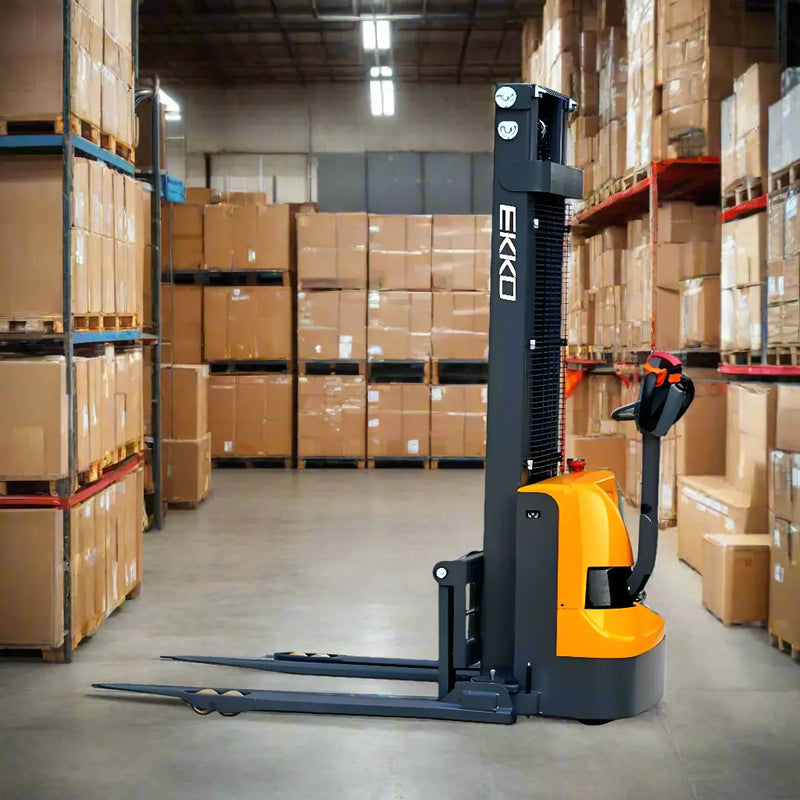

EKKO EB13E electric pallet stacker in warehouse with boxed goods on shelves

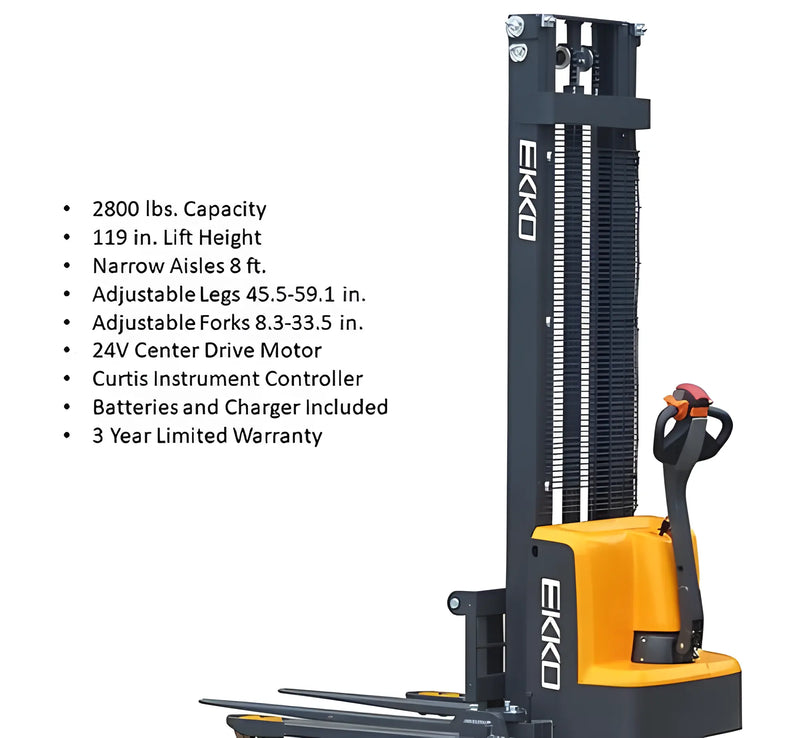

EKKO EB13E electric stacker with 2800 lbs capacity and 119 inch lift height for narrow aisle use

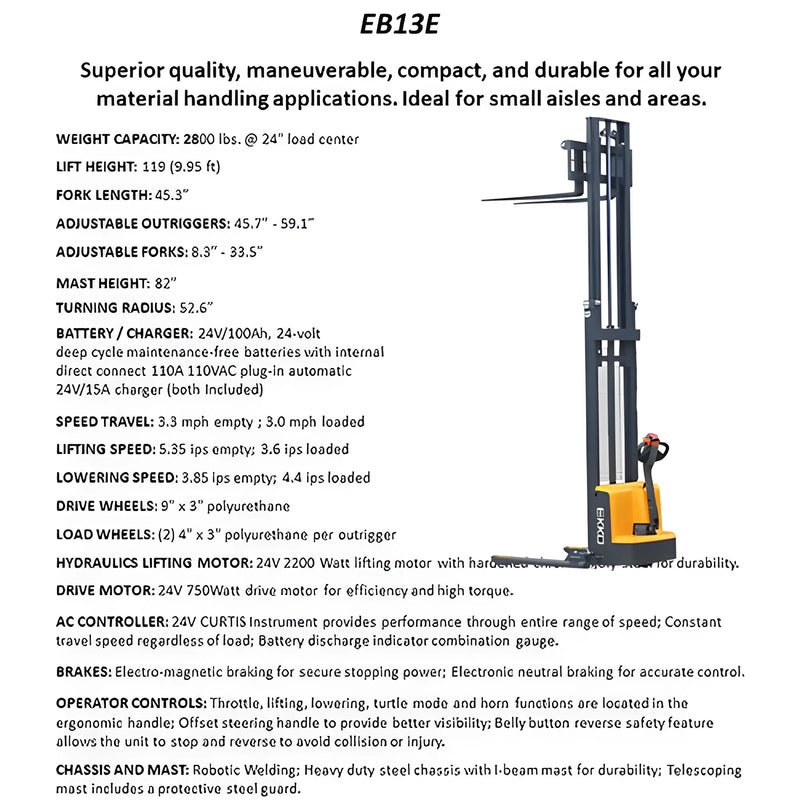

EKKO EB13E electric forklift with compact design and adjustable forks for maneuverable material handling

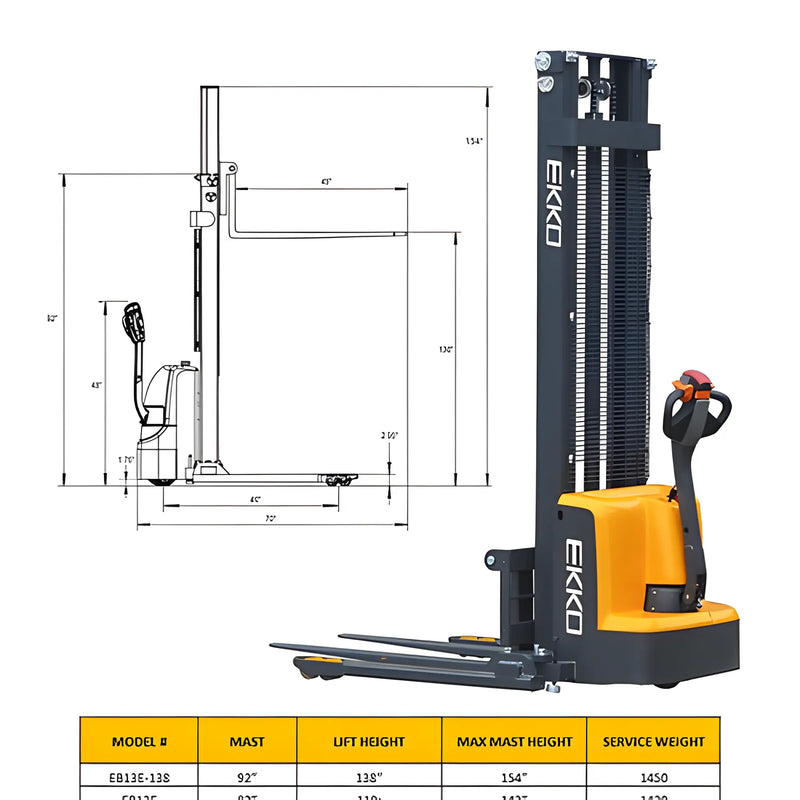

EKKO EB13E electric stacker forklift with black and yellow design showing mast and lifting forks with technical dimensions

EKKO EB13E | Electric Straddle Stacker | 119" Lift Height | 2800 lb Capacity

Name: EKKO EB13E | Electric Straddle Stacker | 119" Lift Height | 2800 lb Capacity
Brand: EKKO
SKU: EB13E
Price: 5299.1 USD
Availability: InStock

See more by EKKO

$588.90 Off Limited time deal

$5,888.00

$5,888.00 - $5,888.00

$5,888.00

$5,299.10

$5,299.10 - $5,299.10

$5,299.10

In stock

SKU EB13E

Quantity

Product Overview

In short

The EKKO EB13E is a walk-behind electric straddle stacker with a 2800 lb load capacity and a maximum lift height of 119 inches. It combines features of a forklift, reach truck, and walkie stacker, making it suited for warehouse, stockroom, and distribution facility operations.

The EKKO EB13E Electric Straddle Stacker is an all-in-one, high-productivity, versatile material-handling solution that can be used to handle pallets from the floor to the top of racking systems in warehouse environments, stockrooms and distribution centers. The EKKO EB13E has a 2800-lb load capacity and a maximum lift height of 119 inches which will help you safely stack pallets and maximize your vertical storage space usage. The straddle leg design of the EKKO EB13E also helps with pallet stacking by giving you additional stability and allowing for better pallet engagement; this is very helpful when handling many different types and configurations of pallets. The fully electric lift and drive on the EKKO EB13E provide smooth, efficient travel, precise lifting control and consistent performance day after day, while minimizing physical labor and fatigue for the operator. The compact size and maneuverability of the EKKO EB13E makes it suitable for use in tight spaces such as narrow aisles and crowded working conditions; it gives you the ability to productively and safely operate the unit every day.

Key Features

2800 lbs load capacity for safely lifting and stacking pallets

119 inch maximum lift height for maximizing rack stacking and vertical storage space

Straddle Leg Design for added stability and versatility when moving and handling pallets

All-Electric Drive and Lift for a productive, low-maintenance daily material handling operation

Compact Size and Maneuverability for operation in small aisles and tight working spaces

Specification Table

EB13E · Full Electric Pallet StackerSKU EB13E
Load capacity	2800 (lbs)
The max. lifting height	119” (in)
Load center distance	24 (in)
Fork length	45.3 (in)
Single fork width	4 (in)
Overall fork width	8.3-33.5 (in)
Lowered fork height	2.35 (in)
Fixed leg length	36.5 (in)
Adjustable legs	45.5-59.1 (in)
Turning radius	52.6 (in)
Overall length	70 (in)
Max Overall width	61 (in)
Extended mast height	135 (in)
Lowered mast height	82 (in)
Battery voltage (dimensions)	24V/50Ah Lithium (in)
Internal Charger	24V/15A V/A
Lifting Motor	2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s V/Kw
Driving Motor	0.75kw.Driving speed: laden/unladen:4.0/4.2km/h
Service Weight	1325 (lbs)
Brand / Model	EKKO EB13E
Stacker Design	Straddle Leg
Power Source	Electric
Maximum Lift Height	119 in (Approx. 3023 mm)
Operation Style	Walk-Behind
Drive System	Electric Drive
Lift System	Electric Lift
Primary Applications	Warehouse, Stockroom, Distribution Facilities

FAQ about this model

What applications and loads is the EKKO EB13E suited for?

The EB13E is designed for warehouse, stockroom, and distribution facility use. It can lift, load, and unload materials with a load capacity of 2800 lb (approx. 1270 kg), making it suitable for a variety of general material handling tasks in these settings.

What are the key specifications of the EB13E?

The EB13E has a maximum lift height of 119 in (approx. 3023 mm) and a load capacity of 2800 lb. It has a fork length of 45.3 in, an overall fork width range of 8.3-33.5 in, and adjustable legs ranging from 45.5-59.1 in, allowing it to accommodate different pallet and load configurations. Its service weight is 1420 lb.

What type of power source and operation style does the EB13E use?

The EB13E is fully electric, featuring an electric drive system and an electric lift system. It operates in a walk-behind style, with a driving motor rated at 0.75kw and a lifting motor rated at 2.2kw.

How does the EB13E compare within the straddle stacker category?

As a straddle-leg design, the EB13E combines capabilities associated with forklifts, reach trucks, and walkie stackers into a single unit. Its 2800 lb capacity and 119 in lift height, combined with a walk-behind electric operation, position it as a versatile option among electric straddle stackers for indoor warehouse and stockroom environments.

Compare models

	4400 Electric Straddle Stacker 216"	4400 Electric Straddle Stacker 177"	2800 Electric Straddle Stacker 119" THIS
Capacity	4400 (lb)	4400 (lb)	2800 (lbs)
Fixed leg length	42 (in)	42 (in)	36.5 (in)
Forks	45.28 (in)	45.3 (in)	45.3 (in)
Lift Height	216 (in)	177 (in)	119” (in)
Price	$17,278.00 $16,414.10	$16,502.00 $15,676.90	$5,888.00 $5,299.10
	Check ›	Check ›	Viewing

Specs from EKKO manufacturer data. Prices update live and reflect current promotions.
