All Lift Cranes H1108 | Heavy Duty Floor Mounted Jib Crane, ½ Ton

Product Overview

In short

The All Lift Cranes H-Series is a heavy-duty floor-mounted jib crane rated for 1/2 ton capacity, offered in 39 HUB height and span configurations (10-20 ft HUB height, 8-20 ft span) to fit a range of workspaces. It's manufactured in Appleton, Wisconsin, USA by family-owned All Lift Cranes, Inc., and backed by a 3-year warranty on materials and workmanship, with parts replaced free FOB job site.

The All Lift Cranes H-Series Heavy Duty Floor Mounted Jib Crane is built for shops and facilities that need reliable overhead lifting at a fixed workstation. Rated for 1/2 ton capacity, this crane is available across 39 model configurations spanning HUB heights of 10 ft to 20 ft and spans of 8 ft to 20 ft, giving you the flexibility to match the crane to your ceiling height and working radius. Unit weights range from 949 lbs to 2,874 lbs depending on configuration, reflecting the heavier steel construction used to support the rated capacity.

As a floor-mounted jib, the H-Series rotates around a fixed base rather than offering full 360-degree sweep — floor jibs of this type typically provide 200-degree rotation unless a motorized rotation option is added. The crane pairs with standard wire rope and chain hoists from major manufacturers including CM, R&M, and Yale, so you can outfit it with the hoist that fits your existing equipment or maintenance standards.

Every H-Series crane is manufactured by All Lift Cranes, Inc., a family-owned manufacturer based in Appleton, Wisconsin, and is backed by a 3-year warranty covering material and workmanship, with replacement parts shipped free FOB job site.

Specification Table

Model	HUB Height	Span	Weight (lbs)
H1108	10 ft	8 ft	949
H11010	10 ft	10 ft	991
H11012	10 ft	12 ft	1,033
H11014	10 ft	14 ft	1,138
H11016	10 ft	16 ft	1,598
H11018	10 ft	18 ft	1,658
H11020	10 ft	20 ft	1,981
H1128	12 ft	8 ft	1,005
H11210	12 ft	10 ft	1,047
H11212	12 ft	12 ft	1,089
H11214	12 ft	14 ft	1,194
H11216	12 ft	16 ft	1,697
H11218	12 ft	18 ft	1,757
H11220	12 ft	20 ft	2,090
H1148	14 ft	8 ft	1,061
H11410	14 ft	10 ft	1,103
H11412	14 ft	12 ft	1,145
H11414	14 ft	14 ft	1,570
H11416	14 ft	16 ft	1,797
H11418	14 ft	18 ft	1,931
H11420	14 ft	20 ft	2,199
H11610	16 ft	10 ft	1,606
H11612	16 ft	12 ft	1,679
H11614	16 ft	14 ft	1,721
H11616	16 ft	16 ft	1,980
H11618	16 ft	18 ft	2,040
H11620	16 ft	20 ft	2,624
H11810	18 ft	10 ft	1,705
H11812	18 ft	12 ft	1,778
H11814	18 ft	14 ft	2,029
H11816	18 ft	16 ft	2,089
H11818	18 ft	18 ft	2,689
H11820	18 ft	20 ft	2,749
H12010	20 ft	10 ft	1,804
H12012	20 ft	12 ft	2,078
H12014	20 ft	14 ft	2,138
H12016	20 ft	16 ft	2,198
H12018	20 ft	18 ft	2,814
H12020	20 ft	20 ft	2,874

FAQ about this model

How much can this jib crane lift?

Every model in this H-Series listing is rated at 1/2 ton capacity. The rating is the same at an 8 ft span as it is at a 20 ft span, so a longer boom does not reduce what the crane will lift. Remember that the hoist, rigging and any below-hook attachment count against the rated capacity, not just the load itself.

What HUB heights and spans are available?

There are 39 models, built around HUB heights of 10, 12, 14, 16, 18 and 20 ft with spans from 8 ft to 20 ft in 2 ft steps. The 8 ft span is offered only with the 10, 12 and 14 ft HUB heights; the 16, 18 and 20 ft HUB heights begin at a 10 ft span. Pick the span from the working radius you need to cover.

How much does the crane weigh, and why does that matter?

Listed weights range from 949 lbs for the H1108 (10 ft HUB, 8 ft span) to 2,874 lbs for the H12020 (20 ft HUB, 20 ft span). Weight climbs with both HUB height and span. Use the figure for your exact model when planning the foundation, the floor slab it will be anchored to, and the equipment needed to offload and set the crane.

How do I choose a model for my building?

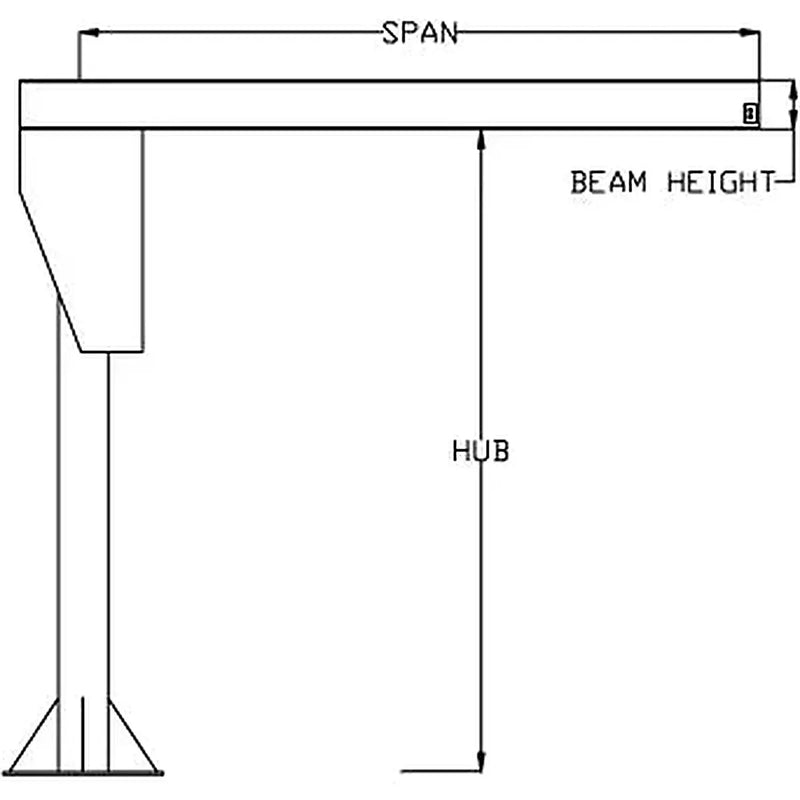

Match the HUB height to your available overhead clearance first, then the span to the area you need to reach. HUB height is the mast dimension, not your hook height: the boom, trolley, hoist and rigging all sit below it and reduce usable lift. Measure from the finished floor to the lowest obstruction, such as lights, ducts or sprinkler lines, before selecting.

Is a hoist included?

The published product data for this crane covers the structure only, listing model, HUB height, span and weight. It does not specify a hoist, trolley, motor or electrical supply, so treat those as separate decisions and confirm what ships with your order before you buy. Your hoist choice also determines the power you will need to run to the crane.

What does it cost?

Pricing starts at $3,925. That figure corresponds to the entry point in the range, and cost rises with HUB height and span, so a 20 ft HUB, 20 ft span crane will not price the same as a 10 ft HUB, 8 ft span unit. Request pricing against a specific model number, since each of the 39 configurations is priced separately.

Compare models

	5 Ton Capacity	3 Ton Capacity	2 Ton Capacity	1 Ton Capacity	1/2 Ton Capacity THIS
Weight	3905–8539	2021–6327	1412–5905	964–3426	949–2874
HUB Height	10–20 ft	10–20 ft	10–20 ft	10–20 ft	10–20 ft
Span	8–20 ft	8–20 ft	8–20 ft	8–20 ft	8–20 ft
Price	$14,224.00	$7,260.00	$5,241.00	$3,886.00	$3,925.00
	Check ›	Check ›	Check ›	Check ›	Viewing

Specs from All Lift Cranes manuals. Prices update live and reflect current promotions.

Warranty

All Lift Cranes Limited Warranty. All Lift Cranes warrants its jib and gantry cranes against defects in material and workmanship for three (3) years. Misuse, overloading, unauthorized modification and normal wear are excluded.

Warranty

3-Year Manufacturer Warranty

All Lift Cranes, Inc. — Appleton, Wisconsin

Every All Lift crane is warranted against defects in material and workmanship for three years from the date of shipment. Defective parts are replaced free of charge, F.O.B. job site.

Covers
Material & workmanship defects confirmed by factory inspection

Excludes
Misuse, overloading, improper installation or maintenance

Finish
Quality factory paint; touch-up paint available on request
