All Lift Cranes H10108 | Heavy Duty Floor Mounted Jib Crane 5 Ton

Product Overview

In short

The All Lift Cranes H-Series is a heavy duty floor mounted jib crane rated for 5 ton capacity, available in HUB heights from 10 ft to 20 ft and spans from 8 ft to 20 ft for 39 total configurations. It is manufactured in Appleton, Wisconsin, USA by All Lift Cranes, Inc. and backed by a 3-year warranty on material and workmanship.

The All Lift Cranes H-Series Heavy Duty Floor Mounted Jib Crane delivers a 5 ton capacity in a rugged, floor-mounted design built for demanding industrial work areas. With HUB heights ranging from 10 ft to 20 ft and span options from 8 ft to 20 ft, this series offers 39 distinct model configurations, allowing you to match the crane to your specific bay dimensions and lift path requirements. Unit weights across the lineup range from 3,905 lbs to 8,539 lbs depending on the configuration selected.

Each H-Series jib crane is designed to pair with standard hoists from manufacturers such as CM, R&M, and Yale, giving you flexibility in outfitting the crane to match your existing equipment or preferred hoist brand. Note that 360-degree rotation is not standard on this floor-mounted series; typical rotation is 200 degrees unless a motorized rotation option is added.

As a floor-mounted jib crane, the H-Series requires a proper concrete foundation for installation, with foundation depth and footprint requirements varying by base size. All Lift Cranes, Inc. is a family-owned manufacturer based in Appleton, Wisconsin, USA, and every H-Series crane is backed by a 3-year warranty covering material and workmanship, with replacement parts shipped free FOB job site.

Specification Table

Model	HUB Height	Span	Weight (lbs)
H10108	10 ft	8 ft	3,905
H101010	10 ft	10 ft	4,041
H101012	10 ft	12 ft	4,791
H101014	10 ft	14 ft	5,069
H101016	10 ft	16 ft	5,221
H101018	10 ft	18 ft	6,203
H101020	10 ft	20 ft	6,962
H10128	12 ft	8 ft	4,113
H101210	12 ft	10 ft	4,249
H101212	12 ft	12 ft	5,047
H101214	12 ft	14 ft	5,320
H101216	12 ft	16 ft	5,472
H101218	12 ft	18 ft	6,518
H101220	12 ft	20 ft	7,277
H10148	14 ft	8 ft	4,313
H101410	14 ft	10 ft	4,449
H101412	14 ft	12 ft	5,757
H101414	14 ft	14 ft	6,036
H101416	14 ft	16 ft	6,188
H101418	14 ft	18 ft	6,833
H101420	14 ft	20 ft	7,593
H101610	16 ft	10 ft	5,078
H101612	16 ft	12 ft	5,987
H101614	16 ft	14 ft	6,352
H101616	16 ft	16 ft	6,504
H101618	16 ft	18 ft	7,149
H101620	16 ft	20 ft	7,908
H101810	18 ft	10 ft	5,325
H101812	18 ft	12 ft	6,394
H101814	18 ft	14 ft	6,667
H101816	18 ft	16 ft	6,819
H101818	18 ft	18 ft	7,464
H101820	18 ft	20 ft	8,223
H102010	20 ft	10 ft	5,576
H102012	20 ft	12 ft	6,710
H102014	20 ft	14 ft	6,982
H102016	20 ft	16 ft	7,134
H102018	20 ft	18 ft	7,779
H102020	20 ft	20 ft	8,539

FAQ about this model

What is the lifting capacity, and does it change with span or hub height?

Every H-Series model listed here is rated at 5 tons, regardless of hub height or span. The H10108 with an 8 ft span and the H102020 with a 20 ft span carry the same rating. Select the model by the reach and headroom your work area needs, then confirm the rating on the unit's own nameplate before putting it into service.

Which hub heights and spans are available?

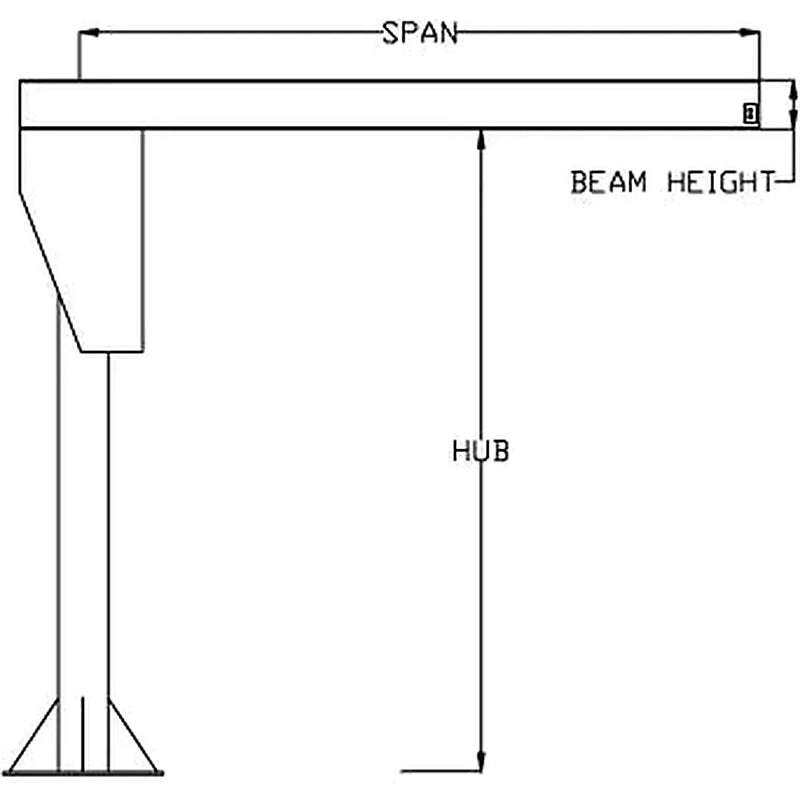

Hub heights are 10 ft, 12 ft, 14 ft, 16 ft, 18 ft and 20 ft, with spans from 8 ft to 20 ft in even increments. The 8 ft span is offered only with the 10 ft, 12 ft and 14 ft hub heights; taller columns start at a 10 ft span. The model number encodes both, so H101614 is a 16 ft hub height with a 14 ft span.

How much does the crane weigh, and what does that mean for my floor?

Weights range from 3,905 lbs for the H10108 to 8,539 lbs for the H102020. Weight rises with both span and height: the H101020 is 6,962 lbs while the H101010 is 4,041 lbs. Use the figure for your exact model when planning the foundation, the offloading equipment at delivery, and the rigging needed to set the column.

What is included with the crane?

The published specifications cover model number, hub height, span and weight only. They do not list a hoist, trolley, motor, control package or rotation type, so do not assume any of those are supplied. Confirm exactly what ships, and any electrical requirements, before ordering. Foundation bolts and concrete work are a separate site responsibility.

Who is this crane a good fit for, and who should look at something else?

It suits a fixed workstation with a floor that can take an engineered foundation, since it is floor mounted rather than wall or column mounted. It is a poor fit if your lifting point moves around the building, or if the slab cannot be modified. Match span to the radius you must cover and hub height to your available headroom.

Why does the price vary between models?

Pricing starts at $14,224 and increases with span and hub height, because both add structural steel and weight. Decide the configuration before comparing prices: hub height for headroom under the boom, span for reach. The gap between the lightest H10108 and the heaviest H102020 is substantial, so quote the specific model you intend to install.

Compare models

	5 Ton Capacity THIS	3 Ton Capacity	2 Ton Capacity	1 Ton Capacity	1/2 Ton Capacity
Weight	3905–8539	2021–6327	1412–5905	964–3426	949–2874
HUB Height	10–20 ft	10–20 ft	10–20 ft	10–20 ft	10–20 ft
Span	8–20 ft	8–20 ft	8–20 ft	8–20 ft	8–20 ft
Price	$14,224.00	$7,260.00	$5,241.00	$3,886.00	$3,925.00
	Viewing	Check ›	Check ›	Check ›	Check ›

Specs from All Lift Cranes manuals. Prices update live and reflect current promotions.

Warranty

All Lift Cranes Limited Warranty. All Lift Cranes warrants its jib and gantry cranes against defects in material and workmanship for three (3) years. Misuse, overloading, unauthorized modification and normal wear are excluded.

Warranty

3-Year Manufacturer Warranty

All Lift Cranes, Inc. — Appleton, Wisconsin

Every All Lift crane is warranted against defects in material and workmanship for three years from the date of shipment. Defective parts are replaced free of charge, F.O.B. job site.

Covers
Material & workmanship defects confirmed by factory inspection

Excludes
Misuse, overloading, improper installation or maintenance

Finish
Quality factory paint; touch-up paint available on request
