Aluminum gantry crane with wheels, labeled for 2-ton capacity

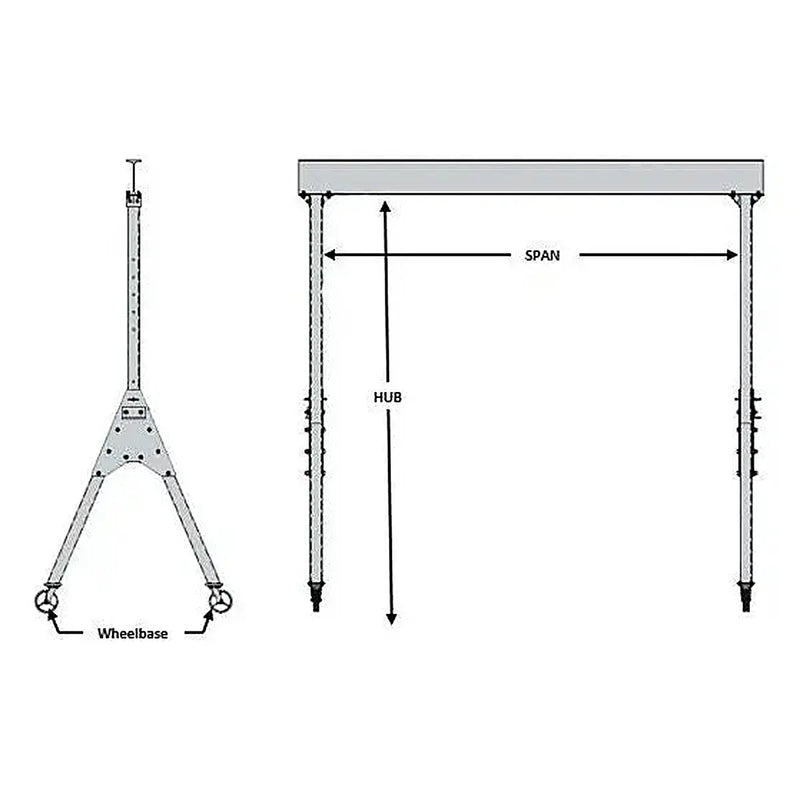

"Technical drawing of a gantry crane showing dimensions and specifications.

Table listing specifications for gantry crane models, including dimensions.

All Lift Cranes AG-Series Adjustable Height Aluminum Gantry Crane | 1/2 Ton Capacity

Name: All Lift Cranes AG-Series Adjustable Height Aluminum Gantry Crane | 1/2 Ton Capacity
Brand: All Lift Cranes
SKU: AG1/2-809
Price: 5541.0 USD
Availability: InStock

See more by All Lift Cranes

$5,541.00 - $7,385.00

$5,541.00

$5,541.00 - $7,385.00

$5,541.00

In stock

SKU AG1/2-809

Freight is quoted per delivery location — enter yours and we'll email your exact, all-in cost.

or order now

Order today, approve freight before it ships. $0 freight at checkout — we email your exact quote for approval; don't accept it, full refund.

Questions or bulk orders? Call sales +1 (307) 441-5529

Quantity

Product Overview

In short

The All Lift Cranes AG-Series is a 1/2 ton capacity adjustable height aluminum gantry crane, available in spans from 8 ft to 16 ft with height adjustment ranges of 6-9 ft or 8-12 ft. It's manufactured in the USA by All Lift Cranes, Inc. in Appleton, Wisconsin, and backed by a 3-year warranty on materials and workmanship.

The All Lift Cranes AG-Series Adjustable Height Aluminum Gantry Crane brings 1/2 ton lifting capacity to shops and job sites that need a lightweight, easy-to-relocate lifting solution. Built from aluminum, this gantry crane is designed to be moved around a facility without the hassle of a heavier steel frame, while still providing a stable structure for controlled lifts within its rated capacity.

The AG-Series is available in eight configurations, combining four span options (8 ft, 10 ft, 12 ft, and 16 ft) with two height adjustment ranges (6-9 ft or 8-12 ft), so you can match the crane to your workspace dimensions and lift height requirements. Depending on configuration, unit weight ranges from 316 lbs to 408 lbs, keeping the crane manageable to reposition as needs change. The crane's height adjusts within its listed range, giving you flexibility to fine-tune working height for the task at hand.

All Lift Cranes, Inc. is a family-owned manufacturer based in Appleton, Wisconsin, USA, and stands behind the AG-Series with a 3-year warranty covering material and workmanship, with parts replaced free FOB job site. The AG-Series pairs with standard hoists from brands like CM, R&M, and Yale, making it straightforward to complete your lifting setup with equipment you may already trust.

Specification Table

Model	Span	Height Adjustment	Weight (lbs)
AG1/2-809	8 ft	6-9 ft	316
AG1/2-812	8 ft	8-12 ft	336
AG1/2-1009	10 ft	6-9 ft	325
AG1/2-1012	10 ft	8-12 ft	344
AG1/2-1209	12 ft	6-9 ft	333
AG1/2-1212	12 ft	8-12 ft	353
AG1/2-1609	16 ft	6-9 ft	388
AG1/2-1612	16 ft	8-12 ft	408

FAQ about this model

How do I choose the right span and height adjustment for my AG-Series gantry crane?

The AG-Series is available in spans of 8 ft, 10 ft, 12 ft, or 16 ft, paired with a height adjustment range of either 6-9 ft or 8-12 ft. Choose the span that matches the width you need to cover, and the height adjustment range that fits your typical lift heights, then select from the eight available AG1/2 model configurations accordingly.

Do I need a foundation or special installation for this gantry crane?

The AG-Series is an adjustable height aluminum gantry crane designed to be lightweight and easy to relocate, with height adjusting within the listed range for each configuration. Its portable design means it does not require a fixed foundation like a permanently mounted crane system.

What warranty comes with the All Lift Cranes AG-Series?

All Lift Cranes, Inc., a family-owned manufacturer based in Appleton, Wisconsin, USA, backs the AG-Series with a 3-year warranty covering material and workmanship, with parts replaced free FOB job site.

What hoists are compatible with the AG-Series gantry crane?

The AG-Series pairs with standard hoists from brands including CM, R&M, and Yale, allowing you to outfit the crane with a hoist that fits your existing equipment preferences or facility standards.

Compare models

	1/2 Ton Capacity THIS	1 Ton Capacity	2 Ton Capacity
Span	8–16 ft	8–20 ft	8–16 ft
Weight	316–408	316–543	425–593
Lift Height	6–8 ft	6–8 ft	6–8 ft
Price	$5,541.00	$5,541.00	$7,804.00
	Viewing	Check ›	Check ›

Specs from All Lift Cranes manuals. Prices update live and reflect current promotions.

Warranty

All Lift Cranes Limited Warranty. All Lift Cranes warrants its jib and gantry cranes against defects in material and workmanship for three (3) years. Misuse, overloading, unauthorized modification and normal wear are excluded.

Warranty

3-Year Manufacturer Warranty

All Lift Cranes, Inc. — Appleton, Wisconsin

Every All Lift crane is warranted against defects in material and workmanship for three years from the date of shipment. Defective parts are replaced free of charge, F.O.B. job site.

Covers
Material & workmanship defects confirmed by factory inspection

Excludes
Misuse, overloading, improper installation or maintenance

Finish
Quality factory paint; touch-up paint available on request
