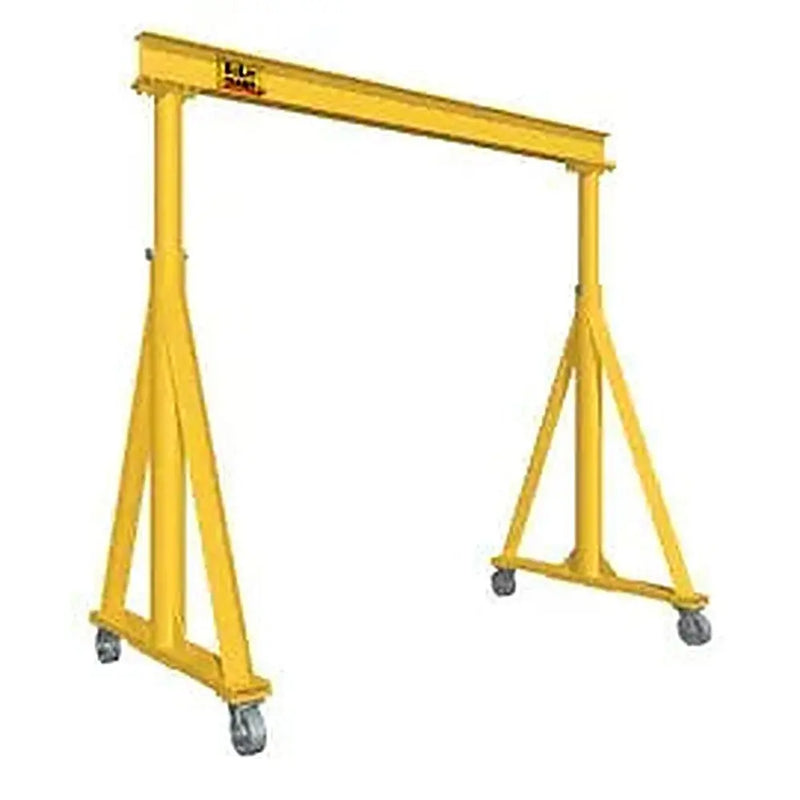

All Lift Cranes TG-Series Telescoping Gantry Crane | 3 Ton Capacity

Name: All Lift Cranes TG-Series Telescoping Gantry Crane | 3 Ton Capacity
Brand: All Lift Cranes
SKU: TG3-816
Price: 10595.0 USD
Availability: InStock

See more by All Lift Cranes

$6,618.00 - $11,996.00

$10,595.00

$6,618.00 - $11,996.00

$10,595.00

In stock

SKU TG3-816

Freight is quoted per delivery location — enter yours and we'll email your exact, all-in cost.

or order now

Order today, approve freight before it ships. $0 freight at checkout — we email your exact quote for approval; don't accept it, full refund.

Questions or bulk orders? Call sales +1 (307) 441-5529

Accessories

All Lift Cranes Tagline Kit with S-Hooks Learn More

$97.00

All Lift Cranes Steel Cable Trolley (1 per 5 ft of span) Learn More

$18.00

Quantity

Product Overview

In short

The All Lift Cranes TG-Series is a 3 ton capacity telescoping gantry crane offered in spans from 8 ft to 20 ft with height adjustment ranges of either 8-12 ft or 12-16 ft, giving 14 total configurations. It's manufactured in the USA by All Lift Cranes, Inc. in Appleton, Wisconsin, and comes with a 3-year warranty covering material and workmanship.

The All Lift Cranes TG-Series Telescoping Gantry Crane is a 3 ton capacity gantry built for facilities that need flexible overhead lifting without a fixed structure. It's available in spans from 8 ft up to 20 ft, and each span comes in a choice of two height adjustment ranges — 8-12 ft or 12-16 ft — for 14 total configurations. Depending on the size selected, unit weight ranges from 1,348 lbs to 3,040 lbs.

Every TG-Series crane rides on 4 steel swivel casters, with 2 fitted with brakes to lock the gantry in place during lifts and 2 fitted with cable pullers to help maneuver the unit into position. The gantry's telescoping design allows the height to be adjusted within its listed range to match the job at hand, and the crane is designed to pair with standard hoists from CM, R&M, and Yale.

All Lift Cranes, Inc. is a family-owned manufacturer based in Appleton, Wisconsin, USA. The TG-Series is backed by a 3-year warranty on material and workmanship, with parts replaced free of charge, FOB job site.

Specification Table

Model	Span	Height Adjustment	Weight (lbs)
TG3-816	8 ft	12-16 ft	2,374
TG3-812	8 ft	8-12 ft	1,348
TG3-1016	10 ft	12-16 ft	2,480
TG3-1012	10 ft	8-12 ft	1,408
TG3-1216	12 ft	12-16 ft	2,586
TG3-1212	12 ft	8-12 ft	1,468
TG3-1416	14 ft	12-16 ft	2,722
TG3-1412	14 ft	8-12 ft	1,527
TG3-1616	16 ft	12-16 ft	2,798
TG3-1612	16 ft	8-12 ft	2,002
TG3-1816	18 ft	12-16 ft	2,934
TG3-1812	18 ft	8-12 ft	2,107
TG3-2016	20 ft	12-16 ft	3,040
TG3-2012	20 ft	8-12 ft	2,213

FAQ about this model

How do I choose the right span and height adjustment for my TG-Series gantry crane?

The TG-Series is available in spans of 8, 10, 12, 14, 16, 18, or 20 ft, each paired with a height adjustment range of either 8-12 ft or 12-16 ft. Select the span that matches the width you need to straddle and the height range that covers your required lift height.

What's involved in setting up the TG-Series gantry crane?

The TG-Series is a telescoping gantry crane mounted on 4 steel swivel casters — 2 with brakes to hold the gantry securely in position and 2 with cable pullers to help move the unit. The height can be adjusted within the listed range for the model you choose.

What is the warranty on the TG-Series crane?

All Lift Cranes, Inc. backs the TG-Series with a 3-year warranty on material and workmanship. Parts are replaced free of charge, FOB job site.

What hoists work with the TG-Series gantry crane?

The TG-Series is designed to pair with standard hoists, including those from CM, R&M, and Yale.

Compare models

	1 Ton Capacity	2 Ton Capacity	3 Ton Capacity THIS	4 Ton Capacity	5 Ton Capacity
Weight	1015–2026	1080–2568	1348–3040	1961–3138	2001–3552
Lift Height	8–12 ft	8–12 ft	8–12 ft	8–12 ft	8–12 ft
Span	8–20 ft	8–20 ft	8–20 ft	8–20 ft	8–20 ft
Price	$4,504.00	$5,560.00	$6,618.00	$9,019.00	$8,878.00
	Check ›	Check ›	Viewing	Check ›	Check ›

Specs from All Lift Cranes manuals. Prices update live and reflect current promotions.

Warranty

All Lift Cranes Limited Warranty. All Lift Cranes warrants its jib and gantry cranes against defects in material and workmanship for three (3) years. Misuse, overloading, unauthorized modification and normal wear are excluded.

Warranty

3-Year Manufacturer Warranty

All Lift Cranes, Inc. — Appleton, Wisconsin

Every All Lift crane is warranted against defects in material and workmanship for three years from the date of shipment. Defective parts are replaced free of charge, F.O.B. job site.

Covers
Material & workmanship defects confirmed by factory inspection

Excludes
Misuse, overloading, improper installation or maintenance

Finish
Quality factory paint; touch-up paint available on request
