Name: All Lift Cranes FH1-Series Heavy Duty Foundationless Jib Crane | 1/2 Ton Capacity
Brand: All Lift Cranes
SKU: FH1108
Price: 4894.0 USD
Availability: InStock

Product Overview

In short

The All Lift Cranes FH1-Series is a foundationless heavy duty jib crane with 1/2 ton capacity, available in HUB heights from 10 to 16 ft and spans from 8 to 20 ft for 27 total configurations. It installs directly on an existing 6in reinforced concrete slab with epoxy anchor bolts, eliminating the need for a new foundation. Manufactured by All Lift Cranes, Inc. in Appleton, Wisconsin, USA, it's backed by a 3-year warranty on materials and workmanship.

The All Lift Cranes FH1-Series is a heavy duty foundationless jib crane rated for 1/2 ton capacity, built for facilities that need reliable overhead lifting without the cost and downtime of pouring a new foundation. It installs on an existing 6in reinforced concrete slab using epoxy anchor bolts, making it a practical option for retrofitting workstations, production cells, and maintenance bays.

The FH1-Series is available in HUB heights of 10 ft, 12 ft, 14 ft, and 16 ft, paired with spans from 8 ft up to 20 ft, giving 27 model configurations (FH1108 through FH11620) to match your specific coverage area and lift height requirements. Depending on configuration, units range from 1,083 lbs to 2,818 lbs and are priced from $4,894 to $10,184.

All Lift Cranes, Inc. is a family-owned manufacturer based in Appleton, Wisconsin, USA, and every FH1-Series crane is backed by a 3-year warranty covering material and workmanship, with parts replaced free FOB job site. The crane is designed to pair with standard hoists from brands such as CM, R&M, and Yale, so it can be outfitted with the hoist your team already trusts.

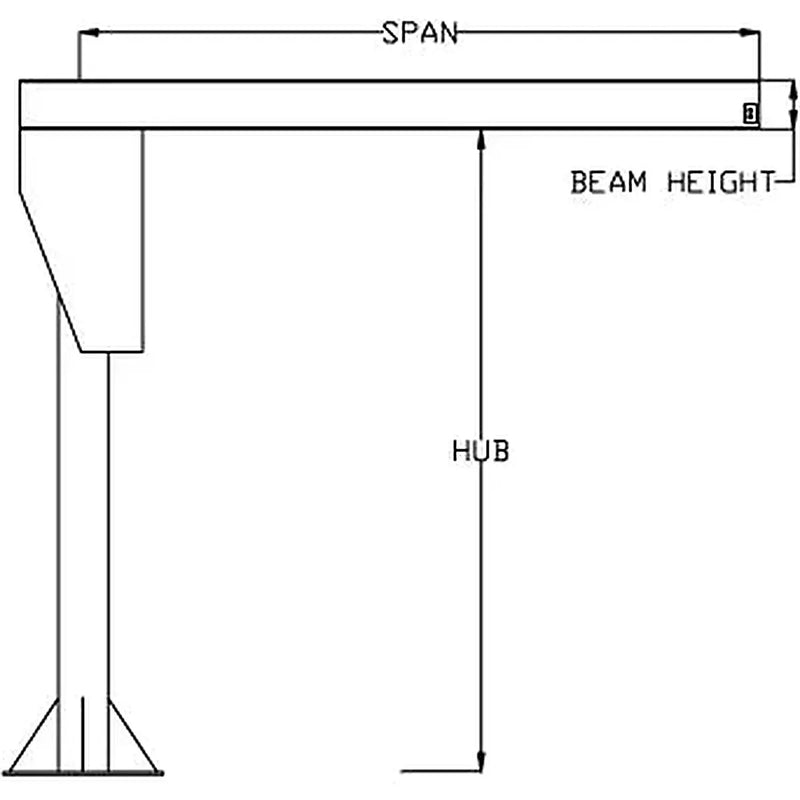

Specification Table

Model	HUB Height	Span	Weight (lbs)
FH1108	10 ft	8 ft	1,083
FH11010	10 ft	10 ft	1,125
FH11012	10 ft	12 ft	1,167
FH11014	10 ft	14 ft	1,272
FH11016	10 ft	16 ft	1,759
FH11018	10 ft	18 ft	1,819
FH11020	10 ft	20 ft	2,114
FH1128	12 ft	8 ft	1,139
FH11210	12 ft	10 ft	1,181
FH11212	12 ft	12 ft	1,223
FH11214	12 ft	14 ft	1,328
FH11216	12 ft	16 ft	1,858
FH11218	12 ft	18 ft	1,918
FH11220	12 ft	20 ft	2,223
FH1148	14 ft	8 ft	1,195
FH11410	14 ft	10 ft	1,237
FH11412	14 ft	12 ft	1,279
FH11414	14 ft	14 ft	1,701
FH11416	14 ft	16 ft	1,957
FH11418	14 ft	18 ft	2,017
FH11420	14 ft	20 ft	2,332
FH11610	16 ft	10 ft	1,788
FH11612	16 ft	12 ft	1,830
FH11614	16 ft	14 ft	1,872
FH11616	16 ft	16 ft	2,308
FH11618	16 ft	18 ft	2,368
FH11620	16 ft	20 ft	2,818

FAQ about this model

How do I choose the right HUB height and span for my FH1-Series crane?

The FH1-Series is available in HUB heights of 10 ft, 12 ft, 14 ft, and 16 ft combined with spans from 8 ft to 20 ft, giving 27 total configurations (models FH1108 through FH11620). Select the HUB height based on your required lift clearance and the span based on the horizontal coverage area you need to reach.

Does this crane require a new foundation?

No. The FH1-Series is a foundationless heavy duty design that installs directly on an existing 6in reinforced concrete slab using epoxy anchor bolts, so it can be added to a facility without pouring new footings.

What warranty comes with the FH1-Series?

All Lift Cranes, Inc. backs the FH1-Series with a 3-year warranty covering material and workmanship, with replacement parts shipped free FOB job site.

What hoists work with the FH1-Series crane?

The FH1-Series is designed to pair with standard hoists, including models from CM, R&M, and Yale.

Compare models

	1/2 Ton Capacity THIS	1 Ton Capacity
Span	8–20 ft	8–16 ft
Weight	1083–2818	1109–2862
HUB Height	10–16 ft	10–16 ft
Price	$4,894.00	$5,019.00
	Viewing	Check ›

Specs from All Lift Cranes manuals. Prices update live and reflect current promotions.

Warranty

All Lift Cranes Limited Warranty. All Lift Cranes warrants its jib and gantry cranes against defects in material and workmanship for three (3) years. Misuse, overloading, unauthorized modification and normal wear are excluded.

Warranty

3-Year Manufacturer Warranty

All Lift Cranes, Inc. — Appleton, Wisconsin

Every All Lift crane is warranted against defects in material and workmanship for three years from the date of shipment. Defective parts are replaced free of charge, F.O.B. job site.
