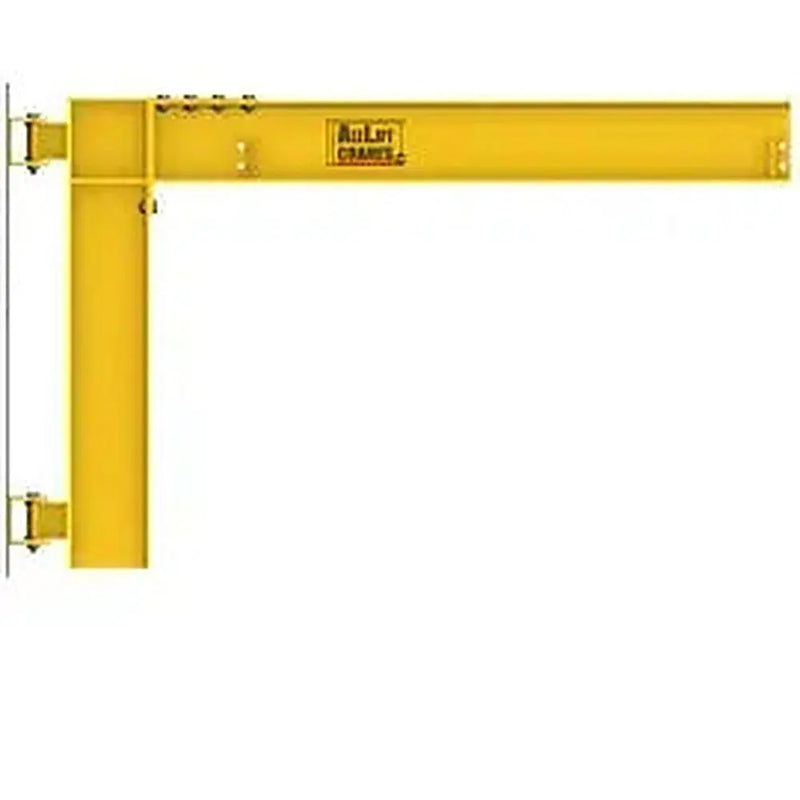

All Lift Cranes CW-Series Cantilevered Wall Mounted Jib Crane | 2 Ton Capacity

See more by All Lift Cranes

$2,243.00 - $6,586.00

$2,339.00

$2,243.00 - $6,586.00

$2,339.00

In stock

SKU CW408

Freight is quoted per delivery location — enter yours and we'll email your exact, all-in cost.

or order now

Order today, approve freight before it ships. $0 freight at checkout — we email your exact quote for approval; don't accept it, full refund.

Questions or bulk orders? Call sales +1 (307) 441-5529

Accessories

All Lift Cranes Tagline Kit with S-Hooks Learn More

$97.00

Quantity

Product Overview

In short

The All Lift Cranes CW-Series is a cantilevered wall mounted jib crane rated for 2-ton capacity, available in HUB heights from 8 ft to 20 ft and spans from 4 ft to 7 ft across seven models (CW408–CW420). It is manufactured in the USA by All Lift Cranes, Inc. of Appleton, Wisconsin, and backed by a 3-year warranty covering material and workmanship, with parts replaced free FOB job site.

The All Lift Cranes CW-Series Cantilevered Wall Mounted Jib Crane delivers 2-ton lifting capacity while mounting directly to an existing wall or column, freeing up valuable floor space in the work area. The cantilevered design allows for approximately 200-degree rotation, giving operators a wide working arc for positioning loads without the footprint of a floor-mounted system.

Seven configurations are available across the CW408 through CW420 model range, with HUB heights from 8 ft to 20 ft and spans from 4 ft to 7 ft, allowing the crane to be matched to the specific clearance and reach needs of a given installation. Unit weights range from 558 lbs to 2,060 lbs depending on the configuration selected.

Each CW-Series crane is built by All Lift Cranes, Inc., a family-owned manufacturer based in Appleton, Wisconsin, USA, and is designed to pair with standard hoists from brands such as CM, R&M, and Yale. Every crane is backed by a 3-year warranty on material and workmanship, with replacement parts provided free FOB job site.

Specification Table

Model	HUB Height	Span	Weight (lbs)
CW408	8 ft	4 ft	558
CW410	10 ft	4 ft	618
CW412	12 ft	4 ft	678
CW414	14 ft	5 ft	974
CW416	16 ft	6 ft	1,433
CW418	18 ft	6 ft	1,598
CW420	20 ft	7 ft	2,060

FAQ about this model

What is the lifting capacity, and does it drop on the taller models?

Every CW-Series model listed is rated at 2 tons. The rating is the same across all seven configurations, CW408 through CW420, so a taller mounting height or longer span does not reduce the rated load. Pick the model based on the height and reach your work area needs, not on capacity, since capacity is identical throughout the range.

What spans and mounting heights are available?

Span runs from 4 ft to 7 ft, and it is tied to the model's HUB height. CW408, CW410 and CW412 give 8 ft, 10 ft and 12 ft HUB heights with a 4 ft span. CW414 is 14 ft with a 5 ft span. CW416 and CW418 are 16 ft and 18 ft with 6 ft spans. CW420 is 20 ft with a 7 ft span.

How much does the crane weigh, and what does that mean for the wall it mounts to?

Weights range from 558 lbs on the CW408 to 2,060 lbs on the CW420. In between: 618 lbs (CW410), 678 lbs (CW412), 974 lbs (CW414), 1,433 lbs (CW416) and 1,598 lbs (CW418). Because the crane is cantilevered off a wall or column, the supporting structure has to carry that dead weight plus the 2 ton load. Have the mounting point reviewed by a structural engineer before installation.

What is included, and does the crane need electrical power?

The published data covers model, HUB height, span and weight only. It does not list a hoist, trolley, electrical supply or mounting hardware, so confirm each of those separately before ordering. No power requirement is stated for the crane structure itself; any electrical or air supply would be driven by whichever hoist you pair with it.

Who is this crane a good fit for, and who should look at something else?

It suits work cells where a 4 ft to 7 ft reach covers the job and floor space is tight. Being cantilevered from a wall or column, it needs no floor base or foundation, which keeps the area below clear. Look elsewhere if you need coverage beyond the 7 ft maximum span, more than 2 tons, or a free-standing unit because no suitable wall or column exists.

Compare models

	1/4 Ton Capacity	1/2 Ton Capacity	1 Ton Capacity	2 Ton Capacity THIS	3 Ton Capacity
Span	3–4 ft	3–6 ft	4–6 ft	4–7 ft	4–9 ft
Weight	308–885	365–988	469–1337	558–2060	760–2276
HUB Height	8–20 ft	8–20 ft	8–20 ft	8–20 ft	8–20 ft
Price	$1,638.00	$1,732.00	$1,895.00	$2,243.00	$3,096.00
	Check ›	Check ›	Check ›	Viewing	Check ›

Specs from All Lift Cranes manuals. Prices update live and reflect current promotions.

Warranty

All Lift Cranes Limited Warranty. All Lift Cranes warrants its jib and gantry cranes against defects in material and workmanship for three (3) years. Misuse, overloading, unauthorized modification and normal wear are excluded.

Warranty

3-Year Manufacturer Warranty

All Lift Cranes, Inc. — Appleton, Wisconsin

Every All Lift crane is warranted against defects in material and workmanship for three years from the date of shipment. Defective parts are replaced free of charge, F.O.B. job site.

Covers
Material & workmanship defects confirmed by factory inspection

Excludes
Misuse, overloading, improper installation or maintenance

Finish
Quality factory paint; touch-up paint available on request
