What load capacities are available?

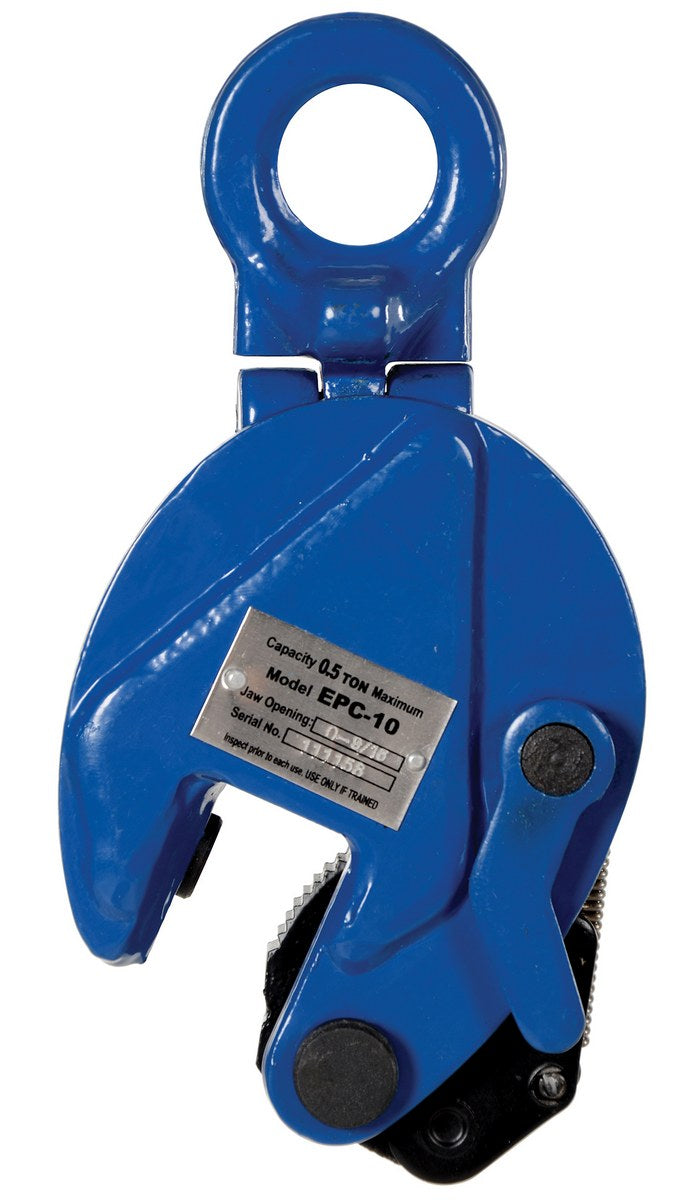

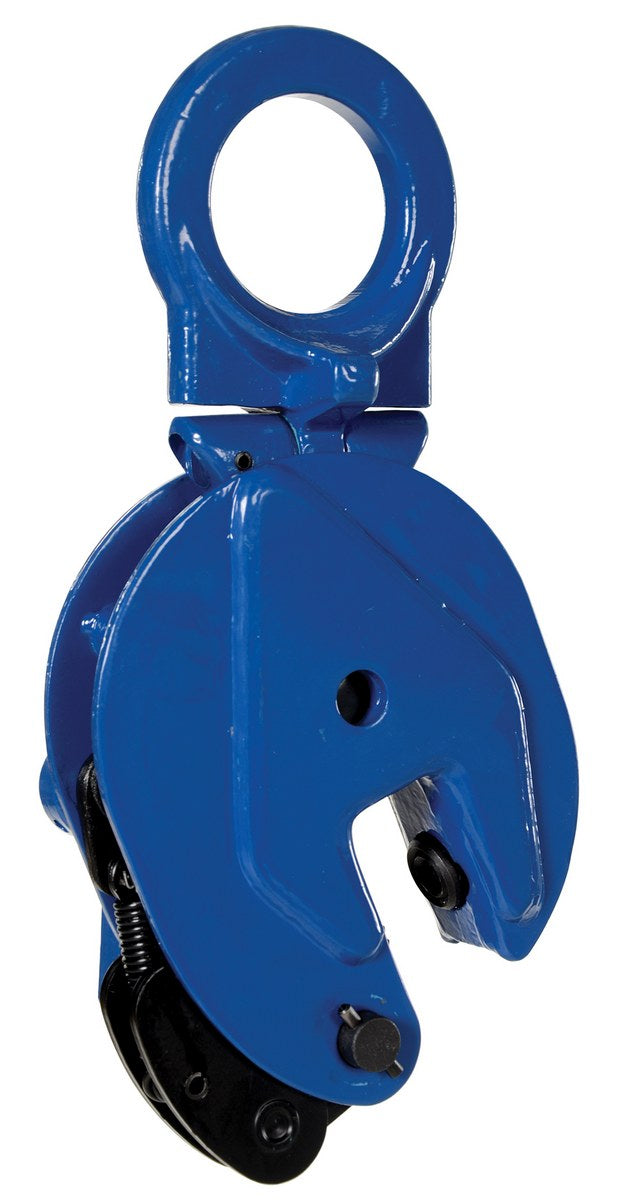

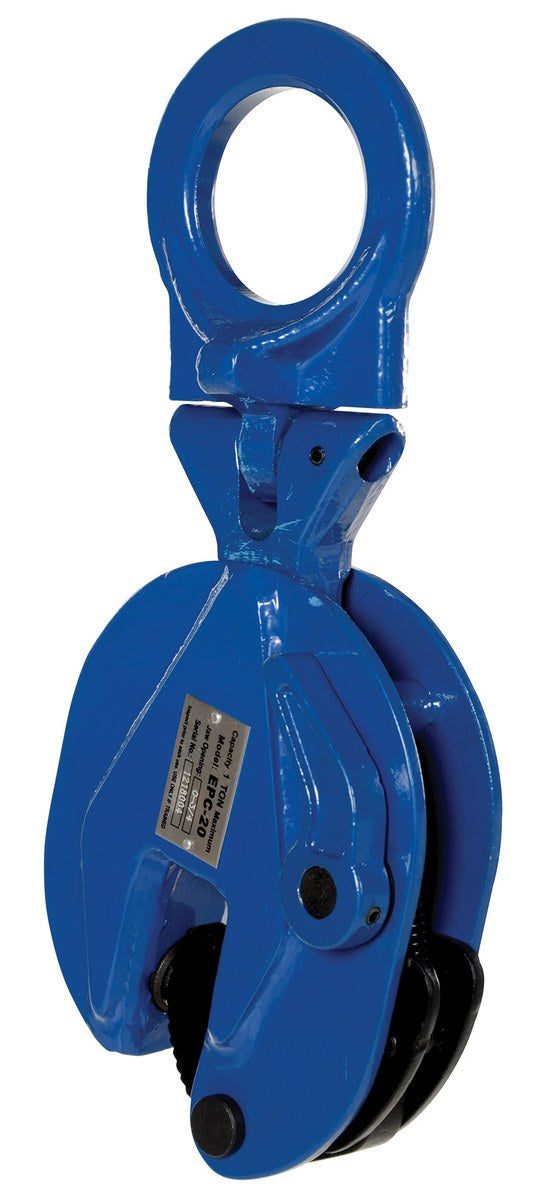

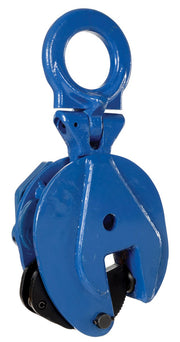

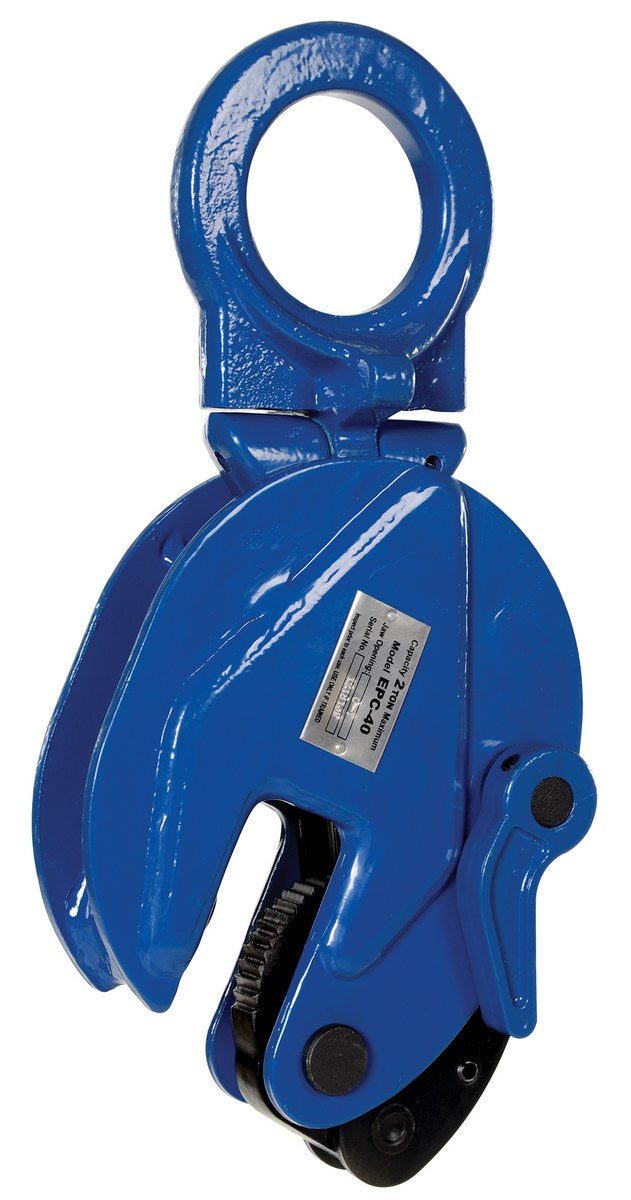

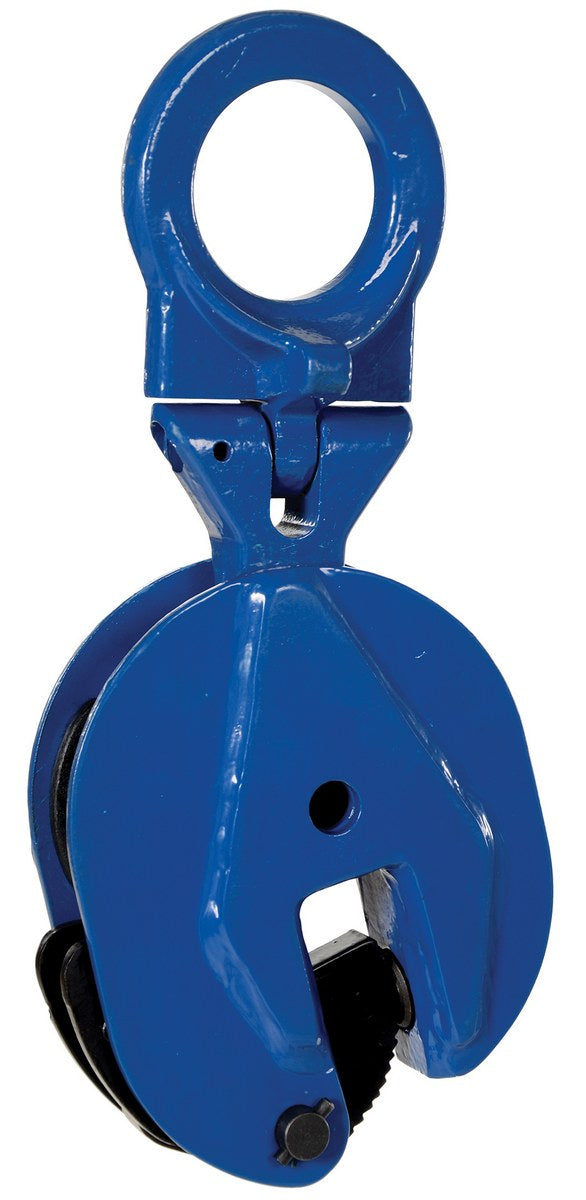

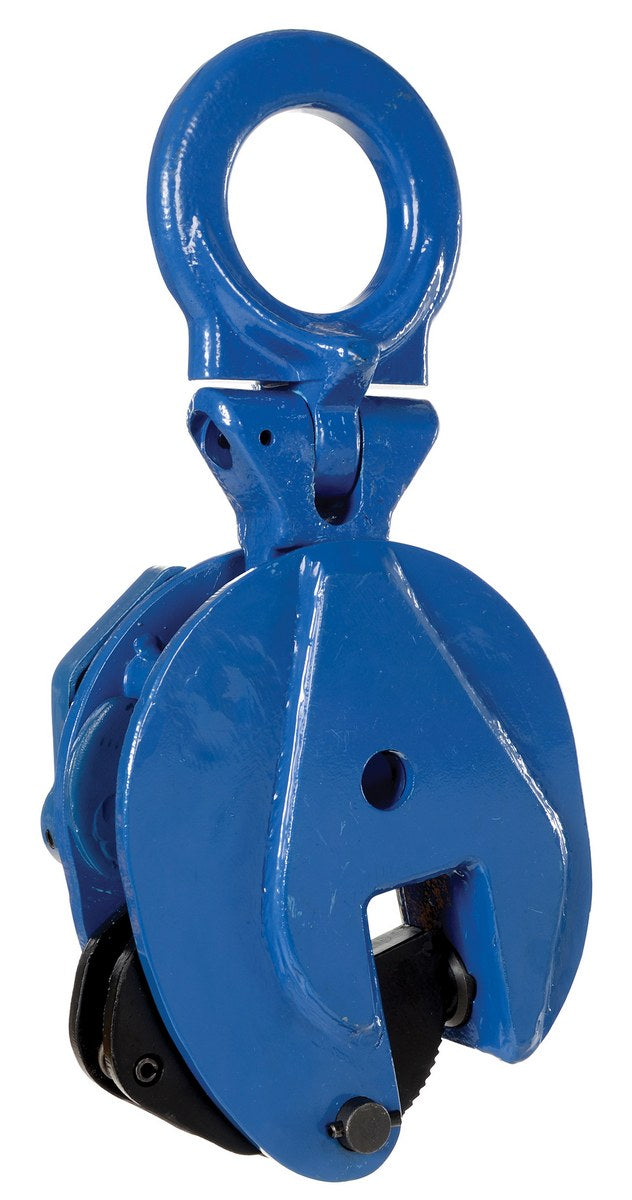

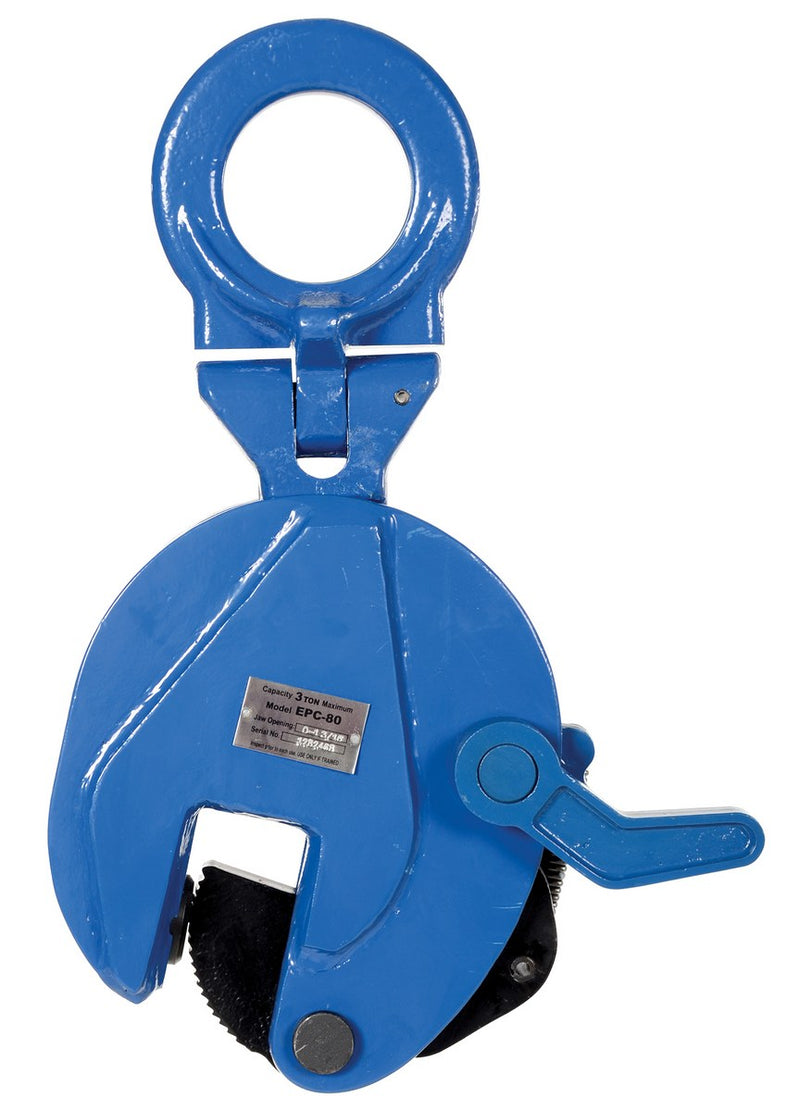

Capacities run from 1,000 lb to 6,600 lb across four models. The EPC-10 is rated 1K, the EPC-20 2K, the EPC-40 4K, and the EPC-80 6.6K. Match the clamp rating to the full weight of the plate being lifted, not an average across your jobs, and never exceed the rated capacity of the model you choose.
What do these clamps cost?
Prices range from $139.18 to $466.53 depending on rated capacity. The EPC-10 is $139.18, the EPC-20 is $225.57, the EPC-40 is $310.95, and the EPC-80 is $466.53. Cost scales with capacity, so pick the model that covers your heaviest plate rather than defaulting to the largest clamp in the line.
How many models are there, and how do they differ?

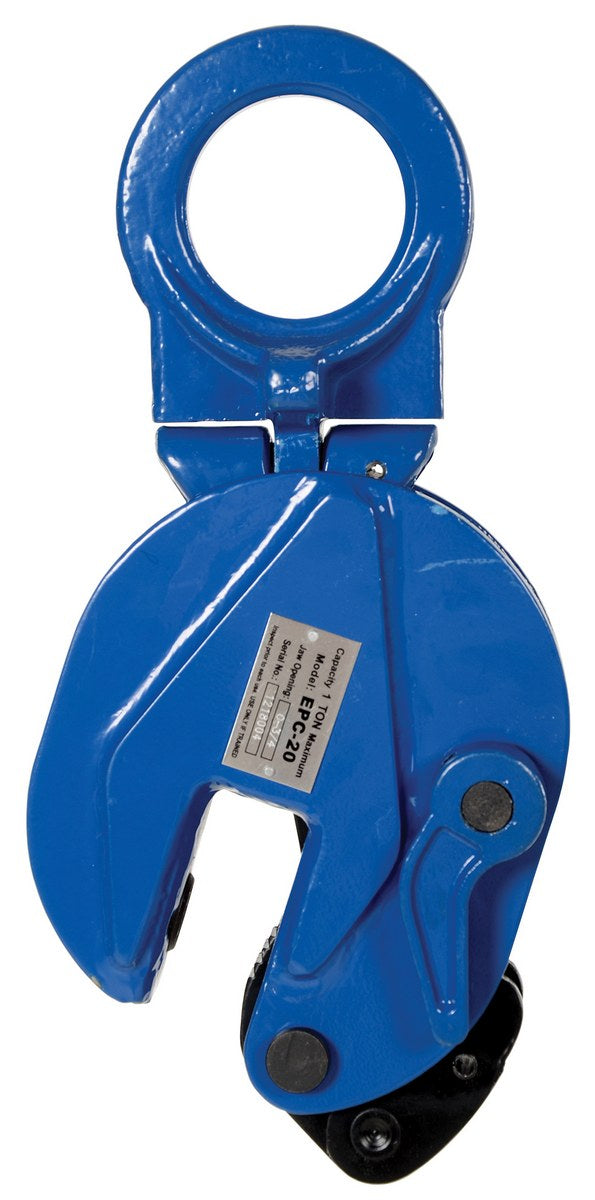

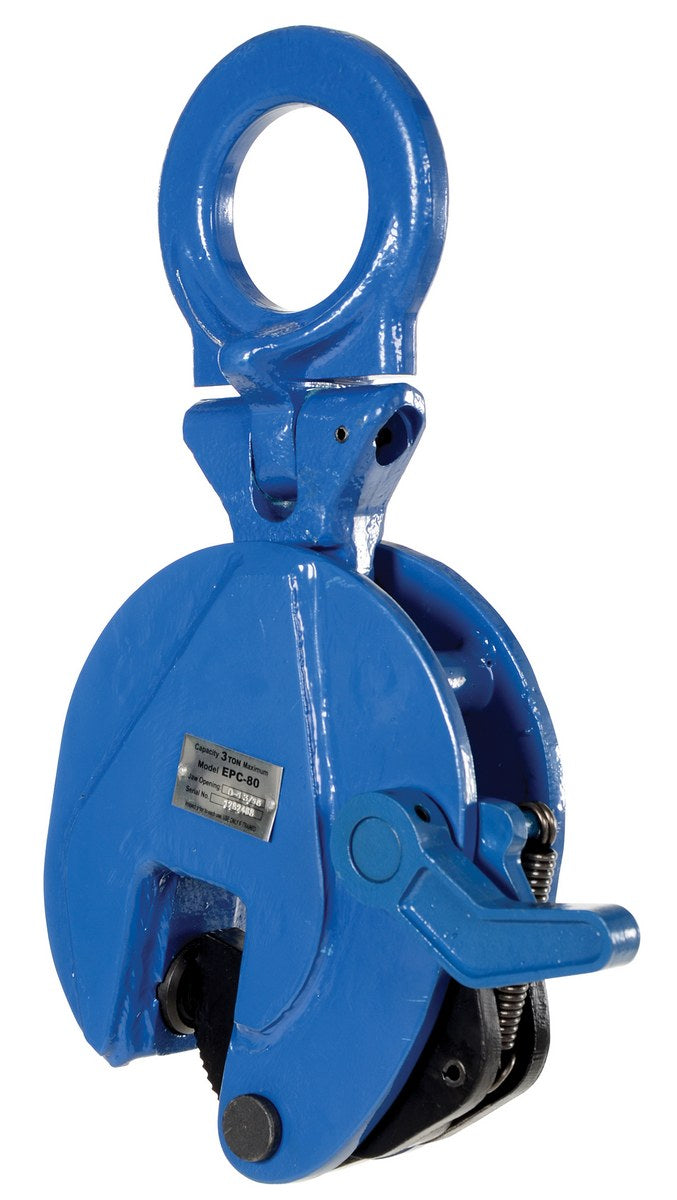

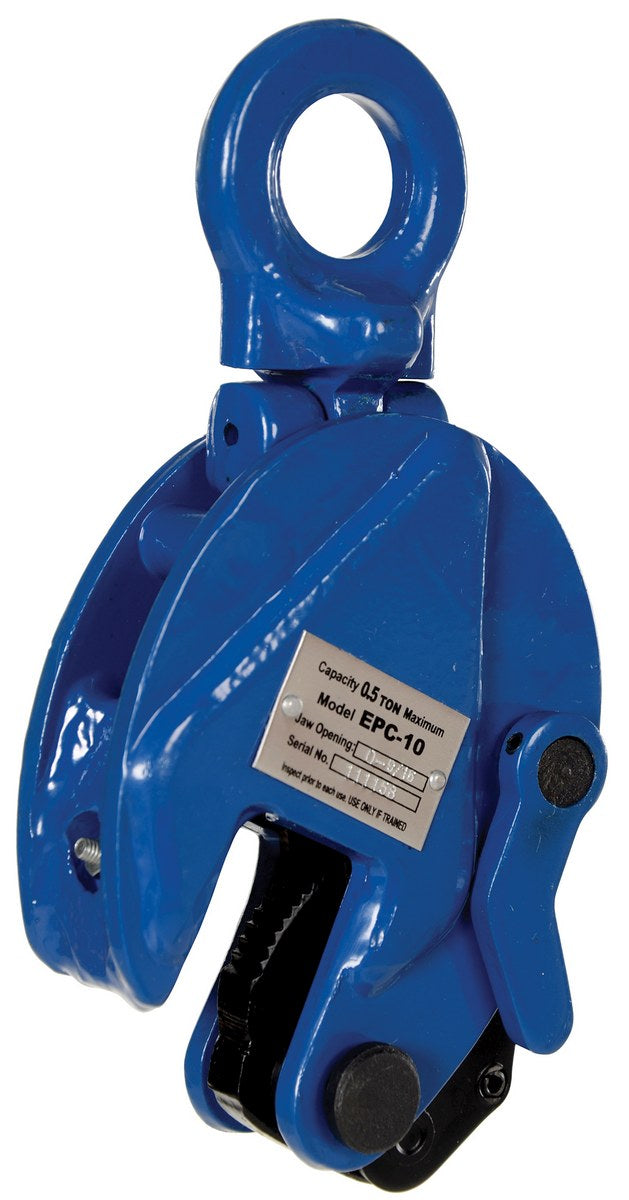

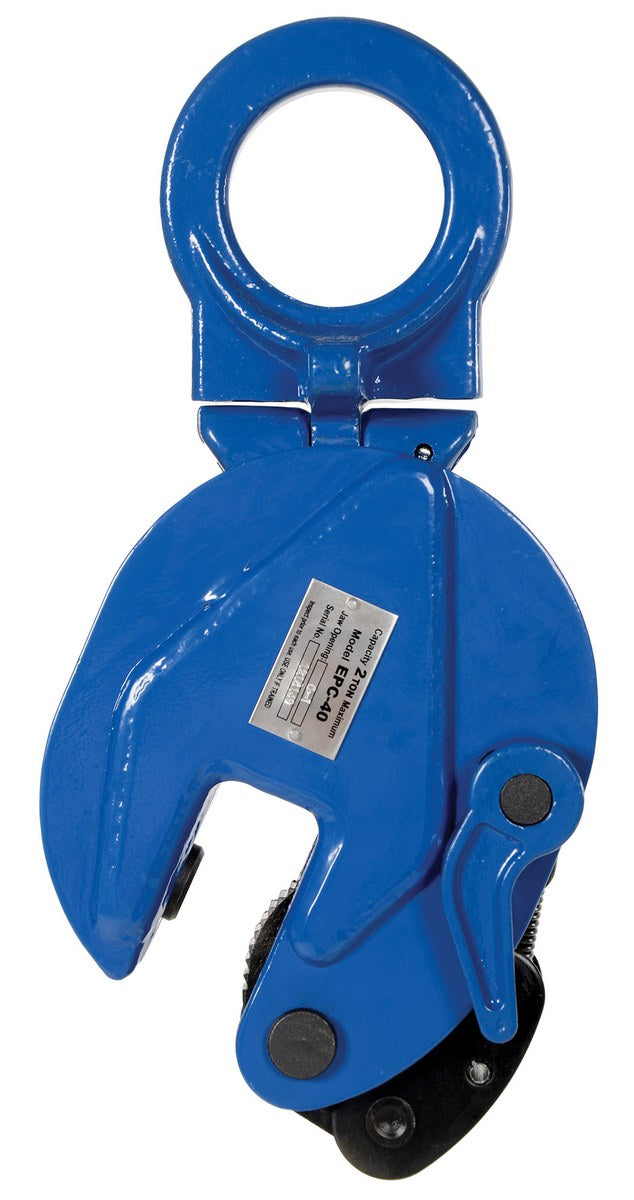

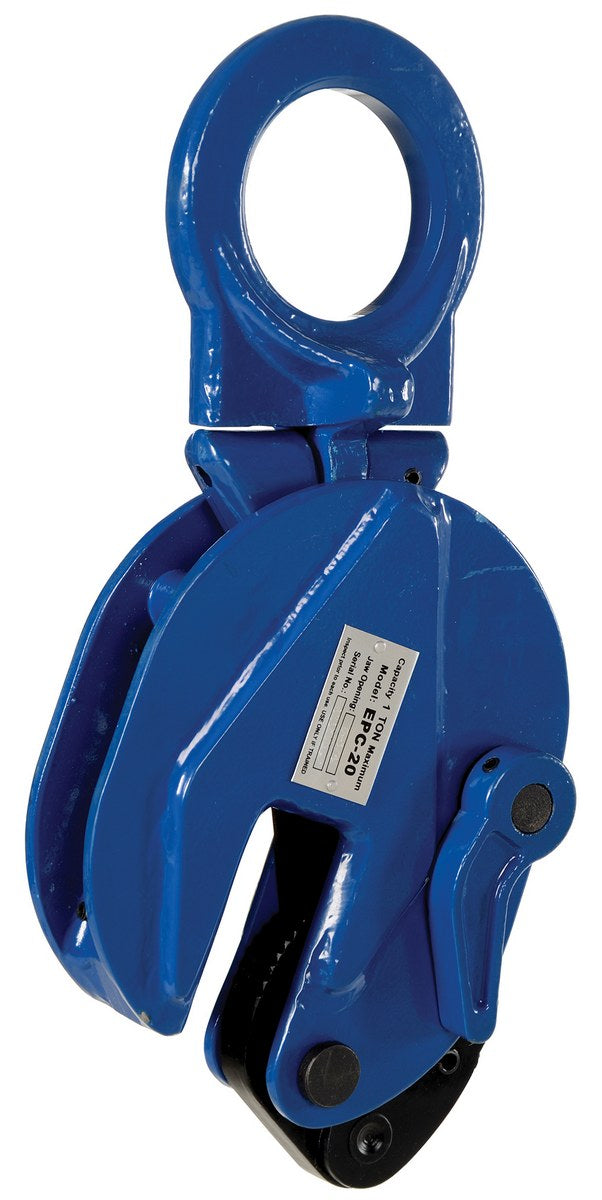

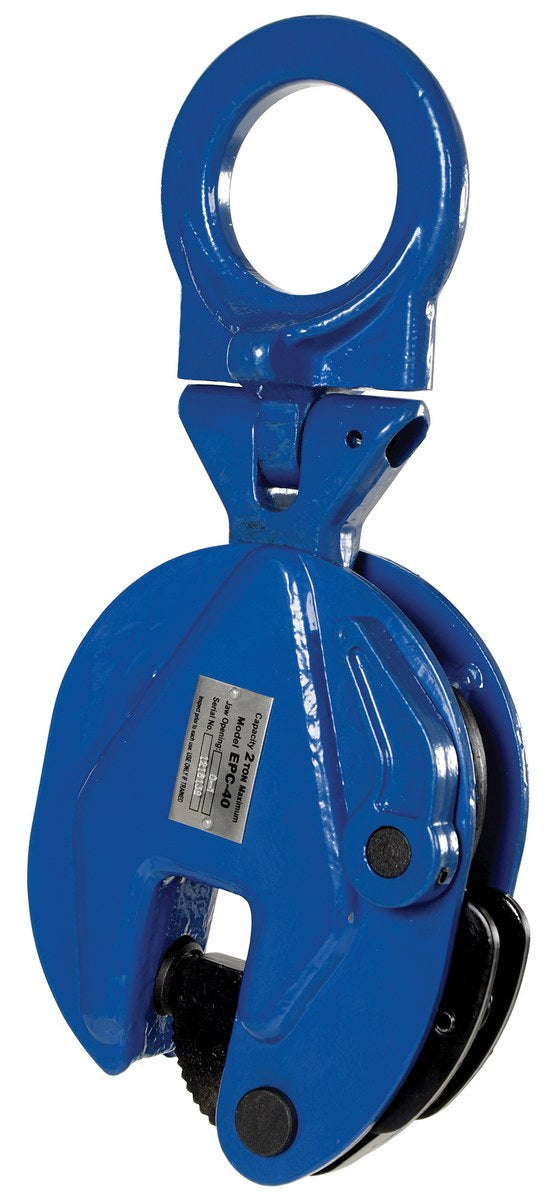

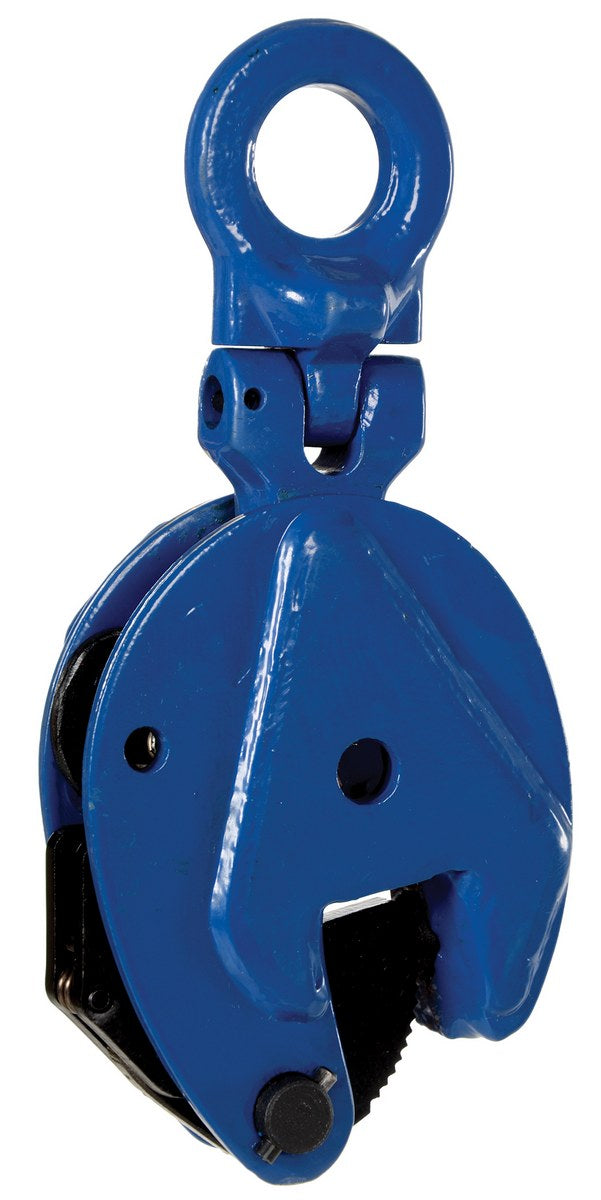

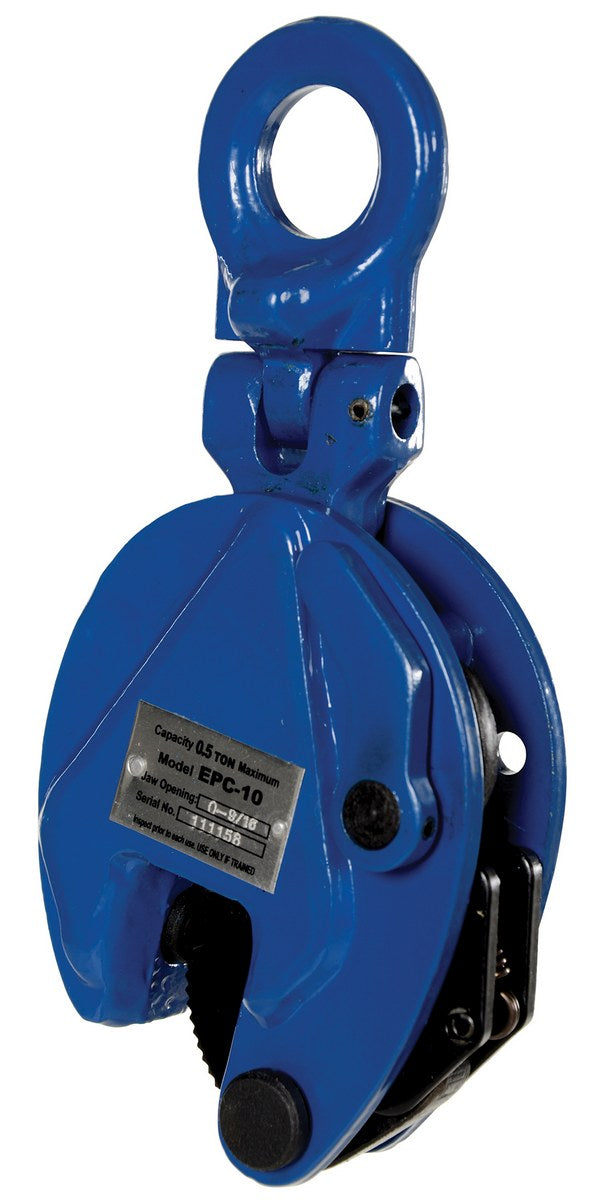

There are four models, separated by rated capacity: EPC-10, EPC-20, EPC-40 and EPC-80. Capacity and price are the differences published in the specifications for this line. Jaw opening and clamp dimensions are not listed here, so confirm those figures against your plate thickness before ordering rather than assuming a given model fits.
Who makes these clamps, and what warranty comes with them?
They are made in the USA by Vestil Manufacturing and carry a 1-Year Limited warranty. That warranty applies to the clamp as supplied. It is a manufacturer warranty, not a service contract, so normal wear from repeated clamping and any damage from overloading beyond the model's rated capacity fall outside what it covers.
What are these clamps used for, and when are they the wrong choice?
They are built to lift plate in the vertical position, clamping onto the plate edge for a hook, sling or crane pick. They are not the right tool if you need to lift plate flat or rotate it from horizontal to vertical, which calls for a different clamp style. Loads above 6,600 lb fall outside this line entirely.
How should a plate clamp be inspected before use?
Check the clamp before each shift and remove it from service if anything is wrong. Look at the jaw and cam gripping surfaces for wear or packed debris, check the pivot points move freely, and reject any clamp with a cracked body, deformed jaw or missing hardware. ASME publishes B30.20 covering below-the-hook lifting devices; no certification is stated in these specifications.
