What load capacities are available, and how do I pick one?

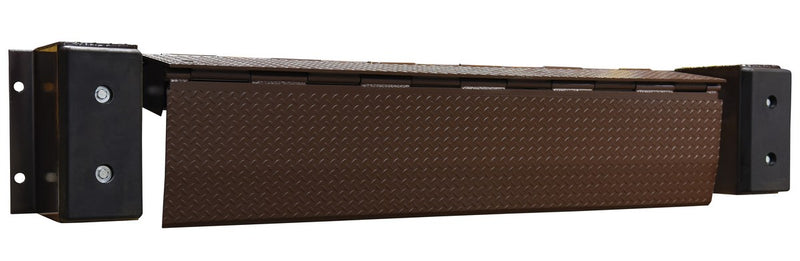

Capacity runs from 6,000 to 30,000 lb across the 32 models in this line. The smallest is the FM-0648 mechanical leveler at 6K, and 30K units include the FM-3072, PP-3072 and PE-3072. Pick a rating above the combined weight of the loaded pallet and the lift truck crossing the leveler, since both sit on the platform at once.
How are these levelers raised and lowered?

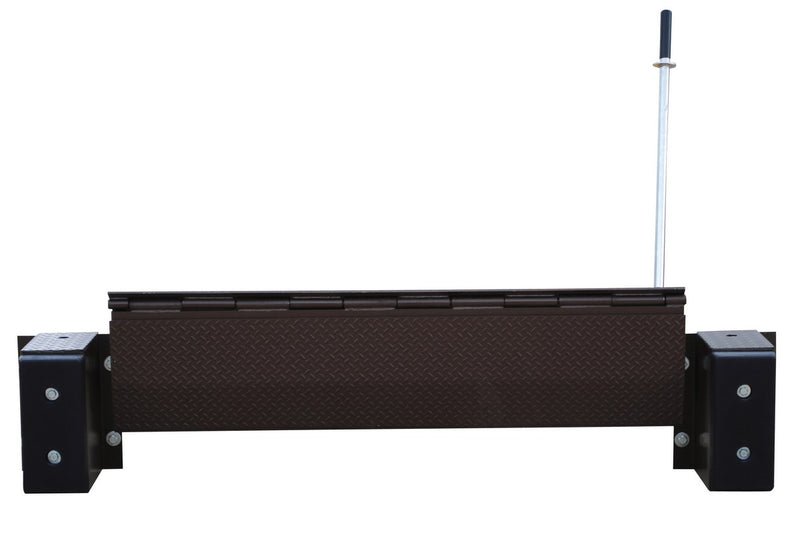

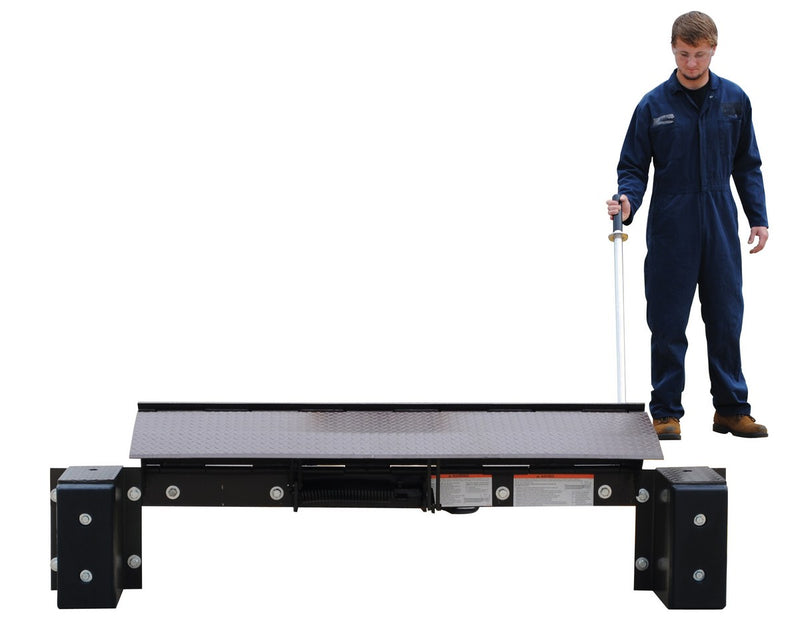

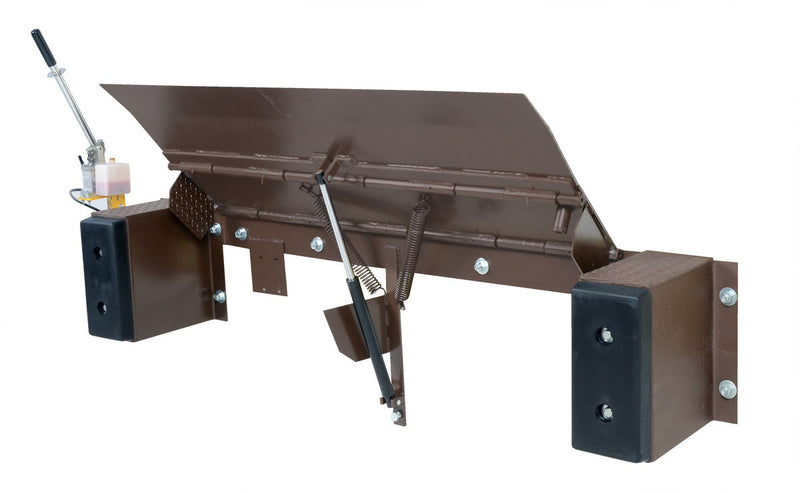

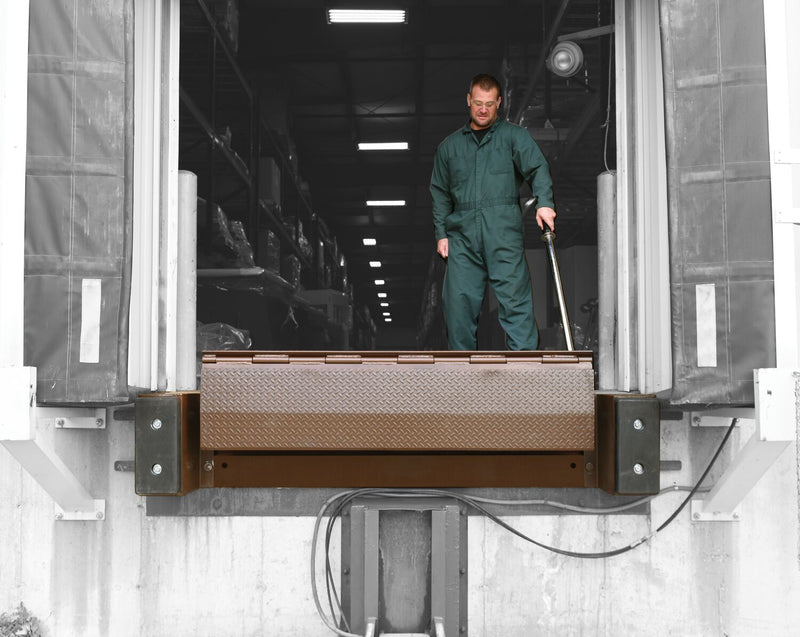

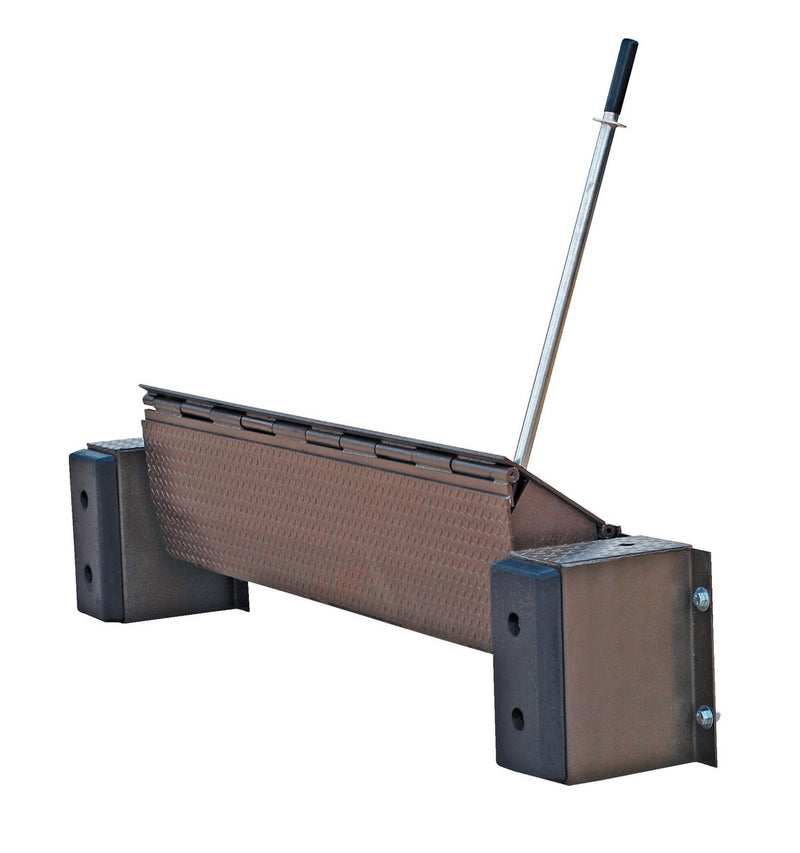

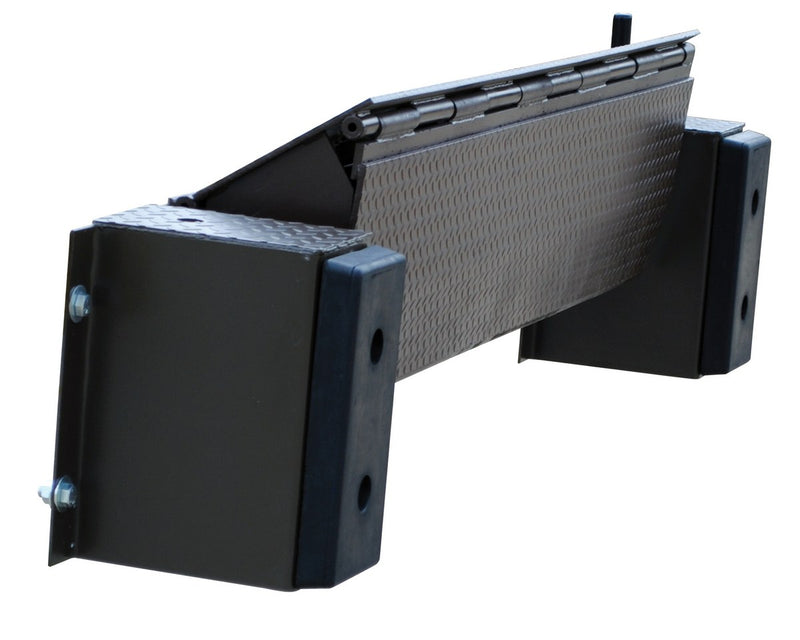

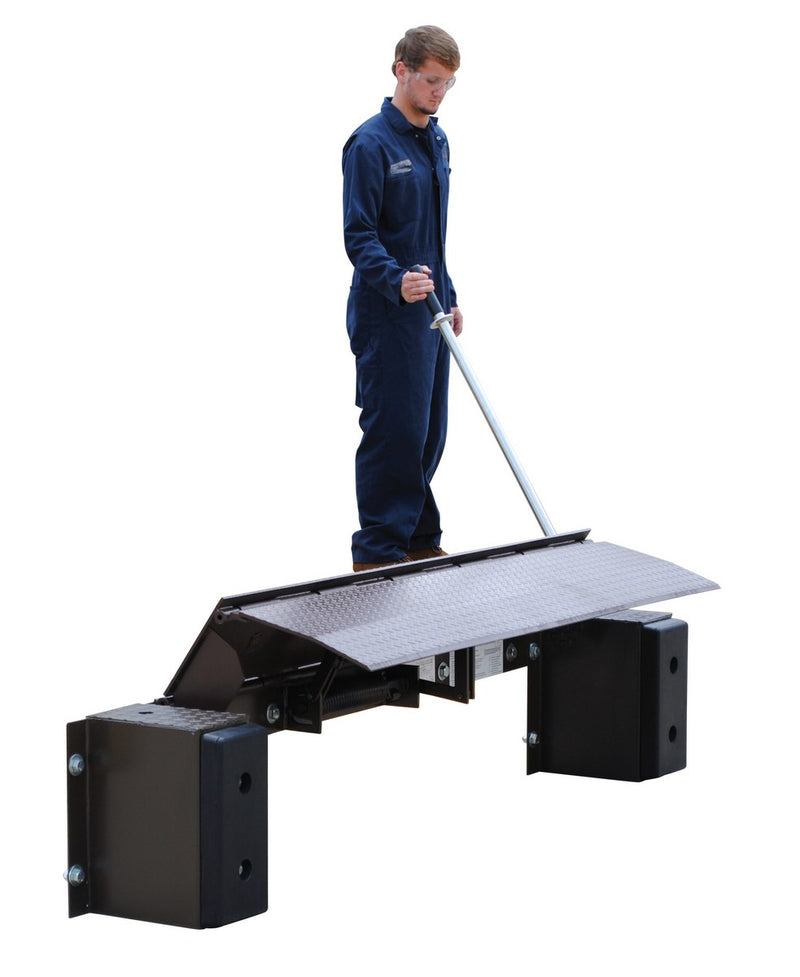

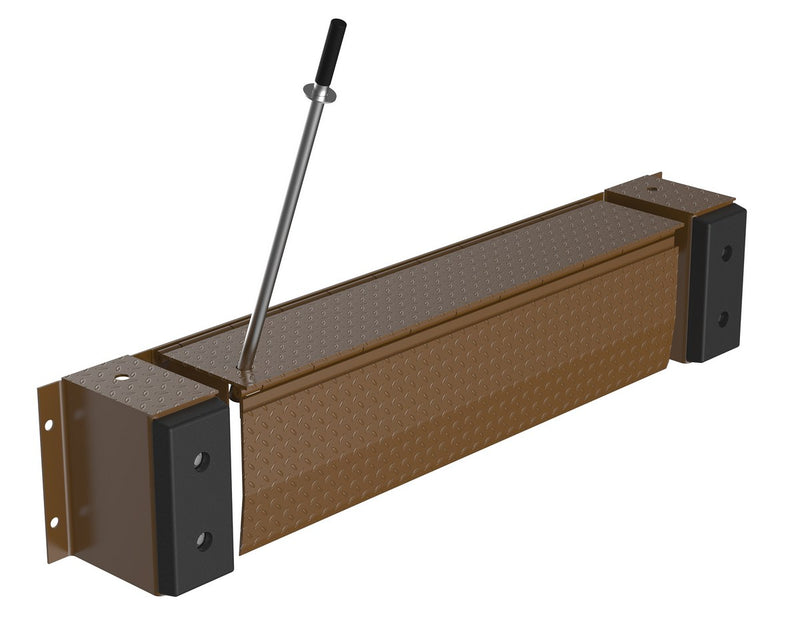

Three operating types are offered: mechanical, hand pump and electric. Mechanical units carry FM part numbers, such as the FM-2072 at $1,572.13. Hand pump units carry PP numbers, such as the PP-2072 at $1,897.14, and are raised with a manual hydraulic pump. Electric units carry PE numbers, such as the PE-2072 at $3,333.10, and need a power supply at the dock.
What platform sizes are there, and will one fit my dock opening?

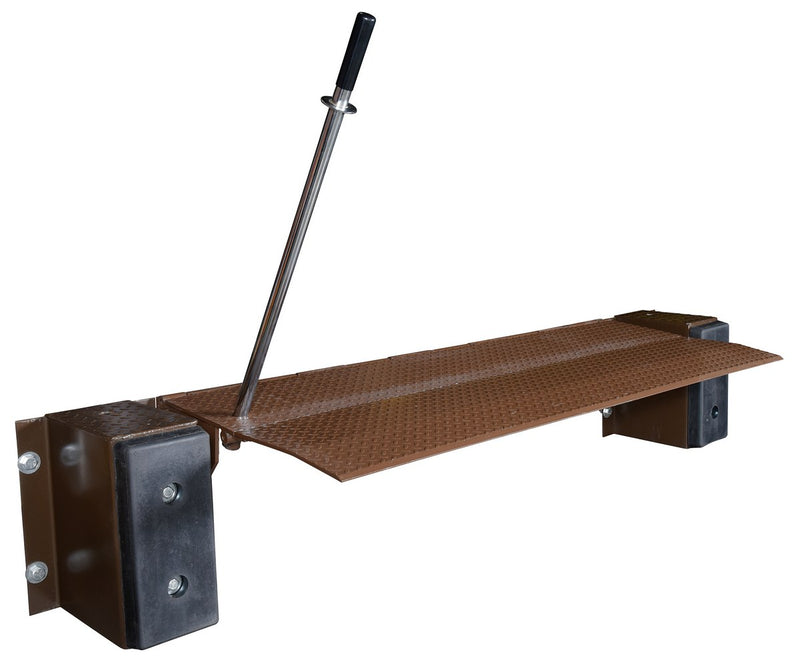

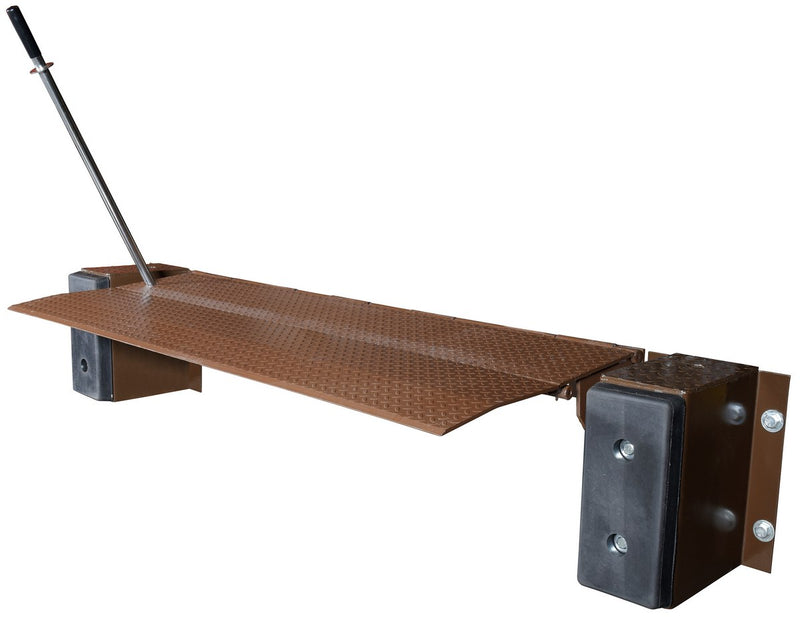

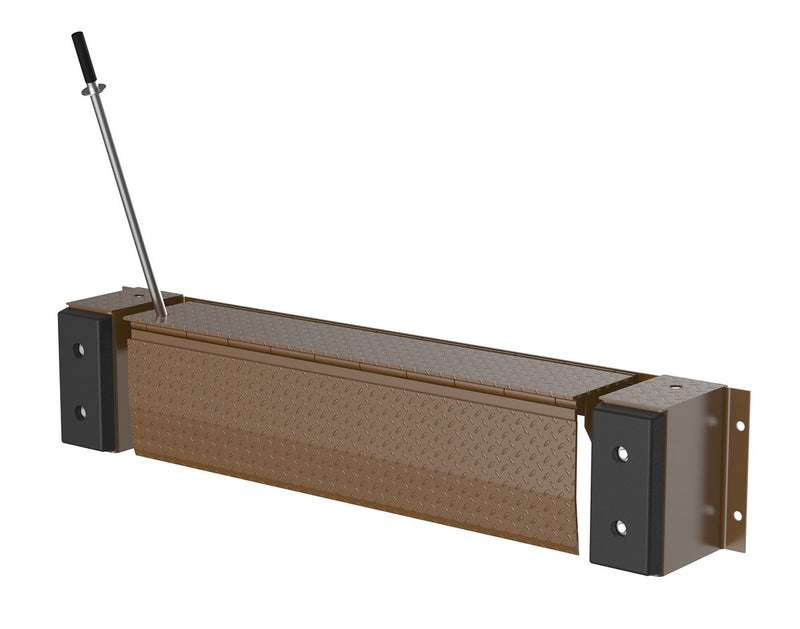

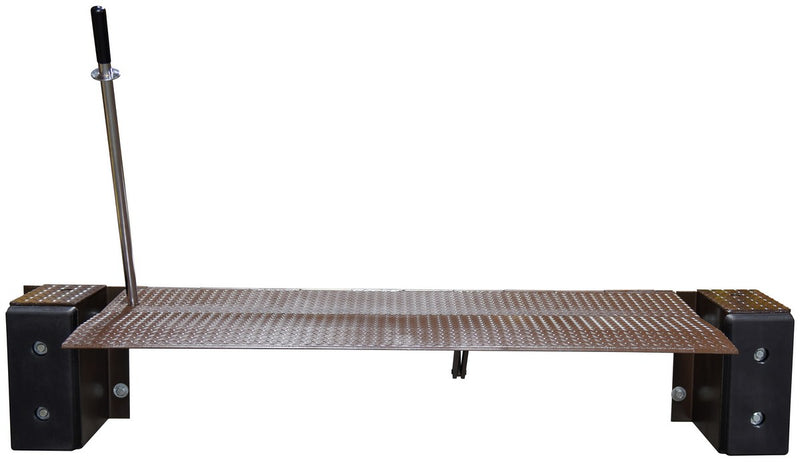

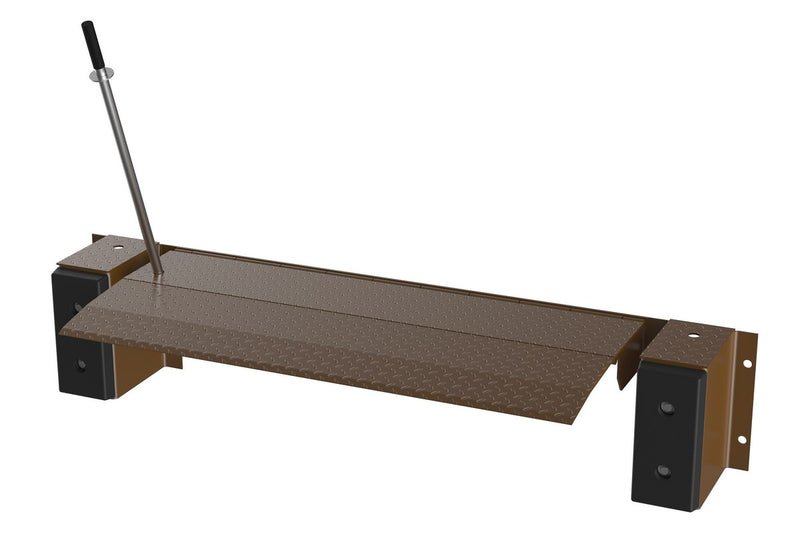

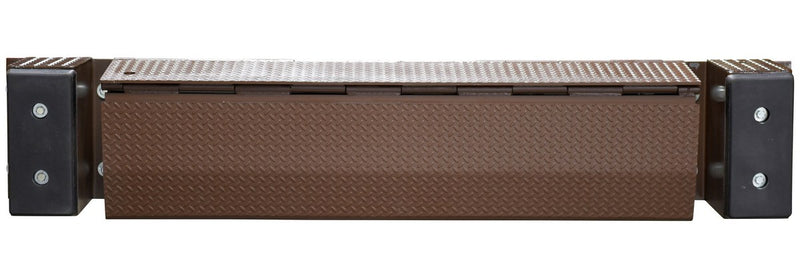

Platform size is stated in each model number. Lengths of 66, 72 and 78 inches are available across the mechanical, hand pump and electric ranges, for example the FM-2066, FM-2072 and FM-2078. Hand pump and electric models list a width as well: 27 inches on units such as the PP-2072, and 36 inches on units such as the PP-2572-36.
Are approach ramps included, or bought separately?
Approach ramps are separate line items, not part of the leveler price. Two options are offered: the RAMP-2 at 96" x 12" for $502.72, and the RAMP-4 at 96" x 24" for $974.23. The wider RAMP-4 gives a longer transition onto the leveler. Order the ramp with the leveler if your dock floor needs a graded approach to the platform.
Can an existing Edge-O-Dock leveler be converted to another operating type?

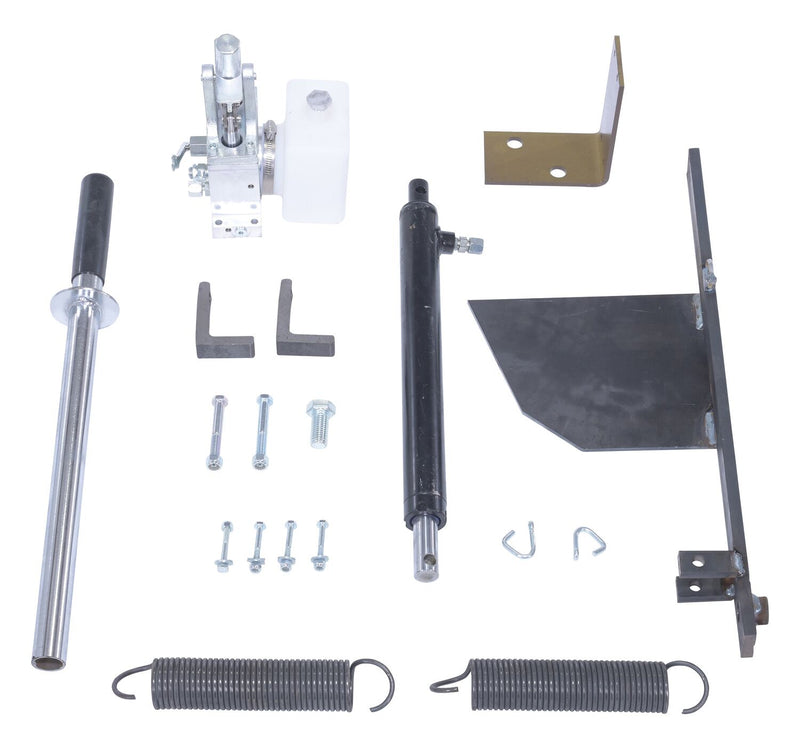

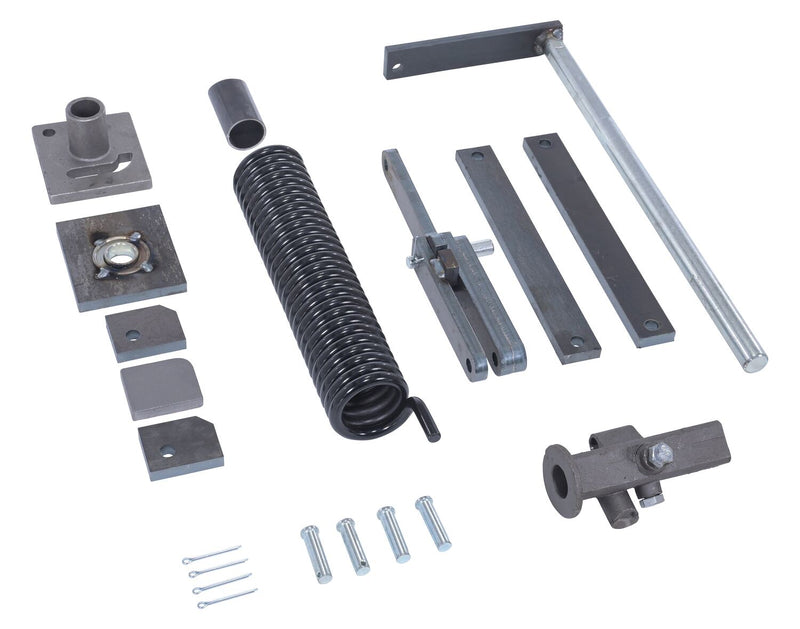

Yes, conversion kits are listed for this line. The FM-FM kit is $394.47, the FM-PP kit is $962.91, and the FM-PE kit is $1,873.52 for converting mechanical units. The PP-PE kit is $1,932.13 for converting hand pump units. Confirm your existing model number before ordering, since each kit is matched to a specific starting configuration.
Where are these made, and what warranty applies?
They are made in the USA by Vestil Manufacturing and carry a 1-Year Limited warranty. Prices across the 32 models range from $394.47 for the FM-FM conversion kit to $4,029.95 for the PE-3072, a 30K electric unit measuring 72 x 27 inches. Mechanical models sit at the lower end of that range and electric models at the upper end.
