Vestil Bench Top Tilters (BTT)

See more by Vestil

$340.68 - $1,733.21

$340.68

$340.68 - $1,733.21

$340.68

In stock

SKU BTT-6-36

Quantity

Product Overview

In short

Vestil Bench Top Tilters (BTT)

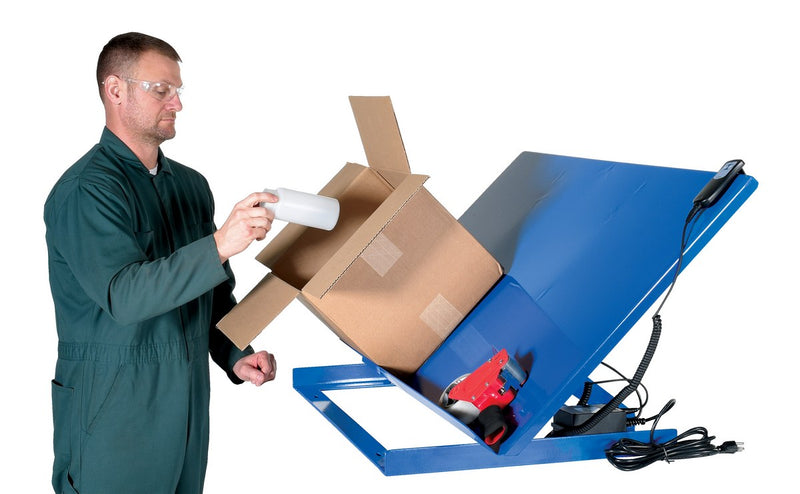

Bench Top Tilters increase efficiency and help reduce fatigue and potential injury by placing work at a better ergonomic angle. Loads up to 1,000 pounds may be tilted from 0 degrees to 45 degrees. Heavy-duty steel Bench Top Tilters can be attached to most industrial table tops, work benches and mobile lift tables of sufficient load capacity and surface size.

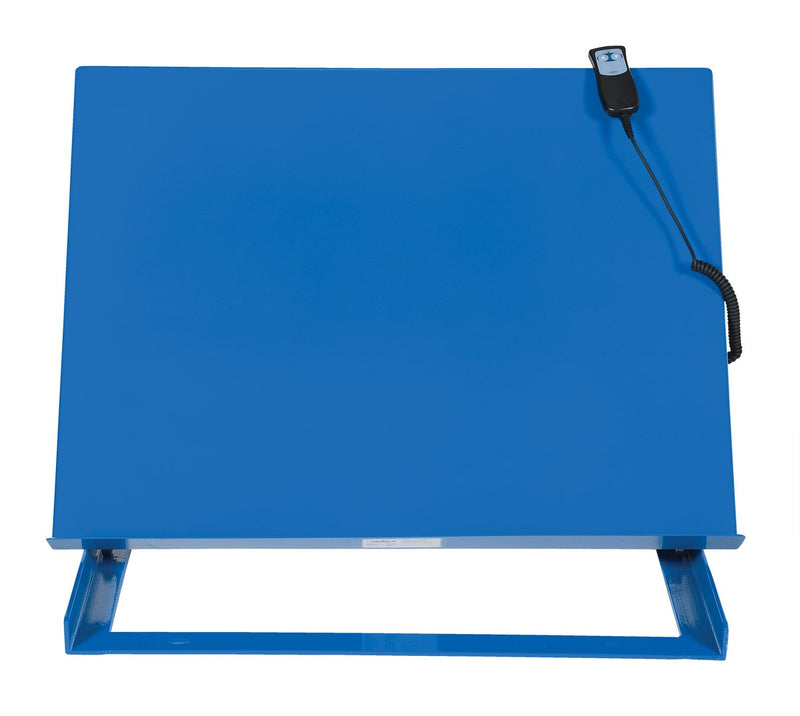

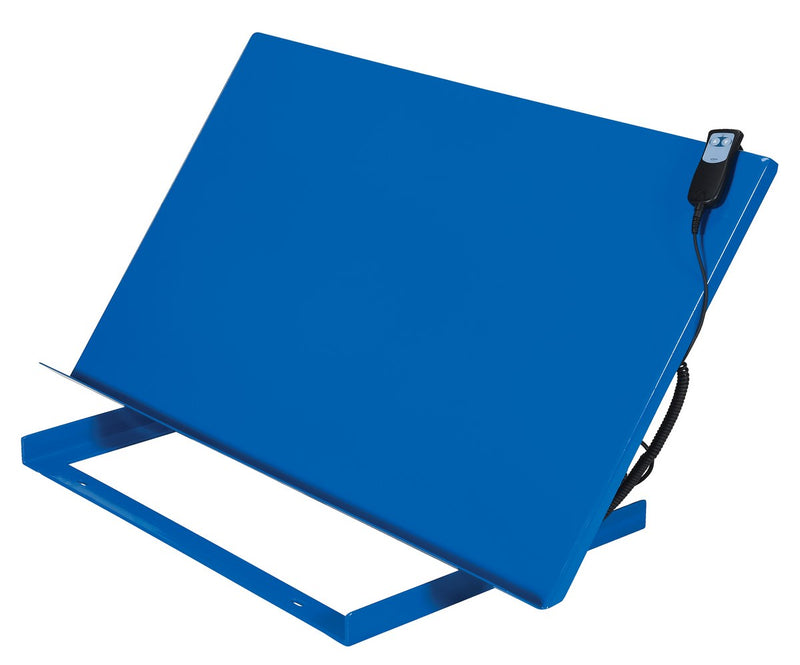

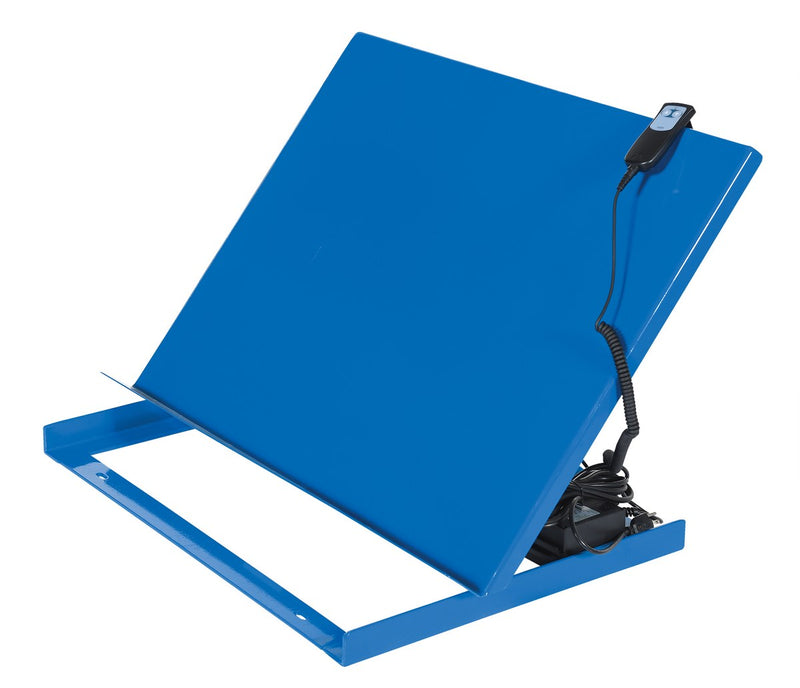

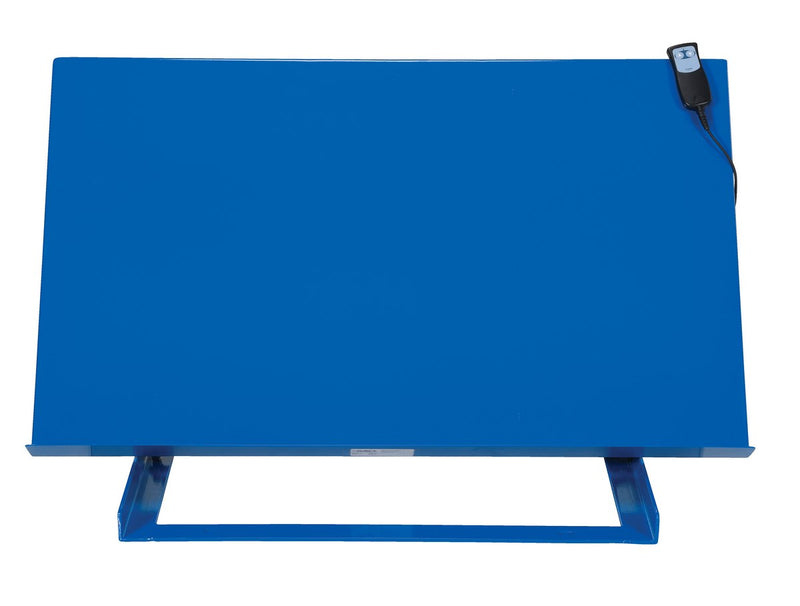

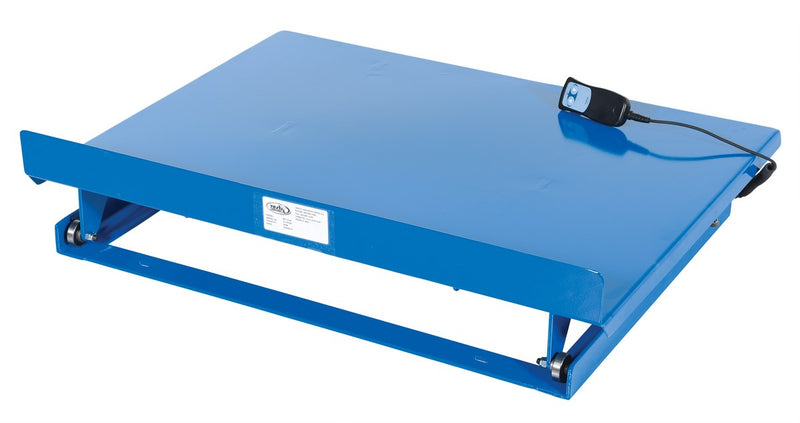

Pendent hand control with UP and DOWN push buttons is located on an 8 foot cord, maximizing operator convenience. Flat base plate with slotted holes for installation. Units are colored royal blue.

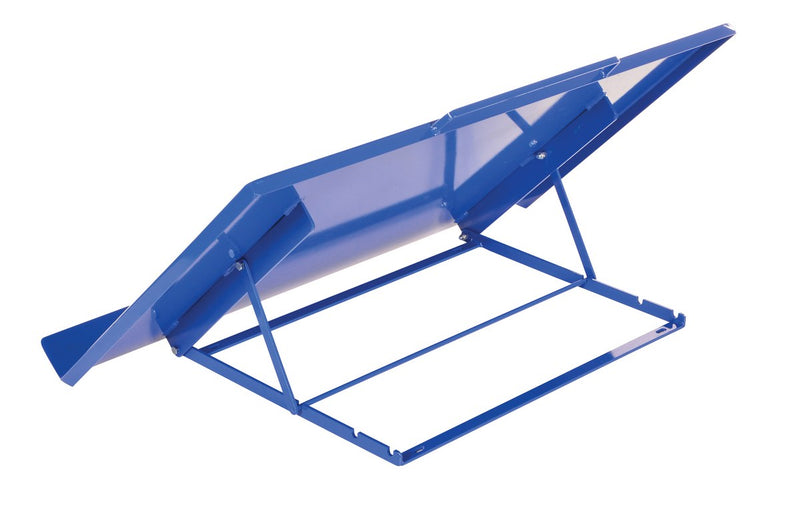

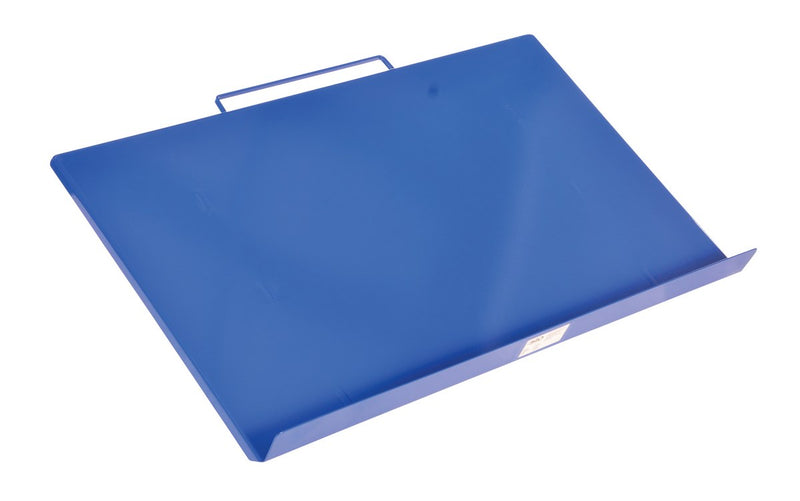

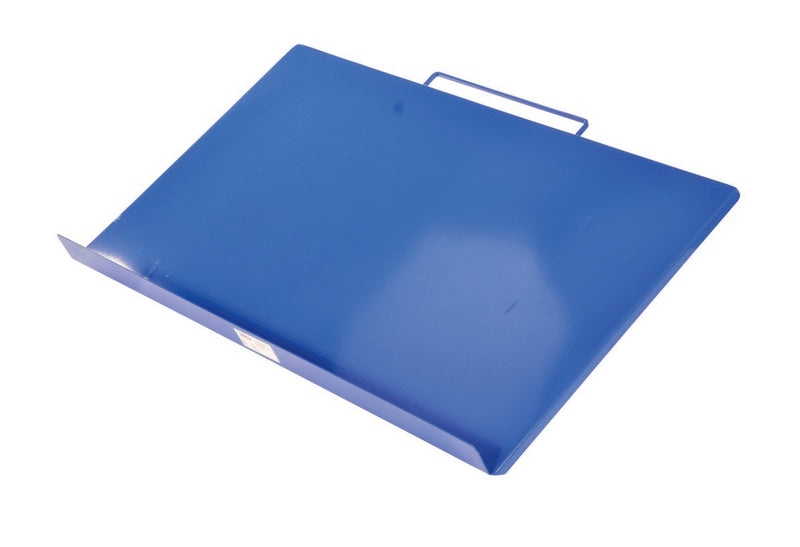

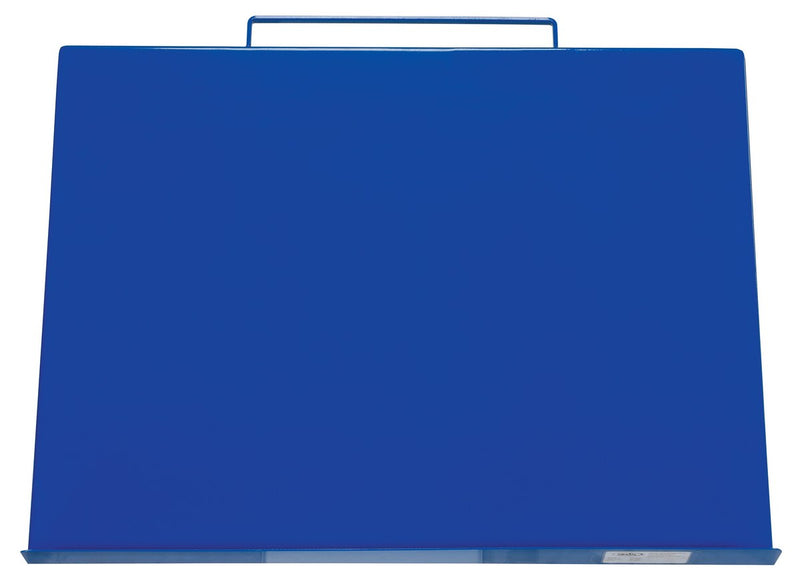

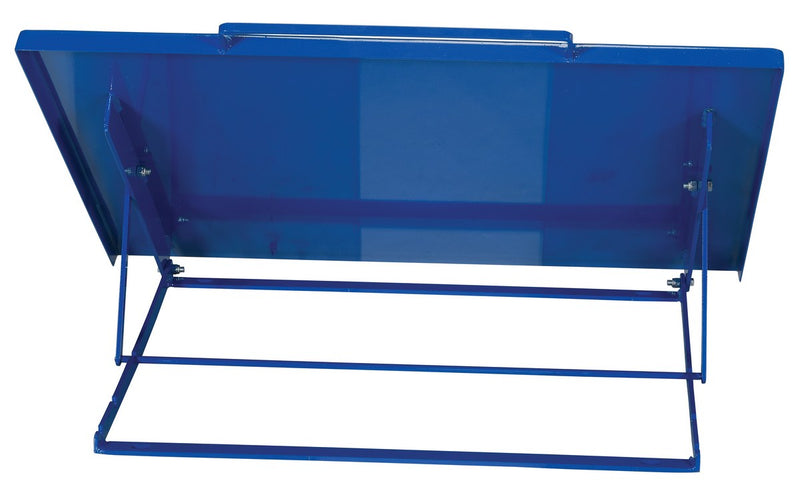

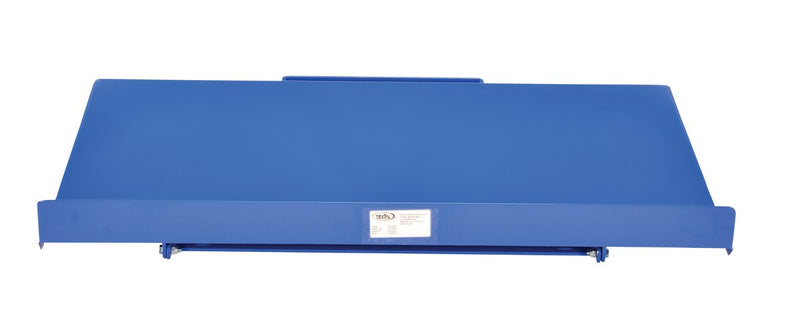

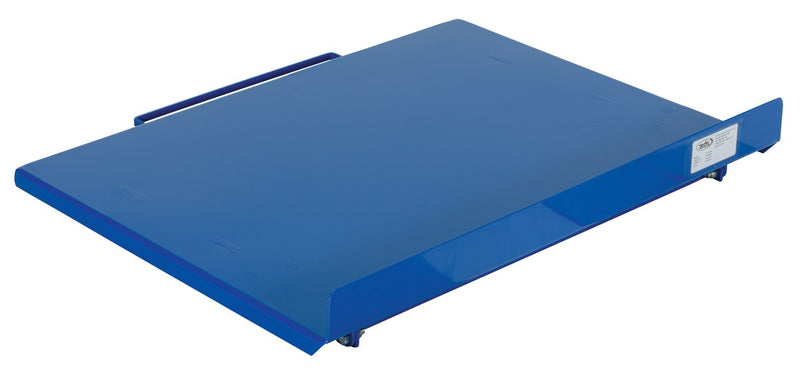

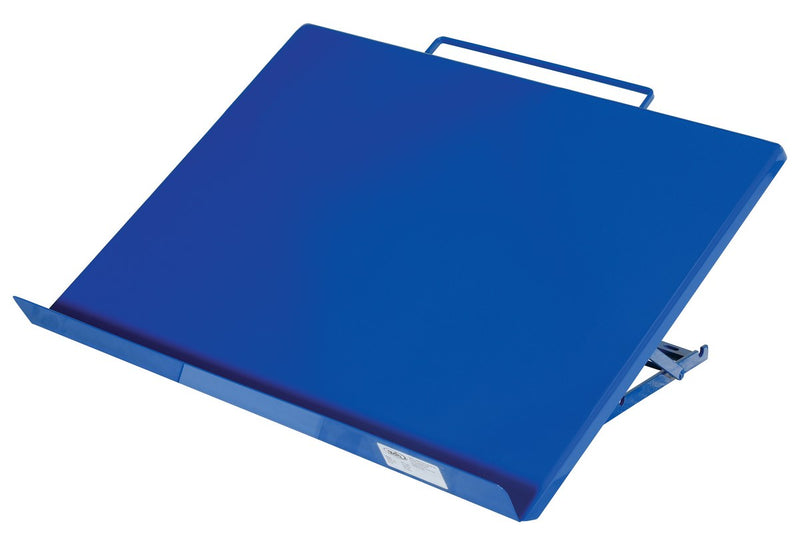

Manually Adjustable Tilter is used for applications requiring only occasional changes in tilt angle. Tilter is adjustable at 15, 30 or 45 degree angles. Three inch retaining lip prevents loads up to 600 pounds from sliding off platform.

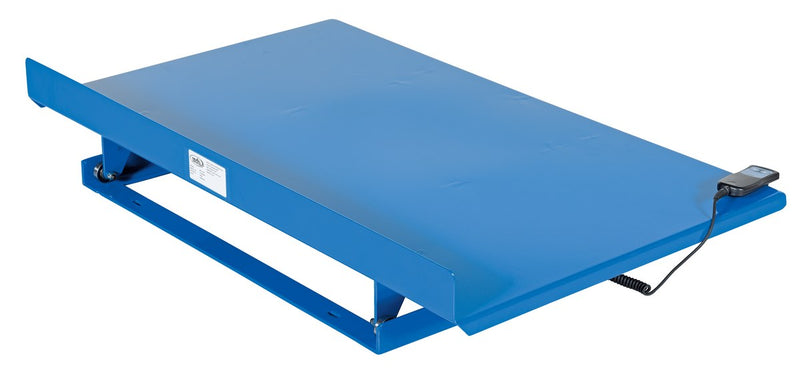

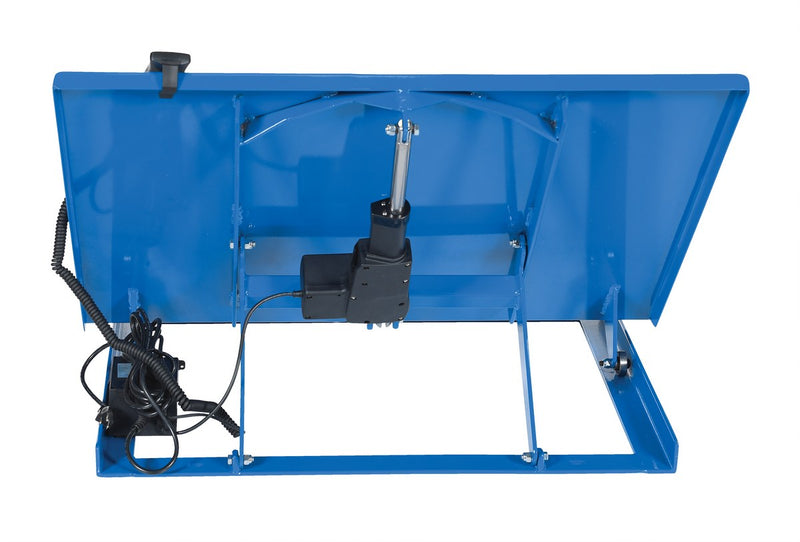

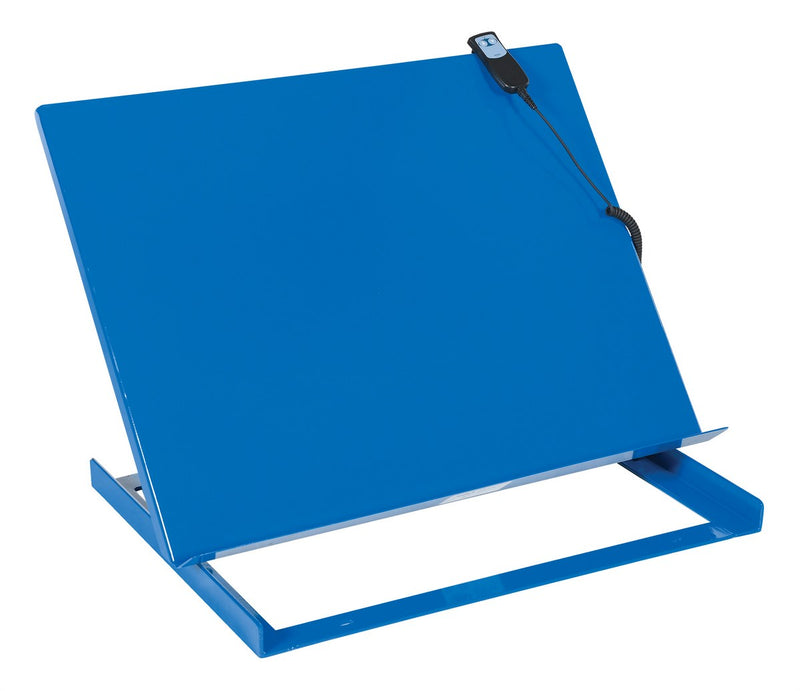

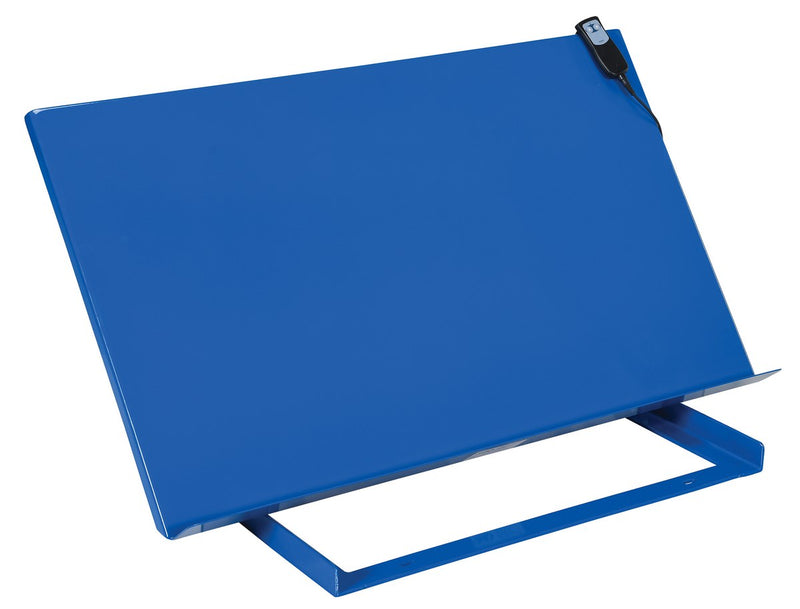

Electro-Mechanical Internal Operating Mechanism will lift a maximum of 500 pounds up to a 45 degree angle from the five inch lowered height. External Operating Mechanism will lift a maximum of 1,000 pounds up to a 45 degree angle from the five inch lowered height. The Bench Top Tilters have a sliding top which tilts within its own base frame.

The center of the platform is kept closer to the center of the base, providing for higher stability than the conventional hinge style tilter

Specification Table

Specification
Brand	Vestil
Type	Bench Top Tilters (BTT)
Available Models	4
Sizes	28"×46" – 28"×36"
Price Range	$340.68 – $1,733.21
Origin	Made in USA (Vestil Manufacturing)
Warranty	1-Year Limited

Model #	Description	Price
BTT-6-36	MANUAL BENCH TOP TILTER 600 LB 28X36	$340.68
BTT-6-46	MANUAL BENCH TOP TILTER 600 LB 28X46	$372.39
BTT-5-36	LINEAR BENCH TOP TILTER 500 LB 28X36	$1,710.05
BTT-5-46	LINEAR BENCH TOP TILTER 500 LB 28X46	$1,733.21

FAQ about this model

What weight can these bench top tilters hold?

Capacity is 600 lb on the two manual models (BTT-6-36 and BTT-6-46) and 500 lb on the two linear models (BTT-5-36 and BTT-5-46). Check your heaviest single load against the rating of the model you choose. If a load exceeds 500 lb, the manual models are the only option in this series.

What table sizes are available?

Two table sizes are offered: 28" x 36" and 28" x 46". Each size comes in both a manual and a linear version, which is how the four models break out — BTT-6-36, BTT-6-46, BTT-5-36 and BTT-5-46. Measure your bench depth against the 28" dimension, then pick the length that supports your load without overhang.

What is the difference between the manual and linear models?

They differ in actuation, capacity and price. The manual BTT-6 units are rated 600 lb and start at $340.68; the linear BTT-5 units are rated 500 lb and start at $1,710.05. The published specifications for this series list model description, capacity and table size only, so tilt angle and power requirements are not stated here.

How much does each model cost?

Prices run from $340.68 to $1,733.21 across four models. The manual units are BTT-6-36 at $340.68 and BTT-6-46 at $372.39. The linear units are BTT-5-36 at $1,710.05 and BTT-5-46 at $1,733.21. Moving up in table length adds little in either series, so the manual-versus-linear decision drives most of the cost.

Where are they made and what warranty applies?

They are made in the USA by Vestil Manufacturing and carry a 1-Year Limited warranty. The product data for this series does not cover freight, lead time, or certification to any specific standard. If you need any of those confirmed in writing, request them for the exact model number before issuing a purchase order.

Who are these tilters suited to, and who should look elsewhere?

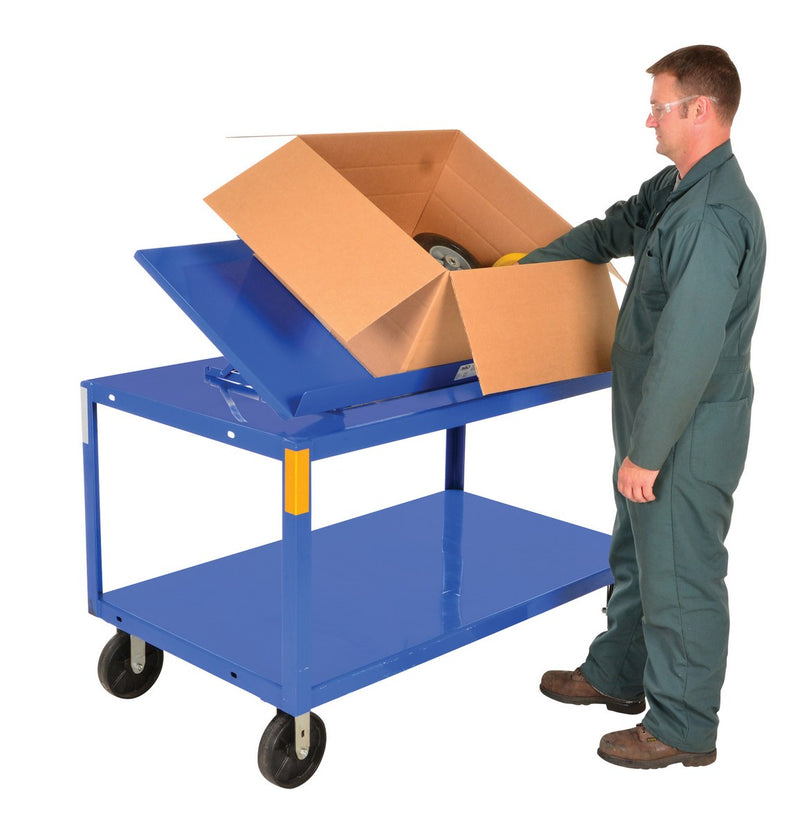

They suit bench-height work where a load or container needs to be tilted for easier access — parts bins, totes and fixtures that fit within the 28" x 36" or 28" x 46" table and stay under the 500 lb or 600 lb rating. They are not floor-level or pallet-handling equipment. Loads that overhang the table or exceed the rating need a different product.
