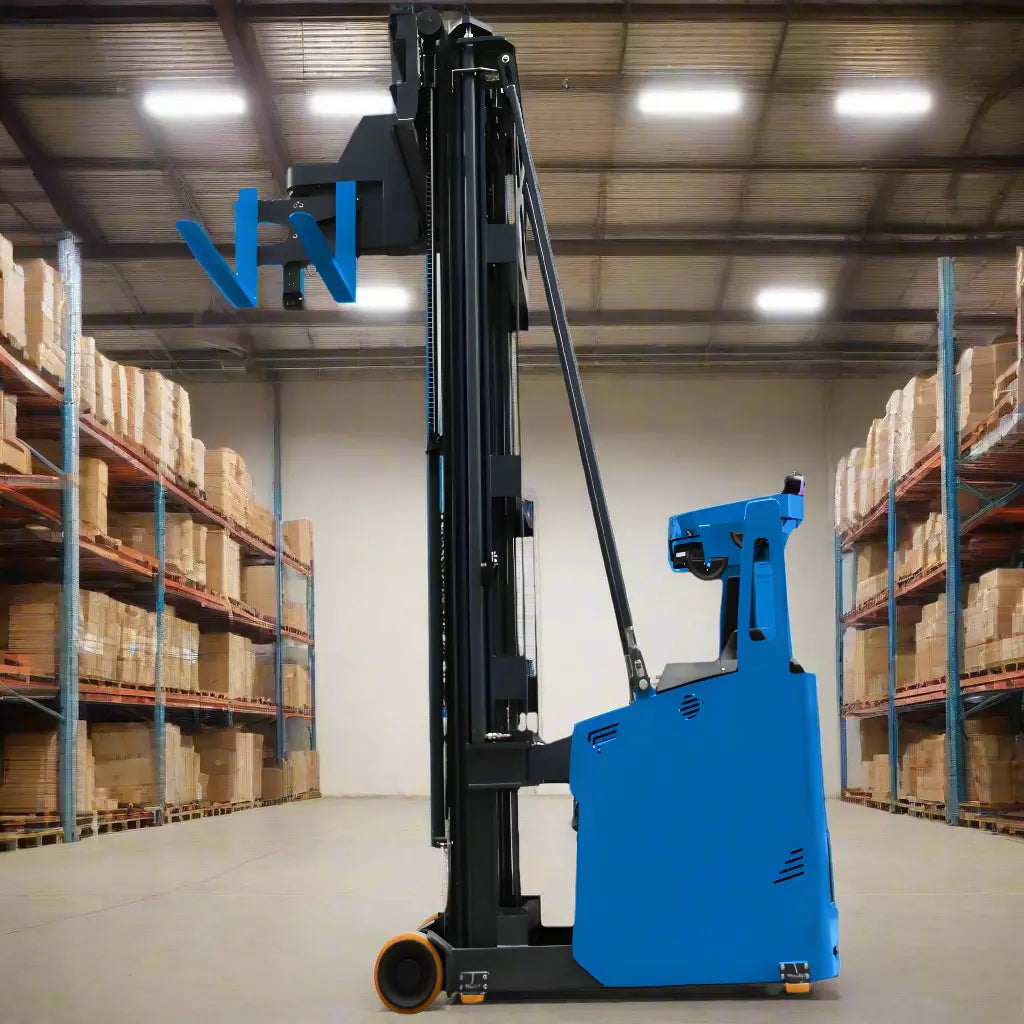

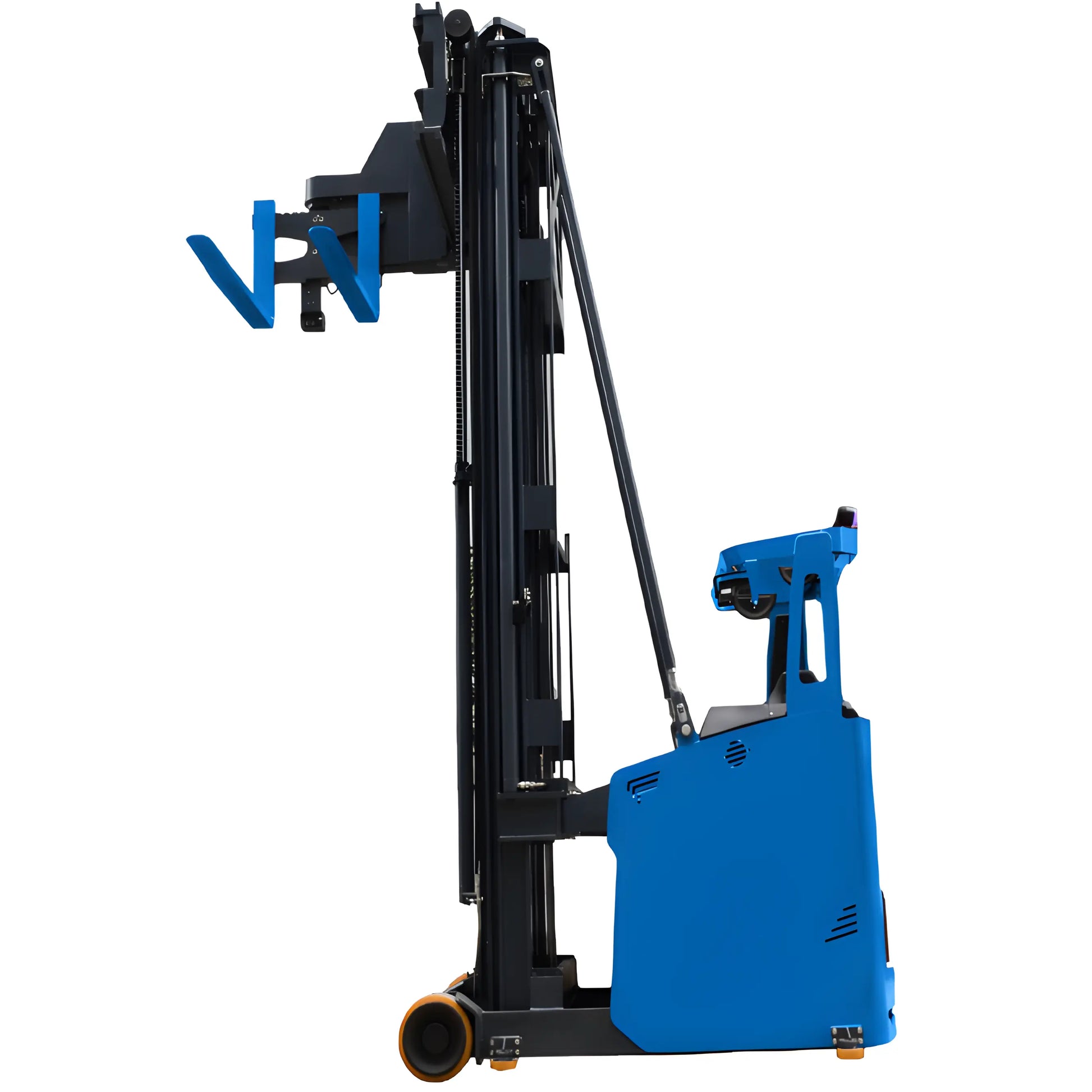

EOSLift LCA15 | Electric Stand-Up Turret Truck, 3306 lb Cap., 118.11" Lift Ht

Advanced LC15 3-Way Electric Pallet Stacker for Efficient Warehouse Use

The LC15 3 way electric pallet stacker features a powerful AC system, Curtis controller, compact design and is built for storage in tight spaces and efficiency in movement and storage.

Features:

• Load Capacity: 3306.93 lbs for dealing with heavy loads in industrial environments.
• High Power AC Mechanism: AC mechanism and Curtis controller have smooth, efficient, and Flat performance.
• Forks rotate 180° and shift left/right: Space-saving design, insert able in narrow aisles (minimum width 1600 mm).
• Quick & Powerful Lifting: Lifting speed of 11.81 in/s, lowering speed of 13.38 in/s.
• Safety Features: Enhanced safety features such as a parking brake with electromagnetic force, guide wheels, and video display.

Product Description:

The LC15 3-way electric pallet stacker is specifically designed to offer performance in tight spaces when it comes to high-density storage locations. It is a strong material handling tool, and the LC15 is ideal for use in warehouses, distribution centers, and manufacturing environments with limited spaces or specialized needs due to its heavy-duty construction, powerful AC system, and advanced features.

Heavy-Duty Application Load Capacity Maximization

With a rated load capacity of 3306.93 lbs, the LC15 is suited to tough operations such as lifting and moving large, heavy loads, freeing up workers and plant equipment for more intensive activities. This allows the stacker to perform a multitude of tasks, including but not limited to stacking pallets and loading large crates without compromising on work rate.

Ideal for high-rise stacking or transportation of pallets in a horizontal position, the LC15 offers the strength and durability you need for rugged material handling environments.

Smart AC System for Enhanced, Efficient Functionality

Using a Curtis controller, the LC15 boasts a cutting edge 48V AC electrical system operated by a maintenance free setup. This configuration achieves superior, effective operation with increased accuracy for faster response and improved accuracy. The system also contributes to increased uptime, since AC motors are used in a low-maintenance design that affords long service life.

Narrow Aisles Space-Saving Equipment

LC15 has been purposely built to operate in tight spaces, providing high levels of agility in narrow aisles. design philosophy and ergonomic The most important part is the pallet stacker can rotate the forks 180°and move to left and right, with no body turning. The LC15 thus runs a minimum 1600 mm net channel width which means that the available warehouse space is not wasted.

Zonal Lift and Dropping for Increased Performance

The LC15 is also fitted with a heavy-duty lifting motor that enables a high lifting speed of 11.81 inches per second (loaded) and 13.38 inches per second in lower speed. They will also be capable of lifting and lowering at high speeds, making for more efficient movement of materials and shorter task times, and ultimately improving throughput in the warehouse.

The LC15 can also stack and retrieve pallets from higher positions, with a maximum lift height of 118.11 inches, allowing it to reach storage racks many feet up. This ability to lift quickly and safely high up enhances the speed and efficiency of warehouse operations.

Strong Safety and Visibility Features

The operator safety features built into the LC15 are what sets it apart as well. The electromagnetic parking brake ensures our stacker does not move when not in use. Guide wheels are also fitted to the stacker to stabilize the machine and allow operators to work in narrow aisles with increased ease.

Additionally, to increase operator safety, the LC15 is equipped with a video display system for real-time visibility to the environment surrounding the driller operator. It helps in accident prevention, providing operators with clearer visibility in tight or crowded spaces.

The LC15 also features warning lights to notify surrounding employees of stacker operation, increasing safety in active warehouse environments.

DURABILITY AND LONG-TERM PERFORMANCE

The LC15 is made of durable materials and built to endure the wear and tear of a warehouse environment. Heavy-duty PU wheels allow smooth handling ability and improves wear and tear resistance and extends service life under high-load conditions. The stable 3H channel steel mast structure further increases the strength of the stacker, with its height reaching up to 6.5 meters, ensuring that the load remains stable.

Maintenance and battery management made easy

Battery efficiency is the main focus of the LC15, with crossover and easy-to-or-in-place replacement parts that maximize minimum downtime. The smart charger saves battery life and the side pull battery replacement system allows for fast and easy battery swaps. The stacker also includes a battery replacement trolley so that maintenance downtime is minimized

On top of that, the regenerative braking system of the LC15 system reduces wear on braking components, increasing overall energy efficiency.
