Katool KT-M120 Two Post Clear-floor Vehicle Lift 12,000lbs

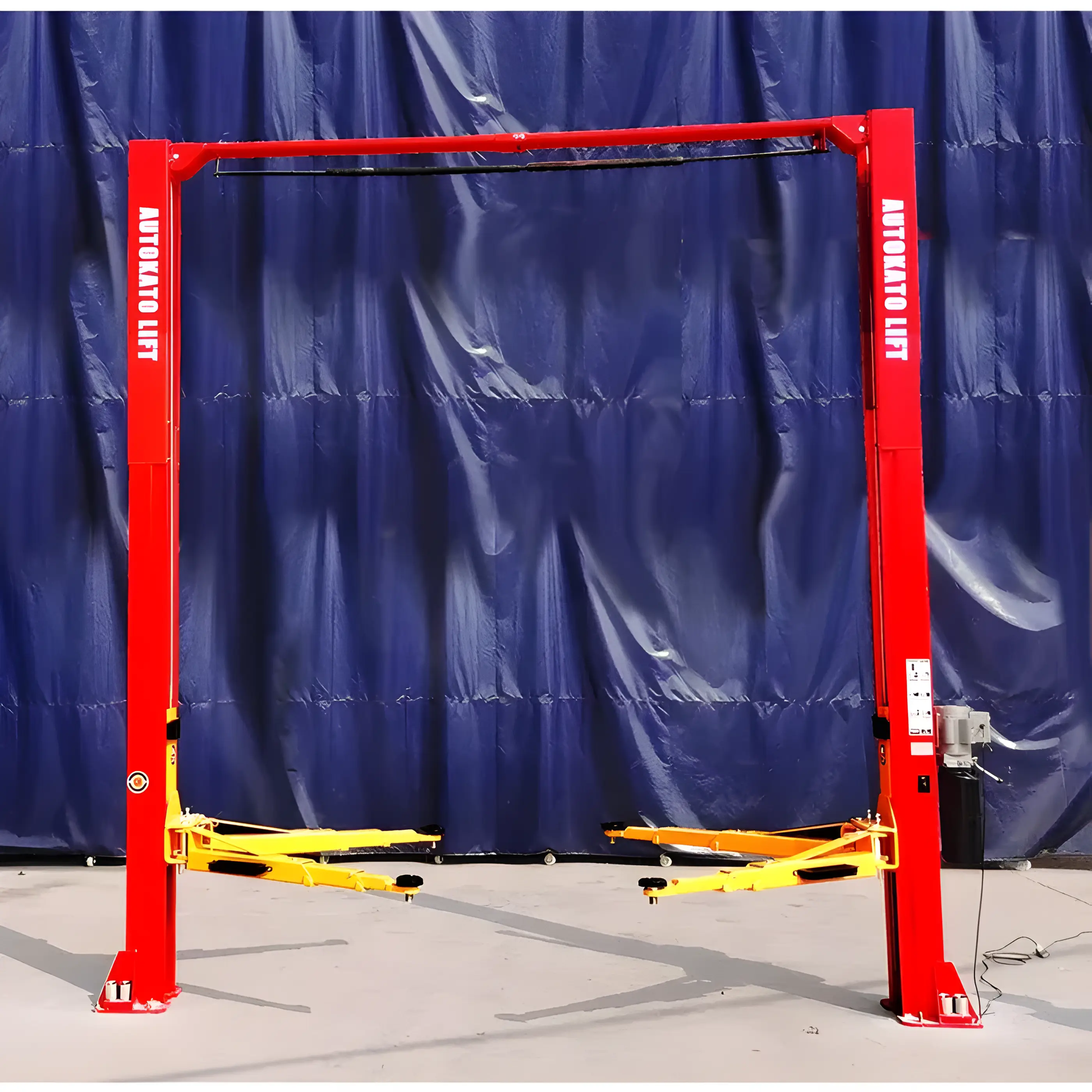

Katool KT-M120 Two Post Clear-Floor Vehicle Lift

The Katool KT-M120 Two Post Clear-Floor Vehicle Lift delivers unmatched strength and reliability for demanding automotive environments. With a robust 12,000 lbs (5,500 kg) lifting capacity, it’s purpose-built for workshops, garages, and service centers requiring both performance and safety. CE approved and certified, it meets 115% dynamic and 150% static loading capacity tests, proving its capability under rigorous conditions.

Engineered with precision and operator convenience in mind, the KT-M120 features a manual safety release from two sides, allowing smooth and controlled lift operations. Its symmetric arms ensure balanced vehicle support during lifting, while dual hydraulic chain-drive cylinders provide steady, synchronized motion for efficient operation. Together, these design elements deliver a secure, stable, and reliable lift every time.

For enhanced safety, the KT-M120 incorporates multiple protective features. The rubber pad door opening protection prevents vehicle damage during lift entry and exit, while the overhead safety shutoff bar automatically stops the lift to prevent accidental contact or overextension. The feet-protection safety guardrails, paired with an integrated toolbox, provide both operational safety and on-hand convenience for technicians working around the lift.

This model includes extended support adaptor sets of +30mm and +120mm, offering adjustable height support for vehicles with different underbody clearances. Whether you’re working with compact cars, SUVs, or light trucks, this adaptability ensures efficient and secure handling across various vehicle sizes.

The KT-M120 runs on a high-quality hydraulic system, available in 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations. This flexibility allows compatibility with multiple power setups, ensuring reliable and smooth performance for professional use. The hydraulic system is designed for long-term durability, minimizing maintenance while maximizing productivity.

Installation safety is crucial. The KT-M120 requires a minimum concrete thickness of 5.9 inches (150 mm) with a 3,000 PSI rating to ensure safe anchoring. Failure to meet these specifications could result in serious injury or equipment damage. Customers are responsible for verifying their site’s concrete specifications prior to installation to guarantee a secure setup.

Katool’s reputation for safety, engineering excellence, and performance is evident in the KT-M120. Every detail, from the dual safety locks to the symmetrical arm design, has been meticulously crafted to ensure operator confidence and consistent results. This lift is ideal for repair shops, maintenance facilities, or enthusiasts who demand professional-grade equipment that delivers precision, safety, and long-term reliability.

Key Features:

• 12,000 lbs (5,500 kg) Lifting Capacity: Handles heavy-duty vehicles with robust performance and stability.
• CE Approved & Certified: Meets 115% dynamic and 150% static loading capacity standards for safety.
• Dual-Side Manual Safety Release: Allows controlled and convenient lift operation.

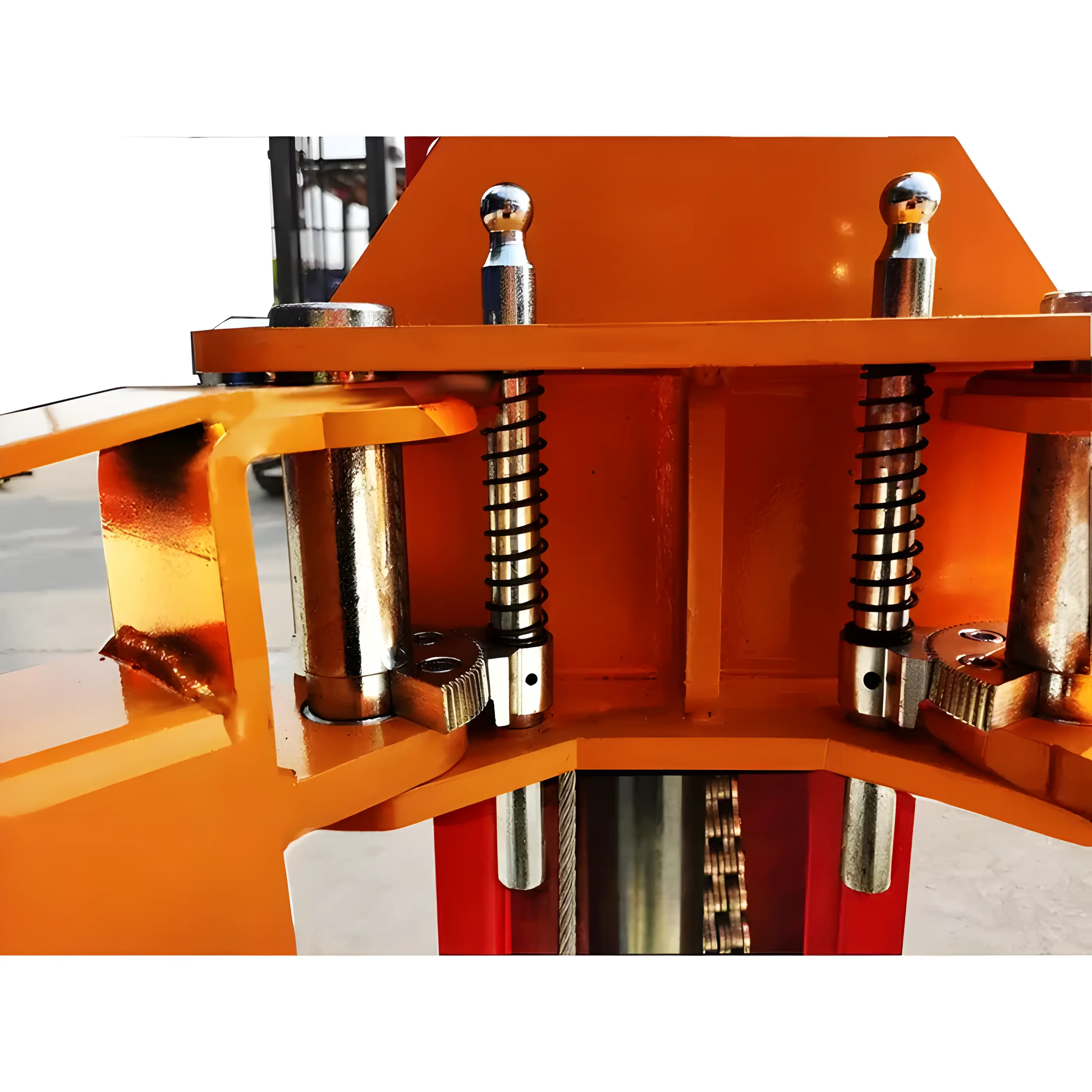

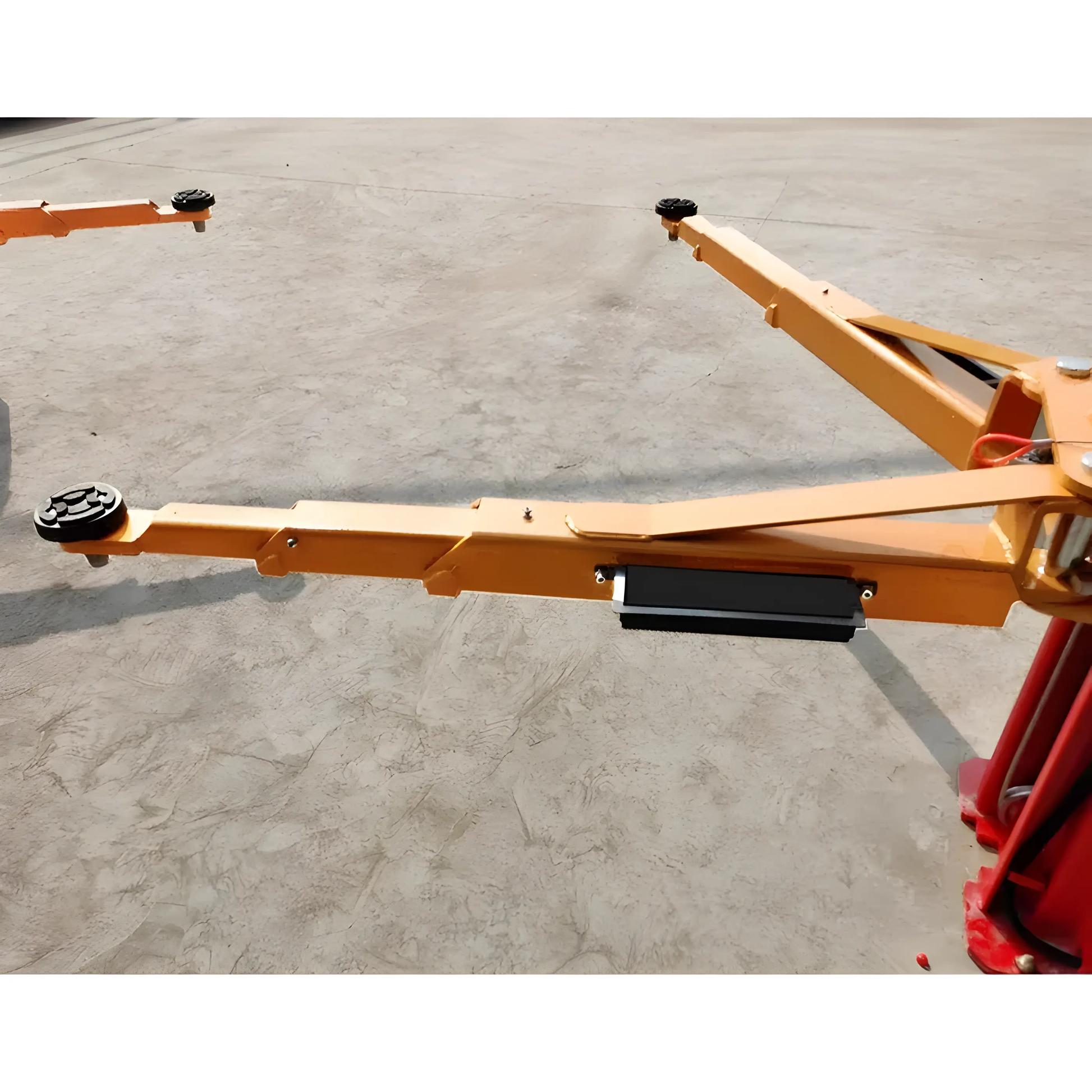

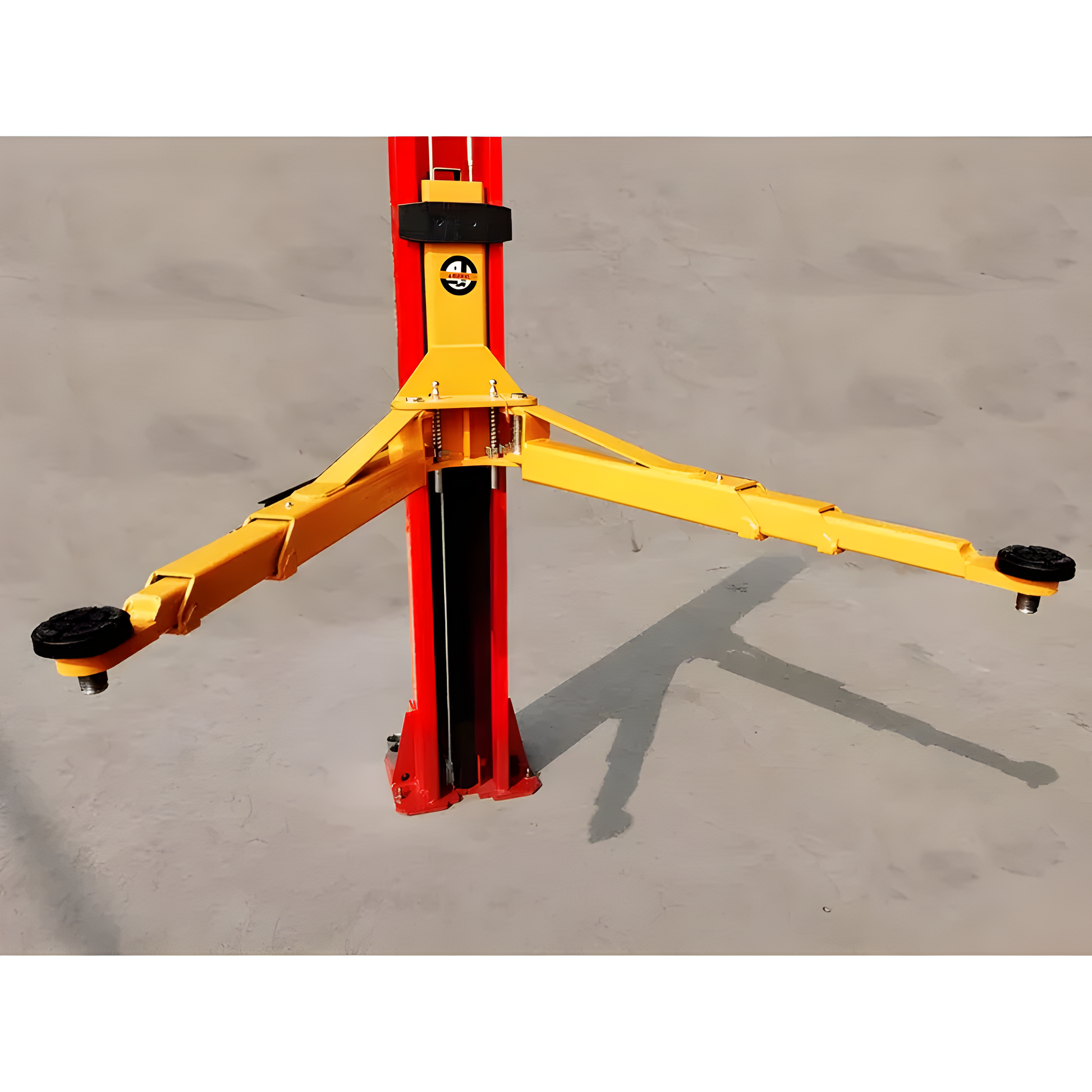

• Symmetric Arms: Ensure balanced support for various vehicle types.
• Dual Hydraulic Chain-Drive Cylinders: Provide smooth, reliable lifting performance.
• Rubber Pad Door Opening Protection: Prevents vehicle scratches and contact damage.
• Extended Support Adaptors (+30mm / +120mm): Adjustable to fit different underbody heights.
• Overhead Safety Shutoff Bar: Automatically halts lifting for added protection.
• Feet-Protection Guardrails with Toolbox: Combine safety with accessible tool storage.
• High-Quality Hydraulic System: Works with 220V or optional 110V configuration.

Specifications:

• Lifting Capacity: 12,000 lbs (5,500 kg)
• Max. Lifting Height: 70.75" (1,800 mm)
• Min. Height: 4.25" (110 mm)
• Height Overall: 166.75" (4,235 mm)
• Width Overall: 165.5" (4,204 mm)
• Outside Columns: 151.25" (3,840 mm)
• Inside Columns: 130" (3,390 mm)
• Drive Thru Clearance: 117.75" (2,990 mm)
• Motor: 220VAC/60HZ/1PH
• Net Weight: 1,653 lbs (750 kg)
