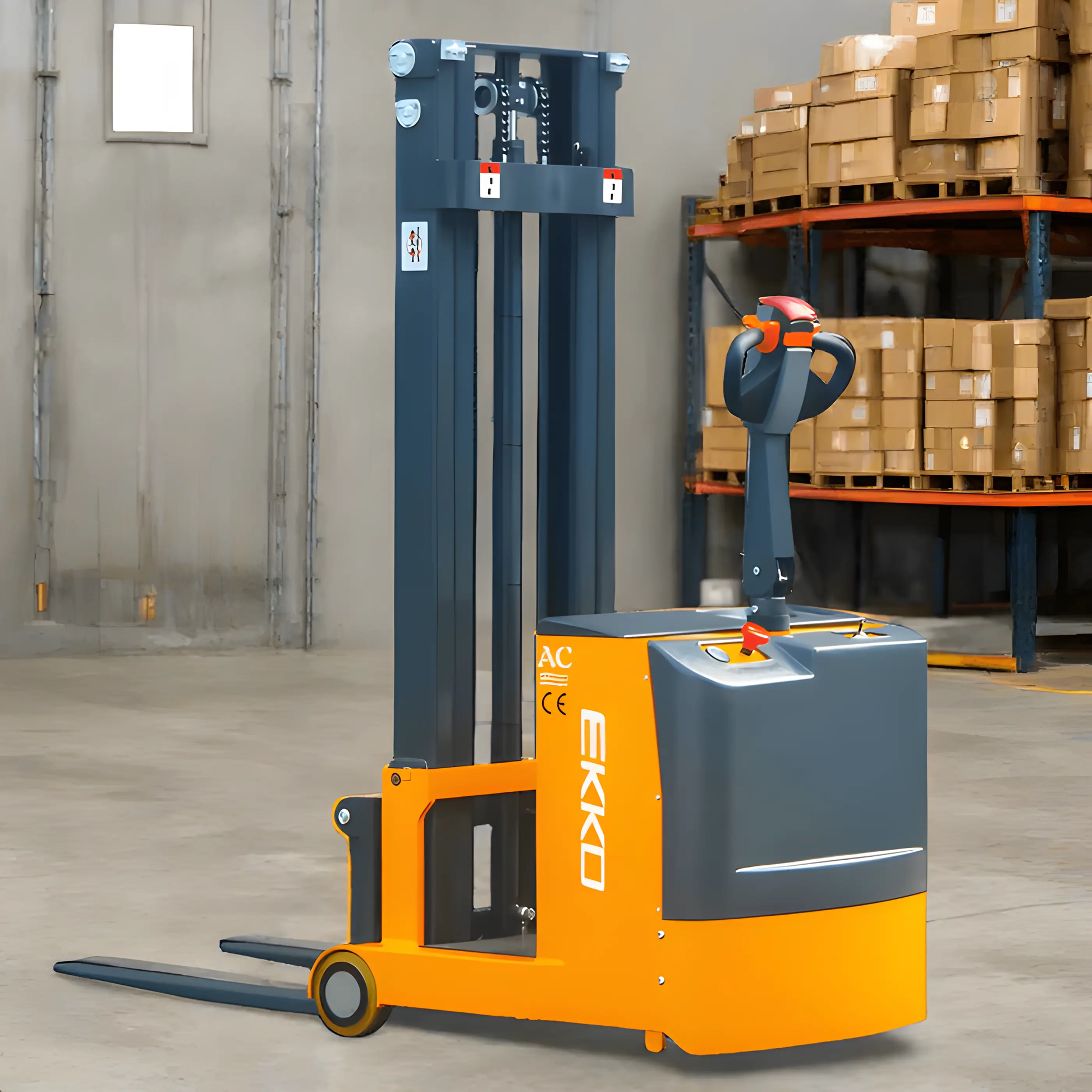

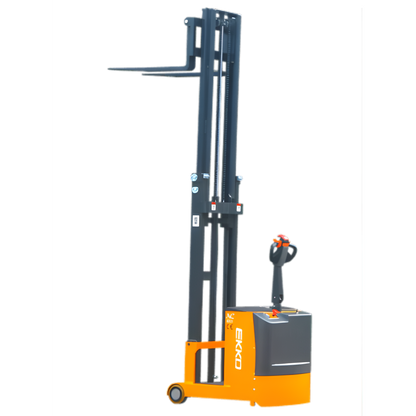

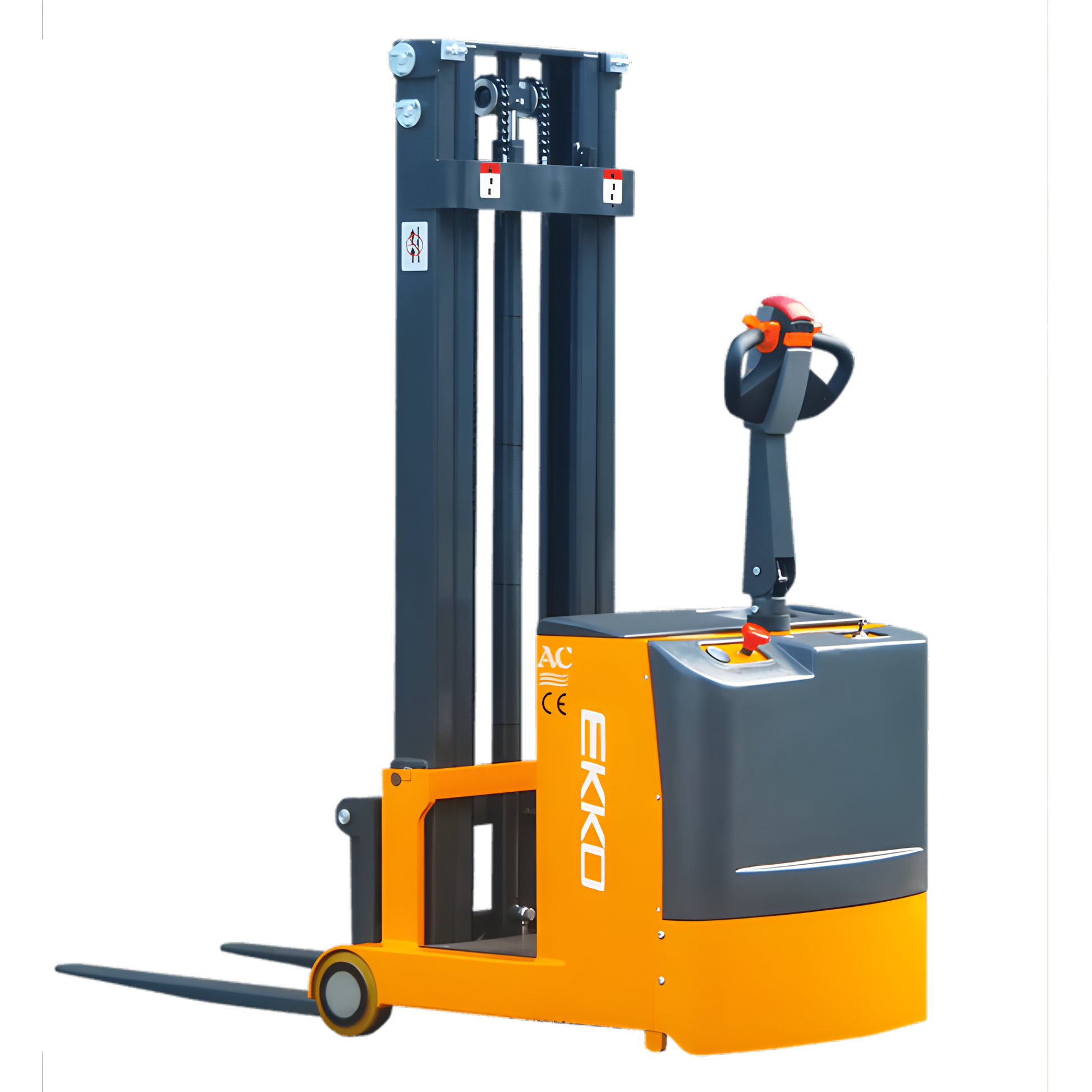

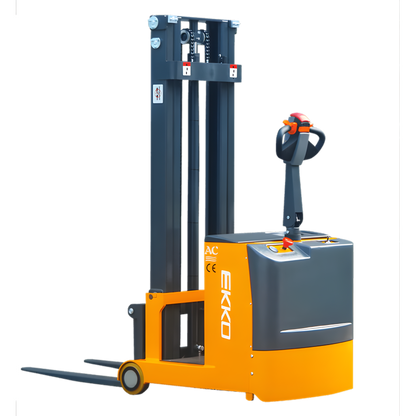

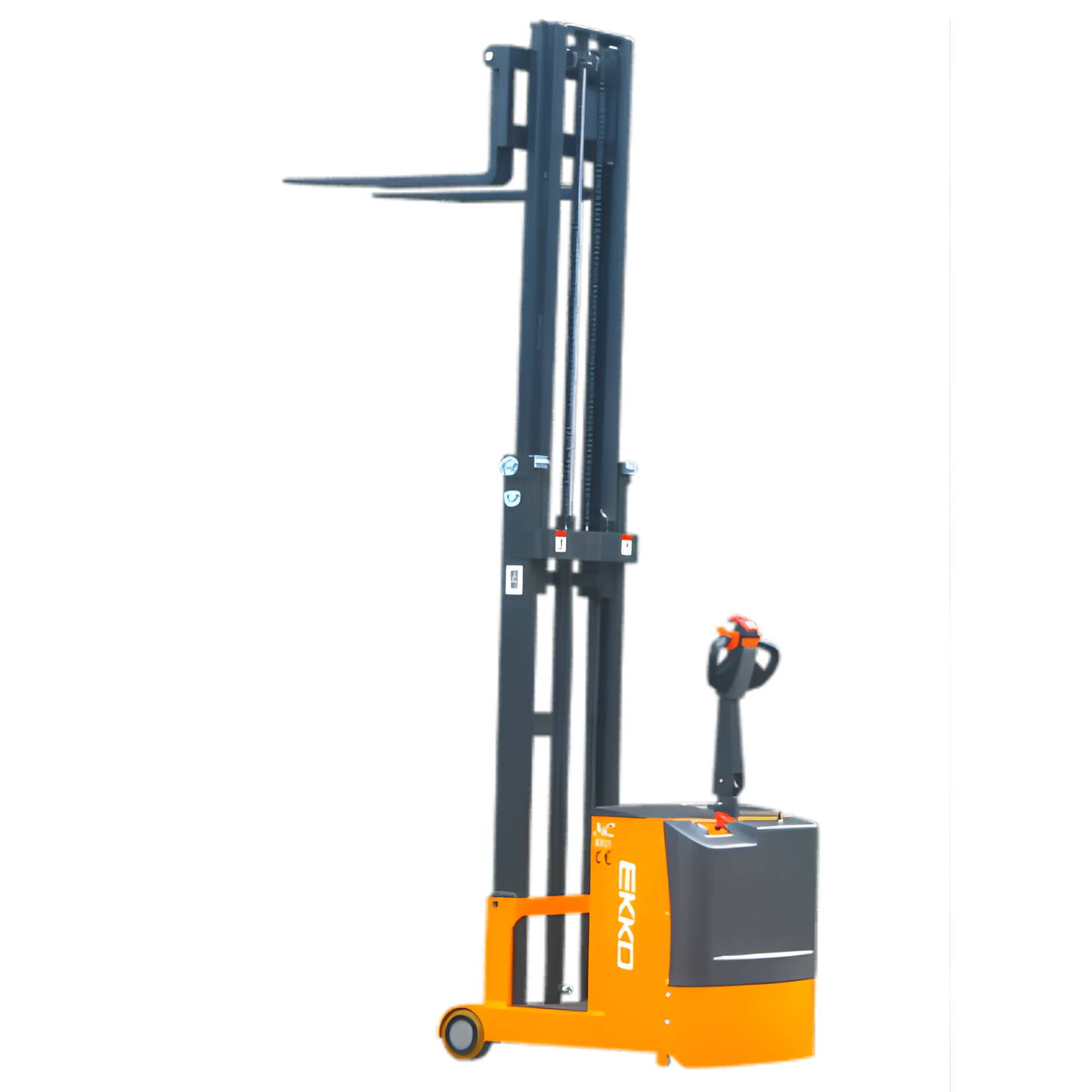

EKKO EK07S Counterbalance Walkie Stacker 1550lbs. Cap., 118" Height

Versatile Fully Powered Walkie Stacker

The EKKO EK07S is a fully powered counterbalance walkie stacker designed to merge the versatility of a forklift with the convenience of a walkie stacker. Perfect for warehouses, stock rooms, loading docks, and manufacturing floors, this stacker ensures smooth, safe, and precise handling of pallets, crates, and industrial materials. Its compact design allows easy navigation in narrow aisles, improving efficiency.

High Load Capacity and Lift Height
Capable of handling loads up to 1,550 lbs, the EK07S supports a wide range of material handling tasks with confidence. Its maximum lift height of 118 inches (9.83 ft) allows access to elevated racking systems, making it perfect for vertical storage in warehouses. Adjustable forks, ranging from 8.3 to 25.2 inches in width and 42 inches in length, provide secure handling for various load sizes while ensuring stability during lifting.

Precise Control with Curtis Controller
Equipped with a Curtis controller, the EK07S enables precise handling and safe operation. Operators can maneuver the stacker effortlessly in tight spaces while maintaining control over lift and lowering functions. This controller improves operational accuracy and reduces the risk of accidents during daily use.

Durable Construction for Long-Lasting Performance
Constructed from high-quality steel with robotic welding, the EK07S is designed to withstand frequent industrial use, impacts, and directional changes. The solid steel frame ensures reliable performance, long-lasting durability, and minimal maintenance over the stacker’s operational life.

Powerful Drive and Lift Motors
The stacker is powered by a 24V AC drive motor (0.75 kW) and a 24V lift motor (1.5 kW), providing smooth and reliable performance. The fully powered lifting mechanism reduces manual effort while maintaining consistent speed and precision for each operation, enhancing productivity.

Ergonomic and Safe Operation
Operator comfort and safety are prioritized through an ergonomic handle and controls, allowing efficient operation without fatigue. Polyurethane wheels provide smooth movement on indoor warehouse floors while protecting flooring surfaces. The compact turning radius of 51 inches enables precise navigation even in narrow aisles.

Onboard Charging and Battery System
The EK07S comes with an onboard 24V/20A charger and a 24V/120Ah battery, ensuring uninterrupted operation and easy recharging. This integrated battery system reduces downtime and allows the stacker to be ready for immediate use at any time.

Efficient Handling Features

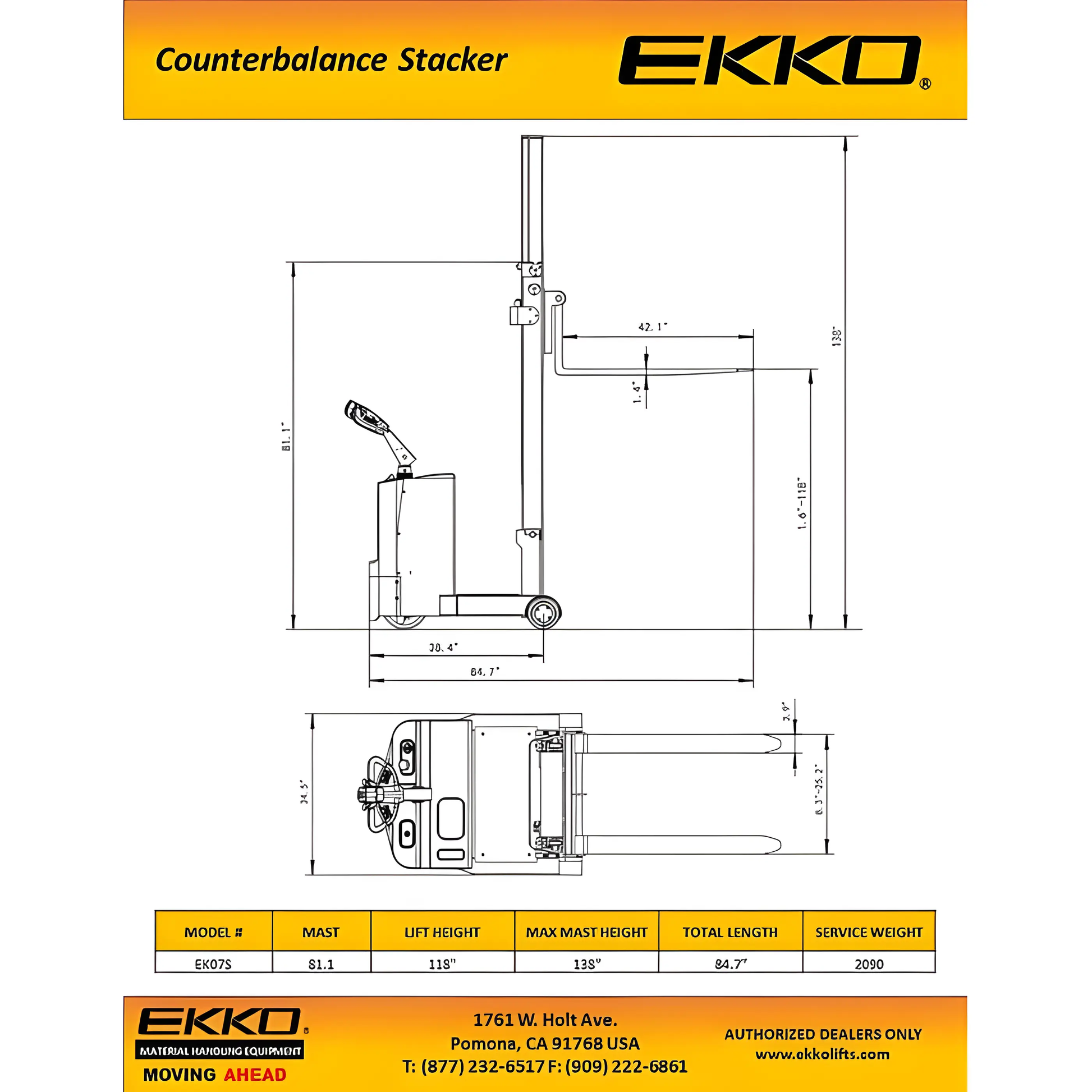

With adjustable fork widths and stable lifting performance, the stacker improves operational efficiency by minimizing load repositioning. Its lowered mast height of 81.1 inches ensures compatibility with overhead obstructions, while the overall dimensions provide compact storage when not in use.

Applications and Reliability
Ideal for warehouses, stock rooms, loading docks, and manufacturing facilities, the EK07S ensures safe, reliable, and efficient handling of materials. Its combination of robust steel construction, adjustable forks, AC motors, ergonomic design, and onboard charging system makes it a dependable choice for professional material handling tasks.

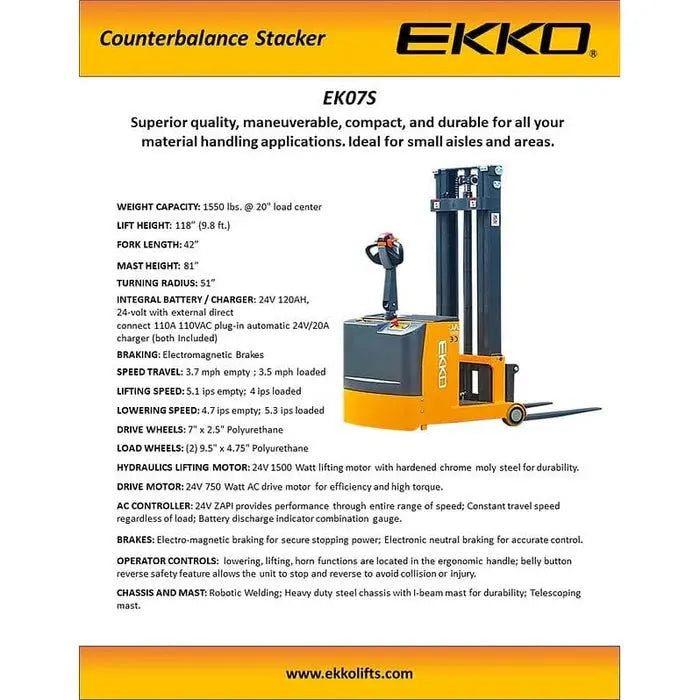

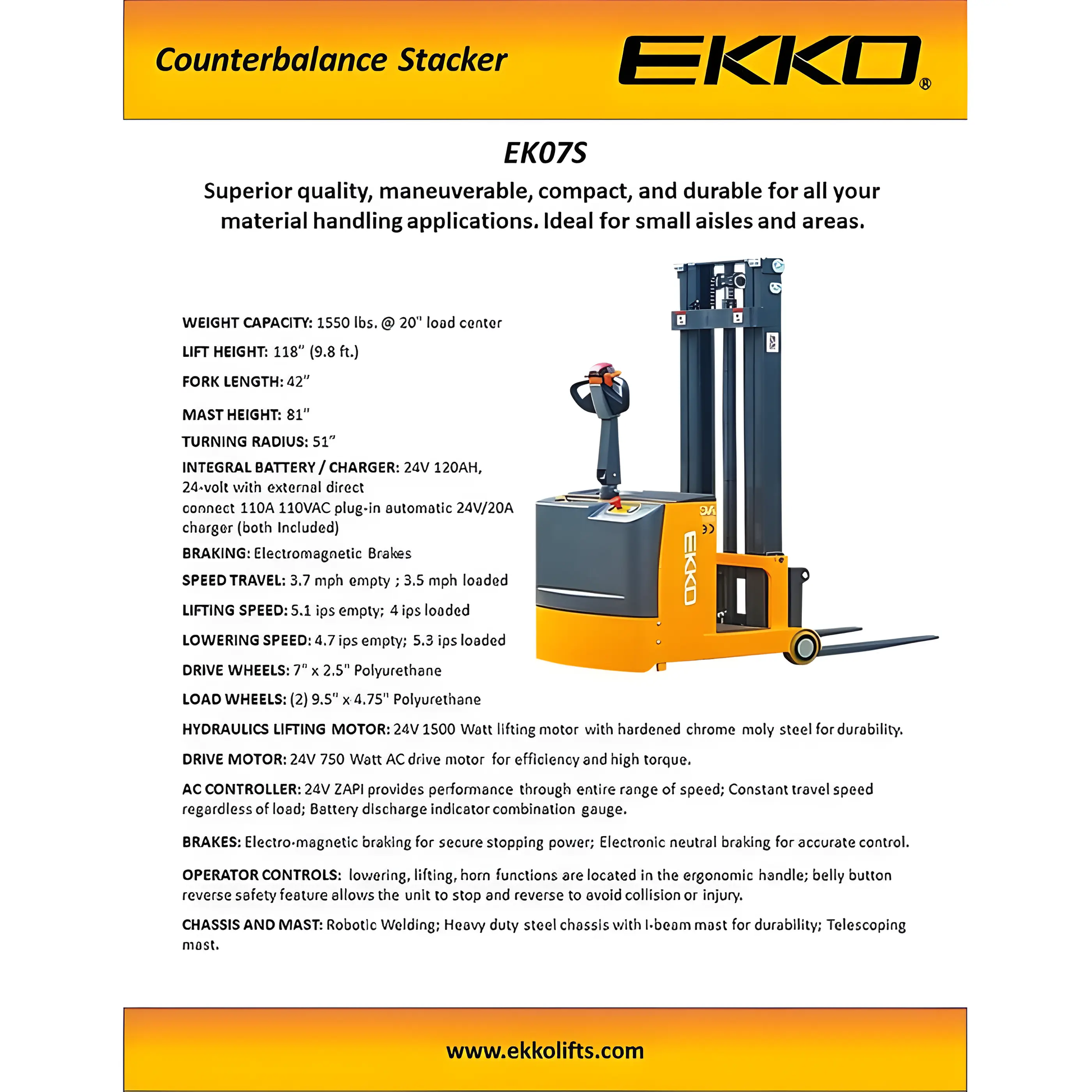

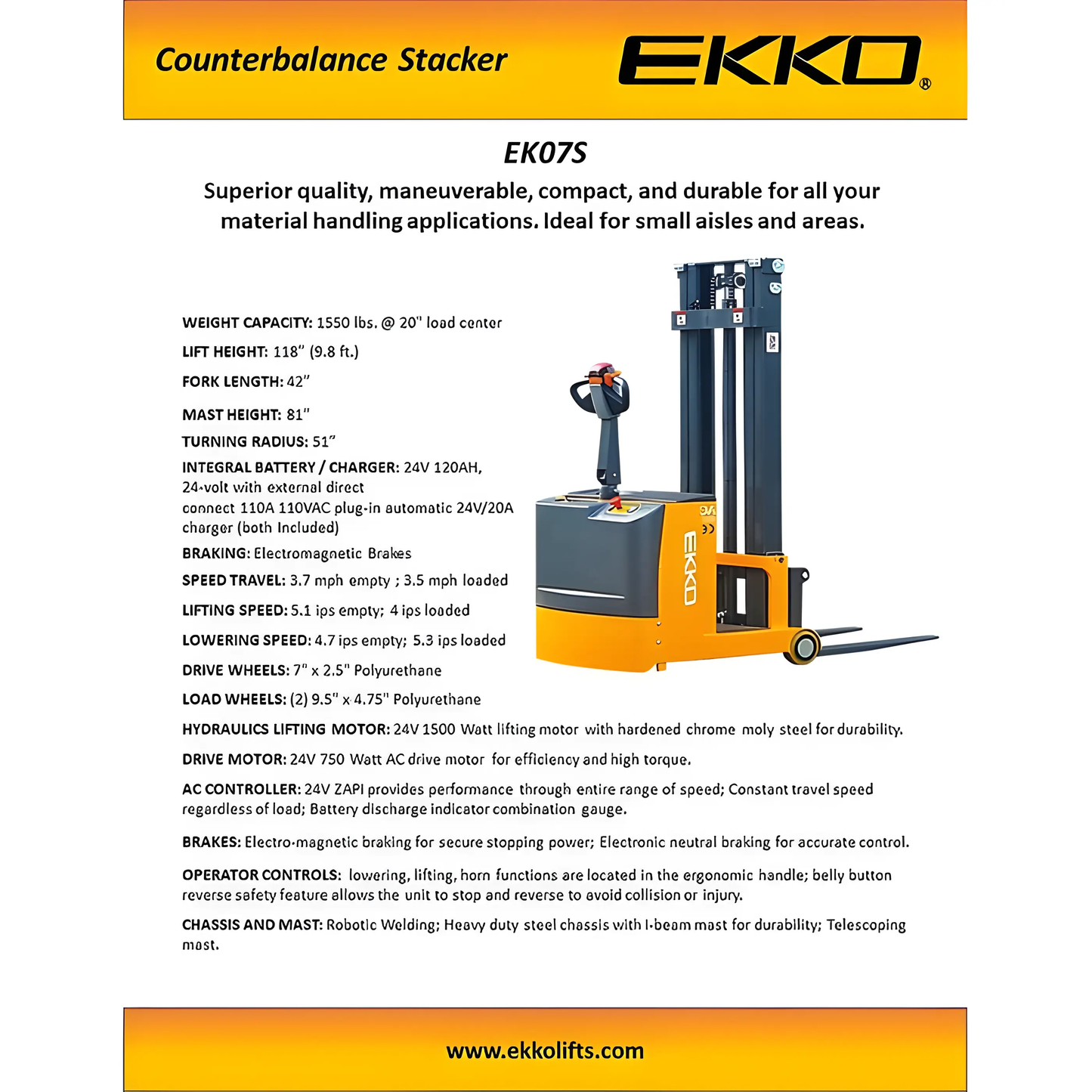

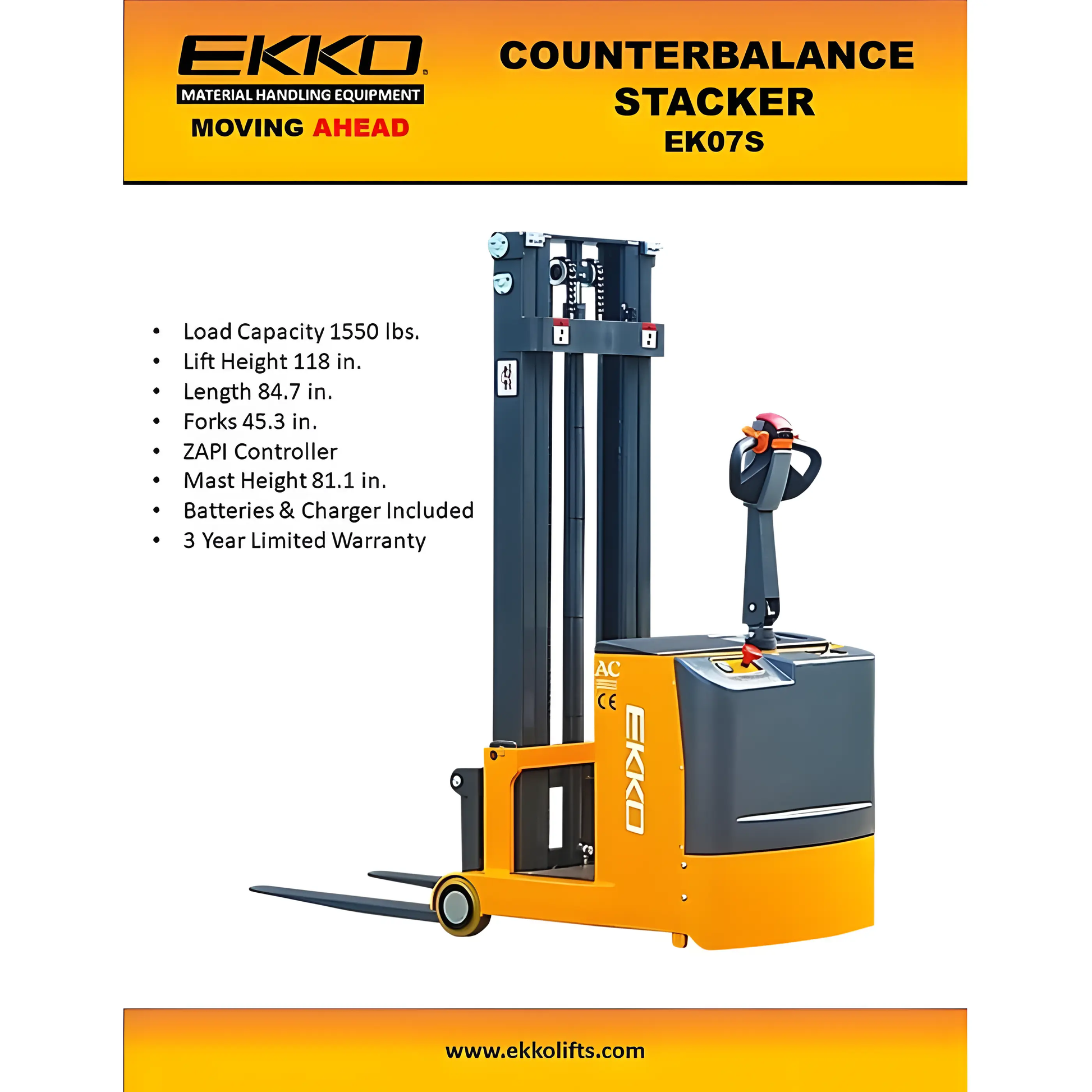

Key Features

• Load Capacity: 1,550 lbs for versatile warehouse handling.

• Maximum Lift Height: 118 inches (9.83 ft) for elevated storage access.

• Adjustable Forks: Width 8.3–25.2 in; length 42 in for varied loads.

• Durable Steel Construction: Robotic welding ensures long-lasting strength.

• Drive Motor: 24V AC 0.75 kW for smooth travel.

• Lift Motor: 24V 1.5 kW for consistent lifting performance.

• Ergonomic Handle: Comfortable and precise control.

• Wheels: Polyurethane for smooth and quiet movement.

• Onboard Charger & Battery: 24V/120Ah included for uninterrupted operation.

• Turning Radius: 51 in for maneuverability in tight spaces.

• Warranty: 3-year limited warranty for peace of mind.
